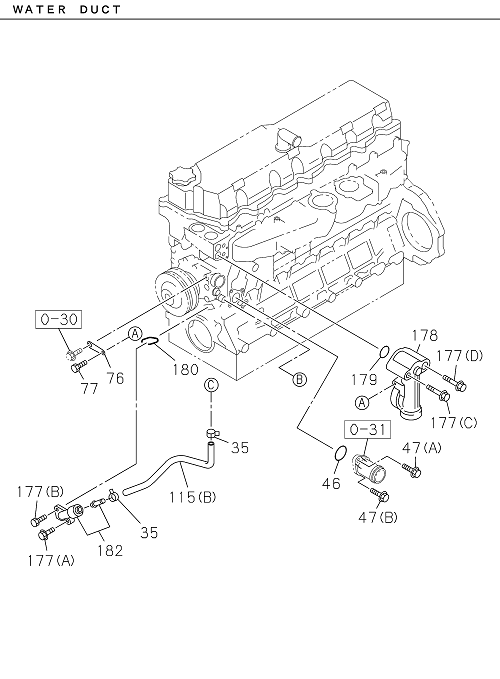

0-32 | WATER PIPING; ENGINE
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 047 | I0-28050 845-0 | BOLT; DUCT,TO OIL COOLER | 1 | 2203- | FVZ | (A) M8X45 FLANGE | ||
| 046 | I8-94396 680-2 | GASKET; WATER DUCT,TO OIL COOLER | 1 | 2203- | GVZ | ID=48.5 OD=53.3 | ||
| 206 | I8-98000 480-1 | PIPE; WATER,EGR COOLER | 1 | 2203- | FVZ | (A) | ||
| 177 | I8-94397 360-1 | BOLT; WATER DUCT | 1 | 2203- | GVZ | (D) M16X75 FLANGE | ||
| 115 | I8-97606 735-1 | HOSE; RUBBER | 1 | 2203- | FVZ | (D) | ||
| 179 | I8-98276 756-0 | GASKET; WATER DUCT | 1 | 2203- | FVZ | ID=31.2 | ||
| 031 | I0-28050 645-0 | BOLT; CLIP | 1 | 2203- | GVZ | (A) M6X45 FLANGE | ||
| 126 | I8-98251 345-0 | GASKET; CAP NUT | 6 | 2203- | GVZ | (A) ID=14.2 OD=19.2 | ||
| 115 | I8-97606 735-1 | HOSE; RUBBER | 1 | 2203- | FVZ | (A) | ||
| 127 | I1-09675 193-0 | BOLT; EYE | 3 | 2203- | GVZ | (A) M14X27 EYE-BOLT | ||
| 177 | I8-94397 360-1 | BOLT; WATER DUCT | 1 | 2203- | FVZ | (D) M16X75 FLANGE | ||
| 025 | I0-28050 812-A | BOLT; WATER PIPE | 1 | 2203- | GVZ | (B) M8X12 FLANGE | ||
| 077 | I0-28050 850-0 | BOLT; BRKT,WATER DUCT | 1 | 2203- | FVZ | M8X50 FLANGE | ||
| 180 | I8-94396 720-1 | GASKET; WATER DUCT | 1 | 2203- | GVZ | |||
| 031 | I0-28650 640-0 | BOLT; CLIP | 3 | 2203- | FVZ | (B) M6X40 FLANGE | ||
| 025 | I0-28050 812-A | BOLT; WATER PIPE | 1 | 2203- | FVZ | (B) M8X12 FLANGE | ||
| 035 | I8-98127 648-0 | CLIP; RUBBER HOSE | 10 | 2203- | GVZ | ID=20 | ||
| 091 | I1-09630 086-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 2203- | GVZ | (B) ID=16.2 OD=22 | ||
| 094 | I8-97605 129-1 | CLIP; WATER PIPE | 8 | 2203- | GVZ | |||
| 033 | I0-28650 820-0 | BOLT; BRKT | 2 | 2203- | FVZ | (A) M8X20 FLANGE | ||
| 180 | I8-94396 720-1 | GASKET; WATER DUCT | 1 | 2203- | FVZ | |||
| 206 | I8-98000 480-1 | PIPE; WATER,EGR COOLER | 1 | 2203- | GVZ | (A) | ||
| 090 | I8-94383 489-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 2203- | GVZ | (B) M16X28 EYE-BOLT | ||
| 031 | I0-28650 640-0 | BOLT; CLIP | 3 | 2203- | GVZ | (B) M6X40 FLANGE | ||
| 115 | I8-97606 735-1 | HOSE; RUBBER | 1 | 2203- | GVZ | (D) | ||
| 177 | I1-09044 072-1 | BOLT; WATER DUCT | 1 | 2203- | FVZ | (A) M8X65 FLANGE | ||
| 076 | I8-94394 784-0 | BRACKET; WATER DUCT,PUMP | 1 | 2203- | FVZ | |||
| 177 | I0-28650 825-0 | BOLT; WATER DUCT | 1 | 2203- | FVZ | (B) M8X25 FLANGE | ||
| 091 | I1-09630 086-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 2203- | FVZ | (B) ID=16.2 OD=22 | ||
| 126 | I8-98251 345-0 | GASKET; CAP NUT | 6 | 2203- | FVZ | (A) ID=14.2 OD=19.2 | ||
| 090 | I1-09675 193-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 2203- | FVZ | (A) M14X27 EYE-BOLT | ||
| 206 | I8-97604 928-2 | PIPE; WATER,EGR COOLER | 1 | 2203- | GVZ | (B) | ||
| 025 | I0-28650 820-0 | BOLT; WATER PIPE | 1 | 2203- | GVZ | (A) M8X20 FLANGE | ||
| 178 | I8-94396 627-3 | DUCT; WATER,BYPASS | 1 | 2203- | GVZ | |||
| 177 | I0-28650 825-0 | BOLT; WATER DUCT | 1 | 2203- | GVZ | (B) M8X25 FLANGE | ||
| 090 | I8-94383 489-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 2203- | FVZ | (B) M16X28 EYE-BOLT | ||
| 127 | I1-09675 193-0 | BOLT; EYE | 3 | 2203- | FVZ | (A) M14X27 EYE-BOLT | ||
| 178 | I8-94396 627-3 | DUCT; WATER,BYPASS | 1 | 2203- | FVZ | |||
| 177 | I1-09044 072-1 | BOLT; WATER DUCT | 1 | 2203- | GVZ | (A) M8X65 FLANGE | ||
| 031 | I0-28050 645-0 | BOLT; CLIP | 1 | 2203- | FVZ | (A) M6X45 FLANGE | ||
| 024 | I8-98051 626-1 | BRACKET; WATER PIPE | 1 | 2203- | GVZ | (B) | ||
| 024 | I8-98000 557-2 | BRACKET; WATER PIPE | 1 | 2203- | FVZ | (A) | ||
| 033 | I0-28050 816-0 | BOLT; BRKT | 1 | 2203- | FVZ | (B) M8X16 FLANGE | ||
| 047 | I0-28650 825-0 | BOLT; DUCT,TO OIL COOLER | 1 | 2203- | GVZ | (B) M8X25 FLANGE | ||
| 024 | I8-98000 557-2 | BRACKET; WATER PIPE | 1 | 2203- | GVZ | (A) | ||
| 177 | I0-28050 880-0 | BOLT; WATER DUCT | 1 | 2203- | GVZ | (C) M8X80 FLANGE | ||
| 182 | I8-94396 727-3 | DUCT; WATER,HTR | 1 | 2203- | GVZ | |||
| 115 | I8-97606 749-0 | HOSE; RUBBER | 2 | 2203- | FVZ | (C) | ||
| 063 | I8-98046 784-0 | BRACKET; WATER PIPE | 1 | 2203- | FVZ | |||
| 127 | I8-94383 489-0 | BOLT; EYE | 1 | 2203- | FVZ | (B) M16X28 EYE-BOLT | ||
| 091 | I8-98251 345-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 2203- | GVZ | (A) ID=14.2 OD=19.2 | ||
| 046 | I8-94396 680-2 | GASKET; WATER DUCT,TO OIL COOLER | 1 | 2203- | FVZ | ID=48.5 OD=53.3 | ||
| 035 | I8-98127 648-0 | CLIP; RUBBER HOSE | 10 | 2203- | FVZ | ID=20 | ||
| 047 | I0-28650 825-0 | BOLT; DUCT,TO OIL COOLER | 1 | 2203- | FVZ | (B) M8X25 FLANGE | ||
| 089 | I8-97610 086-0 | PIPE; WATER,AIR CMPR,IN | 1 | 2203- | GVZ | |||
| 033 | I0-28050 816-0 | BOLT; BRKT | 1 | 2203- | GVZ | (B) M8X16 FLANGE | ||
| 179 | I8-98276 756-0 | GASKET; WATER DUCT | 1 | 2203- | GVZ | ID=31.2 | ||
| 091 | I8-98251 345-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 2203- | FVZ | (A) ID=14.2 OD=19.2 | ||
| 047 | I0-28050 845-0 | BOLT; DUCT,TO OIL COOLER | 1 | 2203- | GVZ | (A) M8X45 FLANGE | ||
| 063 | I8-98046 784-0 | BRACKET; WATER PIPE | 1 | 2203- | GVZ | |||
| 090 | I1-09675 193-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 2203- | GVZ | (A) M14X27 EYE-BOLT | ||
| 076 | I8-94394 784-0 | BRACKET; WATER DUCT,PUMP | 1 | 2203- | GVZ | |||
| 182 | I8-94396 727-3 | DUCT; WATER,HTR | 1 | 2203- | FVZ | |||
| 024 | I8-98051 626-1 | BRACKET; WATER PIPE | 1 | 2203- | FVZ | (B) | ||
| 126 | I1-09630 086-0 | GASKET; CAP NUT | 2 | 2203- | GVZ | (B) ID=16.2 OD=22 | ||
| 094 | I8-97605 129-1 | CLIP; WATER PIPE | 8 | 2203- | FVZ | |||
| 115 | I8-97618 843-0 | HOSE; RUBBER | 1 | 2203- | FVZ | (B) | ||
| 127 | I8-94383 489-0 | BOLT; EYE | 1 | 2203- | GVZ | (B) M16X28 EYE-BOLT | ||
| 126 | I1-09630 086-0 | GASKET; CAP NUT | 2 | 2203- | FVZ | (B) ID=16.2 OD=22 | ||
| 033 | I0-28650 820-0 | BOLT; BRKT | 2 | 2203- | GVZ | (A) M8X20 FLANGE | ||
| 115 | I8-97606 735-1 | HOSE; RUBBER | 1 | 2203- | GVZ | (A) | ||
| 115 | I8-97618 843-0 | HOSE; RUBBER | 1 | 2203- | GVZ | (B) | ||
| 077 | I0-28050 850-0 | BOLT; BRKT,WATER DUCT | 1 | 2203- | GVZ | M8X50 FLANGE | ||
| 115 | I8-97606 749-0 | HOSE; RUBBER | 2 | 2203- | GVZ | (C) | ||
| 025 | I0-28650 820-0 | BOLT; WATER PIPE | 1 | 2203- | FVZ | (A) M8X20 FLANGE | ||
| 177 | I0-28050 880-0 | BOLT; WATER DUCT | 1 | 2203- | FVZ | (C) M8X80 FLANGE | ||
| 206 | I8-97604 928-2 | PIPE; WATER,EGR COOLER | 1 | 2203- | FVZ | (B) | ||
| 089 | I8-97610 086-0 | PIPE; WATER,AIR CMPR,IN | 1 | 2203- | FVZ |
