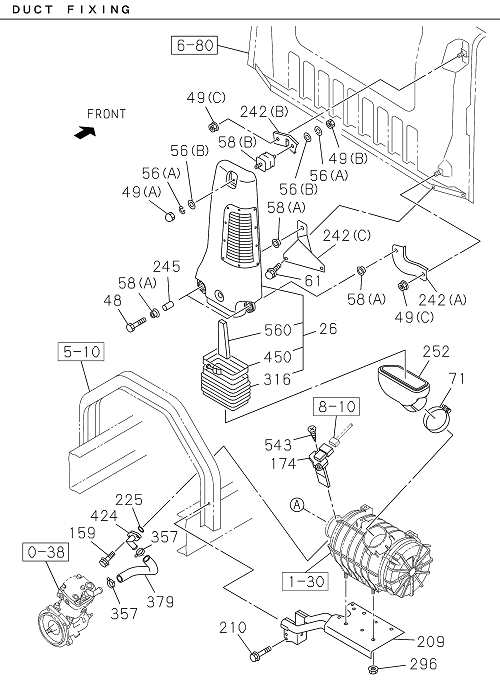

1-31 | AIR DUCT
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 357 | I8-94342 958-0 | CLIP; RUBBER HOSE | 2 | 2203- | GVZ | ID=26 | ||
| 058 | I8-98125 944-A | SUPPORT; AIR INL DUCT | 1 | 2203- | GVZ | (B) | ||
| 049 | I8-94327 073-0 | NUT; AIR DUCT | 2 | 2203- | GVZ | (C) M8 FLANGE | ||
| 174 | I8-97601 967-0 | SENSOR; AIR FLOW CONT | 1 | 2203- | GVZ | |||
| 245 | I1-79998 228-0 | PIECE; DIST,AIR DUCT | 2 | 2203- | GVZ | |||
| 242 | I8-98019 301-3 | BRACKET; AIR DUCT | 1 | 2203- | GVZ | (B) | ||
| 560 | I8-98061 675-0 | FILTER; VERTICAL DUCT | 1 | 2203- | GVZ | |||
| 488 | I8-97950 126-A | HOSE; RUBBER,PIPE | 1 | 2203- | GVZ | |||
| 242 | I8-98019 302-1 | BRACKET; AIR DUCT | 1 | 2203- | GVZ | (C) | ||
| 379 | I8-98077 469-0 | HOSE; RUBBER | 1 | 2203- | GVZ | |||
| 252 | I8-98314 059-0 | DUCT; AIR INT | 1 | 2203- | GVZ | |||
| 316 | I8-98152 269-0 | RUBBER; CUSHION,DUCT | 1 | 2203- | GVZ | |||
| 353 | I8-98141 459-0 | CLIP; RUBBER HOSE | 8 | 2203- | GVZ | ID=55-75 | ||
| 056 | I0-91610 708-0 | WASHER; LK,AIR INT DUCT | 2 | 2203- | GVZ | (B) ID=8.4 OD=22 | ||
| 005 | I8-98308 276-0 | CLIP; AIR DUCT | 1 | 2203- | GVZ | (A) ID=110-130 | ||
| 548 | I8-97653 586-A | HOSE; RUBBER,TURBO TO INL PIPE | 1 | 2203- | GVZ | |||
| 225 | I1-09623 057-0 | GASKET; AIR PIPE | 1 | 2203- | GVZ | ID=24.4 | ||
| 450 | I1-09707 157-0 | CLAMP; HOSE | 1 | 2203- | GVZ | |||
| 543 | I0-36230 410-0 | SCREW; SENSOR | 2 | 2203- | GVZ | M4X10 W/LK&PL WASHER | ||
| 058 | I1-14119 267-0 | SUPPORT; AIR INL DUCT | 4 | 2203- | GVZ | (A) OD=40 T=18.5 | ||
| 210 | I0-28651 025-0 | BOLT; ACL BRKT | 4 | 2203- | GVZ | M10X25 FLANGE | ||
| 242 | I8-98019 304-1 | BRACKET; AIR DUCT | 1 | 2203-2408 | GVZ | (A) | ||
| 424 | I8-98081 834-0 | PIPE; AIR,INL | 1 | 2203- | GVZ | |||
| 071 | I8-98308 277-0 | CLIP; AIR DUCT | 1 | 2203- | GVZ | ID=120-140 | ||
| 242 | I7-55200 432-0 | BRACKET; AIR DUCT | 1 | 2409- | GVZ | (A) | ||
| 159 | I0-28050 616-0 | BOLT; AIR PIPE | 2 | 2203- | GVZ | M6X16 FLANGE | ||
| 296 | I0-91180 108-0 | NUT; ACL | 4 | 2203- | GVZ | M8 FLANGE | ||
| 320 | I8-98322 318-A | HOSE; CONN,ACL | 1 | 2203- | GVZ | |||
| 061 | I8-98074 570-0 | BOLT; BRKT,AIR DUCT | 2 | 2203- | GVZ | M8X25 FLANGE | ||
| 049 | I0-91110 508-0 | NUT; AIR DUCT | 1 | 2203- | GVZ | (B) M8 | ||
| 005 | I8-15178 030-0 | CLIP; AIR DUCT | 1 | 2203- | GVZ | (C) ID=114 | ||
| 056 | I1-09985 177-0 | WASHER; LK,AIR INT DUCT | 2 | 2203- | GVZ | (A) ID=8.2 | ||
| 049 | I1-09984 126-0 | NUT; AIR DUCT | 1 | 2203- | GVZ | (A) M8 CAP NUT | ||
| 005 | I8-98133 366-0 | CLIP; AIR DUCT | 1 | 2203- | GVZ | (B) ID=100-120 | ||
| 209 | I8-98333 876-0 | BRACKET; ACL | 1 | 2203- | GVZ | |||
| 048 | I1-09030 044-1 | BOLT; AIR DUCT | 2 | 2203- | GVZ | M10X60 | ||
| 026 | I8-98010 361-2 | DUCT; AIR INT | 1 | 2203- | GVZ |
