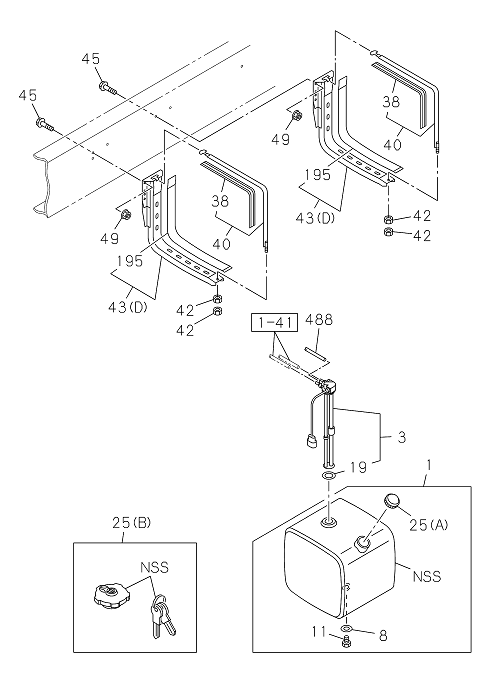

1-40 | FUEL TANK
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 019 | I8-98299 580-0 | GASKET; FUEL TANK UNIT | 1 | 2203- | GVZ | ID=54.5 | ||
| 022 | I8-98099 320-0 | UNIT; FUEL TANK | 1 | 2203- | FVZ | |||
| 049 | I0-91180 212-0 | NUT; BRKT | 12 | 2203- | FVZ | M12 FLANGE | ||
| 003 | I8-98217 749-0 | UNIT; FUEL TANK,SUB | 1 | 2203- | GVZ | |||
| 043 | I7-56401 303-A | BRACKET; FUEL TANK | 2 | 2203- | FVZ | (C) | ||
| 038 | I1-22553 039-1 | INSULATION; SUPPORT BELT | 2 | 2203- | GVZ | L=1156 | ||
| 011 | I0-92002 418-0 | PLUG; DRAIN,FUEL TANK | 1 | 2203- | GVZ | M18X12 | ||
| 043 | I8-97520 474-A | BRACKET; FUEL TANK | 2 | 2203- | FVZ | (A) | ||
| 045 | I0-28651 240-0 | BOLT; BRKT,FUEL TANK | 20 | 2203- | FVZ | M12X40 FLANGE | ||
| 042 | I0-91110 510-0 | NUT; SUPPORT BELT | 4 | 2203- | FVZ | M10 | ||
| 043 | I7-56401 302-A | BRACKET; FUEL TANK | 2 | 2203- | FVZ | (B) | ||
| 001 | I1-87412 051-0 | TANK; FUEL | 1 | 2203- | GVZ | |||
| 008 | I8-98030 453-0 | GASKET; DRAIN PLUG,FUEL TANK | 1 | 2203- | GVZ | ID=18.2 T=1.6 | ||
| 043 | I8-97499 204-0 | BRACKET; FUEL TANK | 2 | 2203- | GVZ | (D) | ||
| 025 | I1-22440 057-2 | CAP; FILLER,FUEL TANK | 1 | 2203- | GVZ | (B) | ||
| 049 | I0-91180 212-0 | NUT; BRKT | 12 | 2203- | GVZ | M12 FLANGE | ||
| 043 | I7-56401 304-A | BRACKET; FUEL TANK | 2 | 2203- | FVZ | (B) FVZ MIXER; FVZ MIXER | ||
| 040 | I8-97520 472-A | BELT; SUPPORT,FUEL TANK | 2 | 2203- | FVZ | L=869 | ||
| 049 | I0-91110 514-0 | NUT; BRKT | 8 | 2203- | FVZ | M14 | ||
| 019 | I5-83148 001-0 | GASKET; FUEL TANK UNIT | 1 | 2203- | FVZ | ID=42 OD=71 | ||
| 025 | I1-22440 056-0 | CAP; FILLER,FUEL TANK | 1 | 2203- | GVZ | (A) | ||
| 035 | I0-36220 512-0 | SCREW; FUEL TANK UNIT | 5 | 2203- | FVZ | M5X12 W/LK WASHER | ||
| 042 | I0-91110 510-0 | NUT; SUPPORT BELT | 4 | 2203- | GVZ | M10 | ||
| 488 | I0-04750 300-0 | HOSE; RUBBER | 1 | 2203- | GVZ | L=340 SERVICED BY L=3000 | ||
| 043 | I7-56401 305-A | BRACKET; FUEL TANK | 2 | 2203- | FVZ | (C) FVZ MIXER; FVZ MIXER | ||
| 045 | I0-28851 445-0 | BOLT; BRKT,FUEL TANK | 8 | 2203- | GVZ | M14X45 FLANGE | ||
| 049 | I0-91110 514-0 | NUT; BRKT | 8 | 2203- | GVZ | M14 | ||
| 001 | I7-56200 321-A | TANK; FUEL | 1 | 2203- | FVZ | |||
| 040 | I8-98240 574-0 | BELT; SUPPORT,FUEL TANK | 2 | 2203- | GVZ | |||
| 195 | I8-98172 673-1 | RUBBER; CUSHION,TANK CARRIER | 2 | 2203- | GVZ |
