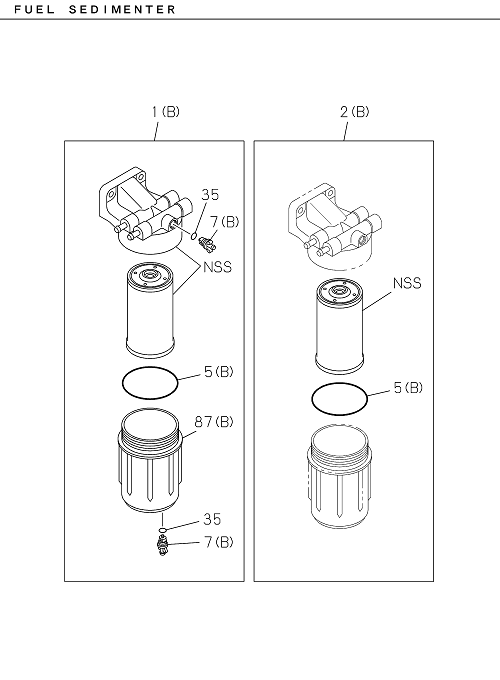

1-45 | WATER SEDIMENTER; FUEL
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 005 | I8-98203 600-0 | GASKET; UPR COVER,SEDIMENTER | 1 | 2203- | GVZ | (A) | ||
| 007 | I8-98325 750-0 | PLUG; DRAIN,SEDIMENTER | 2 | 2203- | GVZ | (B) | ||
| 001 | I8-97542 536-0 | SEDIMENTER; FUEL | 1 | 2203- | GVZ | (A) | ||
| 035 | I8-98325 749-0 | GASKET; DRAIN PLUG | 2 | 2203- | GVZ | |||
| 007 | I8-98034 312-0 | PLUG; DRAIN,SEDIMENTER | 1 | 2203- | GVZ | (A) M8X10 | ||
| 002 | I8-97542 540-0 | ELEMENT; FUEL FILTER | 1 | 2203- | GVZ | (A) MAIN-FILTER | ||
| 002 | I8-97653 013-0 | ELEMENT; FUEL FILTER | 1 | 2203- | GVZ | (B) PRE-FILTER | ||
| 001 | I8-97651 751-0 | SEDIMENTER; FUEL | 1 | 2203- | GVZ | (B) | ||
| 087 | I8-98489 524-0 | CASE ASM; SEDIMENTER | 1 | 2203- | GVZ | (B) | ||
| 037 | I8-98037 095-0 | PLUG; SENSOR | 1 | 2203- | GVZ | |||
| 092 | I8-98034 314-0 | CAP; DRAIN | 1 | 2203- | GVZ | |||
| 002 | I8-97653 013-A | ELEMENT; FUEL FILTER | 1 | 2203- | GVZ | (IADG) (B) PRE-FILTER | ||
| 002 | I8-98162 897-A | ELEMENT; FUEL FILTER | 1 | 2203- | GVZ | (IADG) (A) MAIN-FILTER | ||
| 087 | I8-98039 987-1 | CASE ASM; SEDIMENTER | 1 | 2203- | GVZ | (A) | ||
| 005 | I8-97653 014-0 | GASKET; UPR COVER,SEDIMENTER | 1 | 2203- | GVZ | (B) |
