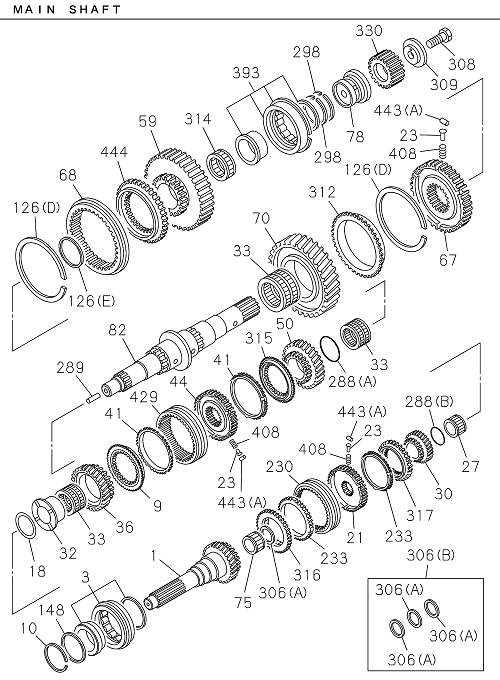

| 018 |
I1-33269 112-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.20 |
| 441 |
IE-11060 100-0 |
|
SCREW; STOPPER,PIN |
5 |
2203- |
|
GVZ |
|
| 309 |
IE-88805 940-0 |
|
PLATE; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 623 |

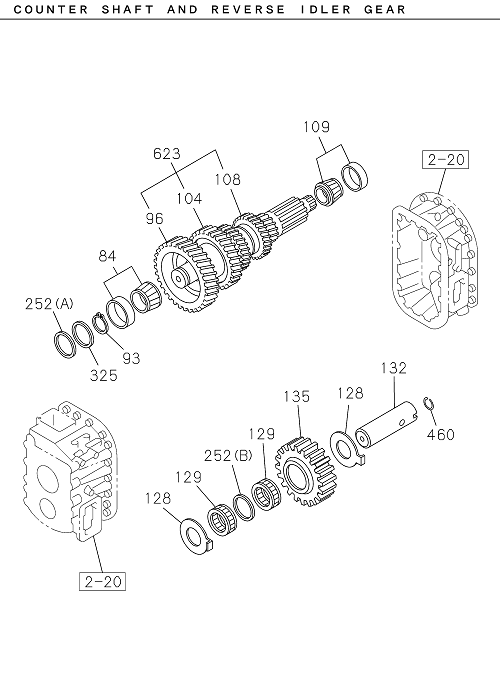

IE-88807 460-0 |
|
SHAFT ASM; COUNTER |
1 |
2203- |
|
GVZ |
|
| 230 |
IE-88804 600-0 |
|
SLEEVE; 4TH TO 5TH |
1 |
2203- |
|
GVZ |
|
| 408 |
IE-88704 440-0 |
|
SPRING |
18 |
2203- |
|
GVZ |
|
| 325 |
IE-88892 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.127 |
| 126 |
IE-88703 790-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(E) T=2.05 |
| 059 |
I8-97268 243-0 |
|
GEAR; REV MAINSHAFT |
1 |
2208- |
|
GVZ |
|
| 093 |
IE-88715 370-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.92 |
| 324 |
IE-88758 810-0 |
|
HUB; CLU |
1 |
2203- |
|
GVZ |
|
| 093 |
IE-88715 360-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.97 |
| 288 |
IE-88725 890-0 |
|
SPACER; BRG,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) |
| 066 |
I8-98349 498-0 |
|
RING; BLOCK,SYN |
2 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 920-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.10 |
| 316 |
IE-88830 430-0 |
|
CLUTCH; DOG,3RD GEAR |
1 |
2203- |
|
GVZ |
|
| 298 |
IE-88755 320-0 |
|
GASKET; MAINSHAFT |
2 |
2203- |
|
GVZ |
|
| 009 |
IE-88830 430-0 |
|
CLUTCH; DOG,TOP GEAR |
1 |
2203- |
|
GVZ |
|
| 096 |
IE-88779 750-0 |
|
GEAR; COUNTER DRIVE |
1 |
2203- |
|
GVZ |
|
| 036 |
IE-88769 490-0 |
|
GEAR; 3RD,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 001 |
I1-33215 039-0 |
|
SHAFT; TOP GEAR,TRANS |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 960-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.30 |
| 066 |
I8-98349 498-0 |
|
RING; BLOCK,SYN |
2 |
2203- |
|
GVZ |
|
| 108 |
IE-88769 470-0 |
|
SHAFT; COUNTER |
1 |
2203- |
|
GVZ |
|

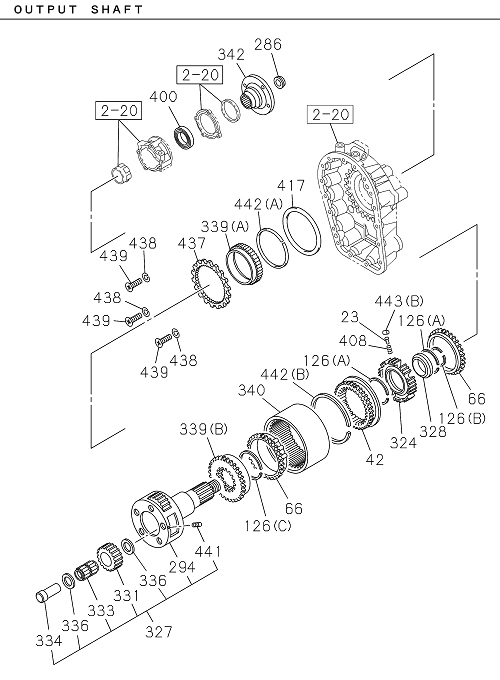

| 342 |
I8-97268 261-0 |
|
FLANGE; OUTPUT |
1 |
2208- |
|
GVZ |
|
| 044 |
IE-88755 710-0 |
|
HUB; CLU,2ND & 3RD,MAIN |
1 |
2203- |
|
GVZ |
|
| 036 |
IE-88769 490-0 |
|
GEAR; 3RD,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 325 |
IE-88892 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.127 |
| 070 |
I8-98358 689-0 |
|
GEAR; 1ST,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 093 |
IE-88703 720-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=2.02 |
| 252 |
IE-88724 790-0 |
|
SPACER |
1 |
2203- |
|
GVZ |
(B) |
| 148 |
IE-88776 970-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.35 |
| 328 |
IE-88708 440-0 |
|
BEARING; CARRIER |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 940-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.20 |
| 018 |
IE-88705 360-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.00 |
| 030 |
IE-88807 400-0 |
|
GEAR; 4TH,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 331 |
IE-88833 950-0 |
|
GEAR SET; PLANETARY |
5 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 950-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.25 |
| 330 |
IE-88833 940-0 |
|
GEAR; SUN |
1 |
2203- |
|
GVZ |
|
| 093 |
IE-88703 700-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=2.12 |
| 460 |
IE-88814 240-0 |
|
RING; SNAP,REV SHAFT |
1 |
2203- |
|
GVZ |
|
| 327 |
I8-98349 496-0 |
|
CARRIER; PLANETARY GEAR |
1 |
2203- |
|
GVZ |
|
| 126 |
IE-88703 440-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(B) |
| 444 |
IE-88704 150-0 |
|
CLUTCH; DOG,REV GEAR |
1 |
2203- |
|
GVZ |
|
| 042 |
IE-88805 220-0 |
|
SLEEVE |
1 |
2203- |
|
GVZ |
|
| 333 |
IE-88752 350-0 |
|
ROLLER; PLANETARY GEAR |
5 |
2203- |
|
GVZ |
|
| 135 |
IE-88804 890-0 |
|
GEAR; REV IDLER |
1 |
2203- |
|
GVZ |
|
| 018 |
IE-88705 340-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.10 |
| 306 |
IE-88703 700-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) T=2.12 |
| 306 |
IE-88703 720-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) T=2.02 |
| 093 |
IE-88715 370-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.92 |
| 078 |
IE-88834 340-0 |
|
COLLAR; DIST,MAINSHAFT BRG |
1 |
2203- |
|
GVZ |
|
| 306 |
IE-88703 710-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) T=2.07 |
| 312 |
IE-88800 590-0 |
|
CLUTCH; DOG,1ST GEAR |
1 |
2203- |
|
GVZ |
|
| 442 |
IE-88752 960-0 |
|
RING; SNAP,CARRIER |
1 |
2203- |
|
GVZ |
(B) |
| 333 |
IE-88752 350-0 |
|
ROLLER; PLANETARY GEAR |
5 |
2203- |
|
GVZ |
|
| 324 |
IE-88758 810-0 |
|
HUB; CLU |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 960-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.30 |
| 444 |
IE-88704 150-0 |
|
CLUTCH; DOG,REV GEAR |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 920-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.10 |
| 252 |
IE-88758 790-0 |
|
SPACER |
1 |
2203- |
|
GVZ |
(A) |
| 032 |
IE-88828 680-0 |
|
COLLAR; 3RD GEAR |
1 |
2203- |
|
GVZ |
|
| 050 |
IE-88769 480-0 |
|
GEAR; 2ND,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 940-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.20 |
| 289 |
IE-14851 000-0 |
|
PIN; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 417 |
IE-88708 080-0 |
|
SPACER; OUTPUT SHAFT |
1 |
2203- |
|
GVZ |
|
| 437 |
IE-88756 460-0 |
|
PLATE; LOCK |
1 |
2203- |
|
GVZ |
|
| 316 |
IE-88830 430-0 |
|
CLUTCH; DOG,3RD GEAR |
1 |
2203- |
|
GVZ |
|
| 109 |
IE-88808 200-0 |
|
BEARING; COUNTER SHAFT,RR |
1 |
2203- |
|
GVZ |
|
| 018 |
I1-33269 111-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.15 |
| 330 |
IE-88833 940-0 |
|
GEAR; SUN |
1 |
2203- |
|
GVZ |
|
| 030 |
IE-88807 400-0 |
|
GEAR; 4TH,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88777 000-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.50 |
| 003 |
IE-88725 930-0 |
|
BEARING; TOP GEAR SHAFT |
1 |
2203- |
|
GVZ |
|
| 325 |
IE-88891 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.051 |
| 408 |
IE-88704 440-0 |
|
SPRING |
18 |
2203- |
|
GVZ |
|
| 438 |
IE-88708 480-0 |
|
WASHER; LOCK PLATE |
3 |
2203- |
|
GVZ |
|
| 018 |
I1-33269 101-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.05 |
| 093 |
IE-88715 390-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.82 |
| 093 |
IE-88703 710-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=2.07 |
| 067 |
IE-88756 040-0 |
|
HUB; CLU,1ST TO REV |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 930-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.15 |
| 148 |
IE-88776 980-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.40 |
| 023 |
IE-88703 520-0 |
|
PLUNGER; DETENT,SYN |
18 |
2203- |
|
GVZ |
|
| 093 |
IE-88715 360-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.97 |
| 093 |
IE-88703 710-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=2.07 |
| 308 |
IE-88706 990-0 |
|
BOLT; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 442 |
IE-88739 930-0 |
|
RING; SNAP,CARRIER |
1 |
2203- |
|
GVZ |
(A) |
| 325 |
IE-88894 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.510 |
| 126 |
IE-88703 420-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(C) |
| 093 |
IE-88703 720-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=2.02 |
| 148 |
IE-88776 990-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.45 |
| 308 |
IE-88706 990-0 |
|
BOLT; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 970-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.35 |
| 093 |
IE-88715 390-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.82 |
| 314 |
IE-88701 780-0 |
|
BEARING; NEEDLE,REV GEAR |
1 |
2203- |
|
GVZ |
|
| 126 |
IE-88739 940-0 |
|
RING; SNAP,CLU HUB |
2 |
2203- |
|
GVZ |
(D) |
| 148 |
IE-88776 980-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.40 |
| 129 |
IE-88724 780-0 |
|
BEARING; NEEDLE,IDLER |
2 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 950-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.25 |
| 126 |
IE-88703 410-0 |
|
RING; SNAP,CLU HUB |
2 |
2203- |
|
GVZ |
(A) |
| 233 |
IE-88830 440-0 |
|
RING; BLOCK 4TH TO 5TH |
2 |
2203- |
|
GVZ |
|
| 438 |
IE-88708 480-0 |
|
WASHER; LOCK PLATE |
3 |
2203- |
|
GVZ |
|
| 135 |
IE-88804 890-0 |
|
GEAR; REV IDLER |
1 |
2203- |
|
GVZ |
|
| 443 |
IE-88703 550-0 |
|
ROLLER; SYNCHRONIZER |
9 |
2203- |
|
GVZ |
(B) |
| 148 |
IE-88777 000-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.50 |
| 132 |
IE-88832 460-0 |
|
SHAFT; REV |
1 |
2203- |
|
GVZ |
|
| 128 |
IE-88703 430-0 |
|
WASHER; THRUST,REV SHAFT |
2 |
2203- |
|
GVZ |
|
| 298 |
IE-88755 320-0 |
|
GASKET; MAINSHAFT |
2 |
2203- |
|
GVZ |
|
| 021 |
IE-88755 540-0 |
|
HUB; CLU,4TH & 5TH |
1 |
2203- |
|
GVZ |
|
| 096 |
IE-88779 750-0 |
|
GEAR; COUNTER DRIVE |
1 |
2203- |
|
GVZ |
|
| 082 |
IE-88833 210-0 |
|
SHAFT; MAIN,TRANS |
1 |
2203- |
|
GVZ |
|
| 429 |
IE-88804 600-0 |
|
SLEEVE; 2ND & 3RD |
1 |
2203- |
|
GVZ |
|
| 340 |
IE-88726 800-0 |
|
GEAR; RING |
1 |
2203- |
|
GVZ |
|
| 623 |
IE-88807 460-0 |
|
SHAFT ASM; COUNTER |
1 |
2203- |
|
GVZ |
|
| 443 |
IE-88703 560-0 |
|
ROLLER; SYNCHRONIZER |
9 |
2203- |
|
GVZ |
(A) |
| 325 |
IE-88893 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.254 |
| 400 |
IE-88727 210-0 |
|
BEARING; OUTPUT SHAFT RR |
1 |
2203- |
|
GVZ |
|
| 437 |
IE-88756 460-0 |
|
PLATE; LOCK |
1 |
2203- |
|
GVZ |
|
| 010 |
IE-88777 060-0 |
|
RING; SNAP,PILOT BRG |
1 |
2203- |
|
GVZ |
|
| 306 |
IE-88703 700-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) T=2.12 |
| 126 |
IE-88703 790-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(E) T=2.05 |
| 315 |
IE-88830 430-0 |
|
CLUTCH; DOG,2ND GEAR |
1 |
2203- |
|
GVZ |
|
| 018 |
I1-33269 111-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.15 |
| 050 |
IE-88769 480-0 |
|
GEAR; 2ND,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 068 |
IE-88804 610-0 |
|
SLEEVE; 1ST TO REV |
1 |
2203- |
|
GVZ |
|
| 252 |
IE-88758 790-0 |
|
SPACER |
1 |
2203- |
|
GVZ |
(A) |
| 340 |
IE-88726 800-0 |
|
GEAR; RING |
1 |
2203- |
|
GVZ |
|
| 126 |
IE-88703 420-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(C) |
| 314 |
IE-88701 780-0 |
|
BEARING; NEEDLE,REV GEAR |
1 |
2203- |
|
GVZ |
|
| 027 |
IE-88752 760-0 |
|
BEARING; 4TH GEAR |
1 |
2203- |
|
GVZ |
|
| 429 |
IE-88804 600-0 |
|
SLEEVE; 2ND & 3RD |
1 |
2203- |
|
GVZ |
|
| 294 |
I1-33231 348-0 |
|
SHAFT; OUTPUT |
1 |
2203- |
|
GVZ |
|
| 460 |
IE-88814 240-0 |
|
RING; SNAP,REV SHAFT |
1 |
2203- |
|
GVZ |
|
| 093 |
IE-88715 400-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.77 |
| 439 |
IE-80806 000-0 |
|
SCREW; LOCK PLATE |
3 |
2203- |
|
GVZ |
|
| 033 |
IE-88701 770-0 |
|
BEARING; NEEDLE,3RD GEAR |
3 |
2203- |
|
GVZ |
|
| 044 |
IE-88755 710-0 |
|
HUB; CLU,2ND & 3RD,MAIN |
1 |
2203- |
|
GVZ |
|
| 010 |
IE-88777 060-0 |
|
RING; SNAP,PILOT BRG |
1 |
2203- |
|
GVZ |
|
| 082 |
IE-88833 210-0 |
|
SHAFT; MAIN,TRANS |
1 |
2203- |
|
GVZ |
|
| 288 |
IE-88725 880-0 |
|
SPACER; BRG,MAINSHAFT |
1 |
2203- |
|
GVZ |
(B) |
| 288 |
IE-88725 880-0 |
|
SPACER; BRG,MAINSHAFT |
1 |
2203- |
|
GVZ |
(B) |
| 078 |
IE-88834 340-0 |
|
COLLAR; DIST,MAINSHAFT BRG |
1 |
2203- |
|
GVZ |
|
| 093 |
IE-88715 380-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.87 |
| 041 |
IE-88830 440-0 |
|
RING; BLOCK,2ND & 3RD |
2 |
2203- |
|
GVZ |
|
| 233 |
IE-88830 440-0 |
|
RING; BLOCK 4TH TO 5TH |
2 |
2203- |
|
GVZ |
|
| 009 |
IE-88830 430-0 |
|
CLUTCH; DOG,TOP GEAR |
1 |
2203- |
|
GVZ |
|
| 132 |
IE-88832 460-0 |
|
SHAFT; REV |
1 |
2203- |
|
GVZ |
|
| 289 |
IE-14851 000-0 |
|
PIN; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 443 |
IE-88703 560-0 |
|
ROLLER; SYNCHRONIZER |
9 |
2203- |
|
GVZ |
(A) |
| 336 |
IE-88768 930-0 |
|
WASHER; THRUST,PLANETARY GEAR |
10 |
2203- |
|
GVZ |
|
| 126 |
IE-88703 780-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(E) T=2.10 |
| 001 |
I1-33215 039-0 |
|
SHAFT; TOP GEAR,TRANS |
1 |
2203- |
|
GVZ |
|
| 067 |
IE-88756 040-0 |
|
HUB; CLU,1ST TO REV |
1 |
2203- |
|
GVZ |
|
| 339 |
I1-33265 593-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
2203- |
|
GVZ |
(B) |
| 018 |
IE-88705 340-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.10 |
| 021 |
IE-88755 540-0 |
|
HUB; CLU,4TH & 5TH |
1 |
2203- |
|
GVZ |
|
| 393 |
IE-88771 640-0 |
|
BEARING; MAINSHAFT END |
1 |
2203- |
|
GVZ |
|
| 342 |
IE-88779 990-0 |
|
FLANGE; OUTPUT |
1 |
2203-2207 |
|
GVZ |
|
| 018 |
I1-33269 101-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.05 |
| 309 |
IE-88805 940-0 |
|
PLATE; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 059 |
IE-88764 780-0 |
|
GEAR; REV MAINSHAFT |
1 |
2203-2207 |
|
GVZ |
|
| 441 |
IE-11060 100-0 |
|
SCREW; STOPPER,PIN |
5 |
2203- |
|
GVZ |
|
| 342 |
IE-88779 990-0 |
|
FLANGE; OUTPUT |
1 |
2203-2207 |
|
GVZ |
|
| 306 |
I1-33239 314-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(B) |
| 393 |
IE-88771 640-0 |
|
BEARING; MAINSHAFT END |
1 |
2203- |
|
GVZ |
|
| 075 |
IE-88703 050-0 |
|
BEARING; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 042 |
IE-88805 220-0 |
|
SLEEVE |
1 |
2203- |
|
GVZ |
|
| 442 |
IE-88739 930-0 |
|
RING; SNAP,CARRIER |
1 |
2203- |
|
GVZ |
(A) |
| 108 |
IE-88769 470-0 |
|
SHAFT; COUNTER |
1 |
2203- |
|
GVZ |
|
| 325 |
IE-88822 720-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=1.200 |
| 093 |
IE-88703 700-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=2.12 |
| 084 |
IE-88808 200-0 |
|
BEARING; COUNTER SHAFT,FRT |
1 |
2203- |
|
GVZ |
|
| 027 |
IE-88752 760-0 |
|
BEARING; 4TH GEAR |
1 |
2203- |
|
GVZ |
|
| 104 |
IE-88807 410-0 |
|
GEAR; 4TH,COUNTER |
1 |
2203- |
|
GVZ |
|
| 018 |
IE-88705 360-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.00 |
| 148 |
IE-88776 930-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.15 |
| 075 |
IE-88703 050-0 |
|
BEARING; MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 018 |
I1-33269 112-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
T=2.20 |
| 294 |
I1-33231 348-0 |
|
SHAFT; OUTPUT |
1 |
2203- |
|
GVZ |
|
| 306 |
IE-88703 710-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) T=2.07 |
| 126 |
IE-88739 940-0 |
|
RING; SNAP,CLU HUB |
2 |
2203- |
|
GVZ |
(D) |
| 126 |
IE-88703 800-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(E) T=2.00 |
| 334 |
IE-88833 120-0 |
|
SHAFT; PLANETARY GEAR |
5 |
2203- |
|
GVZ |
|
| 230 |
IE-88804 600-0 |
|
SLEEVE; 4TH TO 5TH |
1 |
2203- |
|
GVZ |
|
| 252 |
IE-88724 790-0 |
|
SPACER |
1 |
2203- |
|
GVZ |
(B) |
| 126 |
IE-88703 780-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(E) T=2.10 |
| 400 |
IE-88727 210-0 |
|
BEARING; OUTPUT SHAFT RR |
1 |
2203- |
|
GVZ |
|
| 059 |
I8-97268 243-0 |
|
GEAR; REV MAINSHAFT |
1 |
2208- |
|
GVZ |
|
| 084 |
IE-88808 200-0 |
|
BEARING; COUNTER SHAFT,FRT |
1 |
2203- |
|
GVZ |
|
| 148 |
IE-88776 990-0 |
|
SPACER; PILOT BRG,MAINSHAFT,RR |
1 |
2203- |
|
GVZ |
T=3.45 |
| 325 |
IE-88894 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.510 |
| 286 |
IE-33039 100-0 |
|
NUT; LK,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 070 |
I8-98358 689-0 |
|
GEAR; 1ST,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 093 |
IE-88715 400-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.77 |
| 317 |
IE-88830 430-0 |
|
CLUTCH; DOG,4TH GEAR |
1 |
2203- |
|
GVZ |
|
| 339 |
I1-33265 593-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
2203- |
|
GVZ |
(B) |
| 126 |
IE-88703 410-0 |
|
RING; SNAP,CLU HUB |
2 |
2203- |
|
GVZ |
(A) |
| 315 |
IE-88830 430-0 |
|
CLUTCH; DOG,2ND GEAR |
1 |
2203- |
|
GVZ |
|
| 023 |
IE-88703 520-0 |
|
PLUNGER; DETENT,SYN |
18 |
2203- |
|
GVZ |
|
| 288 |
IE-88725 890-0 |
|
SPACER; BRG,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) |
| 443 |
IE-88703 550-0 |
|
ROLLER; SYNCHRONIZER |
9 |
2203- |
|
GVZ |
(B) |
| 306 |
I1-33239 314-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(B) |
| 109 |
IE-88808 200-0 |
|
BEARING; COUNTER SHAFT,RR |
1 |
2203- |
|
GVZ |
|
| 325 |
IE-88822 720-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=1.200 |
| 126 |
IE-88703 800-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(E) T=2.00 |
| 032 |
IE-88828 680-0 |
|
COLLAR; 3RD GEAR |
1 |
2203- |
|
GVZ |
|
| 104 |
IE-88807 410-0 |
|
GEAR; 4TH,COUNTER |
1 |
2203- |
|
GVZ |
|
| 339 |
IE-88773 220-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
2203- |
|
GVZ |
(A) |
| 336 |
IE-88768 930-0 |
|
WASHER; THRUST,PLANETARY GEAR |
10 |
2203- |
|
GVZ |
|
| 093 |
IE-88715 380-0 |
|
RING; SNAP,COUNTER FRT BRG |
1 |
2203- |
|
GVZ |
T=1.87 |
| 306 |
IE-88703 720-0 |
|
RING; SNAP,MAINSHAFT |
1 |
2203- |
|
GVZ |
(A) T=2.02 |
| 041 |
IE-88830 440-0 |
|
RING; BLOCK,2ND & 3RD |
2 |
2203- |
|
GVZ |
|
| 126 |
IE-88703 440-0 |
|
RING; SNAP,CLU HUB |
1 |
2203- |
|
GVZ |
(B) |
| 331 |
IE-88833 950-0 |
|
GEAR SET; PLANETARY |
5 |
2203- |
|
GVZ |
|
| 003 |
IE-88725 930-0 |
|
BEARING; TOP GEAR SHAFT |
1 |
2203- |
|
GVZ |
|
| 059 |
IE-88764 780-0 |
|
GEAR; REV MAINSHAFT |
1 |
2203-2207 |
|
GVZ |
|
| 342 |
I8-97268 261-0 |
|
FLANGE; OUTPUT |
1 |
2208- |
|
GVZ |
|
| 339 |
IE-88773 220-0 |
|
CLUTCH; PLANETARY GEAR |
1 |
2203- |
|
GVZ |
(A) |
| 417 |
IE-88708 080-0 |
|
SPACER; OUTPUT SHAFT |
1 |
2203- |
|
GVZ |
|
| 128 |
IE-88703 430-0 |
|
WASHER; THRUST,REV SHAFT |
2 |
2203- |
|
GVZ |
|
| 129 |
IE-88724 780-0 |
|
BEARING; NEEDLE,IDLER |
2 |
2203- |
|
GVZ |
|
| 033 |
IE-88701 770-0 |
|
BEARING; NEEDLE,3RD GEAR |
3 |
2203- |
|
GVZ |
|
| 439 |
IE-80806 000-0 |
|
SCREW; LOCK PLATE |
3 |
2203- |
|
GVZ |
|
| 442 |
IE-88752 960-0 |
|
RING; SNAP,CARRIER |
1 |
2203- |
|
GVZ |
(B) |
| 325 |
IE-88891 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.051 |
| 328 |
IE-88708 440-0 |
|
BEARING; CARRIER |
1 |
2203- |
|
GVZ |
|
| 325 |
IE-88893 000-0 |
|
SHIM; COUNTER SHAFT BRG |
1 |
2203- |
|
GVZ |
T=0.254 |
| 312 |
IE-88800 590-0 |
|
CLUTCH; DOG,1ST GEAR |
1 |
2203- |
|
GVZ |
|
| 327 |
I8-98349 496-0 |
|
CARRIER; PLANETARY GEAR |
1 |
2203- |
|
GVZ |
|
| 068 |
IE-88804 610-0 |
|
SLEEVE; 1ST TO REV |
1 |
2203- |
|
GVZ |
|
| 286 |
IE-33039 100-0 |
|
NUT; LK,MAINSHAFT |
1 |
2203- |
|
GVZ |
|
| 334 |
IE-88833 120-0 |
|
SHAFT; PLANETARY GEAR |
5 |
2203- |
|
GVZ |
|
