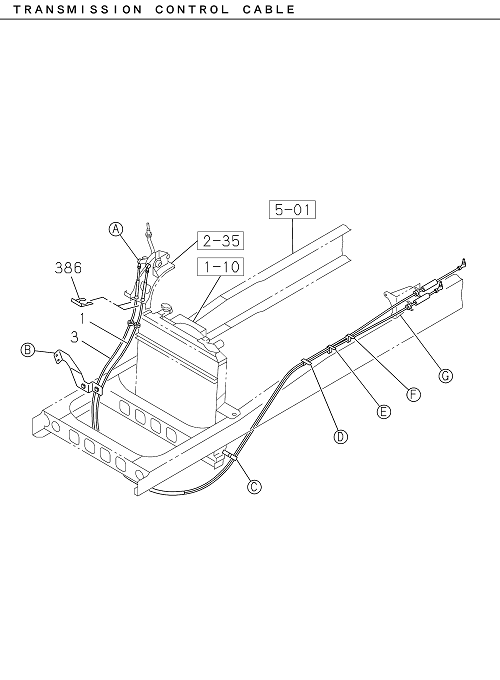

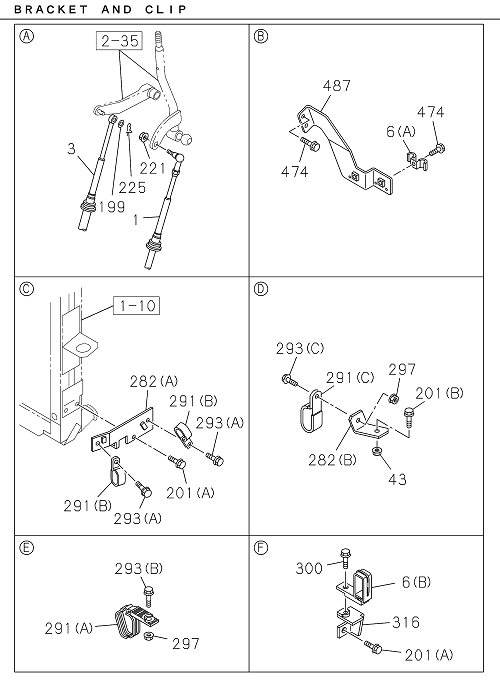

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 293 | I0-28050 820-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 2203- | GVZ | (B) M8X20 FLANGE | ||
| 291 | I0-95325 026-0 | CLIP; SHIFT TO SELECT,FRAME | 2 | 2203- | GVZ | (B) ID=11X2 L=16 | ||
| 300 | I0-28650 820-0 | BOLT; CLIP | 1 | 2203- | GVZ | M8X20 FLANGE | ||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 2203- | GVZ | ID=8.4 OD=16 | ||
| 001 | I8-98286 397-0 | CABLE; SHIFT,TRANS CONT | 1 | 2203- | GVZ | L=3540 | ||
| 300 | I0-28650 820-0 | BOLT; CLIP | 1 | 2203- | GVZ | M8X20 FLANGE | ||
| 043 | I0-91180 108-0 | NUT; BRKT | 1 | 2203- | GVZ | M8 FLANGE | ||
| 282 | I8-98311 139-0 | BRACKET; TRANS SIDE | 1 | 2203- | GVZ | (A) | ||
| 201 | I0-28050 816-0 | BOLT; BRKT | 2 | 2203- | GVZ | (A) M8X16 FLANGE | ||
| 047 | I0-91111 508-0 | NUT; LK,LINK ROD | 2 | 2203- | GVZ | M8 | ||
| 006 | I1-09700 739-0 | CLIP; CABLE | 1 | 2203- | GVZ | (A) ID=11 & 11 L=17.5 & 17.5 | ||
| 001 | I8-98286 397-0 | CABLE; SHIFT,TRANS CONT | 1 | 2203- | GVZ | L=3540 | ||
| 147 | I0-84000 808-0 | ROD; LINK | 1 | 2203- | GVZ | |||
| 358 | I1-09760 118-1 | ROD END; SCREW | 2 | 2203- | GVZ | L=45.5 | ||
| 291 | I8-98292 921-0 | CLIP; SHIFT TO SELECT,FRAME | 1 | 2203- | GVZ | (A) ID=13 & 10 & 10 L=43.5 | ||
| 006 | I1-09700 739-0 | CLIP; CABLE | 1 | 2203- | GVZ | (A) ID=11 & 11 L=17.5 & 17.5 | ||
| 006 | I8-98023 991-0 | CLIP; CABLE | 1 | 2203- | GVZ | (B) ID=13 & 10 & 10 L=35.5 | ||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 2203- | GVZ | L=27.7 | ||
| 291 | I0-95325 066-0 | CLIP; SHIFT TO SELECT,FRAME | 1 | 2203- | GVZ | (C) ID=11X2 L=32 | ||
| 003 | I8-98286 410-2 | CABLE; SELECT,TRANS CONT | 1 | 2203- | GVZ | L=3726 | ||
| 293 | I0-28050 825-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 2203- | GVZ | (C) M8X25 FLANGE | ||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 2203- | GVZ | M8X25 W/WASHER | ||
| 201 | I0-28151 235-0 | BOLT; BRKT | 1 | 2203- | GVZ | (C) M12X35 FLANGE | ||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 2203- | GVZ | M8 FLANGE | ||
| 201 | I0-28151 235-0 | BOLT; BRKT | 1 | 2203- | GVZ | (C) M12X35 FLANGE | ||
| 147 | I0-84000 808-0 | ROD; LINK | 1 | 2203- | GVZ | |||
| 293 | I0-28050 816-0 | BOLT; CLIP,SHIFT TO SELECT | 2 | 2203- | GVZ | (A) M8X16 FLANGE | ||
| 201 | I0-28050 816-0 | BOLT; BRKT | 2 | 2203- | GVZ | (A) M8X16 FLANGE | ||
| 282 | I8-98489 416-0 | BRACKET; TRANS SIDE | 1 | 2203- | GVZ | (B) | ||
| 201 | I0-28050 825-0 | BOLT; BRKT | 1 | 2203- | GVZ | (B) M8X25 FLANGE | ||
| 316 | I8-98086 439-0 | BRACKET; CLIP | 1 | 2203- | GVZ | |||
| 047 | I0-91111 508-0 | NUT; LK,LINK ROD | 2 | 2203- | GVZ | M8 | ||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 2203- | GVZ | M8 FLANGE | ||
| 291 | I0-95325 066-0 | CLIP; SHIFT TO SELECT,FRAME | 1 | 2203- | GVZ | (C) ID=11X2 L=32 | ||
| 043 | I0-91180 108-0 | NUT; BRKT | 1 | 2203- | GVZ | M8 FLANGE | ||
| 291 | I8-98292 921-0 | CLIP; SHIFT TO SELECT,FRAME | 1 | 2203- | GVZ | (A) ID=13 & 10 & 10 L=43.5 | ||
| 003 | I8-98286 410-2 | CABLE; SELECT,TRANS CONT | 1 | 2203- | GVZ | L=3726 | ||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 2203- | GVZ | M8X25 W/WASHER | ||
| 291 | I0-95325 026-0 | CLIP; SHIFT TO SELECT,FRAME | 2 | 2203- | GVZ | (B) ID=11X2 L=16 | ||
| 487 | I8-98183 009-0 | BRACKET; CONT CABLE | 1 | 2203- | GVZ | |||
| 201 | I0-28050 825-0 | BOLT; BRKT | 1 | 2203- | GVZ | (B) M8X25 FLANGE | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 2203- | GVZ | |||
| 358 | I1-09760 118-1 | ROD END; SCREW | 2 | 2203- | GVZ | L=45.5 | ||
| 006 | I8-98023 991-0 | CLIP; CABLE | 1 | 2203- | GVZ | (B) ID=13 & 10 & 10 L=35.5 | ||
| 293 | I0-28050 816-0 | BOLT; CLIP,SHIFT TO SELECT | 2 | 2203- | GVZ | (A) M8X16 FLANGE | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 2203- | GVZ | |||
| 282 | I8-98311 139-0 | BRACKET; TRANS SIDE | 1 | 2203- | GVZ | (A) | ||
| 293 | I0-28050 825-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 2203- | GVZ | (C) M8X25 FLANGE | ||
| 293 | I0-28050 820-0 | BOLT; CLIP,SHIFT TO SELECT | 1 | 2203- | GVZ | (B) M8X20 FLANGE | ||
| 487 | I8-98183 009-0 | BRACKET; CONT CABLE | 1 | 2203- | GVZ | |||
| 282 | I8-98489 416-0 | BRACKET; TRANS SIDE | 1 | 2203- | GVZ | (B) | ||
| 297 | I0-91180 108-0 | NUT; CLIP | 2 | 2203- | GVZ | M8 FLANGE | ||
| 316 | I8-98086 439-0 | BRACKET; CLIP | 1 | 2203- | GVZ | |||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 2203- | GVZ | L=27.7 | ||
| 297 | I0-91180 108-0 | NUT; CLIP | 2 | 2203- | GVZ | M8 FLANGE | ||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 2203- | GVZ | ID=8.4 OD=16 |
