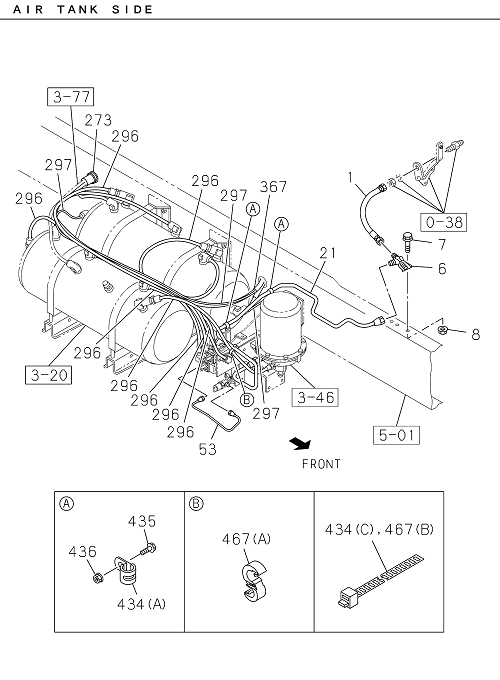

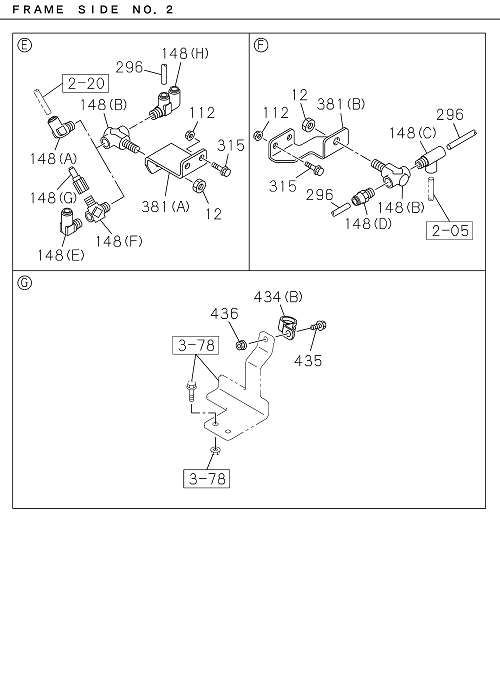

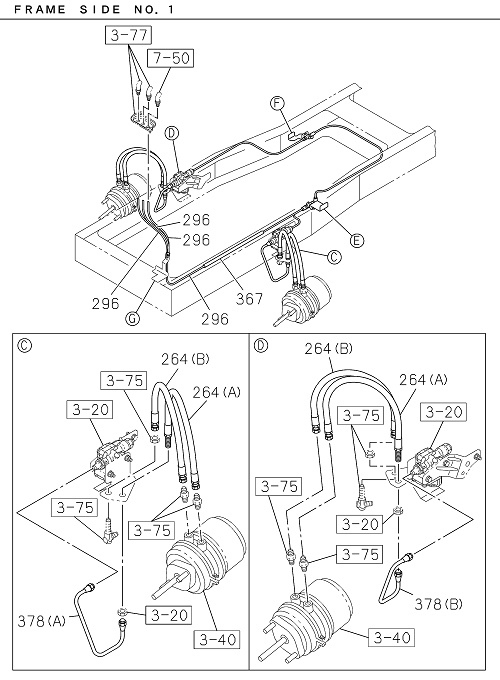

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 381 | I8-98341 811-0 | BRACKET | 1 | 2203- | GVZ | (B) | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=13 | ||
| 315 | I0-28650 830-0 | BOLT; CONNECTOR | 2 | 2203- | GVZ | M8X30 FLANGE | ||
| 367 | I1-87411 029-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=22 | ||
| 367 | I1-87411 027-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=19 | ||
| 264 | I8-98324 765-0 | HOSE; FLEX | 2 | 2203- | GVZ | (A) L=620 | ||
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=10 | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=2000 OD=8 | ||
| 378 | I8-98311 983-0 | PIPE; AIR,UNION TO MODULATOR | 1 | 2203- | GVZ | (B) L=345 | ||
| 381 | I8-98341 811-0 | BRACKET | 1 | 2203- | GVZ | (B) | ||
| 297 | I1-87411 007-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=4000 OD=8 | ||
| 297 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=2000 OD=12 | ||
| 053 | I8-98184 394-0 | PIPE; AIR,AIR TANK TO VALVE | 1 | 2203- | GVZ | |||
| 367 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=25 | ||
| 378 | I8-98311 983-0 | PIPE; AIR,UNION TO MODULATOR | 1 | 2203- | GVZ | (B) L=345 | ||
| 148 | I1-09661 067-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (E) DIN6 & R1/4 ELBOW | ||
| 297 | I1-87411 008-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=6000 OD=8 | ||
| 315 | I0-28650 830-0 | BOLT; CONNECTOR | 2 | 2203- | GVZ | M8X30 FLANGE | ||
| 367 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=28 | ||
| 367 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=32 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=2000 OD=12 | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 2 | 2203- | GVZ | M8X20 FLANGE | ||
| 297 | I1-87411 007-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=4000 OD=8 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=2000 OD=12 | ||
| 148 | I8-98120 049-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (B) M12 & RC1/4X2 2WAY | ||
| 148 | I1-09656 586-1 | CONNECTOR; UNION | 1 | 2203- | GVZ | (F) M12 & PT1/4 3WAY | ||
| 434 | I1-09707 183-0 | CLIP | 7 | 2203- | GVZ | (C) L=350 | ||
| 021 | I8-97650 548-0 | PIPE; AIR,UNION TO AIR DRYER | 1 | 2203- | GVZ | L=1725 | ||
| 297 | I1-87411 013-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=6000 OD=12 | ||
| 273 | I9-09956 256-2 | GROMMET | 1 | 2203- | GVZ | ID=28 OD=35 T=17 | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 1 | 2203- | GVZ | M8 FLANGE | ||
| 297 | I1-87411 009-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=8000 OD=8 | ||
| 008 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | GVZ | M8 FLANGE | ||
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=10 | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=4000 OD=12 | ||
| 381 | I8-98312 051-0 | BRACKET | 1 | 2203- | GVZ | (A) | ||
| 112 | I0-91180 108-0 | NUT | 2 | 2203- | GVZ | M8 FLANGE | ||
| 434 | I1-09707 183-0 | CLIP | 7 | 2203- | GVZ | (C) L=350 | ||
| 148 | I1-09660 963-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (D) DIN8 R1/4 STRAIGHT | ||
| 148 | I1-09661 067-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (E) DIN6 & R1/4 ELBOW | ||
| 001 | I8-98319 126-0 | HOSE; FLEX,AIR TANK | 1 | 2203- | GVZ | L=330 | ||
| 148 | I1-09656 586-1 | CONNECTOR; UNION | 1 | 2203- | GVZ | (F) M12 & PT1/4 3WAY | ||
| 148 | I8-98179 708-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (H) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 148 | I1-09661 006-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (C) DIN8X2 & R1/4 3WAY | ||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | GVZ | M8X30 FLANGE | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=2000 OD=8 | ||
| 006 | I8-98341 807-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 2203- | GVZ | |||
| 297 | I1-87411 014-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=8000 OD=12 | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | GVZ | M12 | ||
| 297 | I1-87411 014-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=8000 OD=12 | ||
| 148 | I1-09660 956-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (A) DIN8 & R1/4 ELBOW | ||
| 264 | I8-98346 015-0 | HOSE; FLEX | 2 | 2203- | GVZ | (B) L=560 | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | GVZ | M12 | ||
| 297 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=2000 OD=12 | ||
| 008 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | GVZ | M8 FLANGE | ||
| 001 | I8-98319 126-0 | HOSE; FLEX,AIR TANK | 1 | 2203- | GVZ | L=330 | ||
| 367 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=25 | ||
| 297 | I1-87411 002-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=4000 OD=6 | ||
| 467 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 2203- | GVZ | (B) L=350 | ||
| 381 | I8-98312 051-0 | BRACKET | 1 | 2203- | GVZ | (A) | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 1 | 2203- | GVZ | M8 FLANGE | ||
| 467 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 2203- | GVZ | (B) L=350 | ||
| 367 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=28 | ||
| 112 | I0-91180 108-0 | NUT | 2 | 2203- | GVZ | M8 FLANGE | ||
| 378 | I8-98311 982-0 | PIPE; AIR,UNION TO MODULATOR | 1 | 2203- | GVZ | (A) L=393 | ||
| 148 | I1-09661 006-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (C) DIN8X2 & R1/4 3WAY | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 1 | 2203- | GVZ | M8X20 FLANGE | ||
| 148 | I8-98120 049-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (B) M12 & RC1/4X2 2WAY | ||
| 264 | I8-98346 015-0 | HOSE; FLEX | 2 | 2203- | GVZ | (B) L=560 | ||
| 434 | I1-09700 862-0 | CLIP | 1 | 2203- | GVZ | (B) ID=24.5 H=23 L=25 | ||
| 297 | I1-87411 002-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=4000 OD=6 | ||
| 297 | I1-87411 010-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=12000 OD=8 | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 2 | 2203- | GVZ | M8X20 FLANGE | ||
| 467 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 2203- | GVZ | (A) ID=12 & 15 | ||
| 434 | I1-09700 862-0 | CLIP | 1 | 2203- | GVZ | (B) ID=24.5 H=23 L=25 | ||
| 378 | I8-98311 982-0 | PIPE; AIR,UNION TO MODULATOR | 1 | 2203- | GVZ | (A) L=393 | ||
| 367 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=32 | ||
| 148 | I1-09660 956-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (A) DIN8 & R1/4 ELBOW | ||
| 021 | I8-97650 548-0 | PIPE; AIR,UNION TO AIR DRYER | 1 | 2203- | GVZ | L=1725 | ||
| 297 | I1-87411 010-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=12000 OD=8 | ||
| 148 | I1-09660 963-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (D) DIN8 R1/4 STRAIGHT | ||
| 006 | I8-98341 807-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 2203- | GVZ | |||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | GVZ | M8X30 FLANGE | ||
| 467 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 2203- | GVZ | (A) ID=12 & 15 | ||
| 148 | I8-98179 708-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (H) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 273 | I9-09956 256-2 | GROMMET | 1 | 2203- | GVZ | ID=28 OD=35 T=17 | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 1 | 2203- | GVZ | M8X20 FLANGE | ||
| 434 | I0-95235 536-0 | CLIP | 2 | 2203- | GVZ | (A) ID=16 L=20 | ||
| 297 | I1-87411 009-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=8000 OD=8 | ||
| 297 | I1-87411 015-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=12000 OD=12 | ||
| 367 | I1-87411 029-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=22 | ||
| 297 | I1-87411 013-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=6000 OD=12 | ||
| 434 | I0-95235 536-0 | CLIP | 2 | 2203- | GVZ | (A) ID=16 L=20 | ||
| 264 | I8-98324 765-0 | HOSE; FLEX | 2 | 2203- | GVZ | (A) L=620 | ||
| 148 | I1-09660 873-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (G) DIN8 & M12 STRAIGHT | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=4000 OD=12 | ||
| 148 | I1-09660 873-0 | CONNECTOR; UNION | 1 | 2203- | GVZ | (G) DIN8 & M12 STRAIGHT | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=13 | ||
| 367 | I1-87411 027-0 | TUBE; CORRUGATE | AR | 2203- | GVZ | SERVICED BY L=2000 ID=19 | ||
| 297 | I1-87411 015-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=12000 OD=12 | ||
| 053 | I8-98184 394-0 | PIPE; AIR,AIR TANK TO VALVE | 1 | 2203- | GVZ | |||
| 297 | I1-87411 008-0 | TUBE; NYLON | AR | 2203- | GVZ | SERVICED BY L=6000 OD=8 |
