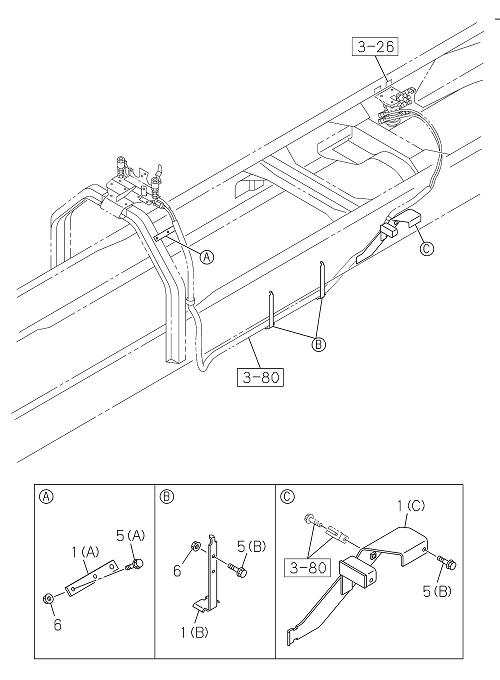

3-83 | FIXING PARTS; TRAILER PIPING
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 005 | I0-28650 830-0 | BOLT; BRKT | 4 | 2203- | GVZ | (B) M8X30 FLANGE | ||
| 005 | I0-28650 830-0 | BOLT; BRKT | 4 | 2203- | GVZ | (B) M8X30 FLANGE | ||
| 005 | I0-28650 820-0 | BOLT; BRKT | 1 | 2203- | GVZ | (A) M8X20 FLANGE | ||
| 001 | I8-98383 754-0 | BRACKET; CLIP | 1 | 2203- | GVZ | (A) | ||
| 001 | I8-98336 581-0 | BRACKET; CLIP | 2 | 2203- | GVZ | (B) | ||
| 005 | I0-28650 820-0 | BOLT; BRKT | 1 | 2203- | GVZ | (A) M8X20 FLANGE | ||
| 001 | I8-98336 581-0 | BRACKET; CLIP | 2 | 2203- | GVZ | (B) | ||
| 006 | I0-91180 108-0 | NUT; BRKT | 3 | 2203- | GVZ | M8 FLANGE | ||
| 006 | I0-91180 108-0 | NUT; BRKT | 3 | 2203- | GVZ | M8 FLANGE | ||
| 001 | I8-98383 754-0 | BRACKET; CLIP | 1 | 2203- | GVZ | (A) | ||
| 001 | I8-98311 548-0 | BRACKET; CLIP | 1 | 2203- | GVZ | (C) | ||
| 001 | I8-98311 548-0 | BRACKET; CLIP | 1 | 2203- | GVZ | (C) |
