| 211 |
I8-98361 629-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(B) |
| 111 |
I8-98311 808-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
L |
GVZ |
|
| 073 |
I0-91110 520-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(A) M20 |
| 185 |
I0-91510 612-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
GVZ |
(A) ID=12.2 |
| 068 |
I8-98361 631-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
GVZ |
(B) |
| 073 |
I0-91110 520-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(A) M20 |
| 187 |
I0-90301 610-0 |
|
NIPPLE; GREASE,FRT |
4 |
2203- |
|
FVZ |
(B) PT1/8 ELBOW |
| 193 |
I8-98179 318-0 |
|
NUT; U BOLT |
8 |
2203- |
|
GVZ |
M22 |
| 185 |
I1-51169 018-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
GVZ |
(B) ID=32.4 |
| 065 |
I8-98361 630-0 |
|
WASHER; S/ABS |
4 |
2203- |
|
GVZ |
(A) |
| 185 |
I0-91510 612-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
GVZ |
(A) ID=12.2 |

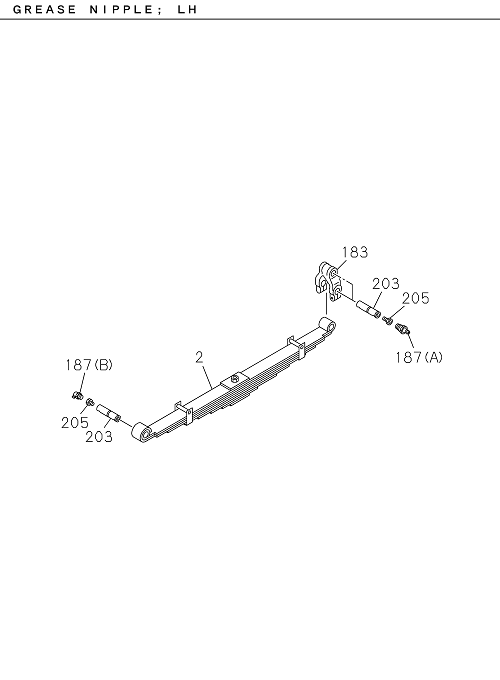

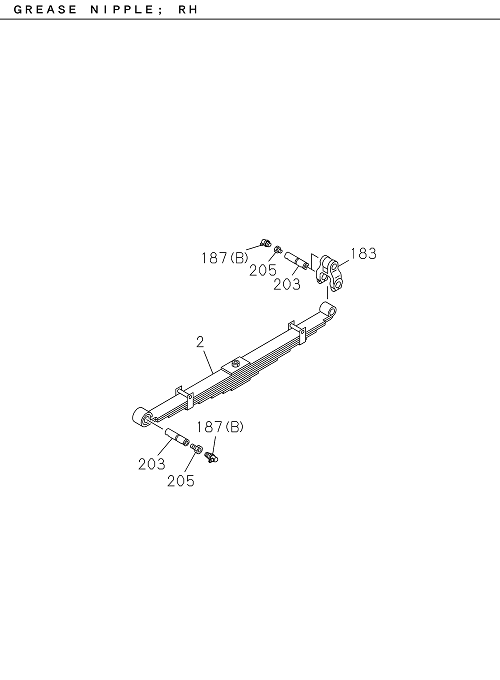

| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
6 |
2203- |
|
GVZ |
|
| 208 |
I1-87870 498-1 |
|
U-BOLT SET; FRT SPRING |
4 |
2203- |
|
GVZ |
L=210 |
| 211 |
I8-98361 629-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(B) |

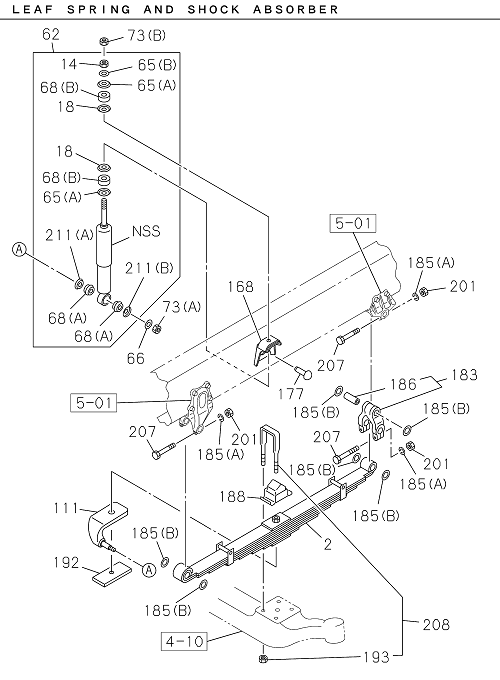

| 002 |
I8-97696 191-A |
|
SPRING ASM; LEAF,FRT |
2 |
2203- |
|
FVZ |
|
| 018 |
I8-98361 632-0 |
|
WASHER; CENTERING,S/ABS |
4 |
2203- |
|
GVZ |
|
| 186 |
I1-51351 009-B |
|
BUSHING; SHACKLE |
2 |
2203- |
|
FVZ |
OD=38 |
| 062 |
I8-98313 145-A |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
GVZ |
(IADG) |
| 211 |
I8-98361 628-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(A) |
| 168 |
I1-51681 616-A |
|
BRACKET; S/ABS,FRT SUSP |
2 |
2203- |
|
GVZ |
|
| 073 |
I0-91111 514-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
FVZ |
(B) M14 |
| 065 |
I8-98361 633-0 |
|
WASHER; S/ABS |
2 |
2203- |
|
GVZ |
(B) |
| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
6 |
2203- |
|
FVZ |
|
| 168 |
I1-51681 616-A |
|
BRACKET; S/ABS,FRT SUSP |
2 |
2203- |
|
GVZ |
|
| 193 |
I8-98179 318-0 |
|
NUT; U BOLT |
8 |
2203- |
|
GVZ |
M22 |
| 207 |
I0-10856 280-0 |
|
BOLT; SPR TO SHACKLE |
12 |
2203- |
|
GVZ |
M12X80 |
| 018 |
I8-98361 632-0 |
|
WASHER; CENTERING,S/ABS |
4 |
2203- |
|
GVZ |
|
| 201 |
I0-91110 512-0 |
|
NUT; PIN LK |
12 |
2203- |
|
GVZ |
M12 |
| 111 |
I8-98311 807-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
R |
FVZ |
|
| 065 |
I8-98361 633-0 |
|
WASHER; S/ABS |
2 |
2203- |
|
GVZ |
(B) |
| 186 |
I1-51351 009-B |
|
BUSHING; SHACKLE |
2 |
2203- |
|
GVZ |
OD=38 |
| 111 |
I8-98311 807-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
R |
GVZ |
|
| 201 |
I0-91110 512-0 |
|
NUT; PIN LK |
12 |
2203- |
|
GVZ |
M12 |
| 185 |
I1-51169 018-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
GVZ |
(B) ID=32.4 |
| 066 |
I0-91610 520-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
GVZ |
ID=21 |
| 014 |
I8-98361 634-0 |
|
NUT; S/ABS,UPR |
2 |
2203- |
|
GVZ |
|
| 111 |
I8-98311 807-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
R |
GVZ |
|
| 014 |
I8-98361 634-0 |
|
NUT; S/ABS,UPR |
2 |
2203- |
|
GVZ |
|
| 187 |
I0-90301 410-0 |
|
NIPPLE; GREASE,FRT |
2 |
2203- |
|
GVZ |
(A) PT1/8 STRAIGHT |
| 201 |
I0-91110 512-0 |
|
NUT; PIN LK |
12 |
2203- |
|
GVZ |
M12 |
| 002 |
I8-97696 521-A |
|
SPRING ASM; LEAF,FRT |
2 |
2203- |
|
GVZ |
|
| 062 |
I8-98313 145-2 |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
GVZ |
|
| 203 |
I8-97948 141-0 |
|
PIN; SPR TO SHACKLE |
6 |
2203- |
|
FVZ |
|
| 068 |
I8-98361 631-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
GVZ |
(B) |
| 168 |
I1-51681 616-A |
|
BRACKET; S/ABS,FRT SUSP |
2 |
2203- |
|
GVZ |
|
| 208 |
I1-87870 498-1 |
|
U-BOLT SET; FRT SPRING |
4 |
2203- |
|
GVZ |
L=210 |
| 188 |
I1-51172 088-A |
|
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
2203- |
|
GVZ |
|
| 018 |
I8-98361 632-0 |
|
WASHER; CENTERING,S/ABS |
4 |
2203- |
|
GVZ |
|
| 062 |
I8-98313 145-A |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
GVZ |
(IADG) |
| 068 |
I8-98361 627-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
GVZ |
(A) |
| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
6 |
2203- |
|
GVZ |
|
| 192 |
I1-51177 284-1 |
|
PIECE; DIST |
1 |
2203- |
|
FVZ |
80X144 ID=17.5 |
| 203 |
I8-97948 141-0 |
|
PIN; SPR TO SHACKLE |
6 |
2203- |
|
GVZ |
|
| 073 |
I0-91110 520-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
FVZ |
(A) M20 |
| 068 |
I8-98361 627-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
GVZ |
(A) |
| 188 |
I1-51172 088-A |
|
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
2203- |
|
FVZ |
|
| 062 |
I8-98313 145-2 |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
FVZ |
|
| 068 |
I8-98361 627-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
GVZ |
(A) |
| 183 |
I1-51162 029-5 |
|
SHACKLE; FRT SUSP |
2 |
2203- |
|
GVZ |
|
| 014 |
I8-98361 634-0 |
|
NUT; S/ABS,UPR |
2 |
2203- |
|
FVZ |
|
| 066 |
I0-91610 520-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
GVZ |
ID=21 |
| 185 |
I0-91510 612-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
FVZ |
(A) ID=12.2 |
| 018 |
I8-98361 632-0 |
|
WASHER; CENTERING,S/ABS |
4 |
2203- |
|
FVZ |
|
| 065 |
I8-98361 630-0 |
|
WASHER; S/ABS |
4 |
2203- |
|
GVZ |
(A) |
| 185 |
I1-51169 018-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
GVZ |
(B) ID=32.4 |
| 062 |
I8-98313 145-2 |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
GVZ |
|
| 211 |
I8-98361 628-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
FVZ |
(A) |
| 066 |
I0-91610 520-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
GVZ |
ID=21 |
| 002 |
I8-97696 521-A |
|
SPRING ASM; LEAF,FRT |
2 |
2203- |
|
GVZ |
|
| 014 |
I8-98361 634-0 |
|
NUT; S/ABS,UPR |
2 |
2203- |
|
GVZ |
|
| 187 |
I0-90301 410-0 |
|
NIPPLE; GREASE,FRT |
2 |
2203- |
|
GVZ |
(A) PT1/8 STRAIGHT |
| 211 |
I8-98361 628-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(A) |
| 185 |
I0-91510 612-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
GVZ |
(A) ID=12.2 |
| 002 |
I8-97696 189-A |
|
SPRING ASM; LEAF,FRT |
2 |
2203- |
|
FVZ |
FVZ MIXER |
| 073 |
I0-91111 514-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(B) M14 |
| 211 |
I8-98361 628-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(A) |
| 205 |
I9-43165 001-0 |
|
ATTACHMENT; GREASE NIPPLE |
6 |
2203- |
|
GVZ |
|
| 192 |
I1-51177 284-1 |
|
PIECE; DIST |
1 |
2203- |
|
GVZ |
80X144 ID=17.5 |
| 208 |
I1-87870 498-1 |
|
U-BOLT SET; FRT SPRING |
4 |
2203- |
|
GVZ |
L=210 |
| 111 |
I8-98311 808-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
L |
FVZ |
|
| 192 |
I1-51177 284-A |
|
PIECE; DIST |
1 |
2203- |
|
GVZ |
80X144 ID=17.5 |
| 068 |
I8-98361 631-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
FVZ |
(B) |
| 183 |
I1-51162 029-5 |
|
SHACKLE; FRT SUSP |
2 |
2203- |
|
GVZ |
|
| 201 |
I0-91110 512-0 |
|
NUT; PIN LK |
12 |
2203- |
|
FVZ |
M12 |
| 187 |
I0-90301 410-0 |
|
NIPPLE; GREASE,FRT |
2 |
2203- |
|
FVZ |
(A) PT1/8 STRAIGHT |
| 188 |
I1-51172 088-A |
|
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
2203- |
|
GVZ |
|
| 177 |
I0-67901 334-0 |
|
RIVET; BRKT,S/ABS |
8 |
2203- |
|
GVZ |
D13X34 PLATED TAPER END |
| 203 |
I8-97948 141-0 |
|
PIN; SPR TO SHACKLE |
6 |
2203- |
|
GVZ |
|
| 187 |
I0-90301 610-0 |
|
NIPPLE; GREASE,FRT |
4 |
2203- |
|
GVZ |
(B) PT1/8 ELBOW |
| 062 |
I8-98313 145-2 |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
GVZ |
|
| 068 |
I8-98361 627-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
FVZ |
(A) |
| 188 |
I1-51172 088-A |
|
RUBBER; CLAMP,U-BOLT,FRT SPR |
2 |
2203- |
|
GVZ |
|
| 187 |
I0-90301 610-0 |
|
NIPPLE; GREASE,FRT |
4 |
2203- |
|
GVZ |
(B) PT1/8 ELBOW |
| 207 |
I0-10856 280-0 |
|
BOLT; SPR TO SHACKLE |
12 |
2203- |
|
FVZ |
M12X80 |
| 177 |
I0-67901 334-0 |
|
RIVET; BRKT,S/ABS |
8 |
2203- |
|
GVZ |
D13X34 PLATED TAPER END |
| 062 |
I8-98313 145-A |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
FVZ |
(IADG) |
| 002 |
I6-97696 189-0 |
|
SPRING ASM; LEAF,FRT |
2 |
2203- |
|
FVZ |
(IADG) FVZ MIXER |
| 185 |
I1-51169 018-0 |
|
WASHER; LK,PIN |
12 |
2203- |
|
FVZ |
(B) ID=32.4 |
| 065 |
I8-98361 633-0 |
|
WASHER; S/ABS |
2 |
2203- |
|
FVZ |
(B) |
| 111 |
I8-98311 807-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
R |
GVZ |
|
| 192 |
I1-51177 284-1 |
|
PIECE; DIST |
1 |
2203- |
|
GVZ |
80X144 ID=17.5 |
| 073 |
I0-91111 514-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(B) M14 |
| 177 |
I0-67901 334-0 |
|
RIVET; BRKT,S/ABS |
8 |
2203- |
|
FVZ |
D13X34 PLATED TAPER END |
| 207 |
I0-10856 280-0 |
|
BOLT; SPR TO SHACKLE |
12 |
2203- |
|
GVZ |
M12X80 |
| 187 |
I0-90301 610-0 |
|
NIPPLE; GREASE,FRT |
4 |
2203- |
|
GVZ |
(B) PT1/8 ELBOW |
| 002 |
I8-97696 521-A |
|
SPRING ASM; LEAF,FRT |
2 |
2203- |
|
GVZ |
|
| 207 |
I0-10856 280-0 |
|
BOLT; SPR TO SHACKLE |
12 |
2203- |
|
GVZ |
M12X80 |
| 208 |
I1-87870 498-1 |
|
U-BOLT SET; FRT SPRING |
4 |
2203- |
|
FVZ |
L=210 |
| 186 |
I1-51351 009-B |
|
BUSHING; SHACKLE |
2 |
2203- |
|
GVZ |
OD=38 |
| 177 |
I0-67901 334-0 |
|
RIVET; BRKT,S/ABS |
8 |
2203- |
|
GVZ |
D13X34 PLATED TAPER END |
| 187 |
I0-90301 410-0 |
|
NIPPLE; GREASE,FRT |
2 |
2203- |
|
GVZ |
(A) PT1/8 STRAIGHT |
| 203 |
I8-97948 141-0 |
|
PIN; SPR TO SHACKLE |
6 |
2203- |
|
GVZ |
|
| 193 |
I8-98179 318-0 |
|
NUT; U BOLT |
8 |
2203- |
|
GVZ |
M22 |
| 183 |
I1-51162 029-5 |
|
SHACKLE; FRT SUSP |
2 |
2203- |
|
GVZ |
|
| 065 |
I8-98361 633-0 |
|
WASHER; S/ABS |
2 |
2203- |
|
GVZ |
(B) |
| 111 |
I8-98311 808-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
L |
GVZ |
|
| 066 |
I0-91610 520-0 |
|
WASHER; LK,S/ABS SETTING |
2 |
2203- |
|
FVZ |
ID=21 |
| 068 |
I8-98361 631-0 |
|
BUSHING; S/ABS |
4 |
2203- |
|
GVZ |
(B) |
| 168 |
I1-51681 616-A |
|
BRACKET; S/ABS,FRT SUSP |
2 |
2203- |
|
FVZ |
|
| 211 |
I8-98361 629-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(B) |
| 211 |
I8-98361 629-0 |
|
WASHER; BRKT,SHOCK |
2 |
2203- |
|
FVZ |
(B) |
| 065 |
I8-98361 630-0 |
|
WASHER; S/ABS |
4 |
2203- |
|
FVZ |
(A) |
| 073 |
I0-91110 520-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(A) M20 |
| 183 |
I1-51162 029-5 |
|
SHACKLE; FRT SUSP |
2 |
2203- |
|
FVZ |
|
| 111 |
I8-98311 808-1 |
|
SUPPORTER; S/ABS,FRT SUSP |
1 |
2203- |
L |
GVZ |
|
| 073 |
I0-91111 514-0 |
|
NUT; BRKT,SHOCK |
2 |
2203- |
|
GVZ |
(B) M14 |
| 062 |
I8-98313 145-A |
|
ABSORBER ASM; SHOCK,FRT |
2 |
2203- |
|
GVZ |
(IADG) |
| 186 |
I1-51351 009-B |
|
BUSHING; SHACKLE |
2 |
2203- |
|
GVZ |
OD=38 |
| 065 |
I8-98361 630-0 |
|
WASHER; S/ABS |
4 |
2203- |
|
GVZ |
(A) |
| 193 |
I8-98179 318-0 |
|
NUT; U BOLT |
8 |
2203- |
|
FVZ |
M22 |
