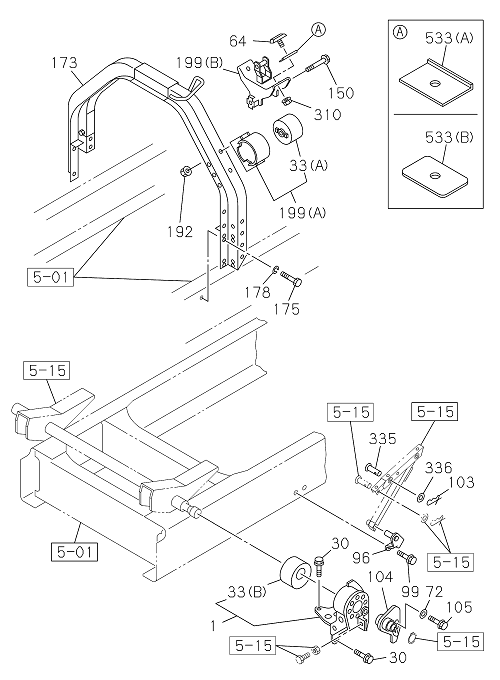

5-10 | CAB MOUNTING; FRAME SIDE
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 310 | I0-91180 108-0 | NUT; CUSHION | 4 | 2203- | FVZ | M8 FLANGE | ||
| 103 | I8-98062 280-0 | PIN; SPLIT,CAB STAY | 1 | 2203- | GVZ | L=32.6 | ||
| 150 | I0-10956 400-0 | BOLT; CAB MTG RR | 2 | 2203- | GVZ | M14X100 | ||
| 533 | I8-98353 542-0 | SPACER; MTG RUBBER | AR | 2203- | FVZ | (A) | ||
| 335 | I1-09744 107-0 | PIN; ADJ,STAY LOCK | 1 | 2203- | GVZ | OD=10 L=48 | ||
| 103 | I8-98062 280-0 | PIN; SPLIT,CAB STAY | 1 | 2203- | GVZ | L=32.6 | ||
| 192 | I0-91180 212-0 | NUT; BRKT FIX | 4 | 2203- | GVZ | M12 FLANGE | ||
| 192 | I0-91180 212-0 | NUT; BRKT FIX | 4 | 2203- | FVZ | M12 FLANGE | ||
| 173 | I8-98382 740-1 | MEMBER; CAB MTG RR | 1 | 2203- | GVZ | |||
| 001 | I8-98309 408-1 | BRACKET; CAB MTG | 1 | 2203- | R | FVZ | ||
| 335 | I1-09744 107-0 | PIN; ADJ,STAY LOCK | 1 | 2203- | GVZ | OD=10 L=48 | ||
| 001 | I8-98309 408-1 | BRACKET; CAB MTG | 1 | 2203- | R | GVZ | ||
| 033 | I8-98308 226-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | GVZ | (A) | ||
| 533 | I8-98353 542-0 | SPACER; MTG RUBBER | AR | 2203- | GVZ | (A) | ||
| 533 | I8-98360 227-0 | SPACER; MTG RUBBER | 4 | 2203- | GVZ | (B) | ||
| 335 | I1-09744 107-0 | PIN; ADJ,STAY LOCK | 1 | 2203- | GVZ | OD=10 L=48 | ||
| 175 | I0-20951 240-0 | BOLT; MEMBER TO FRAME | 8 | 2203- | GVZ | M12X40 | ||
| 033 | I8-98308 225-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | GVZ | (B) | ||
| 033 | I8-98308 226-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | FVZ | (A) | ||
| 001 | I8-98309 409-2 | BRACKET; CAB MTG | 1 | 2203- | L | GVZ | ||
| 199 | I8-98309 920-0 | BRACKET; CAB RR MTG | 2 | 2203- | FVZ | (A) | ||
| 001 | I8-98309 409-2 | BRACKET; CAB MTG | 1 | 2203- | L | GVZ | ||
| 310 | I0-91180 108-0 | NUT; CUSHION | 4 | 2203- | GVZ | M8 FLANGE | ||
| 033 | I8-98308 225-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | GVZ | (B) | ||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 2203- | GVZ | M14X35 FLANGE | ||
| 104 | I8-98330 224-0 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 2203- | R | FVZ | ||
| 199 | I8-98023 692-0 | BRACKET; CAB RR MTG | 2 | 2203- | FVZ | (B) | ||
| 175 | I0-20951 240-0 | BOLT; MEMBER TO FRAME | 8 | 2203- | FVZ | M12X40 | ||
| 199 | I8-98309 920-0 | BRACKET; CAB RR MTG | 2 | 2203- | GVZ | (A) | ||
| 336 | I1-09985 183-0 | WASHER; PL,STAY LOCK | 1 | 2203- | GVZ | ID=10.5 T=2.0 | ||
| 533 | I8-98353 542-0 | SPACER; MTG RUBBER | AR | 2203- | GVZ | (A) | ||
| 033 | I8-98308 225-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | FVZ | (B) | ||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 2203- | GVZ | ID=15 OD=36 | ||
| 150 | I0-10956 400-0 | BOLT; CAB MTG RR | 2 | 2203- | GVZ | M14X100 | ||
| 533 | I8-98360 227-0 | SPACER; MTG RUBBER | 4 | 2203- | GVZ | (B) | ||
| 064 | I8-98348 662-0 | RUBBER; CUSHION | 4 | 2203- | GVZ | |||
| 192 | I0-91180 212-0 | NUT; BRKT FIX | 4 | 2203- | GVZ | M12 FLANGE | ||
| 192 | I0-91180 212-0 | NUT; BRKT FIX | 4 | 2203- | GVZ | M12 FLANGE | ||
| 001 | I8-98309 409-2 | BRACKET; CAB MTG | 1 | 2203- | L | FVZ | ||
| 173 | I8-98272 361-5 | MEMBER; CAB MTG RR | 1 | 2203- | FVZ | |||
| 335 | I1-09744 107-0 | PIN; ADJ,STAY LOCK | 1 | 2203- | FVZ | OD=10 L=48 | ||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 2203- | GVZ | ID=15 OD=36 | ||
| 096 | I1-62500 628-0 | BRACKET; CAB STAY | 1 | 2203- | GVZ | |||
| 533 | I8-98360 227-0 | SPACER; MTG RUBBER | 4 | 2203- | GVZ | (B) | ||
| 103 | I8-98062 280-0 | PIN; SPLIT,CAB STAY | 1 | 2203- | FVZ | L=32.6 | ||
| 030 | I0-28861 450-0 | BOLT; CAB FRT FOOT | 10 | 2203- | GVZ | M14X50 FLANGE | ||
| 096 | I1-62500 628-0 | BRACKET; CAB STAY | 1 | 2203- | FVZ | |||
| 033 | I8-98308 226-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | GVZ | (A) | ||
| 199 | I8-98023 692-0 | BRACKET; CAB RR MTG | 2 | 2203- | GVZ | (B) | ||
| 030 | I0-28861 450-0 | BOLT; CAB FRT FOOT | 10 | 2203- | GVZ | M14X50 FLANGE | ||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 2203- | GVZ | M14X35 FLANGE | ||
| 033 | I8-98308 225-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | GVZ | (B) | ||
| 099 | I0-28661 030-0 | BOLT; BRKT | 2 | 2203- | GVZ | M10X30 FLANGE | ||
| 310 | I0-91180 108-0 | NUT; CUSHION | 4 | 2203- | GVZ | M8 FLANGE | ||
| 175 | I0-20951 240-0 | BOLT; MEMBER TO FRAME | 8 | 2203- | GVZ | M12X40 | ||
| 064 | I8-98348 662-0 | RUBBER; CUSHION | 4 | 2203- | GVZ | |||
| 096 | I1-62500 628-0 | BRACKET; CAB STAY | 1 | 2203- | GVZ | |||
| 175 | I0-20951 240-0 | BOLT; MEMBER TO FRAME | 8 | 2203- | GVZ | M12X40 | ||
| 336 | I1-09985 183-0 | WASHER; PL,STAY LOCK | 1 | 2203- | GVZ | ID=10.5 T=2.0 | ||
| 064 | I8-98348 662-0 | RUBBER; CUSHION | 4 | 2203- | GVZ | |||
| 150 | I0-10956 400-0 | BOLT; CAB MTG RR | 2 | 2203- | FVZ | M14X100 | ||
| 199 | I8-98023 692-0 | BRACKET; CAB RR MTG | 2 | 2203- | GVZ | (B) | ||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 2203- | GVZ | ID=15 OD=36 | ||
| 030 | I0-28861 450-0 | BOLT; CAB FRT FOOT | 10 | 2203- | GVZ | M14X50 FLANGE | ||
| 096 | I1-62500 628-0 | BRACKET; CAB STAY | 1 | 2203- | GVZ | |||
| 099 | I0-28661 030-0 | BOLT; BRKT | 2 | 2203- | GVZ | M10X30 FLANGE | ||
| 099 | I0-28661 030-0 | BOLT; BRKT | 2 | 2203- | GVZ | M10X30 FLANGE | ||
| 310 | I0-91180 108-0 | NUT; CUSHION | 4 | 2203- | GVZ | M8 FLANGE | ||
| 178 | I0-91510 612-0 | WASHER; LK,MEMBER | 8 | 2203- | GVZ | ID=12.2 | ||
| 030 | I0-28861 450-0 | BOLT; CAB FRT FOOT | 10 | 2203- | FVZ | M14X50 FLANGE | ||
| 001 | I8-98309 409-2 | BRACKET; CAB MTG | 1 | 2203- | L | GVZ | ||
| 104 | I8-98330 224-0 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 2203- | R | GVZ | ||
| 001 | I8-98309 408-1 | BRACKET; CAB MTG | 1 | 2203- | R | GVZ | ||
| 033 | I8-98308 226-0 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | GVZ | (A) | ||
| 336 | I1-09985 183-0 | WASHER; PL,STAY LOCK | 1 | 2203- | GVZ | ID=10.5 T=2.0 | ||
| 199 | I8-98309 920-0 | BRACKET; CAB RR MTG | 2 | 2203- | GVZ | (A) | ||
| 001 | I8-98309 408-1 | BRACKET; CAB MTG | 1 | 2203- | R | GVZ | ||
| 150 | I0-10956 400-0 | BOLT; CAB MTG RR | 2 | 2203- | GVZ | M14X100 | ||
| 173 | I8-98382 740-1 | MEMBER; CAB MTG RR | 1 | 2203- | GVZ | |||
| 533 | I8-98353 542-0 | SPACER; MTG RUBBER | AR | 2203- | GVZ | (A) | ||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 2203- | GVZ | M14X35 FLANGE | ||
| 178 | I0-91510 612-0 | WASHER; LK,MEMBER | 8 | 2203- | GVZ | ID=12.2 | ||
| 104 | I8-98330 224-0 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 2203- | R | GVZ | ||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 2203- | FVZ | M14X35 FLANGE | ||
| 064 | I8-98348 662-0 | RUBBER; CUSHION | 4 | 2203- | FVZ | |||
| 533 | I8-98360 227-0 | SPACER; MTG RUBBER | 4 | 2203- | FVZ | (B) | ||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 2203- | FVZ | ID=15 OD=36 | ||
| 178 | I0-91510 612-0 | WASHER; LK,MEMBER | 8 | 2203- | GVZ | ID=12.2 | ||
| 199 | I8-98309 920-0 | BRACKET; CAB RR MTG | 2 | 2203- | GVZ | (A) | ||
| 199 | I8-98023 692-0 | BRACKET; CAB RR MTG | 2 | 2203- | GVZ | (B) | ||
| 173 | I8-98382 740-1 | MEMBER; CAB MTG RR | 1 | 2203- | GVZ | |||
| 099 | I0-28661 030-0 | BOLT; BRKT | 2 | 2203- | FVZ | M10X30 FLANGE | ||
| 104 | I8-98330 224-0 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 2203- | R | GVZ | ||
| 103 | I8-98062 280-0 | PIN; SPLIT,CAB STAY | 1 | 2203- | GVZ | L=32.6 | ||
| 178 | I0-91510 612-0 | WASHER; LK,MEMBER | 8 | 2203- | FVZ | ID=12.2 | ||
| 336 | I1-09985 183-0 | WASHER; PL,STAY LOCK | 1 | 2203- | FVZ | ID=10.5 T=2.0 |
