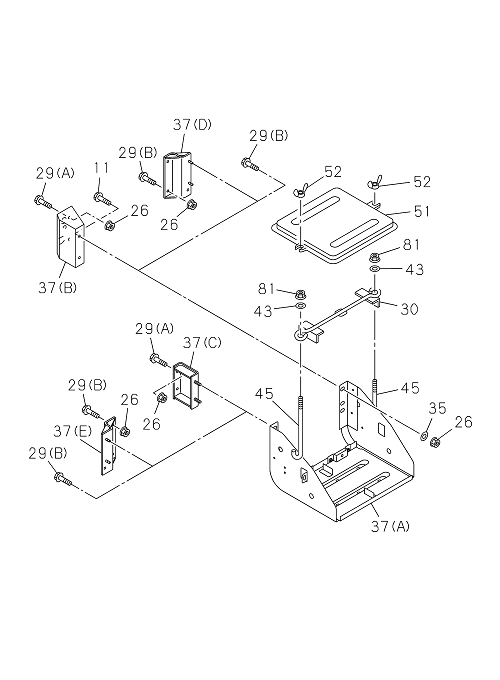

5-20 | BATTERY CARRIER
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 037 | I8-97695 343-A | BRACKET; BATTERY | 1 | 2203- | GVZ | (A) | ||
| 045 | I9-53616 615-A | ROD; TENSION,BATTERY | 2 | 2203- | GVZ | L=120 | ||
| 030 | I5-53615 004-B | PLATE; BATTERY | 1 | 2203- | GVZ | |||
| 043 | I0-91614 708-0 | WASHER; PL,CLAMP | 2 | 2203- | GVZ | ID=8.4 OD=22 T=2 | ||
| 081 | I0-91180 108-0 | NUT; BATTERY | 2 | 2203- | GVZ | M8 FLANGE | ||
| 052 | I0-91118 408-0 | NUT; WING,COVER FIX | 2 | 2203- | GVZ | M8 WING NUT | ||
| 037 | I8-98362 936-A | BRACKET; BATTERY | 1 | 2203- | GVZ | (D) | ||
| 052 | I0-91118 408-0 | NUT; WING,COVER FIX | 2 | 2203- | GVZ | M8 WING NUT | ||
| 035 | I0-91614 610-0 | WASHER; PL,BATTERY CARRIER | 4 | 2203- | GVZ | ID=10.5 OD=22 | ||
| 011 | I0-28651 035-0 | BOLT; BRKT FIX | 2 | 2203- | GVZ | M10X35 FLANGE | ||
| 026 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | GVZ | M10 FLANGE | ||
| 037 | I8-98362 936-A | BRACKET; BATTERY | 1 | 2203- | GVZ | (D) | ||
| 029 | I0-28651 035-0 | BOLT; BRKT TO FRAME | 4 | 2203- | GVZ | (B) M10X35 FLANGE | ||
| 043 | I0-91614 708-0 | WASHER; PL,CLAMP | 2 | 2203- | GVZ | ID=8.4 OD=22 T=2 | ||
| 037 | I8-98362 937-A | BRACKET; BATTERY | 1 | 2203- | GVZ | (E) | ||
| 026 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | GVZ | M10 FLANGE | ||
| 026 | I7-05110 010-A | NUT; BRKT | 4 | 2203- | GVZ | M10 FLANGE | ||
| 051 | I7-42406 321-A | COVER; BATTERY | 1 | 2203- | GVZ | |||
| 051 | I7-42406 321-A | COVER; BATTERY | 1 | 2203- | GVZ | |||
| 035 | I0-91614 610-0 | WASHER; PL,BATTERY CARRIER | 4 | 2203- | GVZ | ID=10.5 OD=22 | ||
| 011 | I0-28651 035-0 | BOLT; BRKT FIX | 2 | 2203- | GVZ | M10X35 FLANGE | ||
| 037 | I8-97695 343-A | BRACKET; BATTERY | 1 | 2203- | GVZ | (A) | ||
| 037 | I8-98362 937-A | BRACKET; BATTERY | 1 | 2203- | GVZ | (E) | ||
| 026 | I7-05110 010-A | NUT; BRKT | 4 | 2203- | GVZ | M10 FLANGE | ||
| 081 | I0-91180 108-0 | NUT; BATTERY | 2 | 2203- | GVZ | M8 FLANGE | ||
| 030 | I5-53615 004-B | PLATE; BATTERY | 1 | 2203- | GVZ | |||
| 045 | I9-53616 615-A | ROD; TENSION,BATTERY | 2 | 2203- | GVZ | L=120 |
