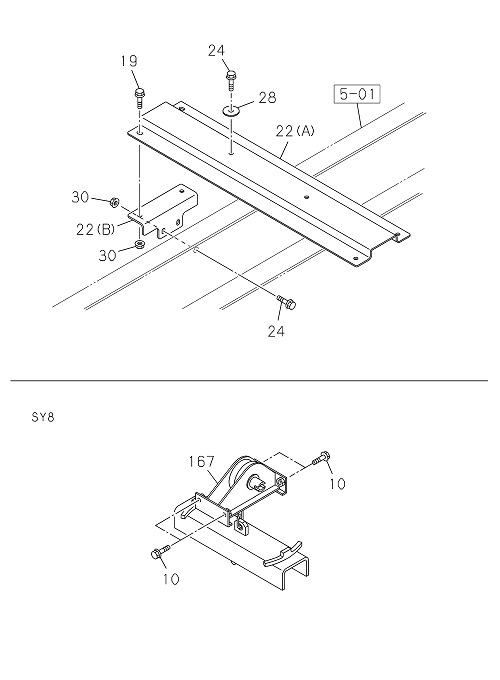

5-30 | SPARE TIRE CARRIER AND COVER
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 167 | I8-98486 037-0 | HANGER; TIRE | 1 | 2203- | FVZ | |||
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 2203- | FVZ | M12 FLANGE | ||
| 022 | I8-98480 334-A | BRACKET; SPARE TIRE | 2 | 2203- | GVZ | (B) | ||
| 022 | I8-98480 333-A | BRACKET; SPARE TIRE | 1 | 2203- | GVZ | (A) | ||
| 051 | I0-91180 108-0 | NUT; BRKT TO STAY | 8 | 2203- | GVZ | M8 FLANGE | ||
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 2203- | GVZ | M12 FLANGE | ||
| 020 | I0-91180 212-0 | NUT; C/MBR | 8 | 2203- | GVZ | M12 FLANGE | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 2203- | GVZ | M12X35 FLANGE | ||
| 020 | I0-91180 212-0 | NUT; C/MBR | 8 | 2203- | FVZ | M12 FLANGE | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 2203- | GVZ | M12X35 FLANGE | ||
| 009 | I0-91180 114-0 | NUT; BRKT TO FRAME | 3 | 2203- | GVZ | M14 FLANGE | ||
| 049 | I8-98486 054-0 | STAY; TIRE CARRIER | 1 | 2203- | FVZ | (B) | ||
| 005 | I0-28651 440-0 | BOLT; BRKT TO FRAME | 6 | 2203- | FVZ | M14X40 FLANGE | ||
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 2203- | GVZ | M12 FLANGE | ||
| 015 | I8-97682 320-0 | MEMBER; CROSS,SPARE TIRE | 1 | 2203- | FVZ | (A) | ||
| 003 | I8-98486 051-0 | BRACKET; TIRE CARRIER,FRT | 1 | 2203- | FVZ | (B) | ||
| 051 | I0-91180 108-0 | NUT; BRKT TO STAY | 8 | 2203- | FVZ | M8 FLANGE | ||
| 020 | I0-91180 212-0 | NUT; C/MBR | 8 | 2203- | GVZ | M12 FLANGE | ||
| 167 | I8-98314 445-0 | HANGER; TIRE | 1 | 2203- | FVZ | |||
| 028 | I0-91614 814-0 | WASHER; LK,SPARE TIRE | 2 | 2203- | GVZ | ID=15 | ||
| 015 | I8-97658 077-0 | MEMBER; CROSS,SPARE TIRE | 1 | 2203- | FVZ | (C) | ||
| 050 | I0-28650 825-0 | BOLT; BRKT TO STAY | 8 | 2203- | GVZ | M8X25 FLANGE | ||
| 019 | I0-28651 235-0 | BOLT; C/MBR | 4 | 2203- | FVZ | M12X35 FLANGE | ||
| 028 | I0-91614 814-0 | WASHER; LK,SPARE TIRE | 2 | 2203- | GVZ | ID=15 | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 2203- | FVZ | M12X35 FLANGE | ||
| 051 | I0-91180 108-0 | NUT; BRKT TO STAY | 8 | 2203- | GVZ | M8 FLANGE | ||
| 009 | I0-91180 114-0 | NUT; BRKT TO FRAME | 3 | 2203- | FVZ | M14 FLANGE | ||
| 019 | I0-28651 235-0 | BOLT; C/MBR | 4 | 2203- | GVZ | M12X35 FLANGE | ||
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 2203- | GVZ | M12 FLANGE | ||
| 022 | I8-98480 334-A | BRACKET; SPARE TIRE | 2 | 2203- | GVZ | (B) | ||
| 019 | I0-28651 235-0 | BOLT; C/MBR | 4 | 2203- | GVZ | M12X35 FLANGE | ||
| 015 | I8-97660 727-1 | MEMBER; CROSS,SPARE TIRE | 4 | 2203- | FVZ | (B) | ||
| 030 | I0-91180 212-0 | NUT; SPARE TIRE | 8 | 2203- | GVZ | M12 FLANGE | ||
| 010 | I0-28651 230-0 | BOLT; TIRE HANGER | 4 | 2203- | FVZ | M12X30 FLANGE | ||
| 019 | I0-28651 240-0 | BOLT; C/MBR | 8 | 2203- | FVZ | M12X40 FLANGE | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 2203- | GVZ | M12X35 FLANGE | ||
| 049 | I8-98486 053-0 | STAY; TIRE CARRIER | 1 | 2203- | FVZ | (A) | ||
| 003 | I8-98486 052-0 | BRACKET; TIRE CARRIER,FRT | 1 | 2203- | FVZ | (A) | ||
| 024 | I0-28051 250-0 | BOLT; SPARE TIRE | 6 | 2203- | GVZ | M12X50 FLANGE | ||
| 022 | I8-98480 334-A | BRACKET; SPARE TIRE | 2 | 2203- | GVZ | (B) | ||
| 030 | I0-91180 212-0 | NUT; SPARE TIRE | 8 | 2203- | FVZ | M12 FLANGE | ||
| 024 | I0-28051 250-0 | BOLT; SPARE TIRE | 6 | 2203- | GVZ | M12X50 FLANGE | ||
| 009 | I0-91180 114-0 | NUT; BRKT TO FRAME | 3 | 2203- | GVZ | M14 FLANGE | ||
| 022 | I8-98480 333-A | BRACKET; SPARE TIRE | 1 | 2203- | GVZ | (A) | ||
| 028 | I0-91614 814-0 | WASHER; LK,SPARE TIRE | 2 | 2203- | GVZ | ID=15 | ||
| 030 | I0-91180 212-0 | NUT; SPARE TIRE | 8 | 2203- | GVZ | M12 FLANGE | ||
| 030 | I0-91180 212-0 | NUT; SPARE TIRE | 8 | 2203- | GVZ | M12 FLANGE | ||
| 009 | I0-91180 114-0 | NUT; BRKT TO FRAME | 3 | 2203- | GVZ | M14 FLANGE | ||
| 050 | I0-28650 825-0 | BOLT; BRKT TO STAY | 8 | 2203- | GVZ | M8X25 FLANGE | ||
| 024 | I0-28051 250-0 | BOLT; SPARE TIRE | 6 | 2203- | GVZ | M12X50 FLANGE | ||
| 050 | I0-28650 825-0 | BOLT; BRKT TO STAY | 8 | 2203- | GVZ | M8X25 FLANGE | ||
| 022 | I8-98480 333-A | BRACKET; SPARE TIRE | 1 | 2203- | GVZ | (A) | ||
| 051 | I0-91180 108-0 | NUT; BRKT TO STAY | 8 | 2203- | GVZ | M8 FLANGE | ||
| 050 | I0-28650 825-0 | BOLT; BRKT TO STAY | 8 | 2203- | FVZ | M8X25 FLANGE | ||
| 016 | I0-28651 240-0 | BOLT; MEMBER | 8 | 2203- | FVZ | M12X40 FLANGE |
