| 016 |
I8-97407 511-5 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
WHITE |
| 494 |
I8-98343 517-0 |
|
FINISHER; FENDER |
1 |
2203- |
|
GVZ |
|
| 016 |
I6-97407 509-1 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
(IADG) |
| 658 |
I8-98343 515-0 |
|
FINISHER; BLISTER FENDER |
1 |
2203- |
|
GVZ |
|
| 573 |
I8-98017 700-2 |
|
BRACKET; SUPPORT |
1 |
2203- |
|
GVZ |
|
| 001 |
I8-97585 960-9 |
|
PANEL ASM; FRT |
1 |
2203- |
|
GVZ |
(B) |
| 532 |
I0-28650 820-0 |
|
BOLT; FRT PANEL |
8 |
2203- |
|
GVZ |
M8X20 FLANGE |
| 307 |
I8-98028 743-0 |
|
GROMMET; FRT PANEL |
1 |
2203- |
|
GVZ |
(D) |
| 517 |
I8-98037 339-2 |
|
SUPPORT; STEP PANEL |
1 |
2203- |
|
GVZ |
|
| 546 |
I8-94430 184-1 |
|
PLUG; DUMMY HOLE |
2 |
2203- |
|
GVZ |
(B) |
| 552 |
I8-97695 345-A |
|
STAY; FRT LID |
1 |
2203- |
|
GVZ |
|
| 059 |
I8-94279 723-0 |
|
GROMMET; SCREW |
2 |
2203- |
|
GVZ |
|
| 419 |
I0-28650 820-0 |
|
BOLT; STEP |
8 |
2203- |
|
GVZ |
M8X20 FLANGE |
| 472 |
I8-98059 505-0 |
|
SCREW; FENDER TO CAB |
2 |
2203- |
|
GVZ |
(A) M6X18 TAPPING |
| 078 |
I8-98041 166-1 |
|
BRACKET; FENDER |
1 |
2203- |
|
GVZ |
|
| 571 |
I8-98027 457-0 |
|
CLIP; SEAL |
20 |
2203- |
|
GVZ |
NATURAL |
| 121 |
I8-94279 989-0 |
|
GROMMET; FENDER |
10 |
2203- |
|
GVZ |
(D) OD=8.3 |
| 078 |
I8-98041 165-1 |
|
BRACKET; FENDER |
1 |
2203- |
|
GVZ |
|
| 472 |
I8-98090 737-0 |
|
SCREW; FENDER TO CAB |
8 |
2203- |
|
GVZ |
(C) M5X16 |
| 543 |
I8-97585 990-4 |
|
CLOSING; FRT MTG RAIL |
1 |
2203- |
|
GVZ |
|
| 121 |
I8-94279 723-0 |
|
GROMMET; FENDER |
4 |
2203- |
|
GVZ |
(E) |
| 534 |
I8-98241 984-0 |
|
FASTENER |
12 |
2203- |
|
GVZ |
ID=5.4 OD=6.8 |
| 524 |
I8-94279 974-1 |
|
CLIP; FENDER COVER |
2 |
2203- |
|
GVZ |
OD=7.9 BLACK |
| 018 |
I8-98043 511-1 |
|
SEAL; A-POST UPR,FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(A) |
| 419 |
I0-28650 820-0 |
|
BOLT; STEP |
8 |
2203- |
|
GVZ |
M8X20 FLANGE |
| 022 |
I0-74360 410-0 |
|
SCREW; FRT PANEL SIDE |
6 |
2203- |
|
GVZ |
M4X10 TAPPING W/PL WASHER |
| 423 |
I8-98037 335-1 |
|
SUPPORT ASM; STEP |
1 |
2203- |
|
GVZ |
|
| 198 |
I9-09114 086-0 |
|
NUT; PANEL |
2 |
2203- |
|
GVZ |
M6 |
| 571 |
I8-98027 457-0 |
|
CLIP; SEAL |
20 |
2203- |
|
GVZ |
NATURAL |
| 494 |
I8-98343 517-0 |
|
FINISHER; FENDER |
1 |
2203- |
|
GVZ |
|
| 656 |
I8-98031 265-0 |
|
PATCH; STRIKER |
2 |
2203- |
|
GVZ |
|
| 535 |
I8-97468 117-0 |
|
FENDER; BLISTER |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 299 |
I8-98034 814-1 |
|
COVER; FRT PANEL SIDE |
1 |
2203- |
|
GVZ |
|
| 655 |
I8-98031 263-0 |
|
PATCH; HINGE |
1 |
2203- |
|
GVZ |
|
| 307 |
I8-98021 300-1 |
|
GROMMET; FRT PANEL |
4 |
2203- |
|
GVZ |
(C) |
| 016 |
I8-97407 509-4 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
WHITE |
| 472 |
I8-98059 505-0 |
|
SCREW; FENDER TO CAB |
2 |
2203- |
|
GVZ |
(A) M6X18 TAPPING |
| 472 |
I8-98090 737-0 |
|
SCREW; FENDER TO CAB |
8 |
2203- |
|
GVZ |
(C) M5X16 |
| 517 |
I8-98037 339-2 |
|
SUPPORT; STEP PANEL |
1 |
2203- |
|
GVZ |
|
| 664 |
I8-97468 125-0 |
|
BASE; DOOR,SIDE TURN |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 525 |
I8-98061 761-0 |
|
SEAL; FENDER |
2 |
2203- |
|
GVZ |
(B) LOWER |
| 019 |
I8-98062 215-0 |
|
SEAL; FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(A) |
| 014 |
I8-98132 740-0 |
|
FENDER; FRT |
1 |
2203- |
|
GVZ |
|
| 423 |
I8-98037 335-1 |
|
SUPPORT ASM; STEP |
1 |
2203- |
|
GVZ |
|
| 307 |
I8-97410 738-0 |
|
GROMMET; FRT PANEL |
2 |
2203- |
|
GVZ |
(B) |
| 602 |
I8-98241 984-0 |
|
RETAINER; COVER |
6 |
2203- |
|
GVZ |
ID=5.4 OD=6.8 |
| 289 |
I0-28650 616-0 |
|
BOLT; FENDER SKIRT BRKT |
8 |
2203- |
|
GVZ |
M6X16 FLANGE |
| 472 |
I8-98093 669-0 |
|
SCREW; FENDER TO CAB |
4 |
2203- |
|
GVZ |
(B) M5X12 |
| 664 |
I8-97468 128-0 |
|
BASE; DOOR,SIDE TURN |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 655 |
I8-98031 263-0 |
|
PATCH; HINGE |
1 |
2203- |
|
GVZ |
|
| 553 |
I8-98071 399-0 |
|
CLIP; STAY |
1 |
2203- |
|
GVZ |
(A) |
| 655 |
I8-98031 264-0 |
|
PATCH; HINGE |
1 |
2203- |
|
GVZ |
|
| 532 |
I0-28650 820-0 |
|
BOLT; FRT PANEL |
8 |
2203- |
|
GVZ |
M8X20 FLANGE |
| 289 |
I0-28650 616-0 |
|
BOLT; FENDER SKIRT BRKT |
8 |
2203- |
|
GVZ |
M6X16 FLANGE |
| 015 |
I8-98059 504-0 |
|
BOLT; FENDER |
6 |
2203- |
|
GVZ |
M6X20 W/PL WASHER |
| 558 |
I1-79338 007-1 |
|
LEVER; FRT LID |
1 |
2203- |
|
GVZ |
|
| 517 |
I8-98037 338-2 |
|
SUPPORT; STEP PANEL |
1 |
2203- |
|
GVZ |
|
| 019 |
I8-98041 358-2 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(D) |
| 022 |
I0-74360 410-0 |
|
SCREW; FRT PANEL SIDE |
6 |
2203- |
|
GVZ |
M4X10 TAPPING W/PL WASHER |
| 553 |
I8-97031 428-0 |
|
CLIP; STAY |
1 |
2203- |
|
GVZ |
(B) |
| 550 |
I8-98036 569-2 |
|
LOCK ASM; FRT LID |
2 |
2203- |
|
GVZ |
|
| 540 |
I8-97585 966-2 |
|
PANEL; FRONT,OUTER |
1 |
2203- |
|
GVZ |
|
| 332 |
I8-97468 824-0 |
|
FENDER; RR |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 659 |
I1-09983 174-0 |
|
CLIP; FENDER |
8 |
2203- |
|
GVZ |
D=5.4X8 |
| 307 |
I8-98021 300-1 |
|
GROMMET; FRT PANEL |
4 |
2203- |
|
GVZ |
(C) |
| 001 |
I8-98030 234-5 |
|
PANEL ASM; FRT |
1 |
2203- |
|
GVZ |
(A) |
| 293 |
I8-97586 007-3 |
|
BRACKET; PANEL |
1 |
2203- |
|
GVZ |
(A) |
| 307 |
I8-98034 363-1 |
|
GROMMET; FRT PANEL |
4 |
2203- |
|
GVZ |
(A) OD=20 |
| 535 |
I8-97468 118-0 |
|
FENDER; BLISTER |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 020 |
I8-97410 739-1 |
|
CLIP; FRT PANEL SIDE |
4 |
2203- |
|
GVZ |
(A) |
| 525 |
I8-98061 761-0 |
|
SEAL; FENDER |
2 |
2203- |
|
GVZ |
(B) LOWER |
| 556 |
I0-28650 616-0 |
|
BOLT; CABLE |
1 |
2203- |
|
GVZ |
M6X16 FLANGE |
| 121 |
I8-94279 078-A |
|
GROMMET; FENDER |
6 |
2203- |
|
GVZ |
(C) D=8.6X7.7 L=7.5 |
| 332 |
I8-97468 824-0 |
|
FENDER; RR |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 558 |
I1-79338 007-1 |
|
LEVER; FRT LID |
1 |
2203- |
|
GVZ |
|
| 018 |
I8-98038 608-0 |
|
SEAL; A-POST UPR,FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(B) |
| 299 |
I8-98034 814-1 |
|
COVER; FRT PANEL SIDE |
1 |
2203- |
|
GVZ |
|
| 016 |
I8-97407 511-5 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
WHITE |
| 385 |
I8-98059 504-0 |
|
SCREW; FENDER LWR |
4 |
2203- |
|
GVZ |
M6X20 W/PL WASHER |
| 665 |
I0-36210 620-0 |
|
SCREW; FENDER |
2 |
2203- |
|
GVZ |
M6X20 W/PL WASHER |
| 332 |
I8-97468 746-0 |
|
FENDER; RR |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 548 |
I8-98068 145-1 |
|
STRIKER; FRT LID PANEL |
2 |
2203- |
|
GVZ |
|
| 059 |
I8-94279 723-0 |
|
GROMMET; SCREW |
2 |
2203- |
|
GVZ |
|
| 658 |
I8-98343 515-0 |
|
FINISHER; BLISTER FENDER |
1 |
2203- |
|
GVZ |
|
| 535 |
I8-97468 117-0 |
|
FENDER; BLISTER |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 555 |
I8-98036 574-2 |
|
CABLE; FRT LID |
1 |
2203- |
|
GVZ |
|
| 299 |
I8-98034 813-1 |
|
COVER; FRT PANEL SIDE |
1 |
2203- |
|
GVZ |
|
| 385 |
I8-98059 504-0 |
|
SCREW; FENDER LWR |
4 |
2203- |
|
GVZ |
M6X20 W/PL WASHER |
| 578 |
I8-97586 018-3 |
|
COVER; WIPER MOTOR |
1 |
2203- |
|
GVZ |
|
| 668 |
I8-97926 883-0 |
|
COVER; LEVER,FRT LID |
1 |
2203- |
|
GVZ |
|
| 121 |
I8-98073 421-0 |
|
GROMMET; FENDER |
1 |
2203- |
|
GVZ |
(A) |
| 423 |
I8-98037 336-1 |
|
SUPPORT ASM; STEP |
1 |
2203- |
|
GVZ |
|
| 666 |
I8-98071 178-0 |
|
CLIP; BLISTER FENDER |
4 |
2203- |
|
GVZ |
D=5.4X16 |
| 656 |
I8-98031 265-0 |
|
PATCH; STRIKER |
2 |
2203- |
|
GVZ |
|
| 553 |
I8-97031 428-0 |
|
CLIP; STAY |
1 |
2203- |
|
GVZ |
(B) |
| 019 |
I8-98036 581-0 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(C) |
| 020 |
I8-97410 740-3 |
|
CLIP; FRT PANEL SIDE |
2 |
2203- |
|
GVZ |
(B) |
| 546 |
I8-94198 177-0 |
|
PLUG; DUMMY HOLE |
2 |
2203- |
|
GVZ |
(A) OD=38 |
| 525 |
I8-98061 760-0 |
|
SEAL; FENDER |
2 |
2203- |
|
GVZ |
(A) UPPER |
| 533 |
I8-98096 289-A |
|
SEAL; FRT PANEL |
1 |
2203- |
|
GVZ |
|
| 059 |
I8-94279 723-0 |
|
GROMMET; SCREW |
6 |
2203- |
|
GVZ |
|
| 121 |
I8-94279 723-0 |
|
GROMMET; FENDER |
4 |
2203- |
|
GVZ |
(E) |
| 016 |
I6-97407 511-1 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
(IADG) |
| 650 |
I8-94471 330-2 |
|
NUT; SPIRE |
2 |
2203- |
|
GVZ |
|
| 545 |
I8-98123 265-A |
|
SEAL; FRT LID |
1 |
2203- |
|
GVZ |
|
| 001 |
I6-98030 234-0 |
|
PANEL ASM; FRT |
1 |
2203- |
|
GVZ |
(IADG) (A) |
| 121 |
I8-98073 420-0 |
|
GROMMET; FENDER |
1 |
2203- |
|
GVZ |
(A) |
| 001 |
I8-98030 234-5 |
|
PANEL ASM; FRT |
1 |
2203- |
|
GVZ |
(A) |
| 121 |
I8-94463 268-A |
|
GROMMET; FENDER |
4 |
2203- |
|
GVZ |
(B) H=15 |
| 535 |
I8-97468 118-0 |
|
FENDER; BLISTER |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 020 |
I8-97410 739-1 |
|
CLIP; FRT PANEL SIDE |
4 |
2203- |
|
GVZ |
(A) |
| 555 |
I8-98036 574-2 |
|
CABLE; FRT LID |
1 |
2203- |
|
GVZ |
|
| 664 |
I8-97468 128-0 |
|
BASE; DOOR,SIDE TURN |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 546 |
I8-94198 177-0 |
|
PLUG; DUMMY HOLE |
2 |
2203- |
|
GVZ |
(A) OD=38 |
| 525 |
I8-98061 760-0 |
|
SEAL; FENDER |
2 |
2203- |
|
GVZ |
(A) UPPER |
| 307 |
I8-98028 743-0 |
|
GROMMET; FRT PANEL |
1 |
2203- |
|
GVZ |
(D) |
| 014 |
I8-98132 740-0 |
|
FENDER; FRT |
1 |
2203- |
|
GVZ |
|
| 557 |
I1-73907 618-0 |
|
CLIP; CABLE |
3 |
2203- |
|
GVZ |
ID=4.8 |
| 553 |
I8-98071 399-0 |
|
CLIP; STAY |
1 |
2203- |
|
GVZ |
(A) |
| 121 |
I8-98073 421-0 |
|
GROMMET; FENDER |
1 |
2203- |
|
GVZ |
(A) |
| 121 |
I8-94463 268-A |
|
GROMMET; FENDER |
4 |
2203- |
|
GVZ |
(B) H=15 |
| 078 |
I8-98041 165-1 |
|
BRACKET; FENDER |
1 |
2203- |
|
GVZ |
|
| 525 |
I8-98061 762-0 |
|
SEAL; FENDER |
2 |
2203- |
|
GVZ |
(C) |
| 472 |
I8-98093 669-0 |
|
SCREW; FENDER TO CAB |
4 |
2203- |
|
GVZ |
(B) M5X12 |
| 578 |
I8-97586 018-4 |
|
COVER; WIPER MOTOR |
1 |
2203- |
|
GVZ |
|
| 019 |
I8-98036 580-0 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(C) |
| 650 |
I8-94471 330-2 |
|
NUT; SPIRE |
2 |
2203- |
|
GVZ |
|
| 547 |
I8-94324 556-2 |
|
RUBBER; CUSHION |
2 |
2203- |
|
GVZ |
OD=22 L=29 |
| 534 |
I8-98241 984-0 |
|
FASTENER |
12 |
2203- |
|
GVZ |
ID=5.4 OD=6.8 |
| 608 |
I1-09983 174-0 |
|
CLIP |
6 |
2203- |
|
GVZ |
D=5.4X8 |
| 016 |
I6-97407 511-1 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
(IADG) |
| 602 |
I8-98241 984-0 |
|
RETAINER; COVER |
6 |
2203- |
|
GVZ |
ID=5.4 OD=6.8 |
| 226 |

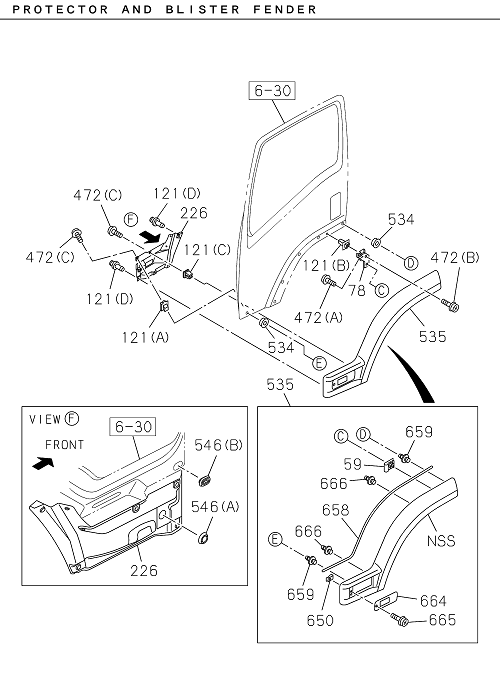

I8-98037 713-2 |
|
PROTECTOR; FRT |
1 |
2203- |
|
GVZ |
|
| 226 |
I8-98037 712-2 |
|
PROTECTOR; FRT |
1 |
2203- |
|
GVZ |
|
| 226 |
I8-98037 713-2 |
|
PROTECTOR; FRT |
1 |
2203- |
|
GVZ |
|
| 299 |
I8-98034 813-1 |
|
COVER; FRT PANEL SIDE |
1 |
2203- |
|
GVZ |
|
| 546 |
I8-94430 184-1 |
|
PLUG; DUMMY HOLE |
2 |
2203- |
|
GVZ |
(B) |
| 293 |
I8-98008 126-1 |
|
BRACKET; PANEL |
1 |
2203- |
|
GVZ |
(B) |
| 019 |
I8-98035 268-0 |
|
SEAL; FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(B) |
| 664 |
I8-97468 125-0 |
|
BASE; DOOR,SIDE TURN |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 019 |
I8-98036 581-0 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(C) |
| 226 |
I8-98037 712-2 |
|
PROTECTOR; FRT |
1 |
2203- |
|
GVZ |
|
| 552 |
I8-97695 345-A |
|
STAY; FRT LID |
1 |
2203- |
|
GVZ |
|
| 121 |
I8-94279 989-0 |
|
GROMMET; FENDER |
10 |
2203- |
|
GVZ |
(D) OD=8.3 |
| 548 |
I8-98068 145-1 |
|
STRIKER; FRT LID PANEL |
2 |
2203- |
|
GVZ |
|
| 019 |
I8-98035 268-0 |
|
SEAL; FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(B) |
| 014 |
I8-98132 739-0 |
|

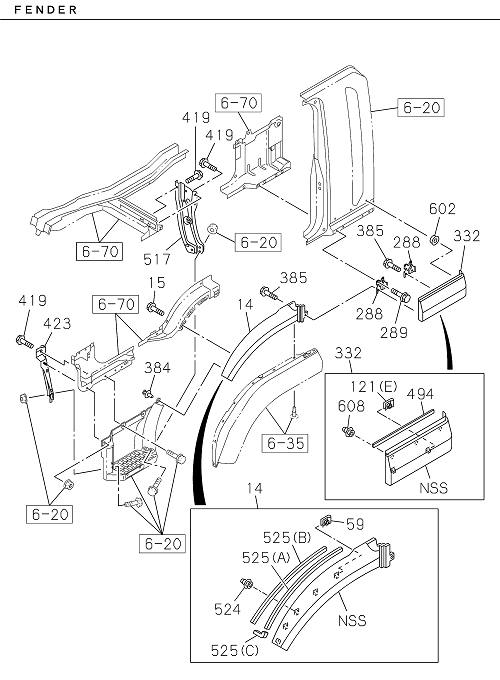

FENDER; FRT |
1 |
2203- |
|
GVZ |
|
| 384 |
I1-09987 248-1 |
|
CLIP; FENDER LWR |
2 |
2203- |
|
GVZ |
D=8X13.5 |
| 019 |
I8-98041 358-2 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(D) |
| 659 |
I1-09983 174-0 |
|
CLIP; FENDER |
8 |
2203- |
|
GVZ |
D=5.4X8 |
| 658 |
I8-98343 514-0 |
|
FINISHER; BLISTER FENDER |
1 |
2203- |
|
GVZ |
|
| 019 |
I8-98036 580-0 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(C) |
| 524 |
I8-94279 974-1 |
|
CLIP; FENDER COVER |
2 |
2203- |
|
GVZ |
OD=7.9 BLACK |
| 015 |
I8-98059 504-0 |
|
BOLT; FENDER |
6 |
2203- |
|
GVZ |
M6X20 W/PL WASHER |
| 517 |
I8-98037 338-2 |
|
SUPPORT; STEP PANEL |
1 |
2203- |
|
GVZ |
|
| 573 |
I8-98017 700-2 |
|
BRACKET; SUPPORT |
1 |
2203- |
|
GVZ |
|
| 293 |
I8-98008 126-1 |
|
BRACKET; PANEL |
1 |
2203- |
|
GVZ |
(B) |
| 016 |
I8-97407 509-4 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
WHITE |
| 533 |
I8-98096 289-A |
|
SEAL; FRT PANEL |
1 |
2203- |
|
GVZ |
|
| 078 |
I8-98041 166-1 |
|
BRACKET; FENDER |
1 |
2203- |
|
GVZ |
|
| 198 |
I9-09114 086-0 |
|
NUT; PANEL |
2 |
2203- |
|
GVZ |
M6 |
| 018 |
I8-98043 511-1 |
|
SEAL; A-POST UPR,FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(A) |
| 556 |
I0-28650 616-0 |
|
BOLT; CABLE |
1 |
2203- |
|
GVZ |
M6X16 FLANGE |
| 016 |
I6-97407 509-1 |
|
PANEL; FRONT,SIDE |
1 |
2203- |
|
GVZ |
(IADG) |
| 423 |
I8-98037 336-1 |
|
SUPPORT ASM; STEP |
1 |
2203- |
|
GVZ |
|
| 608 |
I1-09983 174-0 |
|
CLIP |
6 |
2203- |
|
GVZ |
D=5.4X8 |
| 293 |
I8-98008 124-1 |
|
BRACKET; PANEL |
1 |
2203- |
|
GVZ |
(B) |
| 225 |
I8-98041 431-1 |
|
COVER; SIDE,FRT |
1 |
2203- |
|
GVZ |
|
| 668 |
I8-97926 883-0 |
|
COVER; LEVER,FRT LID |
1 |
2203- |
|
GVZ |
|
| 307 |
I8-98034 363-1 |
|
GROMMET; FRT PANEL |
4 |
2203- |
|
GVZ |
(A) OD=20 |
| 121 |
I8-98073 420-0 |
|
GROMMET; FENDER |
1 |
2203- |
|
GVZ |
(A) |
| 494 |
I8-98343 516-0 |
|
FINISHER; FENDER |
1 |
2203- |
|
GVZ |
|
| 545 |
I8-98123 265-A |
|
SEAL; FRT LID |
1 |
2203- |
|
GVZ |
|
| 019 |
I8-98041 359-2 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(D) |

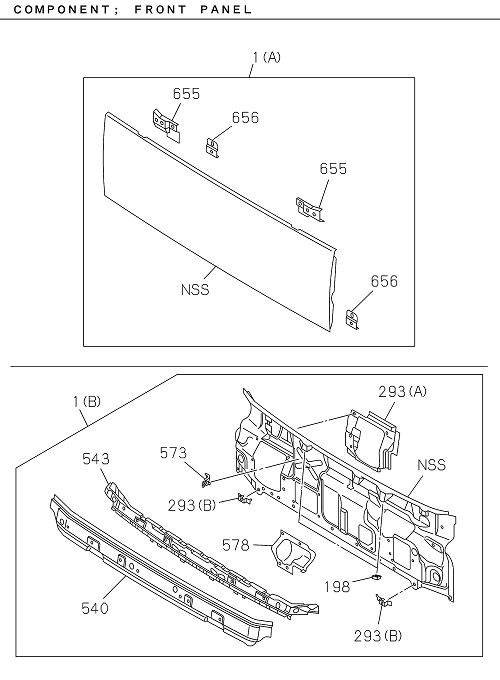

| 001 |
I8-97585 960-9 |
|
PANEL ASM; FRT |
1 |
2203- |
|
GVZ |
(B) |
| 014 |
I8-98132 739-0 |
|
FENDER; FRT |
1 |
2203- |
|
GVZ |
|
| 288 |
I8-98059 770-1 |
|
BRACKET; FENDER SKIRT |
4 |
2203- |
|
GVZ |
|
| 307 |
I8-97410 738-0 |
|
GROMMET; FRT PANEL |
2 |
2203- |
|
GVZ |
(B) |
| 543 |
I8-97585 990-4 |
|
CLOSING; FRT MTG RAIL |
1 |
2203- |
|
GVZ |
|
| 384 |
I1-09987 248-1 |
|
CLIP; FENDER LWR |
2 |
2203- |
|
GVZ |
D=8X13.5 |
| 001 |
I6-98030 234-1 |
|
PANEL ASM; FRT |
1 |
2203- |
|
GVZ |
(IADG) (A) |
| 666 |
I8-98071 178-0 |
|
CLIP; BLISTER FENDER |
4 |
2203- |
|
GVZ |
D=5.4X16 |
| 288 |
I8-98059 770-1 |
|
BRACKET; FENDER SKIRT |
4 |
2203- |
|
GVZ |
|
| 059 |
I8-94279 723-0 |
|
GROMMET; SCREW |
6 |
2203- |
|
GVZ |
|
| 293 |
I8-97586 007-3 |
|
BRACKET; PANEL |
1 |
2203- |
|
GVZ |
(A) |
| 019 |
I8-98062 215-0 |
|
SEAL; FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(A) |
| 550 |
I8-98036 569-2 |
|

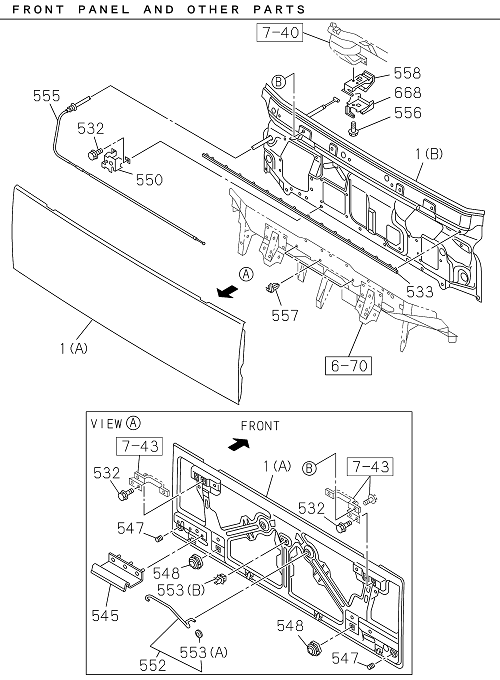

LOCK ASM; FRT LID |
2 |
2203- |
|
GVZ |
|
| 655 |
I8-98031 264-0 |
|
PATCH; HINGE |
1 |
2203- |
|
GVZ |
|
| 225 |
I8-98041 431-1 |
|
COVER; SIDE,FRT |
1 |
2203- |
|
GVZ |
|
| 547 |
I8-94324 556-2 |
|
RUBBER; CUSHION |
2 |
2203- |
|
GVZ |
OD=22 L=29 |
| 525 |
I8-98061 762-0 |
|
SEAL; FENDER |
2 |
2203- |
|
GVZ |
(C) |
| 658 |
I8-98343 514-0 |
|
FINISHER; BLISTER FENDER |
1 |
2203- |
|
GVZ |
|
| 020 |
I8-97410 740-3 |
|
CLIP; FRT PANEL SIDE |
2 |
2203- |
|
GVZ |
(B) |
| 019 |
I8-98041 359-2 |
|
SEAL; FRT SIDE PANEL |
1 |
2203- |
|
GVZ |
(D) |
| 557 |
I1-73907 618-0 |
|
CLIP; CABLE |
3 |
2203- |
|
GVZ |
ID=4.8 |
| 665 |
I0-36210 620-0 |
|
SCREW; FENDER |
2 |
2203- |
|
GVZ |
M6X20 W/PL WASHER |
| 121 |
I8-94279 078-A |
|
GROMMET; FENDER |
6 |
2203- |
|
GVZ |
(C) D=8.6X7.7 L=7.5 |
| 332 |
I8-97468 746-0 |
|
FENDER; RR |
1 |
2203- |
|
GVZ |
DARK GRAY |
| 540 |
I8-97585 966-2 |
|
PANEL; FRONT,OUTER |
1 |
2203- |
|
GVZ |
|
| 293 |
I8-98008 124-1 |
|
BRACKET; PANEL |
1 |
2203- |
|
GVZ |
(B) |
| 018 |
I8-98038 608-0 |
|
SEAL; A-POST UPR,FRT SIDE PANEL |
2 |
2203- |
|
GVZ |
(B) |
| 494 |
I8-98343 516-0 |
|
FINISHER; FENDER |
1 |
2203- |
|
GVZ |
|
