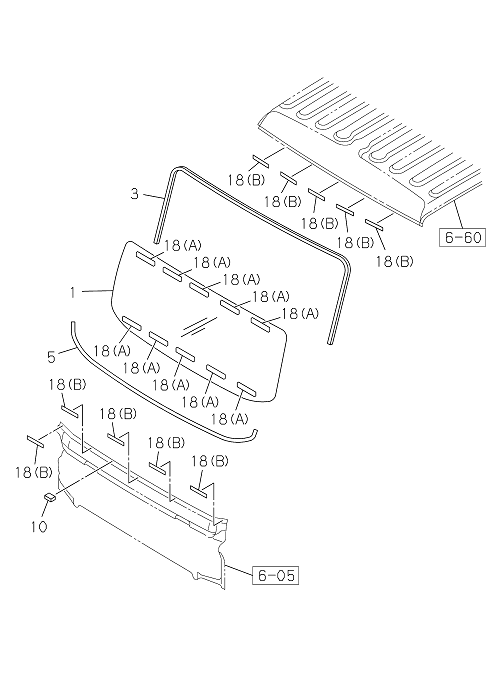

6-07 | FRONT WINDOW GLASS AND WEATHERSTRIP
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 018 | I8-98029 086-1 | SEAL; WINDSHIELD | 10 | 2203- | GVZ | (B) L=100 B=8 | ||
| 010 | I8-98095 044-0 | SPACER; WINDSHIELD GLASS | 2 | 2203- | GVZ | L=100 B=1.5 | ||
| 005 | I7-46245 301-A | MOLDING; WINDSHIELD,LWR | 1 | 2203- | GVZ | |||
| 018 | I8-98083 198-1 | SEAL; WINDSHIELD | 10 | 2203- | GVZ | (A) L=100 B=10 | ||
| 010 | I8-98095 044-0 | SPACER; WINDSHIELD GLASS | 2 | 2203- | GVZ | L=100 B=1.5 | ||
| 003 | I8-98041 651-3 | MOLDING; WINDSHIELD | 1 | 2203- | GVZ | |||
| 003 | I8-98041 651-3 | MOLDING; WINDSHIELD | 1 | 2203- | GVZ | |||
| 001 | I7-46100 343-A | GLASS; WINDSHIELD | 1 | 2203- | GVZ | |||
| 018 | I8-98029 086-1 | SEAL; WINDSHIELD | 10 | 2203- | GVZ | (B) L=100 B=8 | ||
| 005 | I7-46245 301-A | MOLDING; WINDSHIELD,LWR | 1 | 2203- | GVZ | |||
| 001 | I7-46100 343-A | GLASS; WINDSHIELD | 1 | 2203- | GVZ | |||
| 018 | I8-98083 198-1 | SEAL; WINDSHIELD | 10 | 2203- | GVZ | (A) L=100 B=10 |
