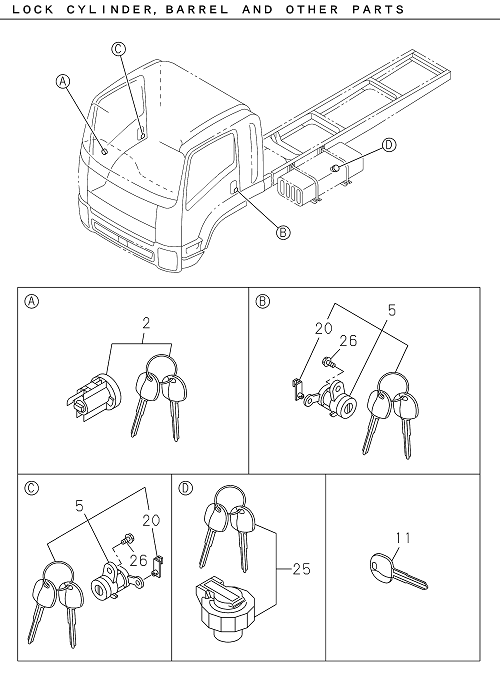

7-30 | LOCK CYLINDER SET
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-98201 342-0 | BARREL ASM; W/KEY,STRG LOCK | 1 | 2203- | GVZ | |||
| 002 | I8-98201 342-0 | BARREL ASM; W/KEY,STRG LOCK | 1 | 2203- | GVZ | |||
| 005 | I8-98201 344-0 | CYLINDER ASM; DOOR LOCK | 1 | 2203- | GVZ | |||
| 011 | I8-98055 170-0 | KEY; BLANK | AR | 2203- | GVZ | |||
| 011 | I8-98055 170-0 | KEY; BLANK | AR | 2203- | GVZ | |||
| 005 | I8-98201 343-0 | CYLINDER ASM; DOOR LOCK | 1 | 2203- | GVZ | |||

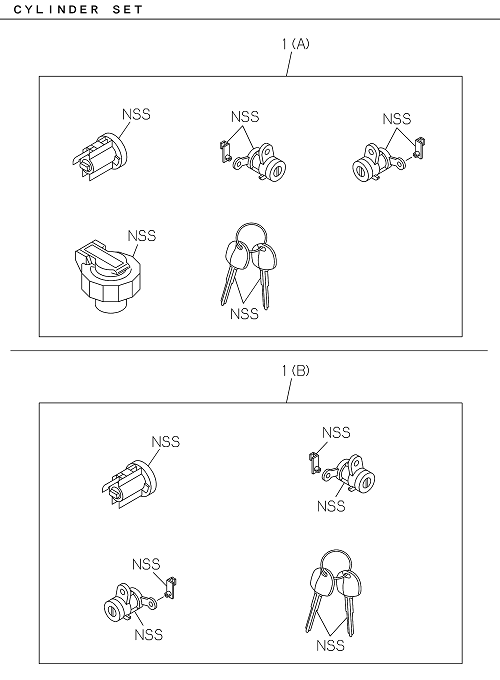

| 001 | I8-98315 741-0 | CYLINDER SET; CAR LOCK | 1 | 2203- | GVZ | (B) | ||
| 005 | I8-98201 344-0 | CYLINDER ASM; DOOR LOCK | 1 | 2203- | GVZ | |||
| 020 | I8-98055 182-0 | SNAP; DOOR LOCK CYL | 1 | 2203- | GVZ | |||
| 001 | I8-98315 741-0 | CYLINDER SET; CAR LOCK | 1 | 2203- | GVZ | (B) | ||
| 020 | I8-98055 181-0 | SNAP; DOOR LOCK CYL | 1 | 2203- | GVZ | |||
| 020 | I8-98055 182-0 | SNAP; DOOR LOCK CYL | 1 | 2203- | GVZ | |||
| 026 | I8-98031 839-0 | BOLT; KEY CYL,DOOR | 2 | 2203- | GVZ | M6X8 FLANGE | ||
| 026 | I8-98031 839-0 | BOLT; KEY CYL,DOOR | 2 | 2203- | GVZ | M6X8 FLANGE | ||
| 020 | I8-98055 181-0 | SNAP; DOOR LOCK CYL | 1 | 2203- | GVZ | |||
| 005 | I8-98201 343-0 | CYLINDER ASM; DOOR LOCK | 1 | 2203- | GVZ |
