| 069 |
I8-98028 561-2 |
|
GRILLE; SIDE,AIR OUTLET |
2 |
2203- |
|
GVZ |
(A) |
| 018 |
I8-98058 632-0 |
|
BOLT; BRKT |
3 |
2203- |
|
GVZ |
(B) SCREW T25 L=10 HEXALOBULAR |
| 178 |
I8-97926 385-0 |
|
NUT; INST PANEL |
15 |
2203- |
|
GVZ |
(B) |
| 054 |
I8-97926 414-0 |
|
POCKET; CENTER CLUSTER |
1 |
2203- |
|
GVZ |
(C) H=58.4 |
| 704 |
I8-97585 618-2 |
|
BRACKET; CENTER POCKET |
2 |
2203- |
|
GVZ |
(A) |
| 568 |
I8-98031 842-0 |
|
BOLT; COVER |
2 |
2203- |
|
GVZ |
(B) M6X20 W/LK&PL WASHER |
| 682 |
I7-08102 302-A |
|
CLIP |
2 |
2203- |
|
GVZ |
|
| 070 |
I8-98028 563-2 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2203- |
|
GVZ |
|
| 336 |
I8-97926 876-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(D) |
| 336 |
I8-97926 876-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(D) |
| 703 |
I8-98058 632-0 |
|
SCREW; CENTER POCKET |
4 |
2203- |
|
GVZ |
T25 L=10 HEXALOBULAR |
| 699 |
I8-97408 927-0 |
|
HOOK; INST PANEL |
1 |
2203- |
|
GVZ |
GRAY |
| 125 |
I8-97408 817-0 |
|
CLIP; INST PANEL |
3 |
2203- |
|
GVZ |
GRAY |
| 703 |
I8-98058 632-0 |
|
SCREW; CENTER POCKET |
4 |
2203- |
|
GVZ |
T25 L=10 HEXALOBULAR |
| 356 |
I0-91180 106-0 |
|
NUT; COVER |
1 |
2203- |
|
GVZ |
M6 FLANGE |
| 564 |
I8-98025 954-1 |
|
COVER; SW |
6 |
2203- |
|
GVZ |
|
| 016 |
I8-97585 612-2 |
|
BRACKET; INST PNL |
1 |
2203- |
|
GVZ |
(A) |
| 182 |
I0-72180 516-0 |
|
BOLT; BRKT,INST PANEL |
1 |
2203- |
|
GVZ |
(B) SCREW M5X16 TAPPING HEXALOBULAR |
| 167 |
I8-97264 766-0 |
|
BOLT; REINF TO INST |
4 |
2203- |
|
GVZ |
M8X23 FLANGE |
| 011 |
I0-72180 516-0 |
|
BOLT; INST PNL |
8 |
2203- |
|
GVZ |
(A) SCREW M5X16 TAPPING HEXALOBULAR |
| 646 |
I8-98051 492-2 |
|
BRACKET; GARNISH PANEL |
1 |
2203- |
|
GVZ |
(B) |
| 568 |
I0-72180 516-0 |
|
BOLT; COVER |
1 |
2203- |
|
GVZ |
(A) SCREW M5X16 TAPPING HEXALOBULAR |
| 006 |
I8-98196 255-0 |
|
SUPPORT; INST PANEL |
1 |
2203- |
|
GVZ |
|
| 182 |
I0-72180 516-0 |
|
BOLT; BRKT,INST PANEL |
1 |
2203- |
|
GVZ |
(B) SCREW M5X16 TAPPING HEXALOBULAR |
| 004 |
I8-97407 898-1 |
|
COVER; INST PNL |
1 |
2203- |
|
GVZ |
GRAY |
| 182 |
I0-28050 816-0 |
|
BOLT; BRKT,INST PANEL |
4 |
2203- |
|
GVZ |
(A) M8X16 FLANGE |
| 569 |
I8-97410 276-1 |
|
HOLDER; CARD |
1 |
2203- |
|
GVZ |
|
| 054 |
I8-97926 412-0 |
|
POCKET; CENTER CLUSTER |
1 |
2203- |
|
GVZ |
(B) H=69.8 |
| 010 |
I8-97422 097-2 |
|
PANEL ASM; GARNISH |
1 |
2203- |
|
GVZ |
GRAY |
| 016 |
I8-97926 512-0 |
|
BRACKET; INST PNL |
1 |
2203- |
L |
GVZ |
(B) |
| 011 |
I8-98018 440-0 |
|
BOLT; INST PNL |
4 |
2203- |
|
GVZ |
(B) M6X25 W/LK&PL WASHER |
| 069 |
I8-98028 562-2 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2203- |
|
GVZ |
(B) |
| 721 |
I8-97892 742-0 |
|
FINISHER; BRKT,KNEE |
1 |
2203- |
|
GVZ |
L=140 |
| 069 |
I8-98028 562-2 |
|
GRILLE; SIDE,AIR OUTLET |
1 |
2203- |
|
GVZ |
(B) |
| 016 |
I8-97926 511-0 |
|
BRACKET; INST PNL |
1 |
2203- |
R |
GVZ |
(B) |
| 378 |
I8-97926 891-0 |
|
SEAL; INST PANEL |
1 |
2203- |
|
GVZ |
|
| 718 |
I8-97926 893-0 |
|
SEAL; COVER |
1 |
2203- |
|
GVZ |
|
| 356 |
I0-91180 106-0 |
|
NUT; COVER |
1 |
2203- |
|
GVZ |
M6 FLANGE |
| 016 |
I8-97585 612-2 |
|
BRACKET; INST PNL |
1 |
2203- |
|
GVZ |
(A) |
| 603 |
I8-98021 271-0 |
|
CLIP; COVER |
5 |
2203- |
|
GVZ |
(C) |
| 718 |
I8-97926 893-0 |
|
SEAL; COVER |
1 |
2203- |
|
GVZ |
|
| 700 |
I0-72180 516-0 |
|
BOLT; HOOK |
1 |
2203- |
|
GVZ |
SCREW M5X16 TAPPING HEXALOBULAR |
| 336 |
I8-97926 879-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(C) |
| 125 |
I8-97408 817-0 |
|
CLIP; INST PANEL |
3 |
2203- |
|
GVZ |
GRAY |
| 054 |
I8-97926 874-0 |
|
POCKET; CENTER CLUSTER |
1 |
2203- |
|
GVZ |
(A) H=108.4 |
| 136 |
I8-97926 885-0 |
|
CLIP; INST COVER |
2 |
2203- |
|
GVZ |
|
| 336 |
I8-97926 882-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(B) |
| 626 |
I8-94279 804-0 |
|
RETAINER |
2 |
2203- |
|
GVZ |
OD=15 BLACK |
| 697 |
I8-97926 880-0 |
|
PANEL; INST CENTER |
1 |
2203- |
|
GVZ |
|
| 018 |
I8-98058 632-0 |
|
BOLT; BRKT |
3 |
2203- |
|
GVZ |
(B) SCREW T25 L=10 HEXALOBULAR |
| 485 |
I0-91180 106-0 |
|
NUT; SUPPORT CLIP,HARNESS |
2 |
2203- |
|
GVZ |
M6 FLANGE |
| 704 |
I8-97585 616-2 |
|
BRACKET; CENTER POCKET |
2 |
2203- |
|
GVZ |
(B) |
| 581 |
I8-98219 290-0 |
|
SCREW |
2 |
2203- |
|
GVZ |
M2.5X4 |
| 001 |
I8-97926 376-1 |
|
PANEL; INST |
1 |
2203- |
|
GVZ |
|
| 696 |
I8-98066 085-1 |
|
BRACKET; KNEE |
1 |
2203- |
|
GVZ |
|
| 010 |
I8-97422 097-2 |
|
PANEL ASM; GARNISH |
1 |
2203- |
|
GVZ |
GRAY |
| 341 |
I8-97424 725-1 |
|
LID; FUSE BOX |
1 |
2203- |
|
GVZ |
GRAY |
| 696 |
I8-98066 085-1 |
|
BRACKET; KNEE |
1 |
2203- |
|
GVZ |
|
| 579 |
I8-97926 878-0 |
|
COVER; INST PNL |
1 |
2203- |
|
GVZ |
|
| 564 |
I8-98025 954-1 |
|
COVER; SW |
6 |
2203- |
|
GVZ |
|
| 182 |
I0-28050 816-0 |
|
BOLT; BRKT,INST PANEL |
4 |
2203- |
|
GVZ |
(A) M8X16 FLANGE |
| 646 |
I8-98051 492-2 |
|
BRACKET; GARNISH PANEL |
1 |
2203- |
|
GVZ |
(B) |
| 136 |
I8-97926 885-0 |
|
CLIP; INST COVER |
2 |
2203- |
|
GVZ |
|
| 702 |
I0-91180 106-0 |
|
NUT; TRAY |
2 |
2203- |
|
GVZ |
(B) M6 FLANGE |
| 059 |
I8-98058 632-0 |
|
SCREW; CLUSTER POCKET |
4 |
2203- |
|
GVZ |
T25 L=10 HEXALOBULAR |
| 544 |
I0-72180 516-0 |
|
SCREW; TRAY |
3 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 011 |
I8-98018 440-0 |
|
BOLT; INST PNL |
4 |
2203- |
|
GVZ |
(B) M6X25 W/LK&PL WASHER |
| 580 |
I8-98091 546-0 |
|
BRACKET; COVER |
1 |
2203- |
|
GVZ |
|
| 569 |
I8-97410 276-1 |
|
HOLDER; CARD |
1 |
2203- |
|
GVZ |
|
| 014 |
I0-72180 516-0 |
|
SCREW; INST PNL |
4 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 705 |
I0-72180 520-0 |
|
SCREW; BRACKET CENTER POCKET |
8 |
2203- |
|
GVZ |
M5X20 TAPPING HEXALOBULAR |
| 700 |
I0-72180 516-0 |
|
BOLT; HOOK |
1 |
2203- |
|
GVZ |
SCREW M5X16 TAPPING HEXALOBULAR |
| 336 |
I8-97926 879-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(C) |
| 603 |
I8-97926 890-0 |
|
CLIP; COVER |
1 |
2203- |
|
GVZ |
(A) |
| 165 |
I0-91180 106-0 |
|
NUT; BRKT KNEE PAD |
1 |
2203- |
|
GVZ |
M6 FLANGE |
| 705 |
I0-72180 520-0 |
|
SCREW; BRACKET CENTER POCKET |
8 |
2203- |
|
GVZ |
M5X20 TAPPING HEXALOBULAR |
| 662 |
I8-97407 429-4 |
|
COVER; LWR,INST PANEL |
1 |
2203- |
|
GVZ |
GRAY |
| 054 |
I8-97926 412-0 |
|
POCKET; CENTER CLUSTER |
1 |
2203- |
|
GVZ |
(B) H=69.8 |
| 603 |
I8-97926 890-0 |
|
CLIP; COVER |
1 |
2203- |
|
GVZ |
(A) |
| 580 |
I8-98091 546-0 |
|
BRACKET; COVER |
1 |
2203- |
|
GVZ |
|
| 662 |
I8-97407 429-4 |
|
COVER; LWR,INST PANEL |
1 |
2203- |
|
GVZ |
GRAY |
| 702 |
I8-98037 629-0 |
|
NUT; TRAY |
1 |
2203- |
|
GVZ |
(A) |
| 019 |
I0-72180 516-0 |
|
SCREW; BRKT |
1 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 167 |
I8-97264 766-0 |
|
BOLT; REINF TO INST |
4 |
2203- |
|
GVZ |
M8X23 FLANGE |
| 336 |
I8-97926 875-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(A) |
| 581 |
I8-98219 290-0 |
|
SCREW |
2 |
2203- |
|
GVZ |
M2.5X4 |
| 014 |
I0-72180 516-0 |
|
SCREW; INST PNL |
4 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 579 |
I8-97926 878-0 |
|
COVER; INST PNL |
1 |
2203- |
|
GVZ |
|
| 603 |
I8-97926 387-0 |
|
CLIP; COVER |
4 |
2203- |
|
GVZ |
(B) |
| 018 |
I0-52000 612-0 |
|
BOLT; BRKT |
1 |
2203- |
|
GVZ |
(A) M6X12 W/LK&PL WASHER |
| 070 |
I8-98028 563-2 |
|
GRILLE; CENTER,AIR OUTLET |
1 |
2203- |
|
GVZ |
|
| 704 |
I8-97585 616-2 |
|
BRACKET; CENTER POCKET |
2 |
2203- |
|
GVZ |
(B) |
| 066 |
I8-98361 664-0 |
|
REINFORCEMENT; INST PANEL |
1 |
2203- |
|
GVZ |
|
| 338 |
I0-72180 516-0 |
|
SCREW; COVER |
4 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 178 |
I0-91180 106-0 |
|
NUT; INST PANEL |
1 |
2203- |
|
GVZ |
(A) M6 FLANGE |
| 016 |
I8-97926 512-0 |
|
BRACKET; INST PNL |
1 |
2203- |
L |
GVZ |
(B) |
| 568 |
I8-98031 842-0 |
|
BOLT; COVER |
2 |
2203- |
|
GVZ |
(B) M6X20 W/LK&PL WASHER |
| 016 |
I8-98180 277-1 |
|
BRACKET; INST PNL |
1 |
2203- |
|
GVZ |
(C) |
| 054 |
I8-97926 414-0 |
|
POCKET; CENTER CLUSTER |
1 |
2203- |
|
GVZ |
(C) H=58.4 |
| 702 |
I0-91180 106-0 |
|
NUT; TRAY |
2 |
2203- |
|
GVZ |
(B) M6 FLANGE |
| 701 |
I8-97421 976-1 |
|
TRAY; INST |
1 |
2203- |
|
GVZ |
GRAY |
| 016 |
I8-97926 511-0 |
|
BRACKET; INST PNL |
1 |
2203- |
R |
GVZ |
(B) |
| 682 |
I7-08102 302-A |
|
CLIP |
2 |
2203- |
|
GVZ |
|
| 001 |
I8-97926 376-1 |
|
PANEL; INST |
1 |
2203- |
|
GVZ |
|
| 704 |
I8-97585 618-2 |
|
BRACKET; CENTER POCKET |
2 |
2203- |
|
GVZ |
(A) |
| 378 |
I8-97926 891-0 |
|
SEAL; INST PANEL |
1 |
2203- |
|
GVZ |
|
| 004 |
I8-97407 898-1 |
|
COVER; INST PNL |
1 |
2203- |
|
GVZ |
GRAY |
| 603 |
I8-98021 271-0 |
|
CLIP; COVER |
5 |
2203- |
|
GVZ |
(C) |
| 006 |
I8-98196 255-0 |
|
SUPPORT; INST PANEL |
1 |
2203- |
|
GVZ |
|
| 702 |
I8-98037 629-0 |
|
NUT; TRAY |
1 |
2203- |
|
GVZ |
(A) |
| 485 |
I0-91180 106-0 |
|
NUT; SUPPORT CLIP,HARNESS |
2 |
2203- |
|
GVZ |
M6 FLANGE |
| 603 |
I8-97926 387-0 |
|
CLIP; COVER |
4 |
2203- |
|
GVZ |
(B) |
| 336 |
I8-97926 875-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(A) |
| 016 |
I8-98180 277-1 |
|
BRACKET; INST PNL |
1 |
2203- |
|
GVZ |
(C) |
| 646 |
I8-98051 490-2 |
|
BRACKET; GARNISH PANEL |
1 |
2203- |
|
GVZ |
(A) |
| 646 |
I8-98051 490-2 |
|
BRACKET; GARNISH PANEL |
1 |
2203- |
|
GVZ |
(A) |
| 336 |
I8-97926 882-0 |
|
COVER; INST PANEL SIDE |
1 |
2203- |
|
GVZ |
(B) |
| 699 |
I8-97408 927-0 |
|
HOOK; INST PANEL |
1 |
2203- |
|
GVZ |
GRAY |
| 011 |
I0-72180 516-0 |
|
BOLT; INST PNL |
8 |
2203- |
|
GVZ |
(A) SCREW M5X16 TAPPING HEXALOBULAR |
| 178 |
I8-97926 385-0 |
|
NUT; INST PANEL |
15 |
2203- |
|
GVZ |
(B) |
| 341 |
I8-97424 725-1 |
|
LID; FUSE BOX |
1 |
2203- |
|
GVZ |
GRAY |
| 568 |
I0-72180 516-0 |
|
BOLT; COVER |
1 |
2203- |
|
GVZ |
(A) SCREW M5X16 TAPPING HEXALOBULAR |
| 018 |
I0-52000 612-0 |
|
BOLT; BRKT |
1 |
2203- |
|
GVZ |
(A) M6X12 W/LK&PL WASHER |
| 338 |
I0-72180 516-0 |
|
SCREW; COVER |
4 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 054 |

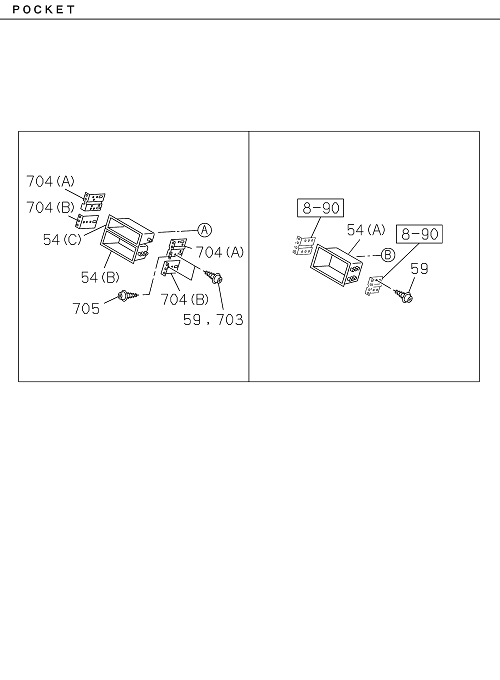

I8-97926 874-0 |
|
POCKET; CENTER CLUSTER |
1 |
2203- |
|
GVZ |
(A) H=108.4 |
| 066 |

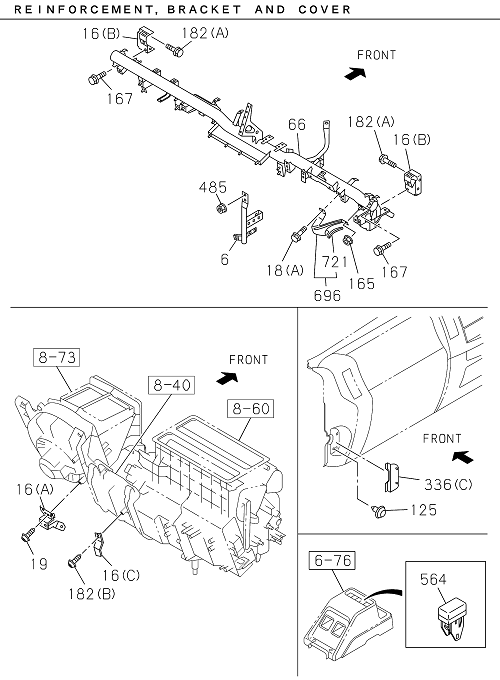

I8-98361 664-0 |
|
REINFORCEMENT; INST PANEL |
1 |
2203- |
|
GVZ |
|
| 178 |
I0-91180 106-0 |
|
NUT; INST PANEL |
1 |
2203- |
|
GVZ |
(A) M6 FLANGE |
| 165 |
I0-91180 106-0 |
|
NUT; BRKT KNEE PAD |
1 |
2203- |
|
GVZ |
M6 FLANGE |
| 697 |
I8-97926 880-0 |
|
PANEL; INST CENTER |
1 |
2203- |
|
GVZ |
|
| 019 |
I0-72180 516-0 |
|
SCREW; BRKT |
1 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 544 |
I0-72180 516-0 |
|
SCREW; TRAY |
3 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 146 |
I0-72180 516-0 |
|
SCREW; TAP |
3 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 069 |
I8-98028 561-2 |
|
GRILLE; SIDE,AIR OUTLET |
2 |
2203- |
|
GVZ |
(A) |
| 146 |
I0-72180 516-0 |
|
SCREW; TAP |
3 |
2203- |
|
GVZ |
M5X16 TAPPING HEXALOBULAR |
| 721 |
I8-97892 742-0 |
|
FINISHER; BRKT,KNEE |
1 |
2203- |
|
GVZ |
L=140 |
| 701 |
I8-97421 976-1 |
|
TRAY; INST |
1 |
2203- |
|
GVZ |
GRAY |
| 059 |
I8-98058 632-0 |
|
SCREW; CLUSTER POCKET |
4 |
2203- |
|
GVZ |
T25 L=10 HEXALOBULAR |
| 626 |
I8-94279 804-0 |
|
RETAINER |
2 |
2203- |
|
GVZ |
OD=15 BLACK |
