8-10 | WIRING HARNESS AND FUSE
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 290 | I0-91180 108-0 | NUT; BRKT | 2 | 2203- | GVZ | M8 FLANGE | ||
| 290 | I0-91180 108-0 | NUT; BRKT | 2 | 2203- | GVZ | M8 FLANGE | ||
| 548 | I9-09956 256-2 | GROMMET | 1 | 2203- | GVZ | ID=28 OD=35 T=17 | ||
| 668 | I8-98298 376-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (A) | ||
| 004 | I8-98342 023-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | GVZ | (B) | ||
| 005 | I8-98054 258-0 | FUSE; FACIA HARNESS | 9 | 2203- | GVZ | 15A BLUE | ||
| 002 | I8-94416 438-1 | DIODE; CABLE HARNESS | 2 | 2203- | GVZ | (A) BLACK 3P-1.5A | ||
| 640 | I0-91180 108-0 | NUT; CLIP | 1 | 2203- | GVZ | M8 FLANGE | ||
| 261 | I8-98065 986-1 | COVER; CONNECTOR BOX | 1 | 2203- | GVZ | |||
| 002 | I8-94422 640-1 | DIODE; CABLE HARNESS | 1 | 2203- | GVZ | (C) BLACK 3P-1.5A | ||
| 027 | I8-94468 661-0 | FUSE UNIT | AR | 2203- | GVZ | 30A PINK | ||
| 002 | I8-94416 438-1 | DIODE; CABLE HARNESS | 2 | 2203- | GVZ | (A) BLACK 3P-1.5A | ||
| 028 | I8-98330 909-0 | SCREW; FUSE BOX | 2 | 2203- | GVZ | |||
| 668 | I8-98298 376-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (A) | ||

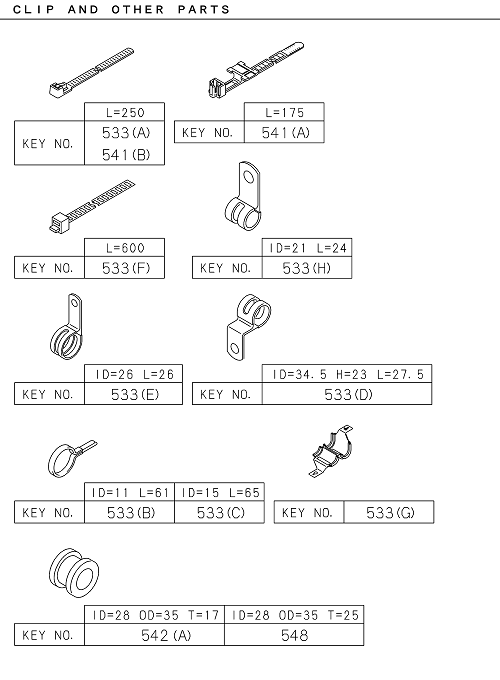

| 541 | I5-09707 030-1 | CLIP | 1 | 2203- | GVZ | (B) L=250 | ||
| 012 | I8-98315 510-A | HARNESS; ROOF | 1 | 2203- | GVZ | |||
| 694 | I8-98057 771-0 | BOX ASM; CONNECTOR | 1 | 2203- | GVZ | |||

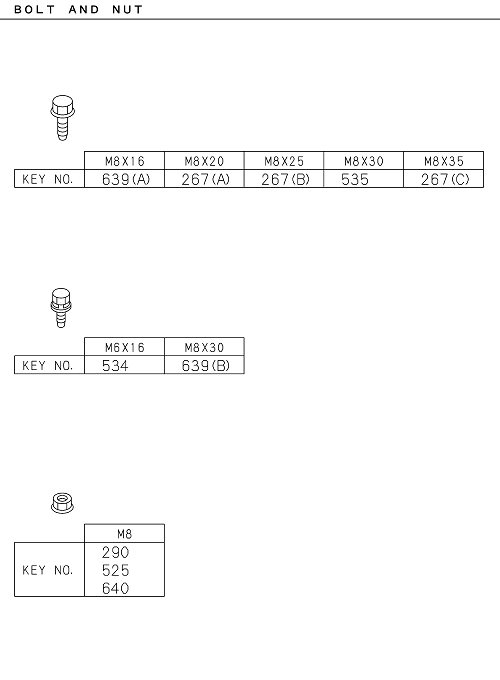

| 639 | I0-28050 816-0 | BOLT; CLIP | 1 | 2203- | GVZ | (A) M8X16 FLANGE | ||
| 184 | I8-98330 914-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | GVZ | (B) | ||
| 639 | I0-50640 830-0 | BOLT; CLIP | 1 | 2203- | GVZ | (B) M8X30 W/LK&PL WASHER | ||
| 533 | I8-98019 191-0 | CLIP | 1 | 2203- | GVZ | (H) ID=21 L=24 | ||
| 267 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | GVZ | (B) M8X25 FLANGE | ||
| 267 | I0-28650 820-0 | BOLT; BRKT | 2 | 2203- | GVZ | (A) M8X20 FLANGE | ||
| 280 | I0-91180 106-0 | NUT; BOX ASM FIX | 4 | 2203- | GVZ | M6 FLANGE | ||
| 533 | I1-09700 484-0 | CLIP | 2 | 2203- | GVZ | (B) ID=11 L=61 | ||
| 534 | I1-09030 093-0 | BOLT | 2 | 2203- | GVZ | M8X25 W/LK&PL WASHER | ||
| 533 | I5-09707 030-1 | CLIP | 3 | 2203- | GVZ | (A) L=250 | ||
| 541 | I5-09707 030-1 | CLIP | 2 | 2203- | GVZ | (B) L=250 | ||
| 534 | I1-09030 093-0 | BOLT | 2 | 2203- | GVZ | M8X25 W/LK&PL WASHER | ||
| 533 | I1-09709 150-0 | CLIP | 1 | 2203- | GVZ | (G) W/SPONGE RUBBER | ||
| 668 | I8-98311 039-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (B) | ||
| 542 | I9-09956 256-2 | GROMMET; HARNESS | 3 | 2203- | GVZ | (A) ID=28 OD=35 T=17 | ||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | GVZ | (A) | ||
| 204 | I8-98315 469-A | HARNESS; CABLE,FLOOR | 1 | 2203- | GVZ | |||
| 639 | I0-28050 816-0 | BOLT; CLIP | 1 | 2203- | GVZ | (A) M8X16 FLANGE | ||
| 533 | I5-09707 030-1 | CLIP | 1 | 2203- | GVZ | (A) L=250 | ||
| 486 | I1-82675 898-0 | HARNESS; ALL SPEED ACCEL | 1 | 2203- | GVZ | |||
| 542 | I9-09956 256-2 | GROMMET; HARNESS | 3 | 2203- | GVZ | (A) ID=28 OD=35 T=17 | ||
| 668 | I8-98338 558-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (C) | ||
| 027 | I8-94468 662-0 | FUSE UNIT | AR | 2203- | GVZ | 40A GREEN | ||
| 533 | I1-09700 466-0 | CLIP | 14 | 2203- | GVZ | (C) ID=15 L=65 | ||
| 267 | I0-28650 820-0 | BOLT; BRKT | 2 | 2203- | GVZ | (A) M8X20 FLANGE | ||
| 004 | I8-98342 031-0 | BOX ASM; FUSE,HARNESS | 2 | 2203- | GVZ | (C) | ||
| 290 | I0-91180 108-0 | NUT; BRKT | 1 | 2203- | GVZ | M8 FLANGE | ||
| 005 | I8-98054 259-0 | FUSE; FACIA HARNESS | 5 | 2203- | GVZ | 20A YELLOW | ||
| 010 | I8-98330 912-0 | BOX; FUSE,HARNESS | 1 | 2203- | GVZ | |||
| 639 | I0-50640 830-0 | BOLT; CLIP | 1 | 2203- | GVZ | (B) M8X30 W/LK&PL WASHER | ||
| 668 | I8-98362 020-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (D) | ||
| 012 | I8-98315 510-A | HARNESS; ROOF | 1 | 2203- | GVZ | |||

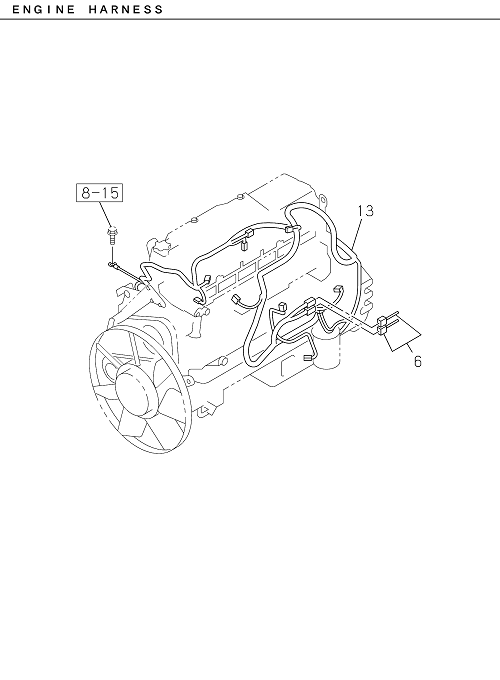

| 013 | I8-97553 501-0 | HARNESS; ENG | 1 | 2203- | GVZ | |||
| 548 | I9-09956 256-2 | GROMMET | 1 | 2203- | GVZ | ID=28 OD=35 T=17 | ||
| 533 | I1-09700 466-0 | CLIP | 24 | 2203- | GVZ | (C) ID=15 L=65 | ||
| 408 | I8-98169 757-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | GVZ | (A) | ||

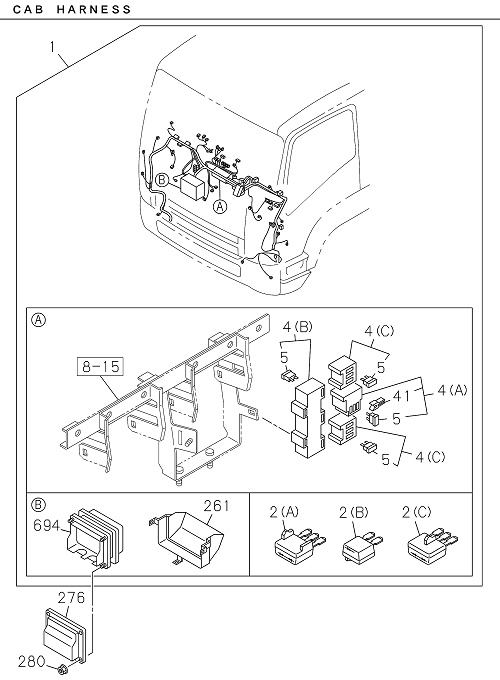

| 001 | I7-42040 322-A | HARNESS; CAB | 1 | 2203- | GVZ | |||
| 453 | I1-09360 677-1 | PROTECTOR; HARNESS | 1 | 2203- | GVZ | L=150 SERVICED BY L=1300 | ||
| 027 | I8-94468 661-0 | FUSE UNIT | AR | 2203- | GVZ | 30A PINK | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 2203- | GVZ | M8 FLANGE | ||

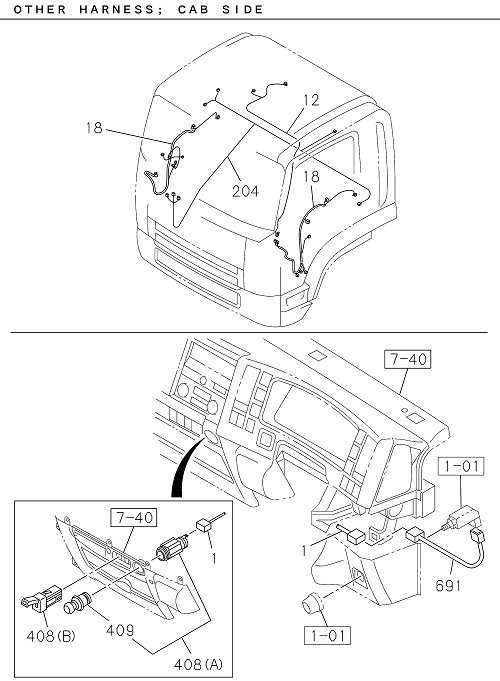

| 018 | I8-98076 304-A | HARNESS; DOOR | 1 | 2203- | GVZ | |||
| 002 | I8-94422 639-A | DIODE; CABLE HARNESS | 1 | 2203- | GVZ | (B) BLACK 2P-1.5A | ||
| 535 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 2203- | GVZ | M8X30 FLANGE | ||
| 027 | I8-94468 664-0 | FUSE UNIT | AR | 2203- | GVZ | 60A YELLOW | ||
| 668 | I8-98362 020-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (D) | ||
| 005 | I8-98054 259-0 | FUSE; FACIA HARNESS | AR | 2203- | GVZ | 20A YELLOW | ||
| 276 | I8-98034 039-1 | COVER; BOX,FRAME HARNESS | 1 | 2203- | GVZ | |||
| 267 | I0-28650 835-0 | BOLT; BRKT | 2 | 2203- | GVZ | (C) M8X35 FLANGE | ||
| 001 | I7-42040 322-A | HARNESS; CAB | 1 | 2203- | GVZ | |||
| 018 | I8-98076 305-A | HARNESS; DOOR | 1 | 2203- | GVZ | |||
| 002 | I8-94422 640-1 | DIODE; CABLE HARNESS | 1 | 2203- | GVZ | (C) BLACK 3P-1.5A | ||
| 004 | I8-98335 344-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | GVZ | (A) | ||
| 280 | I0-91180 106-0 | NUT; BOX ASM FIX | 4 | 2203- | GVZ | M6 FLANGE | ||
| 027 | I8-94468 662-0 | FUSE UNIT | AR | 2203- | GVZ | 40A GREEN | ||
| 533 | I1-09700 484-0 | CLIP | 2 | 2203- | GVZ | (B) ID=11 L=61 | ||
| 533 | I1-09701 236-0 | CLIP | 1 | 2203- | GVZ | (E) ID=26 L=26 | ||
| 204 | I8-98315 469-A | HARNESS; CABLE,FLOOR | 1 | 2203- | GVZ | |||
| 276 | I8-98034 039-1 | COVER; BOX,FRAME HARNESS | 1 | 2203- | GVZ | |||
| 533 | I1-09709 150-0 | CLIP | 1 | 2203- | GVZ | (G) W/SPONGE RUBBER | ||
| 005 | I8-98054 257-0 | FUSE; FACIA HARNESS | 8 | 2203- | GVZ | 10A RED | ||
| 533 | I1-09700 484-0 | CLIP | 4 | 2203- | GVZ | (B) ID=11 L=61 | ||

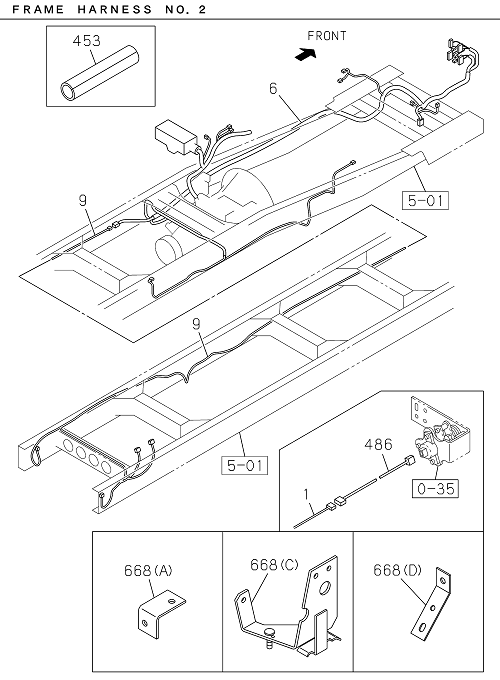

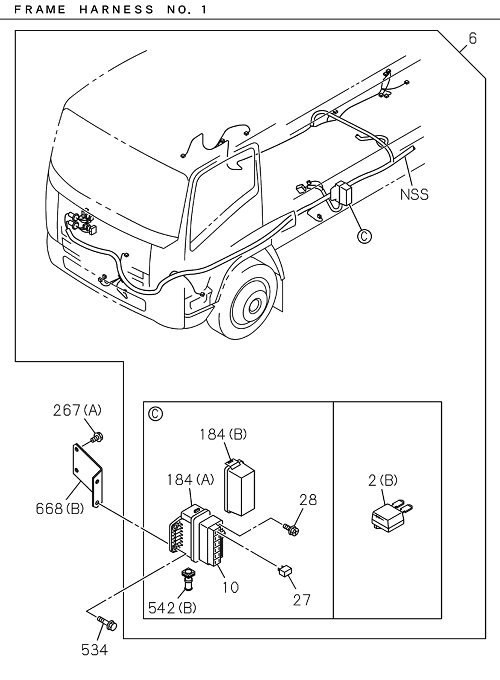

| 006 | I7-42060 335-A | HARNESS; FRAME | 1 | 2203- | GVZ | |||
| 005 | I8-98054 257-0 | FUSE; FACIA HARNESS | AR | 2203- | GVZ | 10A RED | ||
| 010 | I8-98330 912-0 | BOX; FUSE,HARNESS | 1 | 2203- | GVZ | |||
| 533 | I5-09707 030-1 | CLIP | 1 | 2203- | GVZ | (A) L=250 | ||
| 027 | I8-94468 664-0 | FUSE UNIT | AR | 2203- | GVZ | 60A YELLOW | ||
| 290 | I0-91180 108-0 | NUT; BRKT | 1 | 2203- | GVZ | M8 FLANGE | ||
| 004 | I8-98335 344-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | GVZ | (A) | ||
| 041 | I8-98054 260-0 | PULLER; FUSE | 1 | 2203- | GVZ | |||
| 533 | I1-09700 905-0 | CLIP | 1 | 2203- | GVZ | (D) ID=34.5 H=23 L=27.5 | ||
| 184 | I8-97524 126-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | GVZ | (A) | ||
| 542 | I8-98330 904-0 | GROMMET; HARNESS | 1 | 2203- | GVZ | (B) | ||
| 668 | I8-98311 039-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (B) | ||
| 694 | I8-98057 771-0 | BOX ASM; CONNECTOR | 1 | 2203- | GVZ | |||
| 533 | I1-09700 466-0 | CLIP | 24 | 2203- | GVZ | (C) ID=15 L=65 | ||
| 018 | I8-98076 304-A | HARNESS; DOOR | 1 | 2203- | GVZ | |||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 2203- | GVZ | |||
| 533 | I1-09707 107-1 | CLIP | 1 | 2203- | GVZ | (F) L=600 | ||
| 486 | I1-82675 898-0 | HARNESS; ALL SPEED ACCEL | 1 | 2203- | GVZ | |||
| 533 | I1-09700 466-0 | CLIP | 11 | 2203- | GVZ | (C) ID=15 L=65 | ||
| 408 | I8-97544 566-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | GVZ | (B) USB CHARGER | ||
| 267 | I0-28650 835-0 | BOLT; BRKT | 2 | 2203- | GVZ | (C) M8X35 FLANGE | ||
| 004 | I8-98342 023-0 | BOX ASM; FUSE,HARNESS | 1 | 2203- | GVZ | (B) | ||
| 006 | I7-42060 335-A | HARNESS; FRAME | 1 | 2203- | GVZ | |||
| 533 | I1-09707 107-1 | CLIP | 1 | 2203- | GVZ | (F) L=600 | ||
| 184 | I8-98330 914-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | GVZ | (B) | ||
| 533 | I1-09700 466-0 | CLIP | 14 | 2203- | GVZ | (C) ID=15 L=65 | ||
| 005 | I8-98054 258-0 | FUSE; FACIA HARNESS | AR | 2203- | GVZ | 15A BLUE | ||
| 267 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | GVZ | (B) M8X25 FLANGE | ||
| 691 | I8-98049 014-A | HARNESS; IDLE CONT | 1 | 2203- | GVZ | |||
| 533 | I1-09700 484-0 | CLIP | 4 | 2203- | GVZ | (B) ID=11 L=61 | ||
| 533 | I1-09700 466-0 | CLIP | 9 | 2203- | GVZ | (C) ID=15 L=65 | ||
| 018 | I8-98076 305-A | HARNESS; DOOR | 1 | 2203- | GVZ | |||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 2203- | GVZ | M8 FLANGE | ||
| 668 | I8-98338 558-0 | BRACKET; HARNESS | 1 | 2203- | GVZ | (C) | ||
| 541 | I5-09707 030-1 | CLIP | 1 | 2203- | GVZ | (B) L=250 | ||
| 533 | I8-98019 191-0 | CLIP | 1 | 2203- | GVZ | (H) ID=21 L=24 | ||
| 041 | I8-98054 260-0 | PULLER; FUSE | 1 | 2203- | GVZ | |||
| 261 | I8-98065 986-1 | COVER; CONNECTOR BOX | 1 | 2203- | GVZ | |||
| 533 | I1-09701 236-0 | CLIP | 1 | 2203- | GVZ | (E) ID=26 L=26 | ||
| 408 | I8-97544 566-0 | SOCKET ASM; ACCESSORY | 1 | 2203- | GVZ | (B) USB CHARGER | ||
| 184 | I8-97524 126-0 | COVER; RELAY & FUSE BOX | 1 | 2203- | GVZ | (A) | ||
| 002 | I8-94422 639-1 | DIODE; CABLE HARNESS | 1 | 2203- | GVZ | (B) BLACK 2P-1.5A | ||
| 533 | I5-09707 030-1 | CLIP | 3 | 2203- | GVZ | (A) L=250 | ||
| 002 | I8-94422 639-1 | DIODE; CABLE HARNESS | 2 | 2203- | GVZ | (B) BLACK 2P-1.5A | ||
| 533 | I1-09700 905-0 | CLIP | 1 | 2203- | GVZ | (D) ID=34.5 H=23 L=27.5 | ||
| 013 | I8-97553 501-0 | HARNESS; ENG | 1 | 2203- | GVZ | |||
| 005 | I8-98054 257-0 | FUSE; FACIA HARNESS | 8 | 2203- | GVZ | 10A RED | ||
| 005 | I8-98054 259-0 | FUSE; FACIA HARNESS | 5 | 2203- | GVZ | 20A YELLOW | ||
| 640 | I0-91180 108-0 | NUT; CLIP | 1 | 2203- | GVZ | M8 FLANGE | ||
| 533 | I1-09700 466-0 | CLIP | 9 | 2203- | GVZ | (C) ID=15 L=65 | ||
| 535 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 2203- | GVZ | M8X30 FLANGE | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 2203- | GVZ | |||
| 542 | I8-98330 904-0 | GROMMET; HARNESS | 1 | 2203- | GVZ | (B) | ||
| 409 | I8-98183 771-0 | CAP; ACCESSORY SOCKET | 1 | 2203- | GVZ | |||
| 004 | I8-98342 031-0 | BOX ASM; FUSE,HARNESS | 2 | 2203- | GVZ | (C) | ||
| 028 | I8-98330 909-0 | SCREW; FUSE BOX | 2 | 2203- | GVZ | |||
| 541 | I5-09707 030-1 | CLIP | 2 | 2203- | GVZ | (B) L=250 | ||
| 002 | I8-94422 639-A | DIODE; CABLE HARNESS | 2 | 2203- | GVZ | (B) BLACK 2P-1.5A | ||
| 005 | I8-98054 258-0 | FUSE; FACIA HARNESS | 9 | 2203- | GVZ | 15A BLUE | ||
| 453 | I1-09360 677-1 | PROTECTOR; HARNESS | 1 | 2203- | GVZ | L=150 SERVICED BY L=1300 |
