8-28 | CHASSIS ELECTRICAL
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 079 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 2203- | GVZ | M8X20 FLANGE | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | GVZ | M8X20 W/LK&PL WASHER | ||
| 299 | I8-98105 162-1 | SOCKET; PARKING | 1 | 2203- | GVZ | (B) | ||
| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 090 | I0-28650 835-0 | BOLT; MAG VLV | 2 | 2203- | GVZ | M8X35 FLANGE | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | GVZ | |||

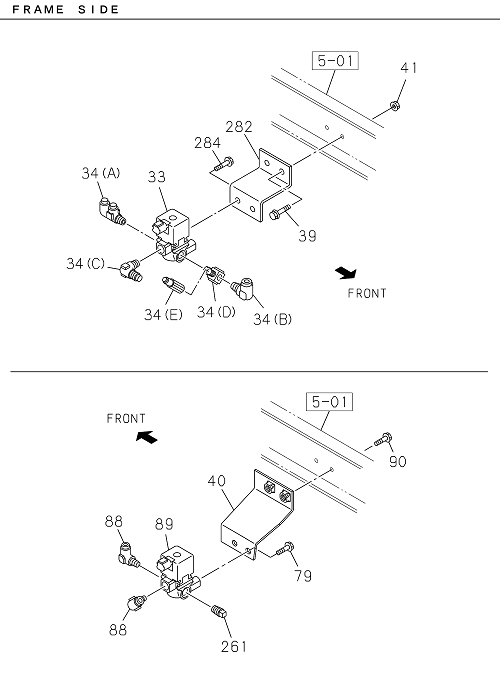

| 089 | I8-97948 256-0 | VALVE; MAG,DIFF LOCK | 1 | 2203- | GVZ | |||

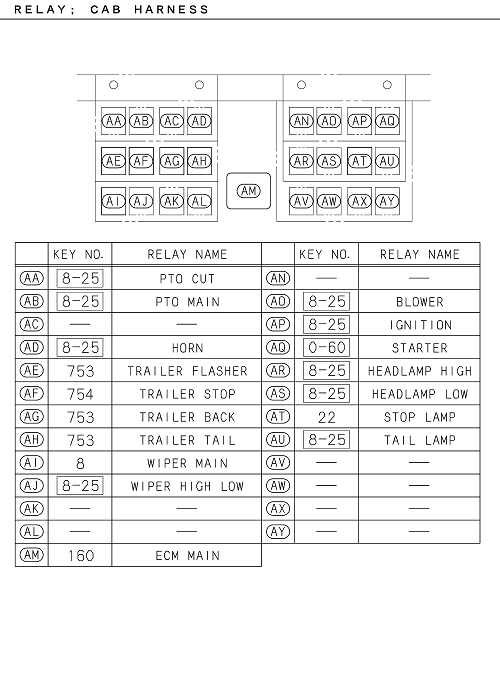

| 753 | I8-97173 035-1 | RELAY; TRAILER FLASHER | 3 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | GVZ | |||
| 284 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 2203- | GVZ | M8X20 FLANGE | ||
| 066 | I0-91180 108-0 | NUT; SOCKET FIX | 2 | 2203- | GVZ | M8 FLANGE | ||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||
| 034 | I1-09656 586-1 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (D) M12 & PT1/4 3WAY | ||
| 089 | I8-97948 256-0 | VALVE; MAG,DIFF LOCK | 1 | 2203- | GVZ | |||
| 480 | I8-98010 858-0 | SWITCH; TRAILER COCK | 1 | 2203- | GVZ | STAMP 2.2 | ||
| 160 | I8-97833 987-0 | RELAY; ECM | 1 | 2203- | GVZ | 24V 30A MITSUBA | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | GVZ | PT1/4 | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | GVZ | |||
| 299 | I1-82523 014-0 | SOCKET; PARKING | 1 | 2203- | GVZ | (A) 7P | ||
| 034 | I1-09660 873-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (E) DIN8 & M12 STRAIGHT | ||
| 041 | I0-91180 108-0 | NUT; BRKT,MAG VLV | 2 | 2203- | GVZ | M8 FLANGE | ||
| 040 | I8-98326 065-0 | BRACKET; MAG VLV | 1 | 2203- | GVZ | |||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | GVZ | M6X16 FLANGE | ||
| 034 | I8-98179 708-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (A) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 034 | I1-09656 586-1 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (D) M12 & PT1/4 3WAY | ||
| 753 | I6-97173 035-0 | RELAY; TRAILER FLASHER | 3 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||
| 753 | I6-97173 035-0 | RELAY; TRAILER FLASHER | 3 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||

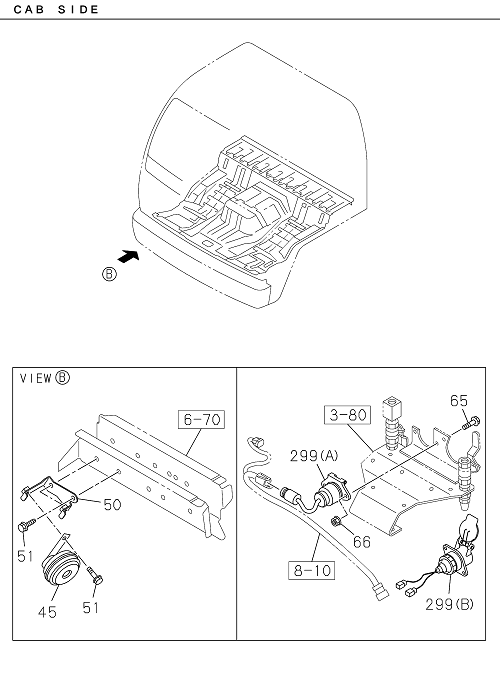

| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | GVZ | |||
| 001 | I8-97613 970-1 | UNIT; FLASHER | 1 | 2203- | GVZ | |||
| 754 | I8-97173 035-1 | RELAY; TRAILER STOP | 1 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | GVZ | M6 FLANGE | ||

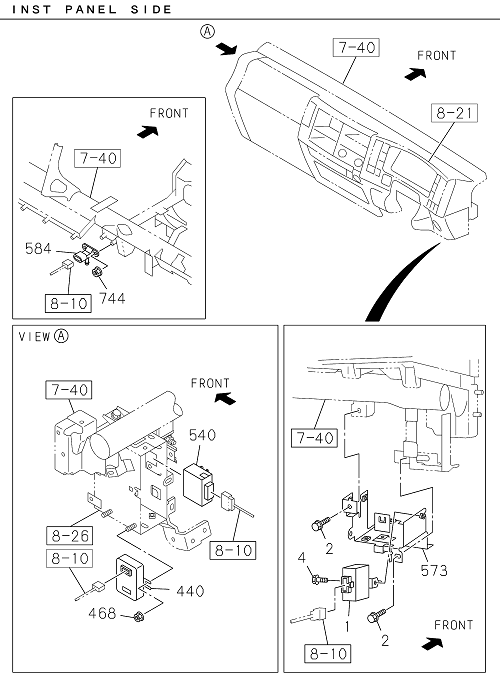

| 440 | I8-98382 043-0 | MODULE; INFORMATION,ABS | 1 | 2203- | GVZ | |||
| 754 | I8-97173 035-1 | RELAY; TRAILER STOP | 1 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 040 | I8-98326 065-0 | BRACKET; MAG VLV | 1 | 2203- | GVZ | |||
| 090 | I0-28650 835-0 | BOLT; MAG VLV | 2 | 2203- | GVZ | M8X35 FLANGE | ||
| 088 | I1-09660 956-0 | CONNECTOR; MAG VLV | 2 | 2203- | GVZ | DIN8 & R1/4 ELBOW | ||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||
| 065 | I0-28650 825-0 | BOLT; SOCKET FIX | 2 | 2203- | GVZ | M8X25 FLANGE | ||
| 034 | I1-09661 067-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (B) DIN6 & R1/4 ELBOW | ||
| 753 | I8-97173 035-1 | RELAY; TRAILER FLASHER | 3 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 284 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 2203- | GVZ | M8X20 FLANGE | ||
| 754 | I6-97173 035-0 | RELAY; TRAILER STOP | 1 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | GVZ | M6X16 FLANGE | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | GVZ | |||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | GVZ | |||
| 079 | I0-28650 820-0 | BOLT; MAG VLV | 2 | 2203- | GVZ | M8X20 FLANGE | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | GVZ | M6X16 FLANGE | ||
| 039 | I0-28650 830-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | GVZ | M8X30 FLANGE | ||
| 034 | I1-09661 067-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (B) DIN6 & R1/4 ELBOW | ||
| 754 | I6-97173 035-0 | RELAY; TRAILER STOP | 1 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||
| 160 | I8-97833 987-0 | RELAY; ECM | 1 | 2203- | GVZ | 24V 30A MITSUBA | ||
| 041 | I0-91180 108-0 | NUT; BRKT,MAG VLV | 2 | 2203- | GVZ | M8 FLANGE | ||
| 034 | I1-09660 873-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (E) DIN8 & M12 STRAIGHT | ||
| 440 | I8-98382 043-0 | MODULE; INFORMATION,ABS | 1 | 2203- | GVZ | |||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | GVZ | (IADG) 24V 10A PANASONIC | ||
| 066 | I0-91180 108-0 | NUT; SOCKET FIX | 2 | 2203- | GVZ | M8 FLANGE | ||
| 468 | I0-91180 106-0 | NUT; MODULE | 2 | 2203- | GVZ | M6 FLANGE | ||
| 039 | I0-28650 830-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | GVZ | M8X30 FLANGE | ||
| 034 | I8-98179 708-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVZ | (A) DIN8X2 & PT1/4 DOUBLE ELBOW | ||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | GVZ | |||
| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 088 | I1-09660 956-0 | CONNECTOR; MAG VLV | 2 | 2203- | GVZ | DIN8 & R1/4 ELBOW | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | GVZ | M8X20 W/LK&PL WASHER | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | GVZ | PT1/4 | ||
| 299 | I8-98105 162-1 | SOCKET; PARKING | 1 | 2203- | GVZ | (B) | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | GVZ | |||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | GVZ | |||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | GVZ | M6X16 FLANGE | ||
| 480 | I8-98010 858-0 | SWITCH; TRAILER COCK | 1 | 2203- | GVZ | STAMP 2.2 | ||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | GVZ | |||
| 299 | I1-82523 014-0 | SOCKET; PARKING | 1 | 2203- | GVZ | (A) 7P | ||
| 468 | I0-91180 106-0 | NUT; MODULE | 2 | 2203- | GVZ | M6 FLANGE | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | GVZ | M6 FLANGE | ||
| 001 | I8-97613 970-1 | UNIT; FLASHER | 1 | 2203- | GVZ | |||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | GVZ | |||
| 065 | I0-28650 825-0 | BOLT; SOCKET FIX | 2 | 2203- | GVZ | M8X25 FLANGE | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | GVZ | 24V 10A PANASONIC | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | GVZ |
