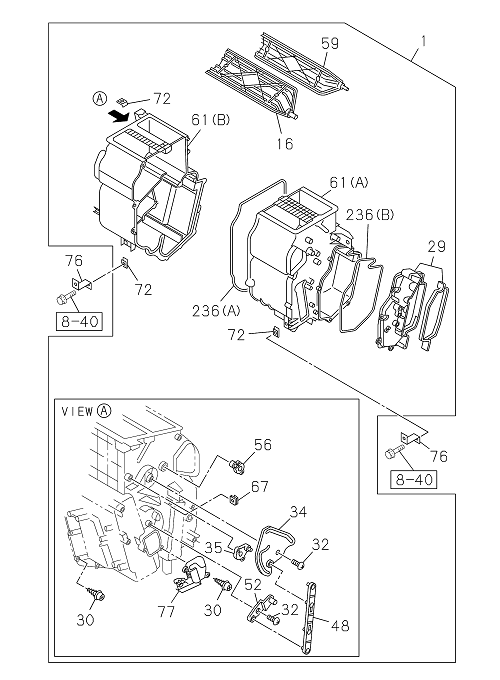

8-60 | HEATER UNIT; FRONT
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 236 | I8-98047 420-0 | GASKET; HEATER | 1 | 2203- | FVZ | (A) | ||
| 034 | I8-98047 389-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 072 | I8-98047 428-0 | NUT; CASE,HTR UNIT | 3 | 2203- | FVZ | M6 | ||
| 236 | I8-98047 420-0 | GASKET; HEATER | 1 | 2203- | GVZ | (A) | ||
| 016 | I8-98047 387-0 | SHUTTER; HTR UNIT,CENTER UPR | 1 | 2203- | GVZ | FOOT AND DEFROSTER | ||
| 067 | I8-98047 417-0 | CLIP; HTR UNIT | 1 | 2203- | GVZ | |||
| 059 | I8-98047 386-0 | SHUTTER; HTR UNIT,SIDE | 1 | 2203- | GVZ | FACE | ||
| 030 | I8-97957 708-0 | SCREW; HTR UNIT | 20 | 2203- | FVZ | M4X16 TAPPING | ||
| 061 | I8-98077 423-0 | CASE; HTR UNIT | 1 | 2203- | GVZ | (B) | ||
| 052 | I8-98047 390-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 016 | I8-98047 387-0 | SHUTTER; HTR UNIT,CENTER UPR | 1 | 2203- | GVZ | FOOT AND DEFROSTER | ||
| 061 | I8-98077 422-0 | CASE; HTR UNIT | 1 | 2203- | FVZ | (A) | ||
| 059 | I8-98047 386-0 | SHUTTER; HTR UNIT,SIDE | 1 | 2203- | GVZ | FACE | ||
| 059 | I8-98047 386-0 | SHUTTER; HTR UNIT,SIDE | 1 | 2203- | FVZ | FACE | ||
| 076 | I8-98009 742-1 | BRACKET; HTR UNIT | 2 | 2203- | GVZ | |||
| 061 | I8-98077 422-0 | CASE; HTR UNIT | 1 | 2203- | GVZ | (A) | ||
| 072 | I8-98047 428-0 | NUT; CASE,HTR UNIT | 3 | 2203- | GVZ | M6 | ||
| 034 | I8-98047 389-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ | |||
| 236 | I8-98047 420-0 | GASKET; HEATER | 1 | 2203- | GVZ | (A) | ||
| 236 | I8-98047 421-0 | GASKET; HEATER | 1 | 2203- | GVZ | (B) | ||
| 030 | I8-97957 708-0 | SCREW; HTR UNIT | 20 | 2203- | GVZ | M4X16 TAPPING | ||
| 035 | I8-98047 392-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ | |||
| 077 | I8-98047 414-0 | COVER; HTR CASE | 1 | 2203- | GVZ | |||
| 032 | I8-98047 416-0 | SCREW; HTR UNIT | 2 | 2203- | GVZ | M4X16 | ||
| 061 | I8-98077 423-0 | CASE; HTR UNIT | 1 | 2203- | GVZ | (B) | ||
| 016 | I8-98047 387-0 | SHUTTER; HTR UNIT,CENTER UPR | 1 | 2203- | FVZ | FOOT AND DEFROSTER | ||
| 056 | I8-98047 393-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 001 | I8-97695 270-A | HEATER UNIT | 1 | 2203- | FVZ | |||
| 061 | I8-98077 422-0 | CASE; HTR UNIT | 1 | 2203- | FVZ | (A) | ||
| 001 | I8-97695 270-A | HEATER UNIT | 1 | 2203- | GVZ | |||
| 061 | I8-98077 423-0 | CASE; HTR UNIT | 1 | 2203- | GVZ | (B) | ||
| 048 | I8-98047 391-0 | LEVER; HTR UNIT | 1 | 2203- | GVZ | |||
| 035 | I8-98047 392-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 056 | I8-98047 393-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 032 | I8-98047 416-0 | SCREW; HTR UNIT | 2 | 2203- | FVZ | M4X16 | ||
| 059 | I8-98047 386-0 | SHUTTER; HTR UNIT,SIDE | 1 | 2203- | FVZ | FACE | ||
| 029 | I8-98231 367-0 | COVER; HTR UNIT | 1 | 2203- | GVZ | |||
| 029 | I8-98231 367-0 | COVER; HTR UNIT | 1 | 2203- | FVZ | |||
| 001 | I8-98214 400-1 | HEATER UNIT | 1 | 2203- | FVZ | |||
| 076 | I8-98009 742-1 | BRACKET; HTR UNIT | 2 | 2203- | FVZ | |||
| 076 | I8-98009 742-1 | BRACKET; HTR UNIT | 2 | 2203- | GVZ | |||
| 034 | I8-98047 389-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 032 | I8-98047 416-0 | SCREW; HTR UNIT | 2 | 2203- | FVZ | M4X16 | ||
| 067 | I8-98047 417-0 | CLIP; HTR UNIT | 1 | 2203- | GVZ | |||
| 061 | I8-98077 423-0 | CASE; HTR UNIT | 1 | 2203- | FVZ | (B) | ||
| 030 | I8-97957 708-0 | SCREW; HTR UNIT | 20 | 2203- | GVZ | M4X16 TAPPING | ||
| 052 | I8-98047 390-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 236 | I8-98047 420-0 | GASKET; HEATER | 1 | 2203- | FVZ | (A) | ||
| 236 | I8-98047 421-0 | GASKET; HEATER | 1 | 2203- | GVZ | (B) | ||
| 077 | I8-98047 414-0 | COVER; HTR CASE | 1 | 2203- | FVZ | |||
| 035 | I8-98047 392-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ | |||
| 076 | I8-98009 742-1 | BRACKET; HTR UNIT | 2 | 2203- | FVZ | |||
| 032 | I8-98047 416-0 | SCREW; HTR UNIT | 2 | 2203- | GVZ | M4X16 | ||
| 029 | I8-98231 367-0 | COVER; HTR UNIT | 1 | 2203- | GVZ | |||
| 048 | I8-98047 391-0 | LEVER; HTR UNIT | 1 | 2203- | FVZ | |||
| 048 | I8-98047 391-0 | LEVER; HTR UNIT | 1 | 2203- | GVZ | |||
| 072 | I8-98047 428-0 | NUT; CASE,HTR UNIT | 3 | 2203- | FVZ | M6 | ||
| 061 | I8-98077 423-0 | CASE; HTR UNIT | 1 | 2203- | FVZ | (B) | ||
| 061 | I8-98077 422-0 | CASE; HTR UNIT | 1 | 2203- | GVZ | (A) | ||
| 059 | I8-98047 386-0 | SHUTTER; HTR UNIT,SIDE | 1 | 2203- | GVZ | FACE | ||
| 236 | I8-98047 420-0 | GASKET; HEATER | 1 | 2203- | GVZ | (A) | ||
| 052 | I8-98047 390-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ | |||
| 077 | I8-98047 414-0 | COVER; HTR CASE | 1 | 2203- | FVZ | |||
| 029 | I8-98231 367-0 | COVER; HTR UNIT | 1 | 2203- | FVZ | |||
| 072 | I8-98047 428-0 | NUT; CASE,HTR UNIT | 3 | 2203- | GVZ | M6 | ||
| 236 | I8-98047 421-0 | GASKET; HEATER | 1 | 2203- | GVZ | (B) | ||
| 035 | I8-98047 392-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 056 | I8-98047 393-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ | |||
| 001 | I8-97695 270-A | HEATER UNIT | 1 | 2203- | GVZ | |||
| 030 | I8-97957 708-0 | SCREW; HTR UNIT | 20 | 2203- | GVZ | M4X16 TAPPING | ||
| 072 | I8-98047 428-0 | NUT; CASE,HTR UNIT | 3 | 2203- | GVZ | M6 | ||
| 035 | I8-98047 392-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 048 | I8-98047 391-0 | LEVER; HTR UNIT | 1 | 2203- | GVZ | |||
| 030 | I8-97957 708-0 | SCREW; HTR UNIT | 20 | 2203- | FVZ | M4X16 TAPPING | ||
| 061 | I8-98077 422-0 | CASE; HTR UNIT | 1 | 2203- | GVZ | (A) | ||
| 236 | I8-98047 421-0 | GASKET; HEATER | 1 | 2203- | FVZ | (B) | ||
| 034 | I8-98047 389-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 067 | I8-98047 417-0 | CLIP; HTR UNIT | 1 | 2203- | FVZ | |||
| 076 | I8-98009 742-1 | BRACKET; HTR UNIT | 2 | 2203- | GVZ | |||
| 067 | I8-98047 417-0 | CLIP; HTR UNIT | 1 | 2203- | FVZ | |||
| 077 | I8-98047 414-0 | COVER; HTR CASE | 1 | 2203- | GVZ | |||
| 016 | I8-98047 387-0 | SHUTTER; HTR UNIT,CENTER UPR | 1 | 2203- | GVZ | FOOT AND DEFROSTER | ||
| 056 | I8-98047 393-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 077 | I8-98047 414-0 | COVER; HTR CASE | 1 | 2203- | GVZ | |||
| 236 | I8-98047 421-0 | GASKET; HEATER | 1 | 2203- | FVZ | (B) | ||
| 029 | I8-98231 367-0 | COVER; HTR UNIT | 1 | 2203- | GVZ | |||
| 016 | I8-98047 387-0 | SHUTTER; HTR UNIT,CENTER UPR | 1 | 2203- | FVZ | FOOT AND DEFROSTER | ||
| 034 | I8-98047 389-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ | |||
| 048 | I8-98047 391-0 | LEVER; HTR UNIT | 1 | 2203- | FVZ | |||
| 032 | I8-98047 416-0 | SCREW; HTR UNIT | 2 | 2203- | GVZ | M4X16 | ||
| 067 | I8-98047 417-0 | CLIP; HTR UNIT | 1 | 2203- | GVZ | |||
| 001 | I8-98214 400-1 | HEATER UNIT | 1 | 2203- | GVZ | |||
| 052 | I8-98047 390-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | GVZ | |||
| 056 | I8-98047 393-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ | |||
| 052 | I8-98047 390-0 | LEVER; SHUTTER,HTR UNIT | 1 | 2203- | FVZ |
