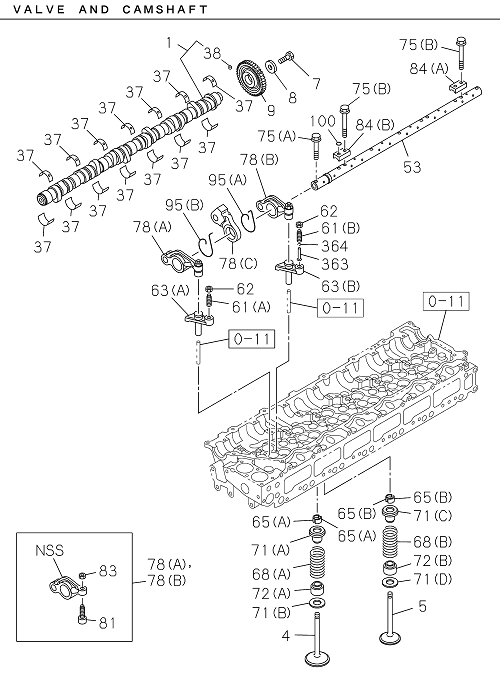

0-14 | CAMSHAFT AND VALVE
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 364 | I8-98185 305-0 | RING | 6 | 2203- | GXZ | |||

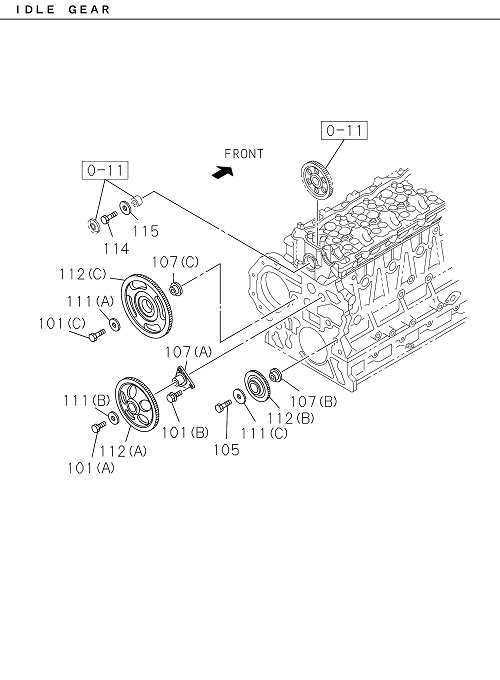

| 105 | I8-98199 851-2 | BOLT; IDLE GEAR SHAFT | 1 | 2203- | GXZ | M14X67.5 | ||
| 078 | I8-98194 262-0 | ARM; ROCKER | 6 | 2203- | GXZ | (A) INLET | ||
| 369 | I8-98389 515-0 | NUT; RETARDER | 6 | 2203- | GXZ | M10 FLANGE | ||
| 101 | I0-28060 816-0 | BOLT; THRUST COLLAR | 3 | 2203- | GXZ | (B) M8X16 FLANGE | ||
| 112 | I8-98197 608-1 | GEAR; IDLE | 1 | 2203- | GXZ | (B) Z=34 | ||
| 065 | I8-98300 577-0 | COLLAR; SPLIT | 24 | 2203- | GXZ | (B) EXHAUST | ||
| 063 | I8-98226 634-0 | BRIDGE | 6 | 2203- | GXZ | (A) INLET | ||
| 368 | I8-98271 074-0 | BOLT; RETARDER | 6 | 2203- | GXZ | (B) M10X65 FLANGE | ||
| 071 | I8-98300 576-0 | SEAT; SPR | 12 | 2203- | GXZ | (C) EXHAUST OD=32.8 T=12.75 | ||
| 095 | I8-98194 274-0 | SPRING; ROCKER SHAFT | 6 | 2203- | GXZ | (B) | ||
| 038 | I8-94399 487-0 | PIN; CAM BRG SET | 1 | 2203- | GXZ | OD=7 L=7.5 | ||
| 367 | I8-98272 049-0 | STUD; RETARDER | 6 | 2203- | GXZ | M10X20,M10X35 L=150 | ||
| 072 | I8-98371 390-0 | SEAL; VLV GUIDE | 12 | 2203- | GXZ | (B) EXHAUST | ||
| 001 | I8-98238 931-0 | CAMSHAFT | 1 | 2203- | GXZ | |||
| 084 | I8-97545 278-0 | BRACKET; ROCKER SHAFT,INTER | 2 | 2203- | GXZ | (B) | ||
| 107 | I8-97350 021-A | SHAFT; IDLE GEAR | 1 | 2203- | GXZ | (A) | ||
| 111 | I8-97209 728-A | COLLAR; THRUST,IDLE GEAR | 1 | 2203- | GXZ | (B) ID=14.5 OD=46 | ||
| 009 | I8-98018 934-3 | GEAR; CM/SHF | 1 | 2203- | GXZ | Z=35 | ||
| 112 | I8-97606 767-0 | GEAR; IDLE | 1 | 2203- | GXZ | (A) Z=61 | ||
| 078 | I8-98194 263-0 | ARM; ROCKER | 6 | 2203- | GXZ | (B) EXHAUST | ||
| 005 | I8-98270 441-1 | VALVE; EXH | 12 | 2203- | GXZ | |||
| 065 | I5-12565 004-0 | COLLAR; SPLIT | 24 | 2203- | GXZ | (A) INLET | ||
| 368 | I8-98271 073-0 | BOLT; RETARDER | 2 | 2203- | GXZ | (A) M10X108 FLANGE | ||
| 081 | I8-97376 718-0 | SCREW; ADJ,ROCKER ARM | 12 | 2203- | GXZ | |||
| 071 | I8-98300 593-0 | SEAT; SPR | 12 | 2203- | GXZ | (D) EXHAUST ID=16.3 T=1.0 | ||
| 061 | I8-98185 304-0 | SCREW; ADJ,BRIDGE | 6 | 2203- | GXZ | (B) EXHAUST M12X25.4 | ||
| 078 | I8-98194 264-1 | ARM; ROCKER | 6 | 2203- | GXZ | (C) | ||
| 068 | I8-97648 793-A | SPRING; VLV | 12 | 2203- | GXZ | (A) INLET MARK BLUE | ||
| 114 | I8-94372 221-1 | BOLT; IDLE GEAR | 1 | 2203- | GXZ | M14X36.5 | ||
| 004 | I8-98270 442-0 | VALVE; INL | 12 | 2203- | GXZ | |||
| 053 | I8-98194 271-0 | SHAFT; ROCKER ARM | 1 | 2203- | GXZ | |||
| 084 | I8-98194 272-0 | BRACKET; ROCKER SHAFT,INTER | 3 | 2203- | GXZ | (A) | ||
| 112 | I8-98145 647-1 | GEAR; IDLE | 1 | 2203- | GXZ | (C) Z=72-60-30 | ||
| 072 | I8-97376 720-0 | SEAL; VLV GUIDE | 12 | 2203- | GXZ | (A) INLET | ||
| 107 | I8-98305 914-0 | SHAFT; IDLE GEAR | 1 | 2203- | GXZ | (C) | ||
| 101 | I0-23951 430-0 | BOLT; THRUST COLLAR | 1 | 2203- | GXZ | (A) M14X30 | ||
| 370 | I9-11319 065-3 | DOWEL; RETARDER | 4 | 2203- | GXZ | OD=14 L=10 | ||
| 062 | I0-91111 512-0 | NUT; ADJ SCREW LK BRIDGE | 12 | 2203- | GXZ | M12 | ||
| 101 | I8-98334 635-0 | BOLT; THRUST COLLAR | 1 | 2203- | GXZ | (C) M14X70 | ||
| 068 | I8-97210 682-0 | SPRING; VLV | 12 | 2203- | GXZ | (B) EXHAUST MARK RED | ||
| 007 | I8-94396 439-0 | BOLT; CM/SHF GEAR | 1 | 2203- | GXZ | M14X40 | ||
| 111 | I1-12535 030-1 | COLLAR; THRUST,IDLE GEAR | 1 | 2203- | GXZ | (A) ID=14.5 OD=59 | ||
| 008 | I9-09851 850-A | WASHER; CM/SHF GEAR | 1 | 2203- | GXZ | ID=14.5 | ||
| 083 | I0-91110 510-0 | NUT; ADJ SCREW,LK | 12 | 2203- | GXZ | M10 | ||
| 061 | I8-98196 636-0 | SCREW; ADJ,BRIDGE | 6 | 2203- | GXZ | (A) INLET M12X27.4 | ||
| 071 | I8-94390 783-2 | SEAT; SPR | 12 | 2203- | GXZ | (A) INLET OD=32.8 T=12.75 | ||
| 071 | I8-94391 468-0 | SEAT; SPR | 12 | 2203- | GXZ | (B) INLET ID=14.3 T=1.0 | ||
| 115 | I8-97209 728-A | WASHER; THRUST,IDLE GEAR | 1 | 2203- | GXZ | ID=14.5 OD=46 | ||
| 100 | I9-09566 115-0 | GASKET; ROCKER ARM SHAFT | 2 | 2203- | GXZ | |||
| 037 | I8-97386 189-0 | METAL; CM/SHF | 7 | 2203- | GXZ | UPPER B=16 | ||
| 095 | I8-98194 273-0 | SPRING; ROCKER SHAFT | 6 | 2203- | GXZ | (A) | ||
| 075 | I0-28161 050-0 | BOLT; BRKT | 2 | 2203- | GXZ | (A) M10X50 FLANGE | ||
| 366 | I8-98193 406-0 | SPACER; RETARDER | 6 | 2203- | GXZ | |||
| 111 | I8-98197 649-1 | COLLAR; THRUST,IDLE GEAR | 1 | 2203- | GXZ | (C) ID=14.5 OD=51 | ||
| 075 | I8-98060 997-0 | BOLT; BRKT | 5 | 2203- | GXZ | (B) M10X80 FLANGE | ||
| 063 | I8-98226 635-1 | BRIDGE | 6 | 2203- | GXZ | (B) EXHAUST | ||
| 363 | I8-98185 311-0 | PIN | 6 | 2203- | GXZ | |||
| 037 | I8-97602 699-0 | METAL; CM/SHF | 7 | 2203- | GXZ | LOWER B=26 | ||
| 107 | I8-97435 212-0 | SHAFT; IDLE GEAR | 1 | 2203- | GXZ | (B) | ||

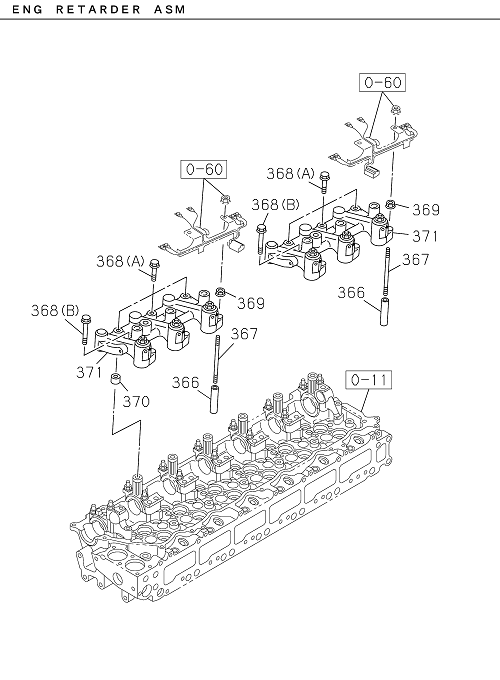

| 371 | I8-98326 234-0 | RETARDER ASM; ENG | 2 | 2203- | GXZ |
