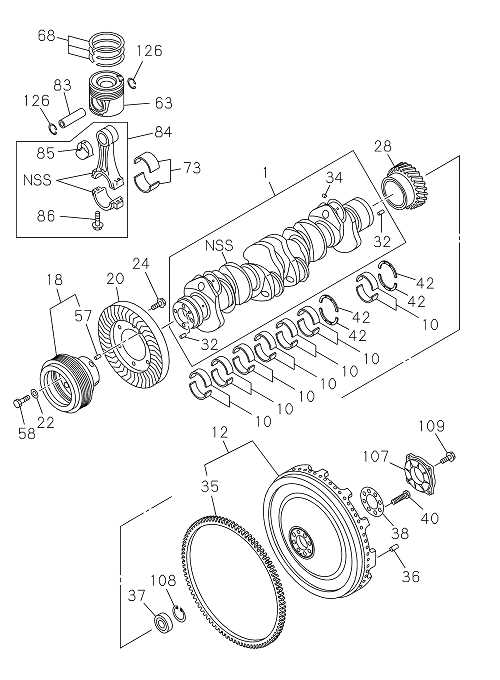

0-15 | CRANKSHAFT,PISTON AND FLYWHEEL
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 010 | I8-98318 011-0 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2203- | GXZ | PURPLE | ||
| 057 | I9-08150 816-0 | PIN; PULLEY | 1 | 2203- | GXZ | OD=8 L=16 | ||
| 063 | I8-98282 472-1 | PISTON | 6 | 2203- | GXZ | NON GRADE | ||
| 024 | I0-28151 016-0 | BOLT; DAMPER | 6 | 2203- | GXZ | M10X16 FLANGE | ||
| 040 | I8-94393 070-2 | BOLT; FLYWHEEL | 8 | 2203- | GXZ | M16X62 | ||
| 086 | I8-98091 141-0 | BOLT; CONNROD | 12 | 2203- | GXZ | M13X57 FLANGE | ||
| 020 | I8-98193 413-0 | DAMPER; CR/SHF | 1 | 2203- | GXZ | |||
| 028 | I8-94392 255-1 | GEAR; CR/SHF | 1 | 2203- | GXZ | Z=42 | ||
| 035 | I8-98248 058-0 | GEAR; RING | 1 | 2203- | GXZ | Z=160 | ||
| 034 | I9-09878 626-0 | PIN; GEAR SETTING | 1 | 2203- | GXZ | OD=5 L=6 | ||
| 109 | I0-28151 020-0 | BOLT; RET | 4 | 2203- | GXZ | M10X20 FLANGE | ||
| 085 | I8-98105 718-0 | BUSHING; CONNROD | 6 | 2203- | GXZ | AFTER PRESS FITTING, MACHINE IT. | ||
| 010 | I8-98318 010-0 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2203- | GXZ | RED | ||
| 001 | I8-98283 536-2 | CRANKSHAFT | 1 | 2203- | GXZ | |||
| 108 | I9-09180 172-0 | RING; SNAP,BRG SET | 1 | 2203- | GXZ | OD=76.5 | ||
| 083 | I8-98043 431-0 | PIN; PISTON | 6 | 2203- | GXZ | |||
| 010 | I8-98318 009-0 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2203- | GXZ | PINK | ||
| 073 | I8-98302 812-0 | METAL SET; CONN ROD,STANDARD | 6 | 2203- | GXZ | BLACK | ||
| 073 | I8-98302 811-0 | METAL SET; CONN ROD,STANDARD | 6 | 2203- | GXZ | BLUE | ||
| 037 | I1-09800 200-1 | BEARING; PILOT,TOP GEAR SHAFT | 1 | 2203- | GXZ | |||
| 010 | I8-98318 007-0 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2203- | GXZ | GREEN | ||
| 084 | I8-98228 271-1 | ROD ASM; CONN | 6 | 2203- | GXZ | |||
| 042 | I8-98328 559-0 | WASHER; THRUST,CR/SHF | 4 | 2203- | GXZ | |||
| 018 | I8-98289 585-0 | PULLEY; CR/SHF | 1 | 2203- | GXZ | |||
| 022 | I9-09851 935-0 | PLATE; PULLEY | 4 | 2203- | GXZ | ID=17 OD=30 | ||
| 068 | I8-98297 122-0 | RING SET; PISTON,STANDARD | 6 | 2203- | GXZ | |||
| 058 | I0-10956 690-0 | BOLT; CR/SHF PULLEY | 4 | 2203- | GXZ | |||
| 038 | I8-94397 496-A | WASHER; FLYWHEEL | 1 | 2203- | GXZ | ID=55 OD=110 | ||
| 107 | I8-97603 812-0 | RETAINER; BRG | 1 | 2203- | GXZ | |||
| 126 | I8-98063 132-0 | RING; SNAP,PISTON PIN | 12 | 2203- | GXZ | |||
| 010 | I8-98318 008-0 | METAL SET; CRANKSHAFT, STANDARD | 7 | 2203- | GXZ | YELLOW | ||
| 012 | I8-98248 116-1 | FLYWHEEL | 1 | 2203- | GXZ | |||
| 036 | I9-08151 020-0 | PIN; FLYWHEEL | 2 | 2203- | GXZ | OD=10 L=22 | ||
| 032 | I9-08150 816-0 | PIN; FLYWHEEL | 2 | 2203- | GXZ | OD=8 L=16 |
