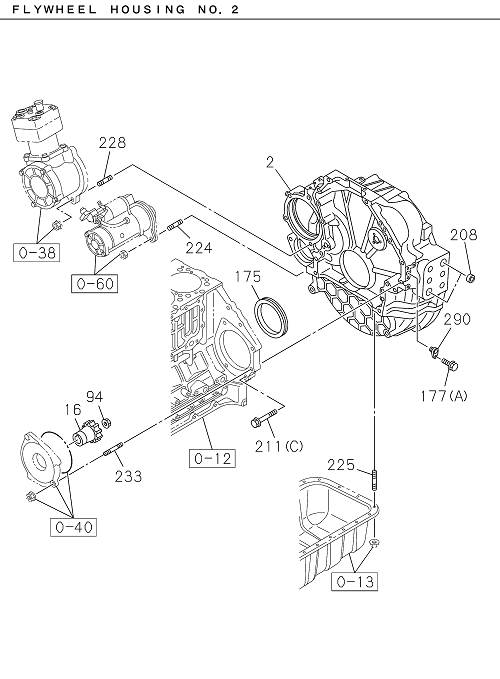

0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 228 | I0-44011 235-0 | STUD; AIR CMPR | 1 | 2203- | GXZ | M12X35 L=53 | ||
| 211 | I0-16956 270-0 | BOLT; HSG | 9 | 2203- | GXZ | (B) M12X70 | ||
| 224 | I0-44011 435-0 | STUD; STARTER | 2 | 2203- | GXZ | M14X35 L=56 | ||
| 487 | I8-98023 824-1 | COVER; HOLE | 1 | 2203- | GXZ | |||
| 035 | I8-98334 482-0 | SEAL; OIL,CRANKSHAFT FRT | 1 | 2203- | GXZ | ID=104 OD=137 | ||
| 177 | I0-28050 612-0 | BOLT; SENSOR | 1 | 2203- | GXZ | (B) M6X12 FLANGE | ||
| 062 | I8-98219 171-0 | BOLT; COVER | 3 | 2203- | GXZ | M8X14 FLANGE | ||
| 211 | I8-94393 995-0 | BOLT; HSG | 1 | 2203- | GXZ | (E) M14X27 FLANGE | ||
| 051 | I0-28151 040-0 | BOLT; GEAR CASE COVER | 1 | 2203- | GXZ | (A) M10X40 FLANGE | ||
| 485 | I8-98376 607-0 | GASKET; SENSOR | 1 | 2203- | GXZ | (B) ID=16.4 OD=21.2 | ||
| 177 | I0-28050 616-0 | BOLT; SENSOR | 2 | 2203- | GXZ | (A) M6X16 FLANGE | ||
| 175 | I8-98334 339-0 | SEAL; OIL,CR/SHF,RR | 1 | 2203- | GXZ | ID=104 OD=139 | ||
| 356 | I8-94394 186-0 | GASKET; COVER | 1 | 2203- | GXZ | ID=110 | ||
| 115 | I8-98258 186-0 | SENSOR; REVOLUTION,ENG SPD | 1 | 2203- | GXZ | (A) | ||
| 211 | I0-16856 260-0 | BOLT; HSG | 1 | 2203- | GXZ | (A) M12X60 | ||
| 002 | I8-97555 424-0 | HOUSING; FLYWHEEL | 1 | 2203- | GXZ | |||
| 051 | I0-28050 835-0 | BOLT; GEAR CASE COVER | 13 | 2203- | GXZ | (B) M8X35 FLANGE | ||
| 032 | I8-97028 748-1 | GASKET; GEAR CASE TO C/BL | 1 | 2203- | GXZ | (B) ID=35.1 | ||
| 068 | I8-98275 292-1 | COVER ASM; GEAR CASE COVER | 1 | 2203- | GXZ | |||
| 032 | I8-94391 310-0 | GASKET; GEAR CASE TO C/BL | 1 | 2203- | GXZ | (A) | ||
| 241 | I8-94393 140-1 | WASHER; PL,HSG | 10 | 2203- | GXZ | ID=12.5 OD=22 | ||
| 485 | I8-97369 404-0 | GASKET; SENSOR | 1 | 2203- | GXZ | (A) ID=14.2 OD=18.8 | ||
| 211 | I0-28151 050-0 | BOLT; HSG | 1 | 2203- | GXZ | (C) M10X50 FLANGE | ||
| 094 | I0-91180 214-0 | NUT; GEAR | 1 | 2203- | GXZ | M14 FLANGE | ||
| 115 | I8-98019 024-0 | SENSOR; REVOLUTION,ENG SPD | 1 | 2203- | GXZ | (B) | ||
| 290 | I8-97848 832-0 | PLUG; SENSOR HOLE | 1 | 2203- | GXZ | |||
| 211 | I0-28161 230-0 | BOLT; HSG | 2 | 2203- | GXZ | (D) M12X30 FLANGE | ||
| 225 | I8-97658 193-0 | STUD; OIL PAN | 4 | 2203- | GXZ | M8X7.5 M8X24.5 L=38 | ||
| 208 | I1-11229 016-0 | DOWEL; ENG FOOT | 4 | 2203- | GXZ | OD=26 L=12 | ||
| 233 | I1-09302 112-0 | STUD; BRKT | 1 | 2203- | GXZ | M12X15 & M12X33 L=82 | ||
| 016 | I8-98333 889-0 | GEAR; INJ PUMP DRIVE | 1 | 2203- | GXZ | |||
| 032 | I9-09566 128-0 | GASKET; GEAR CASE TO C/BL | 1 | 2203- | GXZ | (C) ID=27.7 |
