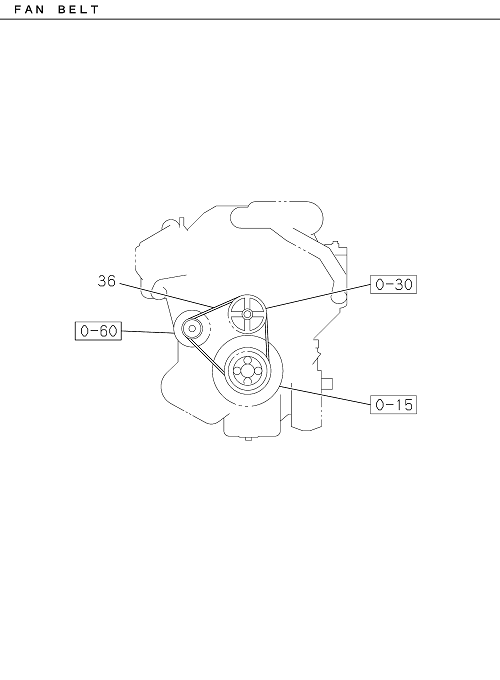

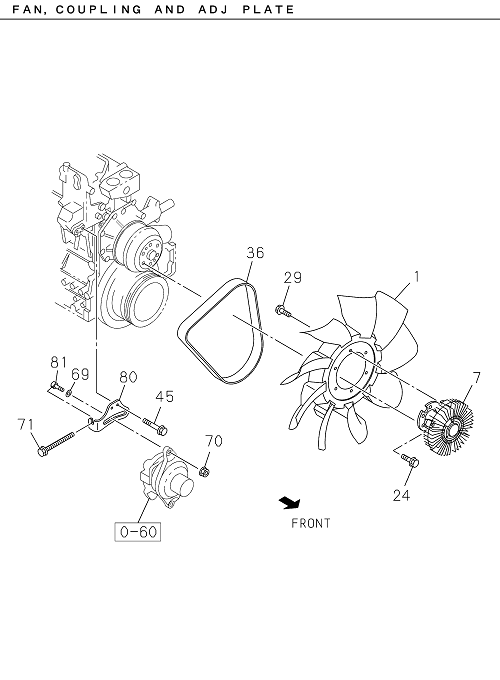

0-33 | FAN AND FAN BELT
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 069 | I0-91614 712-0 | WASHER; PL,ADJ PLATE,GEN | 1 | 2203- | GXZ | ID=12.5 OD=32 | ||
| 070 | I0-91180 112-0 | NUT; ADJ PLATE,GEN | 1 | 2203- | GXZ | M12 FLANGE | ||
| 080 | I8-98276 026-0 | PLATE; ADJ | 1 | 2203- | GXZ | |||
| 024 | I0-28051 030-0 | BOLT; FAN | 6 | 2203- | GXZ | M10X30 FLANGE | ||
| 001 | I8-98330 992-0 | FAN; COOLING | 1 | 2203- | GXZ | |||
| 029 | I0-28050 816-0 | BOLT; COUPLING TO WATER PUMP | 6 | 2203- | GXZ | M8X16 FLANGE | ||
| 036 | I8-98317 850-0 | BELT; COOLING FAN | 1 | 2203- | GXZ | L=1236 MITSUBOSHI | ||
| 045 | I0-28051 040-0 | BOLT; STAY | 2 | 2203- | GXZ | M10X40 FLANGE | ||
| 081 | I1-13674 160-0 | PIECE; SLIDING | 1 | 2203- | GXZ | M12X45 | ||
| 071 | I1-09009 113-1 | BOLT; ADJ PLATE,GEN | 1 | 2203- | GXZ | M10X135 | ||
| 007 | I8-98331 012-2 | COUPLING; FAN | 1 | 2203- | GXZ |
