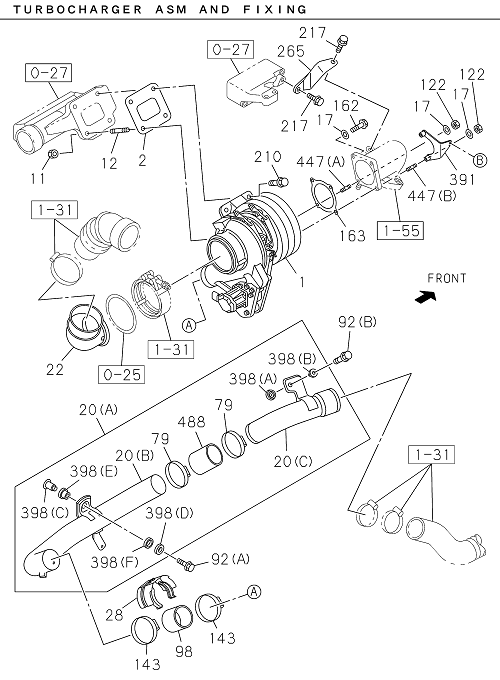

0-36 | TURBOCHARGER SYSTEM
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 162 | I8-98043 528-0 | BOLT; ADAPTER | 1 | 2203- | GXZ | M8X28 FLANGE | ||
| 012 | I8-97307 075-2 | STUD; TURBOCHARGER | 2 | 2203- | GXZ | M10X33 L=48 | ||
| 020 | I8-98334 435-0 | PIPE; INL,TURBOCHARGER OUT | 1 | 2203- | GXZ | (C) | ||
| 398 | I8-94394 529-0 | MOUNTING | 1 | 2203- | GXZ | (E) OD=26 | ||
| 137 | I8-98368 378-1 | PIPE; WATER,TURBOCHARGER IN | 1 | 2203- | GXZ | |||
| 001 | I8-98346 860-1 | TURBOCHARGER ASM | 1 | 2203- | GXZ | |||
| 163 | I8-94392 553-2 | GASKET; ADAPTER TO EXH PIPE | 1 | 2203- | GXZ | ID=83 | ||
| 143 | I8-98373 703-0 | CLIP; HOSE,TURBOCHARGER OUTLET | 2 | 2203- | GXZ | |||
| 092 | I0-28051 035-0 | BOLT; INL PIPE | 1 | 2203- | GXZ | (A) M10X35 FLANGE | ||
| 011 | I8-97309 942-0 | NUT; TURBOCHARGER | 2 | 2203- | GXZ | M10 FLANGE | ||
| 398 | I8-94395 766-0 | MOUNTING | 1 | 2203- | GXZ | (A) OD=32 | ||
| 217 | I8-98173 443-0 | BOLT; BRKT | 2 | 2203- | GXZ | M10X30 FLANGE | ||
| 020 | I8-98344 995-1 | PIPE; INL,TURBOCHARGER OUT | 1 | 2203- | GXZ | (A) | ||
| 447 | I8-94476 282-0 | STUD; ADAPTER | 1 | 2203- | GXZ | (A) M8X25 L=36 | ||
| 210 | I8-98173 443-0 | BOLT; TURBOCHARGER TO EXH DUCT | 2 | 2203- | GXZ | M10X30 FLANGE | ||
| 022 | I8-98276 023-0 | DUCT; INL,ACL TO TURBOCHARGER | 1 | 2203- | GXZ | |||
| 398 | I8-94390 551-1 | MOUNTING | 1 | 2203- | GXZ | (C) OD=28 | ||
| 115 | I8-97507 765-0 | PIPE; WATER,TURBOCHARGER OUT | 1 | 2203- | GXZ | |||
| 398 | I8-97105 689-A | MOUNTING | 1 | 2203- | GXZ | (B) OD=23 | ||
| 079 | I8-98365 705-0 | CLIP; RUBBER HOSE | 2 | 2203- | GXZ | |||
| 398 | I8-94160 177-0 | MOUNTING | 1 | 2203- | GXZ | (F) ID=19 OD=26 | ||
| 122 | I1-09400 118-1 | NUT; ADAPTER | 3 | 2203- | GXZ | M8 | ||
| 398 | I8-94394 504-0 | MOUNTING | 1 | 2203- | GXZ | (D) ID=13 OD=28 | ||
| 017 | I5-09500 012-0 | WASHER; PL,ADAPTER | 4 | 2203- | GXZ | ID=8.4 T=1.4 | ||
| 098 | I8-98368 402-0 | HOSE; RUBBER,TURBOCHARGER OUTLET | 1 | 2203- | GXZ | L=70 | ||
| 028 | I8-94393 182-0 | PROTECTOR; HEAT,HOSE,AIR DUCT | 1 | 2203- | GXZ | |||
| 447 | I8-97378 067-0 | STUD; ADAPTER | 2 | 2203- | GXZ | (B) M8X43 L=54 | ||
| 002 | I8-98281 765-2 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 2203- | GXZ | |||
| 391 | I8-98368 379-0 | BRACKET; WATER PIPE | 1 | 2203- | GXZ | |||
| 265 | I8-98307 028-0 | BRACKET; EXH PIPE | 1 | 2203- | GXZ | |||
| 513 | I8-98251 345-0 | GASKET; CONNECTOR | 2 | 2203- | GXZ | ID=14.2 OD=19.2 | ||
| 020 | I8-98344 994-0 | PIPE; INL,TURBOCHARGER OUT | 1 | 2203- | GXZ | (B) | ||
| 092 | I0-28650 840-0 | BOLT; INL PIPE | 1 | 2203- | GXZ | (B) M8X40 FLANGE | ||
| 488 | I8-98368 402-0 | HOSE; RUBBER | 1 | 2203- | GXZ | L=70 |
