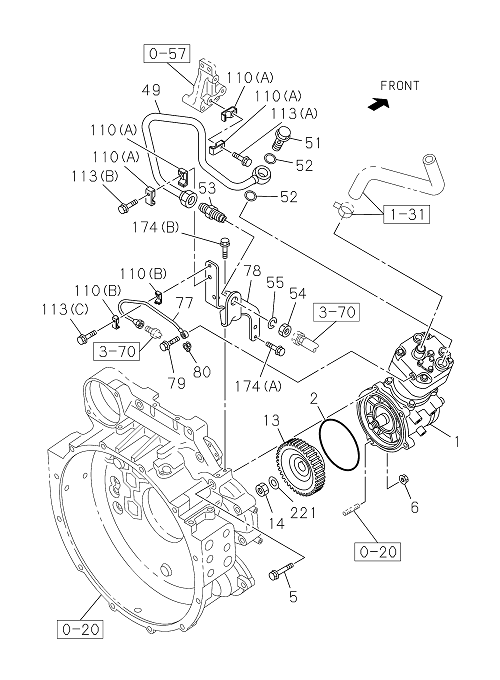

0-38 | AIR COMPRESSOR PIPING; ENGINE SIDE
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 049 | I8-97507 766-0 | PIPE; AIR,CHARGE | 1 | 2203- | GXZ | |||
| 014 | I0-91110 520-0 | NUT; GEAR | 1 | 2203- | GXZ | M20 | ||
| 174 | I0-28050 816-0 | BOLT; BRKT | 2 | 2203- | GXZ | (B) M8X16 FLANGE | ||
| 110 | I8-98029 953-1 | CLIP; AIR PIPE | 2 | 2203- | GXZ | (B) ID=5.5 L=10.5 | ||
| 078 | I8-98274 410-0 | BRACKET; PIPE,AIR GOV | 1 | 2203- | GXZ | |||
| 174 | I0-28050 616-0 | BOLT; BRKT | 1 | 2203- | GXZ | (A) M6X16 FLANGE | ||
| 051 | I1-09675 175-2 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 2203- | GXZ | M24X39 | ||
| 053 | I1-09654 318-1 | UNION; CHARGE PIPE | 1 | 2203- | GXZ | M22 & M26 L=79 STRAIGHT | ||
| 002 | I1-09623 570-0 | GASKET; AIR CMPR | 1 | 2203- | GXZ | ID=162 | ||
| 113 | I0-28050 845-0 | BOLT; CLIP,AIR PIPE | 1 | 2203- | GXZ | (B) M8X45 FLANGE | ||
| 113 | I0-28050 840-0 | BOLT; CLIP,AIR PIPE | 1 | 2203- | GXZ | (A) M8X40 FLANGE | ||
| 110 | I1-09701 284-0 | CLIP; AIR PIPE | 4 | 2203- | GXZ | (A) ID=17 L=17 | ||
| 113 | I0-28050 635-0 | BOLT; CLIP,AIR PIPE | 1 | 2203- | GXZ | (C) M6X35 FLANGE | ||
| 077 | I8-97507 767-0 | PIPE; AIR,GOV | 1 | 2203- | GXZ | |||
| 054 | I0-91111 522-0 | NUT; PIPE UNION | 1 | 2203- | GXZ | M22 | ||
| 080 | I8-98231 393-1 | GASKET; AIR PIPE TO CMPR | 1 | 2203- | GXZ | ID=10.6 | ||
| 006 | I0-91180 212-0 | NUT; AIR CMPR | 1 | 2203- | GXZ | M12 FLANGE | ||
| 052 | I9-09571 424-0 | GASKET; EYE BOLT,AIR PIPE | 2 | 2203- | GXZ | ID=24.5 OD=32 | ||
| 079 | I8-98037 824-0 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 2203- | GXZ | M10X23 EYE-BOLT | ||
| 221 | I0-91610 520-0 | WASHER; PL,GEAR | 1 | 2203- | GXZ | ID=21 | ||
| 001 | I8-98310 156-1 | COMPRESSOR ASM; AIR | 1 | 2203- | GXZ | SEE FIG-NO 0-39 FOR COMPONENT. | ||
| 013 | I8-15033 449-0 | GEAR; AIR CMPR DRIVE | 1 | 2203- | GXZ | Z=49 | ||
| 055 | I0-91510 522-0 | WASHER; LK,PIPE UNION | 1 | 2203- | GXZ | ID=22.5 | ||
| 005 | I0-28151 270-0 | BOLT; AIR CMPR FIX | 3 | 2203- | GXZ | M12X70 FLANGE |
