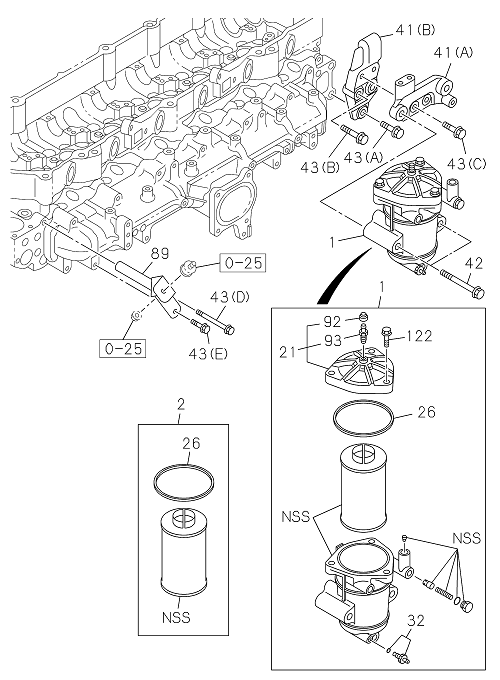

0-41 | FUEL FILTER AND BRACKET
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 041 | I8-98370 645-0 | BRACKET; FUEL FILTER | 1 | 2203- | GXZ | (A) | ||
| 043 | I0-28161 230-0 | BOLT; BRKT | 1 | 2203- | GXZ | (A) M12X30 FLANGE | ||
| 043 | I0-28050 830-0 | BOLT; BRKT | 1 | 2203- | GXZ | (E) M8X30 FLANGE | ||
| 032 | I8-98158 459-0 | BOLT; DRAIN,FUEL FILTER | 1 | 2203- | GXZ | M8 | ||
| 042 | I0-28151 200-0 | BOLT; FUEL FILTER | 2 | 2203- | GXZ | M12X100 FLANGE | ||
| 122 | I8-98246 245-0 | BOLT; COVER | 3 | 2203- | GXZ | |||
| 041 | I8-98287 622-0 | BRACKET; FUEL FILTER | 1 | 2203- | GXZ | (B) | ||
| 002 | I8-98246 248-A | ELEMENT KIT; FUEL FILTER | 1 | 2203- | GXZ | (IADG) MAIN FILTER | ||
| 043 | I8-98044 944-0 | BOLT; BRKT | 2 | 2203- | GXZ | (C) M10X28 FLANGE | ||
| 026 | I8-98246 246-0 | GASKET; COVER TO BODY | 1 | 2203- | GXZ | |||
| 093 | I8-98034 312-0 | CONNECTOR; FUEL FILTER | 1 | 2203- | GXZ | M8X10 | ||
| 021 | I8-98246 243-0 | COVER; UPR,FUEL FILTER | 1 | 2203- | GXZ | |||
| 002 | I8-98246 248-0 | ELEMENT KIT; FUEL FILTER | 1 | 2203- | GXZ | MAIN FILTER | ||
| 001 | I8-98185 420-0 | FILTER ASM; FUEL | 1 | 2203- | GXZ | MAIN FILTER | ||
| 089 | I8-98336 614-0 | BRACKET; INT PIPE | 1 | 2203- | GXZ | |||
| 092 | I8-98034 314-0 | CAP; FUEL FILTER | 1 | 2203- | GXZ | |||
| 043 | I0-28161 250-0 | BOLT; BRKT | 2 | 2203- | GXZ | (B) M12X50 FLANGE | ||
| 043 | I0-28156 013-0 | BOLT; BRKT | 1 | 2203- | GXZ | (D) M10X130 FLANGE |
