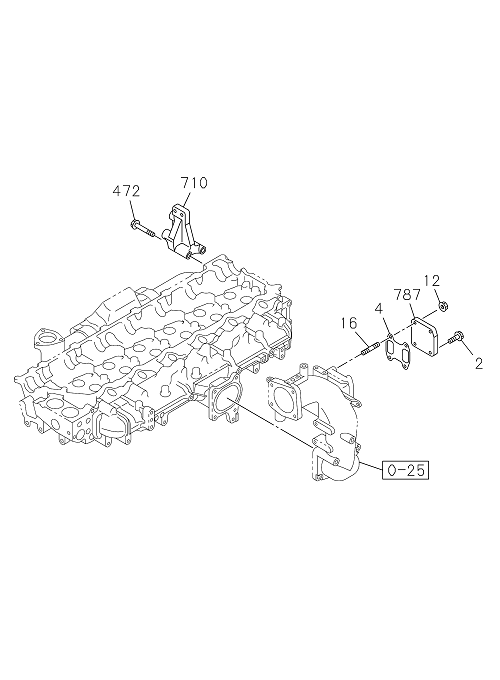

0-57 | EMISSION PIPING
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 012 | I7-05108 010-A | NUT; EGR VLV | 2 | 2203- | GXZ | M8 FLANGE | ||
| 472 | I0-28151 080-0 | BOLT; BRKT | 2 | 2203- | GXZ | M10X80 FLANGE | ||
| 002 | I0-28050 825-0 | BOLT; EGR VLV | 2 | 2203- | GXZ | M8X25 FLANGE | ||
| 004 | I8-98106 027-1 | GASKET; EGR VLV | 1 | 2203- | GXZ | |||
| 710 | I8-98179 860-0 | BRACKET; EGR COOLER | 1 | 2203- | GXZ | |||
| 016 | I0-41010 822-0 | STUD; EGR VLV | 2 | 2203- | GXZ | M8X22 L=34 | ||
| 787 | I8-98275 643-2 | COVER; DUCT,EGR VLV | 1 | 2203- | GXZ |
