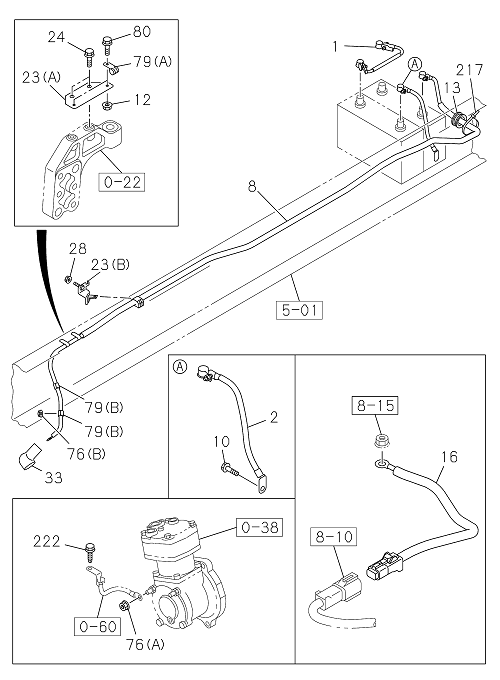

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 023 | I8-98311 316-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 2203- | GXZ | (B) | ||
| 024 | I0-28151 225-0 | BOLT; BRKT TO FRAME | 2 | 2203- | GXZ | M12X25 FLANGE | ||
| 023 | I8-98272 203-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 2203- | GXZ | (A) | ||
| 079 | I1-09701 216-0 | CLIP; BATTERY CABLE | 2 | 2203- | GXZ | (A) ID=15 L=28 | ||
| 076 | I7-05108 010-A | NUT; BATTERY CABLE | 2 | 2203- | GXZ | (A) M8 FLANGE | ||
| 028 | I7-05108 010-A | NUT; BRKT TO FRAME | 1 | 2203- | GXZ | M8 FLANGE | ||
| 079 | I8-98019 191-0 | CLIP; BATTERY CABLE | 2 | 2203- | GXZ | (B) ID=21 L=24 | ||
| 033 | I8-98367 942-0 | CAP; INSULATOR | 1 | 2203- | GXZ | |||
| 016 | I8-98481 555-A | CABLE; STARTER TO RELAY | 1 | 2203- | GXZ | L=440 | ||
| 222 | I8-97087 203-0 | BOLT; EARTH CABLE | 1 | 2203- | GXZ | M8X25 W/LK&PL WASHER | ||
| 080 | I7-04508 025-A | BOLT; BATTERY CABLE CLIP | 2 | 2203- | GXZ | M8X20 FLANGE | ||
| 001 | I7-42502 223-A | CABLE; BATTERY | 1 | 2203- | GXZ | L=280 | ||
| 010 | I8-97087 203-0 | BOLT; BATTERY CABLE CLIP | 1 | 2203- | GXZ | M8X25 W/LK&PL WASHER | ||
| 076 | I0-91110 506-0 | NUT; BATTERY CABLE | 1 | 2203- | GXZ | (B) M6 | ||
| 013 | I1-09891 003-0 | GROMMET; BATTERY CABLE | 1 | 2203- | GXZ | ID=32 OD=40 T=18 | ||
| 217 | I1-09707 183-0 | CLIP; BAND,CABLE | 1 | 2203- | GXZ | L=350 | ||
| 002 | I8-98481 552-A | CABLE; BATTERY | 1 | 2203- | GXZ | |||
| 012 | I7-05108 010-A | NUT; BATTERY CABLE CLIP | 1 | 2203- | GXZ | M8 FLANGE | ||
| 008 | I8-97696 532-A | CABLE; BATTERY,STARTER | 1 | 2203- | GXZ |
