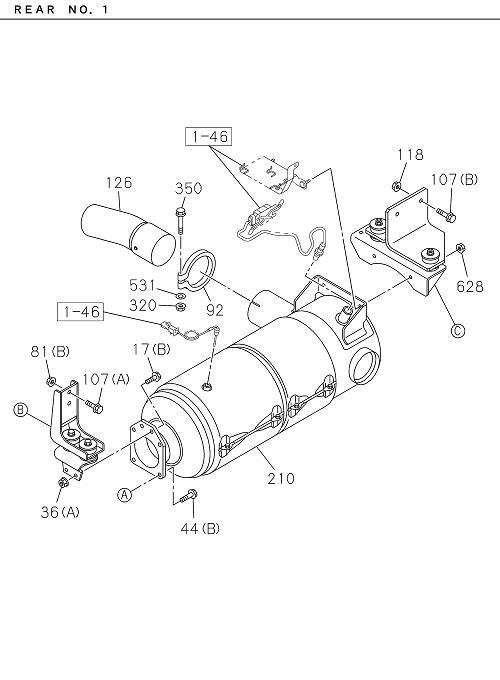

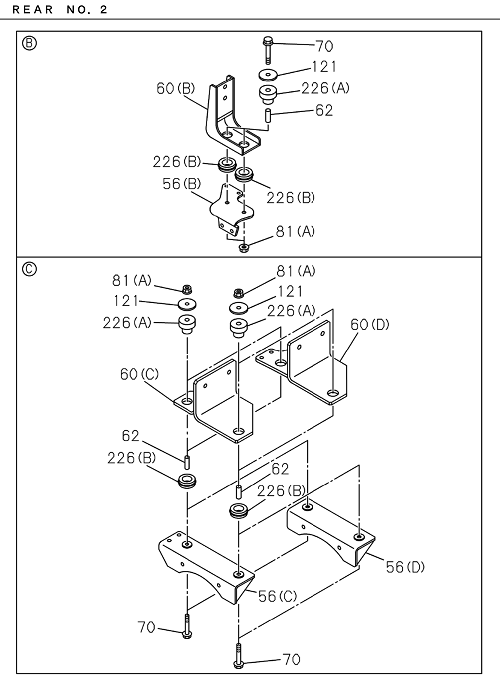

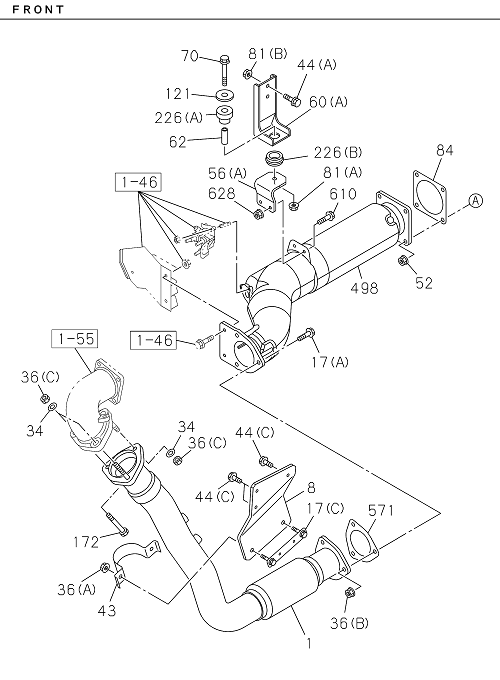

1-50 | EXHAUST PIPE AND SILENCER
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 118 | I0-91180 212-0 | NUT; SILENCER MTG BRKT | 2 | 2203- | GXZ | M12 FLANGE | ||
| 081 | I0-91180 212-0 | NUT; BRKT | 4 | 2203- | GXZ | (B) M12 FLANGE | ||
| 060 | I8-97873 214-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (C) | ||
| 070 | I0-28051 070-0 | BOLT; BRKT | 5 | 2203- | GXZ | M10X70 FLANGE | ||
| 017 | I8-97682 596-0 | BOLT; EXH PIPE | 1 | 2203- | GXZ | (C) | ||
| 060 | I8-97555 237-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (A) | ||
| 107 | I0-28051 250-0 | BOLT; BRKT | 2 | 2203- | GXZ | (B) M12X50 FLANGE | ||
| 084 | I8-98343 736-0 | GASKET; EXH PIPE | 1 | 2203- | GXZ | |||
| 060 | I8-97555 238-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (B) | ||
| 017 | I0-28651 035-0 | BOLT; EXH PIPE | 2 | 2203- | GXZ | (B) M10X35 FLANGE | ||
| 001 | I8-97555 206-0 | PIPE; EXH | 1 | 2203- | GXZ | |||
| 036 | I7-05110 010-A | NUT; EXH PIPE | 2 | 2203- | GXZ | (A) M10 FLANGE | ||
| 210 | I8-97544 575-0 | CONVERTER | 1 | 2203- | GXZ | |||
| 107 | I0-28051 235-0 | BOLT; BRKT | 2 | 2203- | GXZ | (A) M12X35 FLANGE | ||
| 060 | I8-97873 214-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (D) | ||
| 056 | I8-97555 241-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (B) | ||
| 126 | I8-97555 236-0 | PIPE; EXH,RR | 1 | 2203- | GXZ | |||
| 056 | I8-97555 240-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (A) | ||
| 121 | I1-09503 154-2 | WASHER; PL,BRKT | 5 | 2203- | GXZ | ID=11 OD=54 | ||
| 320 | I7-05110 010-A | NUT; CLAMP,EXH PIPE | 1 | 2203- | GXZ | M10 FLANGE | ||
| 107 | I0-28051 250-0 | BOLT; BRKT | 2 | 2203- | GXZ | (B) M12X50 FLANGE | ||
| 226 | I8-94457 278-A | RUBBER; CUSHION | 5 | 2203- | GXZ | (B) | ||
| 571 | I8-98043 481-0 | GASKET | 1 | 2203- | GXZ | ID=81 | ||
| 070 | I0-28051 070-0 | BOLT; BRKT | 5 | 2203- | GXZ | M10X70 FLANGE | ||
| 017 | I8-97682 596-0 | BOLT; EXH PIPE | 1 | 2203- | GXZ | (C) | ||
| 056 | I8-97873 216-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (C) | ||
| 060 | I8-97555 238-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (B) | ||
| 092 | I8-97793 371-0 | CLAMP | 1 | 2203- | GXZ | |||
| 610 | I0-28651 035-0 | BOLT; HANGER | 2 | 2203- | GXZ | M10X35 FLANGE | ||
| 126 | I8-97555 236-0 | PIPE; EXH,RR | 1 | 2203- | GXZ | |||
| 043 | I8-97672 601-0 | CLAMP; EXH PIPE | 1 | 2203- | GXZ | |||
| 062 | I8-97948 228-0 | TUBE; DIST,BRKT | 5 | 2203- | GXZ | |||
| 044 | I0-28661 240-0 | BOLT; BRKT | 4 | 2203- | GXZ | (B) M12X40 FLANGE | ||
| 001 | I8-97555 206-0 | PIPE; EXH | 1 | 2203- | GXZ | |||
| 172 | I1-09000 386-0 | BOLT | 1 | 2203- | GXZ | M12X65 | ||
| 036 | I1-09400 010-0 | NUT; EXH PIPE | 3 | 2203- | GXZ | (C) M12 | ||
| 044 | I0-28051 235-0 | BOLT; BRKT | 2 | 2203- | GXZ | (A) M12X35 FLANGE | ||
| 226 | I8-94457 277-A | RUBBER; CUSHION | 5 | 2203- | GXZ | (A) | ||
| 060 | I8-97873 214-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (C) | ||
| 610 | I0-28651 035-0 | BOLT; HANGER | 2 | 2203- | GXZ | M10X35 FLANGE | ||
| 056 | I8-97873 216-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (D) | ||
| 017 | I0-28651 035-0 | BOLT; EXH PIPE | 2 | 2203- | GXZ | (B) M10X35 FLANGE | ||
| 081 | I0-91180 212-0 | NUT; BRKT | 4 | 2203- | GXZ | (B) M12 FLANGE | ||
| 052 | I0-91180 212-0 | NUT; BRKT | 4 | 2203- | GXZ | M12 FLANGE | ||
| 210 | I8-97544 575-0 | CONVERTER | 1 | 2203- | GXZ | |||
| 017 | I0-28051 235-0 | BOLT; EXH PIPE | 3 | 2203- | GXZ | (A) M12X35 FLANGE | ||
| 531 | I0-91614 510-0 | WASHER; CLAMP | 1 | 2203- | GXZ | ID=10.5 | ||
| 060 | I8-97873 214-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (D) | ||
| 107 | I0-28051 235-0 | BOLT; BRKT | 2 | 2203- | GXZ | (A) M12X35 FLANGE | ||
| 008 | I8-97679 862-0 | BRACKET; EXH PIPE | 1 | 2203- | GXZ | |||
| 034 | I1-09500 030-0 | WASHER; EXH PIPE | 3 | 2203- | GXZ | ID=13 OD=24 DISH | ||
| 084 | I8-98343 736-0 | GASKET; EXH PIPE | 1 | 2203- | GXZ | |||
| 036 | I1-09400 010-0 | NUT; EXH PIPE | 3 | 2203- | GXZ | (C) M12 | ||
| 081 | I7-05110 010-A | NUT; BRKT | 5 | 2203- | GXZ | (A) M10 FLANGE | ||
| 531 | I0-91614 510-0 | WASHER; CLAMP | 1 | 2203- | GXZ | ID=10.5 | ||
| 092 | I8-97793 371-0 | CLAMP | 1 | 2203- | GXZ | |||
| 044 | I0-28751 025-0 | BOLT; BRKT | 3 | 2203- | GXZ | (C) M10X25 FLANGE | ||
| 056 | I8-97873 216-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (D) | ||
| 044 | I0-28751 025-0 | BOLT; BRKT | 3 | 2203- | GXZ | (C) M10X25 FLANGE | ||
| 320 | I7-05110 010-A | NUT; CLAMP,EXH PIPE | 1 | 2203- | GXZ | M10 FLANGE | ||
| 056 | I8-97555 241-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (B) | ||
| 118 | I0-91180 212-0 | NUT; SILENCER MTG BRKT | 2 | 2203- | GXZ | M12 FLANGE | ||
| 060 | I8-97555 237-0 | BRACKET; FRAME TO BRKT | 1 | 2203- | GXZ | (A) | ||
| 036 | I7-05110 010-A | NUT; EXH PIPE | 2 | 2203- | GXZ | (A) M10 FLANGE | ||
| 628 | I7-05110 010-A | NUT; HANGER | 4 | 2203- | GXZ | M10 FLANGE | ||
| 081 | I7-05110 010-A | NUT; BRKT | 5 | 2203- | GXZ | (A) M10 FLANGE | ||
| 062 | I8-97948 228-0 | TUBE; DIST,BRKT | 5 | 2203- | GXZ | |||
| 052 | I0-91180 212-0 | NUT; BRKT | 4 | 2203- | GXZ | M12 FLANGE | ||
| 017 | I0-28051 235-0 | BOLT; EXH PIPE | 3 | 2203- | GXZ | (A) M12X35 FLANGE | ||
| 350 | I0-28051 070-0 | BOLT; CLAMP,EXH PIPE | 1 | 2203- | GXZ | M10X70 FLANGE | ||
| 034 | I1-09500 030-0 | WASHER; EXH PIPE | 3 | 2203- | GXZ | ID=13 OD=24 DISH | ||
| 056 | I8-97873 216-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (C) | ||
| 044 | I0-28661 240-0 | BOLT; BRKT | 4 | 2203- | GXZ | (B) M12X40 FLANGE | ||
| 036 | I0-91180 212-0 | NUT; EXH PIPE | 3 | 2203- | GXZ | (B) M12 FLANGE | ||
| 043 | I8-97672 601-0 | CLAMP; EXH PIPE | 1 | 2203- | GXZ | |||
| 498 | I8-97543 008-0 | PIPE ASM | 1 | 2203- | GXZ | |||
| 172 | I1-09000 386-0 | BOLT | 1 | 2203- | GXZ | M12X65 | ||
| 571 | I8-98043 481-0 | GASKET | 1 | 2203- | GXZ | ID=81 | ||
| 044 | I0-28051 235-0 | BOLT; BRKT | 2 | 2203- | GXZ | (A) M12X35 FLANGE | ||
| 628 | I7-05110 010-A | NUT; HANGER | 4 | 2203- | GXZ | M10 FLANGE | ||
| 008 | I8-97679 862-0 | BRACKET; EXH PIPE | 1 | 2203- | GXZ | |||
| 226 | I8-94457 278-A | RUBBER; CUSHION | 5 | 2203- | GXZ | (B) | ||
| 498 | I8-97543 008-0 | PIPE ASM | 1 | 2203- | GXZ | |||
| 350 | I0-28051 070-0 | BOLT; CLAMP,EXH PIPE | 1 | 2203- | GXZ | M10X70 FLANGE | ||
| 121 | I1-09503 154-2 | WASHER; PL,BRKT | 5 | 2203- | GXZ | ID=11 OD=54 | ||
| 226 | I8-94457 277-A | RUBBER; CUSHION | 5 | 2203- | GXZ | (A) | ||
| 056 | I8-97555 240-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GXZ | (A) | ||
| 036 | I0-91180 212-0 | NUT; EXH PIPE | 3 | 2203- | GXZ | (B) M12 FLANGE |
