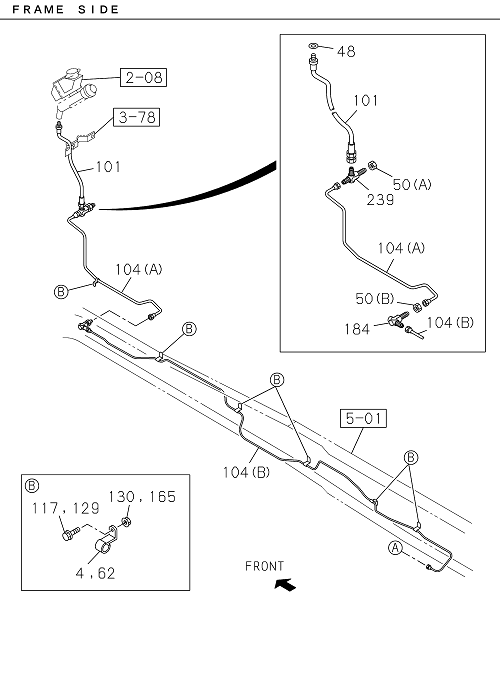

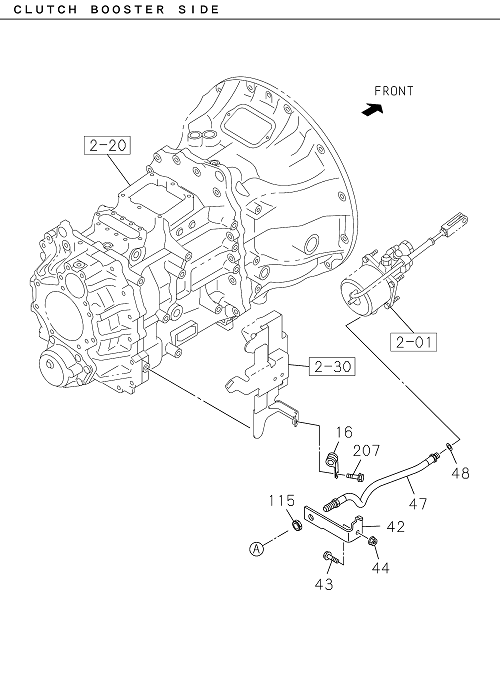

2-05 | CLUTCH PIPING FRAME SIDE
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 004 | I1-09700 604-0 | CLIP; FLEX HOSE,CLU CONT | 1 | 2203- | GXZ | ID=8 H=20 L=20 | ||
| 101 | I8-98072 350-A | HOSE; FLEX,OIL PIPE TO OIL PIPE | 1 | 2203- | GXZ | L=500 | ||
| 207 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | GXZ | M8X20 FLANGE | ||
| 184 | I0-92125 208-0 | UNION; FLEX HOSE | 1 | 2203- | GXZ | M14 ELBOW | ||
| 047 | I8-98072 325-A | HOSE; FLEX,CLU CONT | 1 | 2203- | GXZ | L=470 | ||
| 047 | I8-98072 325-A | HOSE; FLEX,CLU CONT | 1 | 2203- | GXZ | L=470 | ||
| 050 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | GXZ | (A) M12 | ||
| 130 | I7-05108 010-A | NUT; PIPE CLIP | 5 | 2203- | GXZ | M8 FLANGE | ||
| 104 | I1-47426 384-0 | PIPE; OIL,FLEX HOSE TO CONNECTOR | 1 | 2203- | GXZ | (A) L=802 SERVICED BY L=900 | ||
| 184 | I0-92125 208-0 | UNION; FLEX HOSE | 1 | 2203- | GXZ | M14 ELBOW | ||
| 117 | I0-28650 830-0 | BOLT; CLIP,FLEX HOSE | 1 | 2203- | GXZ | M8X30 FLANGE | ||
| 062 | I1-09700 604-0 | CLIP; CLU PIPE | 5 | 2203- | GXZ | ID=8 H=20 L=20 | ||
| 104 | I1-47426 396-0 | PIPE; OIL,FLEX HOSE TO CONNECTOR | 1 | 2203- | GXZ | (B) L=2596 SERVICED BY L=2700 | ||
| 130 | I7-05108 010-A | NUT; PIPE CLIP | 5 | 2203- | GXZ | M8 FLANGE | ||
| 115 | I0-91111 514-0 | NUT; FLEX HOSE,CLU CONT | 1 | 2203- | GXZ | M14 | ||
| 004 | I1-09700 604-0 | CLIP; FLEX HOSE,CLU CONT | 1 | 2203- | GXZ | ID=8 H=20 L=20 | ||
| 117 | I0-28650 830-0 | BOLT; CLIP,FLEX HOSE | 1 | 2203- | GXZ | M8X30 FLANGE | ||
| 048 | I9-09571 410-0 | GASKET; FLEX HOSE,CLU CONT | 2 | 2203- | GXZ | ID=10.2 OD=16.0 | ||
| 044 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,CLU BOOSTER | 1 | 2203- | GXZ | M8 FLANGE | ||
| 044 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,CLU BOOSTER | 1 | 2203- | GXZ | M8 FLANGE | ||
| 165 | I7-05108 010-A | NUT; CLIP,FLEX HOSE | 1 | 2203- | GXZ | M8 FLANGE | ||
| 101 | I8-98072 350-A | HOSE; FLEX,OIL PIPE TO OIL PIPE | 1 | 2203- | GXZ | L=500 | ||
| 239 | I1-09654 141-2 | UNION; CLU HOSE | 1 | 2203- | GXZ | M12 & M14 2WAY | ||
| 043 | I0-28650 835-0 | BOLT; BRKT,FLEX HOSE,CLU BOOSTER | 1 | 2203- | GXZ | M8X35 FLANGE | ||
| 104 | I1-47426 384-0 | PIPE; OIL,FLEX HOSE TO CONNECTOR | 1 | 2203- | GXZ | (A) L=802 SERVICED BY L=900 | ||
| 129 | I0-28650 830-0 | BOLT; PIPE CLIP | 5 | 2203- | GXZ | M8X30 FLANGE | ||
| 016 | I1-09701 111-0 | CLIP; FLEX HOSE | 1 | 2203- | GXZ | ID=18 L=40 | ||
| 042 | I8-97555 907-0 | BRACKET; FLEX HOSE,CLU CONT | 1 | 2203- | GXZ | |||
| 239 | I1-09654 141-2 | UNION; CLU HOSE | 1 | 2203- | GXZ | M12 & M14 2WAY | ||
| 048 | I9-09571 410-0 | GASKET; FLEX HOSE,CLU CONT | 2 | 2203- | GXZ | ID=10.2 OD=16.0 | ||
| 042 | I8-97555 907-0 | BRACKET; FLEX HOSE,CLU CONT | 1 | 2203- | GXZ | |||
| 129 | I0-28650 830-0 | BOLT; PIPE CLIP | 5 | 2203- | GXZ | M8X30 FLANGE | ||
| 165 | I7-05108 010-A | NUT; CLIP,FLEX HOSE | 1 | 2203- | GXZ | M8 FLANGE | ||
| 050 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | GXZ | (A) M12 | ||
| 050 | I0-91111 514-0 | NUT; UNION | 1 | 2203- | GXZ | (B) M14 | ||
| 050 | I0-91111 514-0 | NUT; UNION | 1 | 2203- | GXZ | (B) M14 | ||
| 207 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | GXZ | M8X20 FLANGE | ||
| 016 | I1-09701 111-0 | CLIP; FLEX HOSE | 1 | 2203- | GXZ | ID=18 L=40 | ||
| 104 | I1-47426 396-0 | PIPE; OIL,FLEX HOSE TO CONNECTOR | 1 | 2203- | GXZ | (B) L=2596 SERVICED BY L=2700 | ||
| 115 | I0-91111 514-0 | NUT; FLEX HOSE,CLU CONT | 1 | 2203- | GXZ | M14 | ||
| 062 | I1-09700 604-0 | CLIP; CLU PIPE | 5 | 2203- | GXZ | ID=8 H=20 L=20 | ||
| 043 | I0-28650 835-0 | BOLT; BRKT,FLEX HOSE,CLU BOOSTER | 1 | 2203- | GXZ | M8X35 FLANGE |
