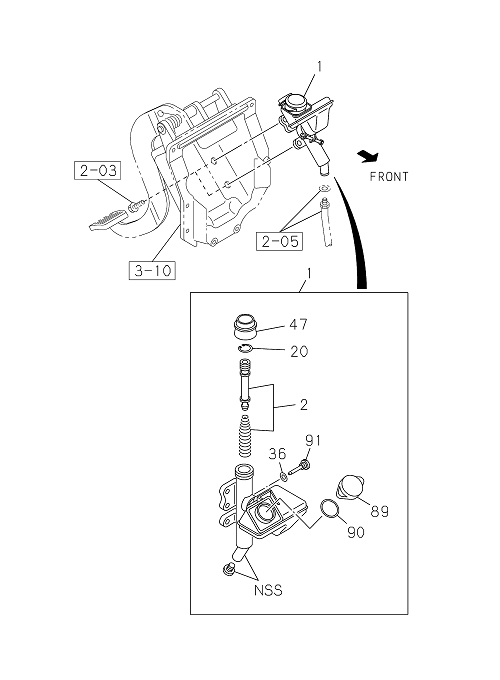

2-08 | CLUTCH MASTER CYLINDER
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 047 | I1-47519 018-0 | COVER; DUST,PUSH ROD | 1 | 2203- | GXZ | |||
| 001 | I1-47500 250-4 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203-2401 | GXZ | BLACK BODY | ||
| 090 | I1-47519 016-0 | GASKET; OIL FILLER,CLU M/CYL | 1 | 2203- | GXZ | |||
| 091 | I1-47519 015-0 | BOLT; STOPPER | 1 | 2203- | GXZ | |||
| 089 | I1-47519 017-0 | CAP; OIL FILLER,CLU M/CYL | 1 | 2203- | GXZ | |||
| 001 | I7-55185 474-0 | CYLINDER ASM; CLUTCH MASTER | 1 | 2402- | GXZ | GRAY BODY | ||
| 091 | I1-47519 015-0 | BOLT; STOPPER | 1 | 2203- | GXZ | |||
| 001 | I1-47500 250-4 | CYLINDER ASM; CLUTCH MASTER | 1 | 2203- | GXZ | |||
| 020 | I1-47519 013-0 | RING; SNAP,BODY | 1 | 2203- | GXZ | |||
| 036 | I1-47519 014-0 | GASKET; CLU M/CYL | 1 | 2203- | GXZ | |||
| 002 | I7-55215 288-0 | REPAIR KIT; CLU M/CYL | 1 | 2402- | GXZ | GRAY BODY OF CYL ASM; CLU MASTER | ||
| 047 | I1-47519 018-0 | COVER; DUST,PUSH ROD | 1 | 2203- | GXZ | |||
| 036 | I1-47519 014-0 | GASKET; CLU M/CYL | 1 | 2203- | GXZ | |||
| 089 | I1-47519 017-0 | CAP; OIL FILLER,CLU M/CYL | 1 | 2203- | GXZ | |||
| 002 | I1-85576 461-0 | REPAIR KIT; CLU M/CYL | 1 | 2203- | GXZ | |||
| 090 | I1-47519 016-0 | GASKET; OIL FILLER,CLU M/CYL | 1 | 2203- | GXZ | |||
| 020 | I1-47519 013-0 | RING; SNAP,BODY | 1 | 2203- | GXZ | |||
| 002 | I1-85576 461-0 | REPAIR KIT; CLU M/CYL | 1 | 2203-2401 | GXZ | BLACK BODY OF CYL ASM; CLU MASTER |
