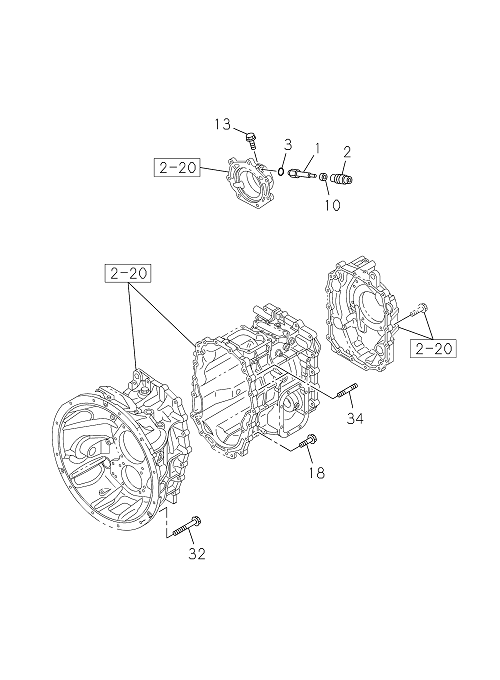

2-25 | SPEEDOMETER DRIVEN GEAR
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 013 | I8-98014 141-0 | SCREW; BUSHING,DRIVEN GEAR | 1 | 2203- | GXZ | M6X12.5 FLANGE | ||
| 001 | I8-98204 983-0 | GEAR; DRIVEN,SPD | 1 | 2203- | GXZ | Z=15 | ||
| 010 | I1-09625 510-0 | SEAL; OIL,DRIVE GEAR | 1 | 2203- | GXZ | |||
| 010 | I1-09625 510-0 | SEAL; OIL,DRIVE GEAR | 1 | 2203- | GXZ | |||
| 003 | I1-09623 069-0 | GASKET; BUSHING | 1 | 2203- | GXZ | |||
| 013 | I8-98014 141-0 | SCREW; BUSHING,DRIVEN GEAR | 1 | 2203- | GXZ | M6X12.5 FLANGE | ||
| 002 | I1-33373 084-0 | BUSHING; DRIVEN GEAR, SPEEDOMETER | 1 | 2203- | GXZ | |||
| 032 | I0-28151 235-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 12 | 2203- | GXZ | M12X35 FLANGE | ||
| 032 | I0-28151 235-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 12 | 2203- | GXZ | M12X35 FLANGE | ||
| 034 | I1-09049 037-0 | STUD; CLU HSG | 2 | 2203- | GXZ | M10X28,M12X50 L=89.7 | ||
| 002 | I1-33373 084-0 | BUSHING; DRIVEN GEAR, SPEEDOMETER | 1 | 2203- | GXZ | |||
| 001 | I8-98204 983-0 | GEAR; DRIVEN,SPD | 1 | 2203- | GXZ | Z=15 | ||
| 003 | I1-09623 069-0 | GASKET; BUSHING | 1 | 2203- | GXZ | |||
| 018 | I0-28151 250-0 | BOLT; CLU HSG TO TRANS | 16 | 2203- | GXZ | M12X50 FLANGE | ||
| 034 | I1-09049 037-0 | STUD; CLU HSG | 2 | 2203- | GXZ | M10X28,M12X50 L=89.7 | ||
| 018 | I0-28151 250-0 | BOLT; CLU HSG TO TRANS | 16 | 2203- | GXZ | M12X50 FLANGE |
