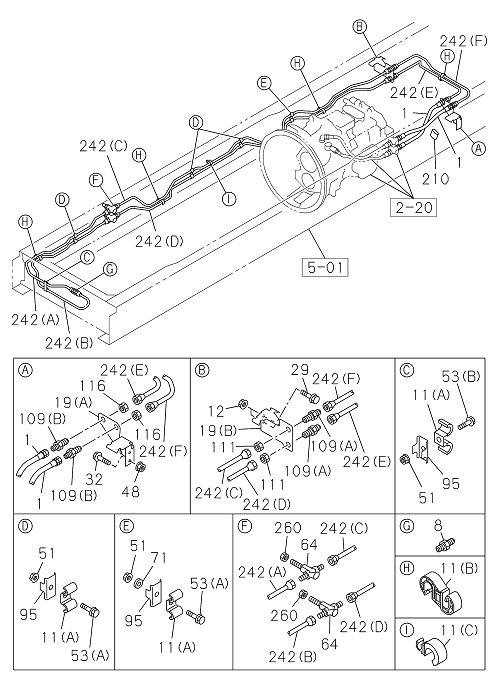

2-53 | TRANSMISSION OIL COOLER SYSTEM
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 053 | I0-28650 840-0 | BOLT; CLIP,FLEX HOSE,A/T | 1 | 2203- | GXZ | (B) M8X40 FLANGE | ||
| 242 | I8-97553 963-1 | PIPE; COOLER | 1 | 2203- | GXZ | (C) | ||
| 064 | I1-09654 212-1 | CONNECTOR; OIL COOLER | 2 | 2203- | GXZ | M22 2WAY | ||
| 008 | I0-92123 015-0 | UNION | 1 | 2203- | GXZ | M22 L=51 | ||
| 032 | I0-28650 830-0 | BOLT; BRKT | 2 | 2203- | GXZ | M8X30 FLANGE | ||
| 116 | I0-91111 522-0 | NUT; BRKT,FLEX HOSE | 2 | 2203- | GXZ | M22 | ||
| 242 | I8-98308 348-0 | PIPE; COOLER | 1 | 2203- | GXZ | (B) | ||
| 260 | I0-91111 514-0 | NUT | 2 | 2203- | GXZ | M14 | ||
| 001 | I8-98308 371-1 | HOSE; ATF | 2 | 2203- | GXZ | |||
| 242 | I8-98378 877-0 | PIPE; COOLER | 1 | 2203- | GXZ | (F) | ||
| 242 | I8-98308 341-0 | PIPE; COOLER | 1 | 2203- | GXZ | (A) | ||
| 111 | I0-91111 522-0 | NUT; UNION | 2 | 2203- | GXZ | M22 | ||
| 029 | I0-28650 830-0 | BOLT; FILTER TO BRKT | 2 | 2203- | GXZ | M8X30 FLANGE | ||
| 210 | I1-09707 178-0 | BAND; FLEX HOSE | 1 | 2203- | GXZ | L=175 | ||
| 019 | I8-97556 850-0 | BRACKET; FLEX HOSE | 1 | 2203- | GXZ | (B) | ||
| 109 | I0-92123 115-0 | UNION | 2 | 2203- | GXZ | (A) M22 L=77 STRAIGHT | ||
| 019 | I8-98368 225-1 | BRACKET; FLEX HOSE | 1 | 2203- | GXZ | (A) | ||
| 051 | I7-05108 010-A | NUT; CLIP TO BRKT | 5 | 2203- | GXZ | M8 FLANGE | ||
| 019 | I8-97556 850-0 | BRACKET; FLEX HOSE | 1 | 2203- | GXZ | (B) | ||
| 012 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | GXZ | M8 FLANGE | ||
| 011 | I1-09709 311-0 | CLIP; PIPE | 1 | 2203- | GXZ | (C) ID=15 & 7 | ||
| 019 | I8-98368 225-1 | BRACKET; FLEX HOSE | 1 | 2203- | GXZ | (A) | ||
| 053 | I0-28050 845-0 | BOLT; CLIP,FLEX HOSE,A/T | 4 | 2203- | GXZ | (A) M8X45 FLANGE | ||
| 242 | I8-98378 877-0 | PIPE; COOLER | 1 | 2203- | GXZ | (F) | ||
| 001 | I8-98308 371-1 | HOSE; ATF | 2 | 2203- | GXZ | |||
| 064 | I1-09654 212-1 | CONNECTOR; OIL COOLER | 2 | 2203- | GXZ | M22 2WAY | ||
| 051 | I7-05108 010-A | NUT; CLIP TO BRKT | 5 | 2203- | GXZ | M8 FLANGE | ||
| 048 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | GXZ | M8 FLANGE | ||
| 071 | I9-09851 649-0 | WASHER; CLIP | 1 | 2203- | GXZ | ID=8.5 OD=22 T=4 | ||
| 109 | I8-98308 375-0 | UNION | 2 | 2203- | GXZ | (B) | ||
| 095 | I1-47475 427-1 | BRACKET; CLIP | 5 | 2203- | GXZ | |||
| 008 | I0-92123 015-0 | UNION | 1 | 2203- | GXZ | M22 L=51 | ||
| 242 | I8-98308 341-0 | PIPE; COOLER | 1 | 2203- | GXZ | (A) | ||
| 242 | I8-97553 964-4 | PIPE; COOLER | 1 | 2203- | GXZ | (D) | ||
| 260 | I0-91111 514-0 | NUT | 2 | 2203- | GXZ | M14 | ||
| 053 | I0-28050 845-0 | BOLT; CLIP,FLEX HOSE,A/T | 4 | 2203- | GXZ | (A) M8X45 FLANGE | ||
| 095 | I1-47475 427-1 | BRACKET; CLIP | 5 | 2203- | GXZ | |||
| 109 | I8-98308 375-0 | UNION | 2 | 2203- | GXZ | (B) | ||
| 011 | I1-09700 674-0 | CLIP; PIPE | 5 | 2203- | GXZ | (A) ID=16 & 16 L=21.5 & 21.5 | ||
| 242 | I8-97553 964-4 | PIPE; COOLER | 1 | 2203- | GXZ | (D) | ||
| 242 | I8-98378 876-0 | PIPE; COOLER | 1 | 2203- | GXZ | (E) | ||
| 011 | I1-09709 282-1 | CLIP; PIPE | 4 | 2203- | GXZ | (B) ID=15 & 15 | ||
| 242 | I8-98378 876-0 | PIPE; COOLER | 1 | 2203- | GXZ | (E) | ||
| 053 | I0-28650 840-0 | BOLT; CLIP,FLEX HOSE,A/T | 1 | 2203- | GXZ | (B) M8X40 FLANGE | ||
| 011 | I1-09709 282-1 | CLIP; PIPE | 4 | 2203- | GXZ | (B) ID=15 & 15 | ||
| 032 | I0-28650 830-0 | BOLT; BRKT | 2 | 2203- | GXZ | M8X30 FLANGE | ||
| 029 | I0-28650 830-0 | BOLT; FILTER TO BRKT | 2 | 2203- | GXZ | M8X30 FLANGE | ||
| 011 | I1-09709 311-0 | CLIP; PIPE | 1 | 2203- | GXZ | (C) ID=15 & 7 | ||
| 012 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | GXZ | M8 FLANGE | ||
| 011 | I1-09700 674-0 | CLIP; PIPE | 5 | 2203- | GXZ | (A) ID=16 & 16 L=21.5 & 21.5 | ||
| 071 | I9-09851 649-0 | WASHER; CLIP | 1 | 2203- | GXZ | ID=8.5 OD=22 T=4 | ||
| 242 | I8-98308 348-0 | PIPE; COOLER | 1 | 2203- | GXZ | (B) | ||
| 048 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | GXZ | M8 FLANGE | ||
| 242 | I8-97553 963-1 | PIPE; COOLER | 1 | 2203- | GXZ | (C) | ||
| 109 | I0-92123 115-0 | UNION | 2 | 2203- | GXZ | (A) M22 L=77 STRAIGHT | ||
| 210 | I1-09707 178-0 | BAND; FLEX HOSE | 1 | 2203- | GXZ | L=175 | ||
| 111 | I0-91111 522-0 | NUT; UNION | 2 | 2203- | GXZ | M22 | ||
| 116 | I0-91111 522-0 | NUT; BRKT,FLEX HOSE | 2 | 2203- | GXZ | M22 |
