| 279 |
I8-98165 978-0 |
|
REPAIR KIT; SILENCER |
1 |
2203- |
|
GXZ |
|
| 006 |
I0-28650 830-0 |
|
BOLT; VLV |
2 |
2203- |
|
GXZ |
(A) M8X30 FLANGE |
| 002 |
I8-98292 212-0 |
|
VALVE; RELAY |
1 |
2203- |
|
GXZ |
|
| 033 |
I8-97557 349-0 |
|
BRACKET; GOV,AIR CONT |
1 |
2203- |
|
GXZ |
|
| 207 |
I9-09571 422-0 |
|
GASKET; ADAPTER |
3 |
2203- |
|
GXZ |
(A) ID=22.5 |
| 108 |
I1-09660 960-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GXZ |
(C) DIN12 & R1/2 ELBOW |
| 058 |
I1-09661 044-0 |
|
ADAPTER |
1 |
2203- |
|
GXZ |
(B) M16 & PT3/8 STRAIGHT |
| 005 |
I7-05108 010-A |
|
NUT |
2 |
2203- |
|
GXZ |
M8 FLANGE |
| 012 |
I1-09661 026-0 |
|
CONNECTOR; RELAY VLV |
2 |
2203- |
|
GXZ |
(G) DIN12X2 & PT3/8 DOUBLE ELBOW |
| 030 |
I1-48350 093-2 |
|
GOVERNOR; AIR CONT |
1 |
2203- |
|
GXZ |
|
| 108 |
I1-09650 430-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GXZ |
(A) M12 & PT1/4 ELBOW |
| 012 |
I1-09660 959-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(B) DIN12 & R3/8 ELBOW |
| 108 |
I1-09660 960-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GXZ |
(C) DIN12 & R1/2 ELBOW |
| 005 |
I7-05108 010-A |
|
NUT |
2 |
2203- |
|
GXZ |
M8 FLANGE |
| 006 |
I0-28651 035-0 |
|
BOLT; VLV |
2 |
2203- |
|
GXZ |
(B) M10X35 FLANGE |
| 033 |
I8-97557 349-0 |
|
BRACKET; GOV,AIR CONT |
1 |
2203- |
|
GXZ |
|
| 012 |
I1-09660 959-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(B) DIN12 & R3/8 ELBOW |
| 010 |
I1-09661 497-0 |
|
CONNECTOR |
2 |
2203- |
|
GXZ |
(H) DIN12 & M22 ELBOW |
| 052 |
I1-09661 300-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(C) PT3/8 3WAY |
| 213 |
I9-09571 422-0 |
|
GASKET |
5 |
2203- |
|
GXZ |
ID=22.5 |
| 242 |
I1-48410 722-0 |
|
VALVE; REGULATION |
1 |
2203- |
|
GXZ |
|
| 012 |
I1-09660 965-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(A) DIN12 & R3/8 STRAIGHT |
| 108 |
I1-09661 067-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GXZ |
(B) DIN6 & R1/4 ELBOW |
| 010 |
I1-09661 071-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(B) DIN12X2 & R1/4 3WAY |
| 096 |
I8-98311 995-0 |
|
BRACKET |
1 |
2203- |
|
GXZ |
|
| 010 |
I1-09661 025-0 |
|
CONNECTOR |
2 |
2203- |
|
GXZ |
(E) DIN8X2 & PT3/8 DOUBLE ELBOW |
| 034 |
I0-28651 035-0 |
|
BOLT; BRKT,GOV |
1 |
2203- |
|
GXZ |
M10X35 FLANGE |
| 005 |
I7-05108 010-A |
|
NUT |
4 |
2203- |
|
GXZ |
M8 FLANGE |
| 207 |
I9-09571 416-0 |
|
GASKET; ADAPTER |
1 |
2203- |
|
GXZ |
(B) ID=16.2 OD=24 |
| 010 |
I1-09661 005-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(D) DIN12X2 & R3/8 3WAY |
| 012 |
I1-09660 996-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(C) DIN8X2 & R3/8 3WAY |

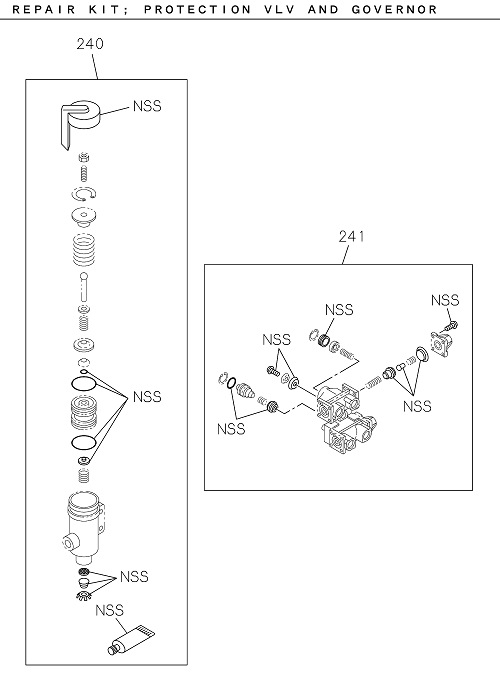

| 240 |
I1-85576 467-0 |
|
REPAIR KIT; AIR CONT GOV |
1 |
2203- |
|
GXZ |
W/GREASE |
| 012 |
I1-09660 957-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(E) DIN8 & R3/8 ELBOW |
| 282 |
I1-09660 965-0 |
|
CONNECTOR; STRAIGHT |
1 |
2203- |
|
GXZ |
(B) DIN12 & R3/8 STRAIGHT |
| 282 |
I1-09660 959-0 |
|
CONNECTOR; STRAIGHT |
2 |
2203- |
|
GXZ |
(A) DIN12 & R3/8 ELBOW |
| 010 |
I1-09661 536-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(I) DIN8 & R3/8 & RC1/4 3WAY |
| 207 |
I9-09571 416-0 |
|
GASKET; ADAPTER |
1 |
2203- |
|
GXZ |
(B) ID=16.2 OD=24 |
| 012 |
I1-09661 005-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(F) DIN12X2 & R3/8 3WAY |
| 056 |
I8-98483 774-A |
|
BRACKET; RELAY VLV |
2 |
2203- |
|
GXZ |
|
| 010 |
I1-09660 958-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(A) DIN12 & R1/4 ELBOW |
| 237 |
I1-48320 012-2 |
|
VALVE; SAFETY |
1 |
2203- |
|
GXZ |
R3/8 |
| 052 |
I1-09661 005-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(B) DIN12X2 & R3/8 3WAY |
| 063 |
I7-05108 010-A |
|
NUT; BRKT FIX |
6 |
2203- |
|
GXZ |
M8 FLANGE |
| 184 |
I9-09571 422-0 |
|
GASKET; CONNECTOR |
2 |
2203- |
|
GXZ |
(B) ID=22.5 |
| 012 |
I1-09650 494-1 |
|
CONNECTOR; RELAY VLV |
2 |
2203- |
|
GXZ |
(D) INNER PT3/8,OUTER M22 |
| 052 |
I1-09661 005-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(B) DIN12X2 & R3/8 3WAY |
| 010 |
I1-09660 959-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(C) DIN12 & R3/8 ELBOW |
| 155 |
I8-98165 977-0 |
|
REPAIR KIT; RELAY VALVE |
1 |
2203- |
|
GXZ |
|
| 012 |
I1-09661 044-0 |
|
CONNECTOR; RELAY VLV |
2 |
2203- |
|
GXZ |
(H) M16 & PT3/8 STRAIGHT |
| 282 |
I1-09660 957-0 |
|
CONNECTOR; STRAIGHT |
1 |
2203- |
|
GXZ |
(C) DIN8 & R3/8 ELBOW |
| 012 |
I1-09660 965-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(A) DIN12 & R3/8 STRAIGHT |
| 012 |
I1-09661 497-0 |
|
CONNECTOR; RELAY VLV |
4 |
2203- |
|
GXZ |
(J) DIN12 & M22 ELBOW |
| 058 |
I1-09650 494-1 |
|
ADAPTER |
3 |
2203- |
|
GXZ |
(A) INNER PT3/8,OUTER M22 |
| 058 |
I1-09661 303-0 |
|
ADAPTER |
1 |
2203- |
|
GXZ |
(C) PT3/8 & PT3/8 ELBOW |
| 010 |
I1-09661 050-0 |
|
CONNECTOR |
2 |
2203- |
|
GXZ |
(F) DIN12 & M22 STRAIGHT |
| 102 |
I0-28050 816-0 |
|
BOLT; PROTECTION VALVE |
2 |
2203- |
|
GXZ |
M8X16 FLANGE |
| 099 |
I1-48110 290-3 |
|
VALVE; PROTECTION |
1 |
2203- |
|
GXZ |
|
| 058 |
I1-09650 494-1 |
|
ADAPTER |
5 |
2203- |
|
GXZ |
(A) INNER PT3/8,OUTER M22 |
| 010 |
I1-09661 495-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(G) DIN8 & M22 ELBOW |
| 025 |
I8-97609 249-0 |
|
SWITCH; PRESSURE |
1 |
2203- |
|
GXZ |
(B) STAMP 5.5 |
| 001 |
I8-98292 213-0 |
|
VALVE; RELAY RWD RR |
2 |
2203- |
|
GXZ |
|
| 282 |
I1-09660 957-0 |
|
CONNECTOR; STRAIGHT |
1 |
2203- |
|
GXZ |
(C) DIN8 & R3/8 ELBOW |
| 010 |
I1-09661 536-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(I) DIN8 & R3/8 & RC1/4 3WAY |
| 207 |
I9-09571 422-0 |
|
GASKET; ADAPTER |
3 |
2203- |
|
GXZ |
(A) ID=22.5 |
| 038 |
I0-91180 110-0 |
|
NUT; BRKT,GOV |
2 |
2203- |
|
GXZ |
M10 FLANGE |
| 052 |
I1-09661 300-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(C) PT3/8 3WAY |
| 012 |
I1-09661 181-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(I) DIN12 & R3/8 & RC3/8 3WAY |
| 012 |
I1-09660 957-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(E) DIN8 & R3/8 ELBOW |
| 010 |
I1-09660 958-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(A) DIN12 & R1/4 ELBOW |
| 102 |
I0-28050 816-0 |
|
BOLT; PROTECTION VALVE |
2 |
2203- |
|
GXZ |
M8X16 FLANGE |
| 010 |
I1-09661 025-0 |
|
CONNECTOR |
2 |
2203- |
|
GXZ |
(E) DIN8X2 & PT3/8 DOUBLE ELBOW |
| 058 |
I1-09650 494-1 |
|
ADAPTER |
5 |
2203- |
|
GXZ |
(A) INNER PT3/8,OUTER M22 |
| 167 |
I1-48119 625-0 |
|
COVER; VALVE |
4 |
2203- |
|
GXZ |
|
| 025 |
I8-98010 856-2 |
|
SWITCH; PRESSURE |
1 |
2203- |
|
GXZ |
(A) STAMP 2.0 |
| 006 |
I0-28651 035-0 |
|
BOLT; VLV |
2 |
2203- |
|
GXZ |
(B) M10X35 FLANGE |
| 025 |
I8-97609 249-0 |
|
SWITCH; PRESSURE |
1 |
2203- |
|
GXZ |
(B) STAMP 5.5 |
| 240 |
I1-85576 467-0 |
|
REPAIR KIT; AIR CONT GOV |
1 |
2203- |
|
GXZ |
W/GREASE |
| 010 |
I1-09661 497-0 |
|
CONNECTOR |
2 |
2203- |
|
GXZ |
(H) DIN12 & M22 ELBOW |
| 058 |
I1-09661 044-0 |
|
ADAPTER |
1 |
2203- |
|
GXZ |
(B) M16 & PT3/8 STRAIGHT |
| 002 |
I8-98292 212-0 |
|
VALVE; RELAY |
1 |
2203- |
|
GXZ |
|
| 030 |
I1-48350 093-2 |
|
GOVERNOR; AIR CONT |
1 |
2203- |
|
GXZ |
|
| 241 |
I1-85576 451-2 |
|
REPAIR KIT; PROTECTION VALVE |
1 |
2203- |
|
GXZ |
|
| 120 |
I8-98399 145-0 |
|
BRACKET; VLV |
1 |
2203- |
|
GXZ |
|
| 012 |
I1-09661 005-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(F) DIN12X2 & R3/8 3WAY |
| 279 |
I8-98165 978-0 |
|
REPAIR KIT; SILENCER |
4 |
2203- |
|
GXZ |
|
| 099 |
I1-48110 290-3 |
|
VALVE; PROTECTION |
1 |
2203- |
|
GXZ |
|
| 279 |
I8-98165 978-0 |
|
REPAIR KIT; SILENCER |
4 |
2203- |
|
GXZ |
|
| 237 |
I1-48320 012-2 |
|
VALVE; SAFETY |
1 |
2203- |
|
GXZ |
R3/8 |
| 114 |
I7-05108 010-A |
|
NUT; VLV |
2 |
2203- |
|
GXZ |
M8 FLANGE |
| 282 |
I1-09660 965-0 |
|
CONNECTOR; STRAIGHT |
1 |
2203- |
|
GXZ |
(B) DIN12 & R3/8 STRAIGHT |
| 025 |
I8-98010 856-2 |
|
SWITCH; PRESSURE |
1 |
2203- |
|
GXZ |
(A) STAMP 2.0 |
| 232 |
I8-98032 527-0 |
|
VALVE; CHECK |
1 |
2203- |
|
GXZ |
DIN18 & R3/8 & RC3/8 3WAY |

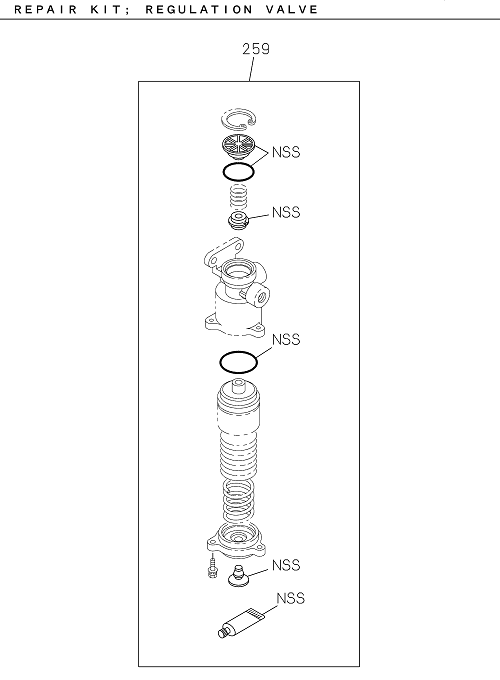

| 259 |
I1-85576 381-0 |
|
REPAIR KIT; VALVE |
1 |
2203- |
|
GXZ |
W/GREASE |
| 213 |
I9-09571 422-0 |
|
GASKET |
5 |
2203- |
|
GXZ |
ID=22.5 |
| 143 |
I7-05110 010-A |
|
NUT; VLV |
2 |
2203- |
|
GXZ |
M10 FLANGE |
| 038 |
I0-91180 110-0 |
|
NUT; BRKT,GOV |
2 |
2203- |
|
GXZ |
M10 FLANGE |
| 012 |
I1-09661 026-0 |
|
CONNECTOR; RELAY VLV |
2 |
2203- |
|
GXZ |
(G) DIN12X2 & PT3/8 DOUBLE ELBOW |
| 259 |
I1-85576 381-0 |
|
REPAIR KIT; VALVE |
1 |
2203- |
|
GXZ |
W/GREASE |
| 058 |
I1-09650 494-1 |
|
ADAPTER |
3 |
2203- |
|
GXZ |
(A) INNER PT3/8,OUTER M22 |
| 242 |
I1-48410 722-0 |
|
VALVE; REGULATION |
1 |
2203- |
|
GXZ |
|
| 096 |
I8-98311 995-0 |
|
BRACKET |
1 |
2203- |
|
GXZ |
|
| 073 |
I7-05108 010-A |
|
NUT; BRKT |
4 |
2203- |
|
GXZ |
M8 FLANGE |
| 012 |
I1-09661 181-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(I) DIN12 & R3/8 & RC3/8 3WAY |
| 010 |
I1-09661 005-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(D) DIN12X2 & R3/8 3WAY |
| 063 |
I7-05108 010-A |
|
NUT; BRKT FIX |
6 |
2203- |
|
GXZ |
M8 FLANGE |
| 058 |
I8-98166 127-0 |
|
ADAPTER |
1 |
2203- |
|
GXZ |
(D) R3/8 & RC3/8 & RC1/4 3WAY |
| 155 |
I8-98165 977-0 |
|
REPAIR KIT; RELAY VALVE |
4 |
2203- |
|
GXZ |
|
| 062 |
I0-28650 830-0 |
|
BOLT; BRKT FIX |
2 |
2203- |
|
GXZ |
M8X30 FLANGE |
| 034 |
I0-28651 035-0 |
|
BOLT; BRKT,GOV |
1 |
2203- |
|
GXZ |
M10X35 FLANGE |
| 155 |
I8-98165 977-0 |
|
REPAIR KIT; RELAY VALVE |
1 |
2203- |
|
GXZ |
|
| 058 |
I1-09661 303-0 |
|
ADAPTER |
1 |
2203- |
|
GXZ |
(C) PT3/8 & PT3/8 ELBOW |
| 005 |
I7-05108 010-A |
|
NUT |
4 |
2203- |
|
GXZ |
M8 FLANGE |
| 062 |
I0-28650 830-0 |
|
BOLT; BRKT FIX |
2 |
2203- |
|
GXZ |
M8X30 FLANGE |
| 120 |
I8-98399 145-0 |
|
BRACKET; VLV |
1 |
2203- |
|
GXZ |
|
| 010 |
I1-09661 050-0 |
|
CONNECTOR |
2 |
2203- |
|
GXZ |
(F) DIN12 & M22 STRAIGHT |
| 108 |
I1-09661 067-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GXZ |
(B) DIN6 & R1/4 ELBOW |
| 001 |
I8-98292 213-0 |
|
VALVE; RELAY RWD RR |
2 |
2203- |
|
GXZ |
|
| 279 |
I8-98165 978-0 |
|
REPAIR KIT; SILENCER |
1 |
2203- |
|
GXZ |
|
| 143 |
I7-05110 010-A |
|
NUT; VLV |
2 |
2203- |
|
GXZ |
M10 FLANGE |
| 010 |
I1-09661 495-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(G) DIN8 & M22 ELBOW |
| 241 |
I1-85576 451-2 |
|
REPAIR KIT; PROTECTION VALVE |
1 |
2203- |
|
GXZ |
|
| 002 |
I8-98292 212-0 |
|
VALVE; RELAY |
2 |
2203- |
|
GXZ |
|
| 012 |
I1-09661 044-0 |
|
CONNECTOR; RELAY VLV |
2 |
2203- |
|
GXZ |
(H) M16 & PT3/8 STRAIGHT |
| 073 |
I7-05108 010-A |
|
NUT; BRKT |
4 |
2203- |
|
GXZ |
M8 FLANGE |
| 010 |
I1-09660 959-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(C) DIN12 & R3/8 ELBOW |
| 012 |
I1-09661 497-0 |
|
CONNECTOR; RELAY VLV |
4 |
2203- |
|
GXZ |
(J) DIN12 & M22 ELBOW |
| 012 |
I1-09650 494-1 |
|
CONNECTOR; RELAY VLV |
2 |
2203- |
|
GXZ |
(D) INNER PT3/8,OUTER M22 |
| 010 |
I1-09661 071-0 |
|
CONNECTOR |
1 |
2203- |
|
GXZ |
(B) DIN12X2 & R1/4 3WAY |
| 002 |
I8-98292 212-0 |
|
VALVE; RELAY |
2 |
2203- |
|
GXZ |
|
| 114 |
I7-05108 010-A |
|
NUT; VLV |
2 |
2203- |
|
GXZ |
M8 FLANGE |
| 006 |
I0-28650 830-0 |
|
BOLT; VLV |
2 |
2203- |
|
GXZ |
(A) M8X30 FLANGE |
| 056 |
I8-98483 774-A |
|
BRACKET; RELAY VLV |
2 |
2203- |
|
GXZ |
|
| 108 |
I1-09650 430-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GXZ |
(A) M12 & PT1/4 ELBOW |
| 184 |
I9-09571 416-0 |
|
GASKET; CONNECTOR |
2 |
2203- |
|
GXZ |
(A) ID=16.2 OD=24 |
| 282 |
I1-09660 959-0 |
|
CONNECTOR; STRAIGHT |
2 |
2203- |
|
GXZ |
(A) DIN12 & R3/8 ELBOW |
| 058 |
I8-98166 127-0 |
|
ADAPTER |
1 |
2203- |
|
GXZ |
(D) R3/8 & RC3/8 & RC1/4 3WAY |
| 155 |
I8-98165 977-0 |
|
REPAIR KIT; RELAY VALVE |
4 |
2203- |
|
GXZ |
|
| 012 |
I1-09660 996-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(C) DIN8X2 & R3/8 3WAY |
| 052 |
I1-09660 957-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(A) DIN8 & R3/8 ELBOW |
| 232 |
I8-98032 527-0 |
|
VALVE; CHECK |
1 |
2203- |
|
GXZ |
DIN18 & R3/8 & RC3/8 3WAY |
| 167 |
I1-48119 625-0 |
|
COVER; VALVE |
4 |
2203- |
|
GXZ |
|
| 052 |
I1-09660 957-0 |
|
CONNECTOR; RELAY VLV |
1 |
2203- |
|
GXZ |
(A) DIN8 & R3/8 ELBOW |
