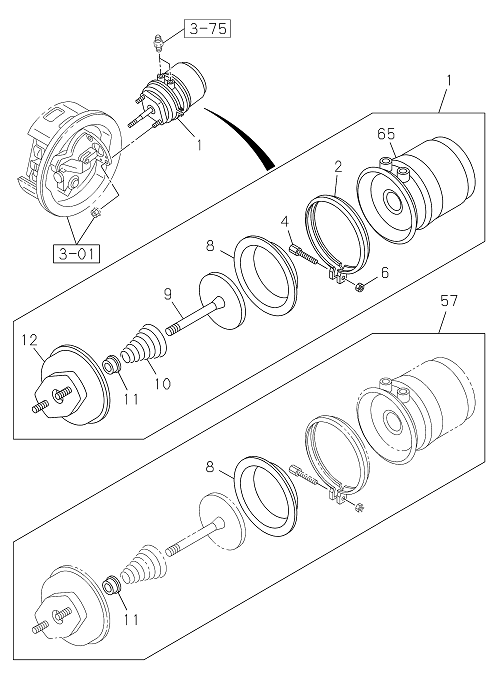

3-40 | FRONT BRAKE POWER CHAMBER

Partial Engine

GIGA E4

GIGA GXZ E4

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
006 I1-48269 147-0 NUT; CLAMP RING 2 2203- GXZ
001 I8-98340 100-0 CHAMBER ASM; POWER,FRT BRK 1 2203- GXZ
012 I8-98322 140-0 COVER ASM; LWR,SPR CHAMBER 1 2203- GXZ
009 I8-98322 148-0 PISTON; SPR CHAMBER 2 2203- GXZ
001 I8-98340 100-0 CHAMBER ASM; POWER,FRT BRK 1 2203- GXZ
012 I8-98322 140-0 COVER ASM; LWR,SPR CHAMBER 1 2203- GXZ
057 I8-98322 137-0 REPAIR KIT; SPR CHAMBER 2 2203- GXZ
001 I8-98340 099-0 CHAMBER ASM; POWER,FRT BRK 1 2203- GXZ
004 I1-48269 257-0 BOLT; CLAMP RING 2 2203- GXZ
009 I8-98322 148-0 PISTON; SPR CHAMBER 2 2203- GXZ
008 I8-98322 153-0 DIAPHRAGM; SPR CHAMBER 2 2203- GXZ
001 I8-98340 099-0 CHAMBER ASM; POWER,FRT BRK 1 2203- GXZ
010 I8-98322 147-0 SPRING; PISTON,SPR CHAMBER 2 2203- GXZ
057 I8-98322 137-0 REPAIR KIT; SPR CHAMBER 2 2203- GXZ
065 I8-98322 155-0 CHAMBER; PIGGY BACK 2 2203- GXZ
065 I8-98322 155-0 CHAMBER; PIGGY BACK 2 2203- GXZ
011 I8-98322 146-0 SEAL; PISTON,SPR CHAMBER 2 2203- GXZ
002 I1-48269 256-0 RING; CLAMP,SPR CHAMBER 2 2203- GXZ
002 I1-48269 256-0 RING; CLAMP,SPR CHAMBER 2 2203- GXZ
010 I8-98322 147-0 SPRING; PISTON,SPR CHAMBER 2 2203- GXZ
006 I1-48269 147-0 NUT; CLAMP RING 2 2203- GXZ
008 I8-98322 153-0 DIAPHRAGM; SPR CHAMBER 2 2203- GXZ
011 I8-98322 146-0 SEAL; PISTON,SPR CHAMBER 2 2203- GXZ
012 I8-98322 139-0 COVER ASM; LWR,SPR CHAMBER 1 2203- GXZ
004 I1-48269 257-0 BOLT; CLAMP RING 2 2203- GXZ
012 I8-98322 139-0 COVER ASM; LWR,SPR CHAMBER 1 2203- GXZ
