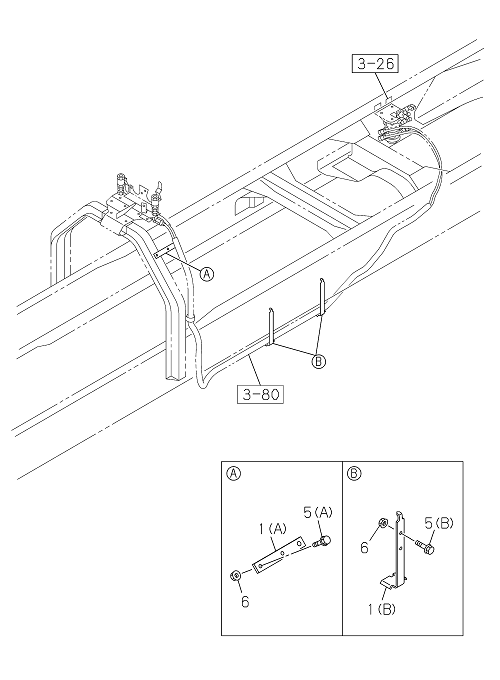

3-83 | FIXING PARTS; TRAILER PIPING
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 005 | I0-28650 830-0 | BOLT; BRKT | 2 | 2203- | GXZ | (B) M8X30 FLANGE | ||
| 005 | I7-04508 025-A | BOLT; BRKT | 1 | 2203- | GXZ | (A) M8X20 FLANGE | ||
| 001 | I8-98336 581-0 | BRACKET; CLIP | 2 | 2203- | GXZ | (B) | ||
| 005 | I7-04508 025-A | BOLT; BRKT | 1 | 2203- | GXZ | (A) M8X20 FLANGE | ||
| 001 | I8-98383 754-0 | BRACKET; CLIP | 1 | 2203- | GXZ | (A) | ||
| 001 | I8-98336 581-0 | BRACKET; CLIP | 2 | 2203- | GXZ | (B) | ||
| 006 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | GXZ | M8 FLANGE | ||
| 001 | I8-98383 754-0 | BRACKET; CLIP | 1 | 2203- | GXZ | (A) | ||
| 006 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | GXZ | M8 FLANGE | ||
| 005 | I0-28650 830-0 | BOLT; BRKT | 2 | 2203- | GXZ | (B) M8X30 FLANGE |
