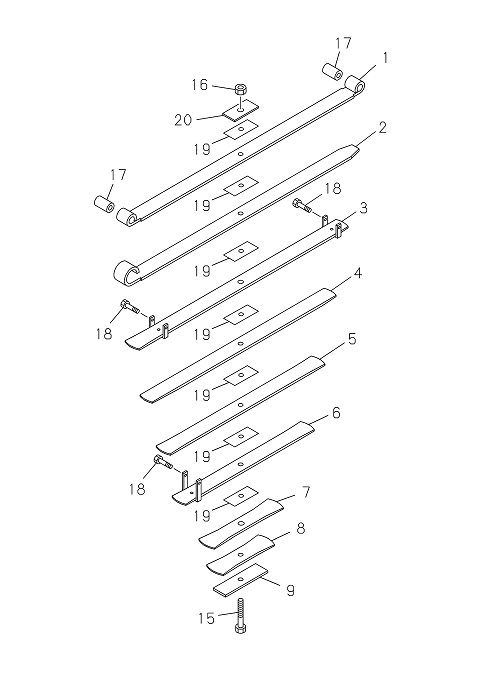

4-55 | FRONT LEAF SPRING

Partial Engine

GIGA E4

GIGA GXZ E4

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
008 I7-65000 361-A SPRING; LEAF,NO 8,FRT 2 2203- GXZ
017 I7-32387 800-A BUSHING; LEAF SPR,FRT 4 2203- GXZ
004 I7-65000 357-A SPRING; LEAF,NO 4,FRT 2 2203- GXZ
002 I7-65000 355-A SPRING; LEAF,NO 2,FRT 2 2203- GXZ
006 I7-65000 359-A SPRING; LEAF,NO 6,FRT 2 2203- GXZ
002 I7-65000 355-A SPRING; LEAF,NO 2,FRT 2 2203- GXZ
008 I7-65000 361-A SPRING; LEAF,NO 8,FRT 2 2203- GXZ
001 I7-65000 354-A SPRING; LEAF,NO 1,FRT 2 2203- GXZ
003 I7-65000 356-A SPRING; LEAF,NO 3,FRT 2 2203- GXZ
019 I7-08006 160-A SPACER; LEAF SPRING,FRT 4 2203- GXZ
020 I7-07515 016-A SEAT; LEAF SPR,FRT 2 2203- GXZ
005 I7-65000 358-A SPRING; LEAF,NO 5,FRT 2 2203- GXZ
009 I7-65000 362-A SPRING; LEAF,NO 9,FRT 2 2203- GXZ
004 I7-65000 357-A SPRING; LEAF,NO 4,FRT 2 2203- GXZ
020 I7-07515 016-A SEAT; LEAF SPR,FRT 2 2203- GXZ
005 I7-65000 358-A SPRING; LEAF,NO 5,FRT 2 2203- GXZ
009 I7-65000 362-A SPRING; LEAF,NO 9,FRT 2 2203- GXZ
001 I7-65000 354-A SPRING; LEAF,NO 1,FRT 2 2203- GXZ
018 I7-10095 200-A BOLT; CLIP,LEAF SPR,FRT 4 2203- GXZ
019 I7-08006 160-A SPACER; LEAF SPRING,FRT 4 2203- GXZ
018 I7-10095 200-A BOLT; CLIP,LEAF SPR,FRT 4 2203- GXZ
015 I7-51351 517-A BOLT; CENTER,LEAF SPR,FRT 2 2203- GXZ
015 I7-51351 517-A BOLT; CENTER,LEAF SPR,FRT 2 2203- GXZ
007 I7-65000 360-A SPRING; LEAF,NO 7,FRT 2 2203- GXZ
017 I7-32387 800-A BUSHING; LEAF SPR,FRT 4 2203- GXZ
006 I7-65000 359-A SPRING; LEAF,NO 6,FRT 2 2203- GXZ
003 I7-65000 356-A SPRING; LEAF,NO 3,FRT 2 2203- GXZ
007 I7-65000 360-A SPRING; LEAF,NO 7,FRT 2 2203- GXZ
