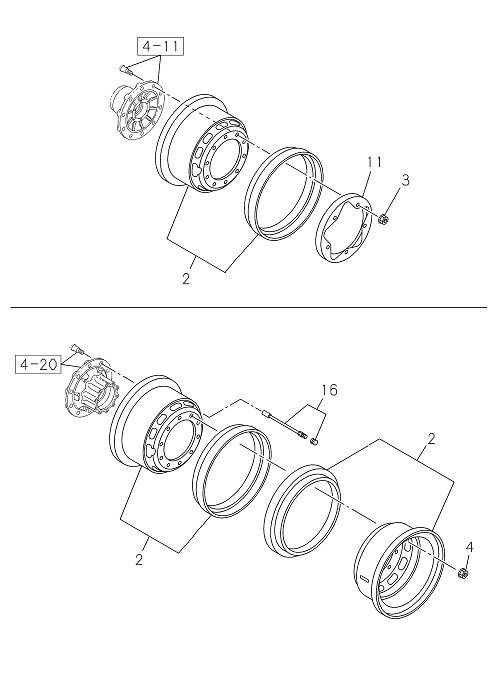

4-80 | ROAD WHEEL
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-97696 313-A | WHEEL; DISC | 1 | 2203- | GXZ | 20x7.50 | ||
| 002 | I8-97696 313-A | WHEEL; DISC | 1 | 2203- | GXZ | |||
| 004 | I8-98314 020-0 | NUT; WHEEL,RR AXLE | 40 | 2203- | GXZ | M22X1.5 | ||
| 004 | I8-98314 020-0 | NUT; WHEEL,RR AXLE | 40 | 2203- | GXZ | M22X1.5 | ||
| 003 | I8-98314 020-0 | NUT; WHEEL,FRT AXLE | 20 | 2203- | GXZ | M22X1.5 | ||
| 016 | I8-98167 052-0 | HOLDER; TIRE VALVE,DISC WHEEL | 4 | 2203- | GXZ | W/CAP | ||
| 031 | I8-98343 535-0 | RING; SIDE,DISC WHEEL | 1 | 2203- | GXZ | |||
| 003 | I8-98314 020-0 | NUT; WHEEL,FRT AXLE | 20 | 2203- | GXZ | M22X1.5 | ||
| 031 | I8-98343 535-0 | RING; SIDE,DISC WHEEL | 1 | 2203- | GXZ | |||
| 011 | I8-98335 703-1 | STEP; DISC WHEEL SIDE | 2 | 2203- | GXZ | |||
| 011 | I8-98335 703-1 | STEP; DISC WHEEL SIDE | 2 | 2203- | GXZ | |||
| 016 | I8-98167 052-0 | HOLDER; TIRE VALVE,DISC WHEEL | 4 | 2203- | GXZ | W/CAP | ||
| 002 | I8-97696 813-A | WHEEL; DISC | 10 | 2203- | GXZ | 22.5X8.25 |
