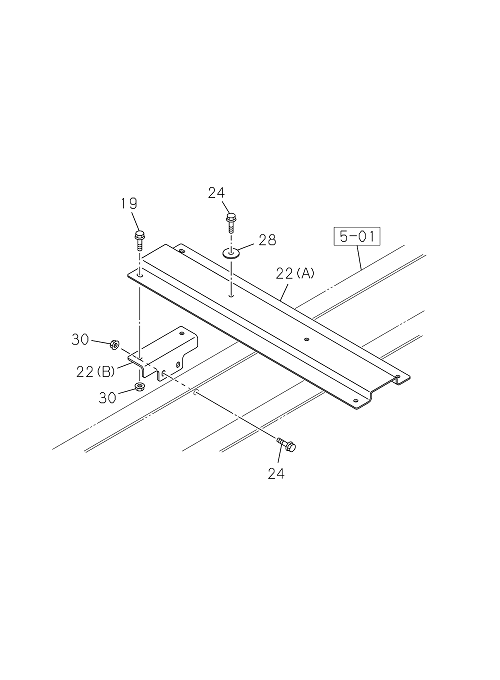

5-30 | SPARE TIRE CARRIER AND COVER
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 030 | I0-91180 212-0 | NUT; SPARE TIRE | 8 | 2203- | GXZ | M12 FLANGE | ||
| 022 | I8-98480 334-A | BRACKET; SPARE TIRE | 2 | 2203- | GXZ | (B) | ||
| 028 | I0-91614 814-0 | WASHER; LK,SPARE TIRE | 2 | 2203- | GXZ | ID=15 | ||
| 019 | I0-28651 235-0 | BOLT; C/MBR | 4 | 2203- | GXZ | M12X35 FLANGE | ||
| 024 | I0-28051 250-0 | BOLT; SPARE TIRE | 6 | 2203- | GXZ | M12X50 FLANGE | ||
| 019 | I0-28651 235-0 | BOLT; C/MBR | 4 | 2203- | GXZ | M12X35 FLANGE | ||
| 022 | I8-98480 333-A | BRACKET; SPARE TIRE | 1 | 2203- | GXZ | (A) | ||
| 022 | I8-98480 334-A | BRACKET; SPARE TIRE | 2 | 2203- | GXZ | (B) | ||
| 030 | I0-91180 212-0 | NUT; SPARE TIRE | 8 | 2203- | GXZ | M12 FLANGE | ||
| 028 | I0-91614 814-0 | WASHER; LK,SPARE TIRE | 2 | 2203- | GXZ | ID=15 | ||
| 024 | I0-28051 250-0 | BOLT; SPARE TIRE | 6 | 2203- | GXZ | M12X50 FLANGE | ||
| 022 | I8-98480 333-A | BRACKET; SPARE TIRE | 1 | 2203- | GXZ | (A) |
