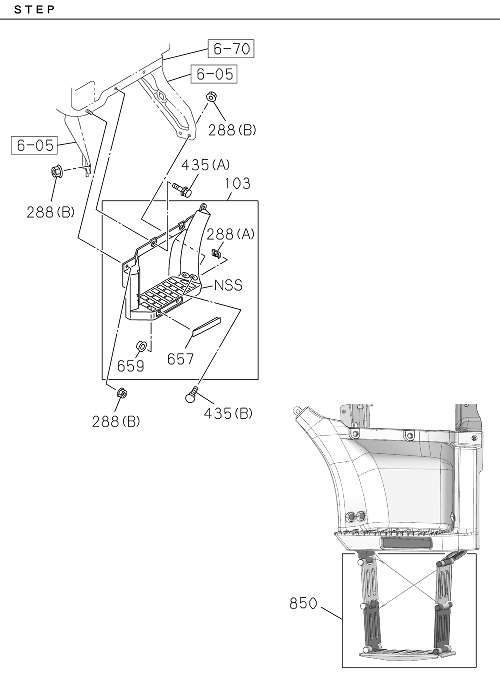

6-20 | SIDE PANEL AND STEP
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 103 | I7-55204 886-0 | PLATE; STEP | 1 | 2409- | GXZ | |||
| 435 | I8-98146 670-0 | BOLT; RR STEP | 8 | 2203- | GXZ | (B) M8X18 | ||
| 434 | I8-98039 020-0 | PATCH; ASSIST GRIP | 1 | 2203- | GXZ | |||
| 003 | I8-98058 237-1 | PANEL; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 007 | I8-97585 240-3 | REINFORCEMENT; HINGE | 1 | 2203- | GXZ | |||
| 007 | I8-98377 771-0 | REINFORCEMENT; HINGE | 1 | 2203- | GXZ | |||
| 649 | I8-97249 574-0 | NUT; POP | 2 | 2203- | GXZ | M5 POP NUT | ||
| 401 | I8-97586 160-2 | PATCH; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 100 | I8-97498 661-0 | PANEL ASM; BODY SIDE | 1 | 2203- | GXZ | |||
| 092 | I8-98055 461-1 | PANEL; SIDE SILL,CAB | 1 | 2203- | GXZ | |||
| 103 | I7-55204 887-0 | PLATE; STEP | 1 | 2409- | GXZ | |||
| 498 | I8-98092 733-0 | REFLECTOR | 1 | 2203- | GXZ | |||
| 433 | I9-09114 086-0 | NUT; HEADER SHELF | 2 | 2203- | GXZ | M6 | ||
| 481 | I8-98093 580-0 | PANEL; SIDE FRT PILLAR | 1 | 2203- | GXZ | |||
| 401 | I8-97586 161-2 | PATCH; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 481 | I8-98093 580-0 | PANEL; SIDE FRT PILLAR | 1 | 2203- | GXZ | |||
| 435 | I8-98059 720-0 | BOLT; RR STEP | 4 | 2203- | GXZ | (A) M8X24.5 W/LK&PL WASHER | ||
| 649 | I8-97249 574-0 | NUT; POP | 2 | 2203- | GXZ | M5 POP NUT | ||
| 434 | I8-98039 020-0 | PATCH; ASSIST GRIP | 1 | 2203- | GXZ | |||
| 665 | I8-98012 287-1 | REINFORCEMENT; GRIP,ASSIST | 1 | 2203- | GXZ | (B) | ||
| 092 | I8-98055 462-1 | PANEL; SIDE SILL,CAB | 1 | 2203- | GXZ | |||
| 100 | I8-97498 661-0 | PANEL ASM; BODY SIDE | 1 | 2203- | GXZ | |||
| 482 | I8-98055 469-1 | PANEL; SIDE RR PILLAR | 1 | 2203- | GXZ | |||
| 003 | I8-98058 236-1 | PANEL; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 665 | I8-97847 343-0 | REINFORCEMENT; GRIP,ASSIST | 1 | 2306- | GXZ | (A) | ||
| 007 | I8-97585 240-3 | REINFORCEMENT; HINGE | 1 | 2203- | GXZ | |||
| 663 | I8-97585 207-2 | BRACKET; AIR | 1 | 2203- | GXZ | |||
| 100 | I8-97498 671-0 | PANEL ASM; BODY SIDE | 1 | 2203-2305 | GXZ | |||
| 665 | I8-97585 314-0 | REINFORCEMENT; GRIP,ASSIST | 1 | 2203-2305 | GXZ | (A) | ||
| 288 | I7-05108 010-A | NUT; STEP | 10 | 2203- | GXZ | (B) M8 FLANGE | ||
| 103 | I8-98058 318-3 | PLATE; STEP | 1 | 2203-2408 | GXZ | |||
| 003 | I8-98058 237-1 | PANEL; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 434 | I8-98039 019-0 | PATCH; ASSIST GRIP | 1 | 2203- | GXZ | |||
| 408 | I8-97586 193-3 | GUSSET; PILLAR | 1 | 2203- | GXZ | |||
| 483 | I8-98055 460-0 | PANEL; SIDE CANTRAIL | 1 | 2203- | GXZ | |||
| 665 | I8-98012 287-1 | REINFORCEMENT; GRIP,ASSIST | 1 | 2203- | GXZ | (B) | ||
| 015 | I8-97585 293-2 | PANEL; CANT RAIL SIDE | 1 | 2203- | GXZ | |||
| 850 | I7-45503 320-A | 1ST STEP ASM, RH | 1 | 2203- | GXZ | |||
| 481 | I8-98092 915-0 | PANEL; SIDE FRT PILLAR | 1 | 2203- | GXZ | |||
| 408 | I8-97586 193-3 | GUSSET; PILLAR | 1 | 2203- | GXZ | |||
| 246 | I8-97586 158-6 | PANEL; RR PILLAR,INNER | 1 | 2203- | GXZ | |||
| 007 | I8-98377 771-0 | REINFORCEMENT; HINGE | 1 | 2203- | GXZ | |||
| 850 | I7-45503 321-A | 1ST STEP ASM, LH | 1 | 2203- | GXZ | |||
| 092 | I8-98055 462-1 | PANEL; SIDE SILL,CAB | 1 | 2203- | GXZ | |||
| 670 | I8-97509 331-0 | STIFFENER; PANEL,SIDE | 1 | 2203- | GXZ | |||
| 667 | I8-98109 948-0 | BRACKET; MIRROR | 2 | 2203- | GXZ | |||
| 662 | I8-97584 611-1 | BRACKET; DUCT | 1 | 2203- | GXZ | |||
| 667 | I8-98109 948-0 | BRACKET; MIRROR | 1 | 2203- | GXZ | |||
| 498 | I8-98092 734-0 | REFLECTOR | 1 | 2203- | GXZ | |||
| 433 | I9-09114 086-0 | NUT; HEADER SHELF | 2 | 2203- | GXZ | M6 | ||
| 015 | I8-97585 292-2 | PANEL; CANT RAIL SIDE | 1 | 2203- | GXZ | |||
| 246 | I8-97586 158-6 | PANEL; RR PILLAR,INNER | 1 | 2203- | GXZ | |||
| 663 | I8-97585 207-2 | BRACKET; AIR | 1 | 2203- | GXZ | |||
| 015 | I8-97585 293-2 | PANEL; CANT RAIL SIDE | 1 | 2203- | GXZ | |||
| 100 | I7-55191 926-0 | PANEL ASM; BODY SIDE | 1 | 2306- | GXZ | |||
| 288 | I7-05108 010-A | NUT; STEP | 10 | 2203- | GXZ | (B) M8 FLANGE | ||
| 288 | I8-98040 792-0 | NUT; STEP | 2 | 2203- | GXZ | (A) M8 | ||
| 659 | I8-97811 510-0 | CLIP; SPRING NUT | 4 | 2203- | GXZ | |||
| 483 | I8-98055 460-0 | PANEL; SIDE CANTRAIL | 1 | 2203- | GXZ | |||
| 663 | I8-97585 208-2 | BRACKET; AIR | 1 | 2203- | GXZ | |||
| 481 | I8-98092 915-0 | PANEL; SIDE FRT PILLAR | 1 | 2203- | GXZ | |||
| 401 | I8-97586 160-2 | PATCH; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 103 | I8-98058 319-3 | PLATE; STEP | 1 | 2203- | GXZ | |||
| 168 | I0-38050 612-0 | BOLT; BODY SIDE PANEL | 8 | 2203- | GXZ | SCREW T25 M6X12 HEXALOBULAR SOCKET | ||
| 100 | I7-55191 926-0 | PANEL ASM; BODY SIDE | 1 | 2306- | GXZ | |||
| 428 | I8-97509 448-0 | REINFORCEMENT; DOOR STRIKER | 1 | 2203- | GXZ | |||
| 667 | I8-98109 948-0 | BRACKET; MIRROR | 1 | 2203- | GXZ | |||
| 246 | I8-97586 156-6 | PANEL; RR PILLAR,INNER | 1 | 2203- | GXZ | |||
| 408 | I8-97586 194-2 | GUSSET; PILLAR | 1 | 2203- | GXZ | |||
| 850 | I7-45503 321-A | 1ST STEP ASM, LH | 1 | 2203- | GXZ | |||
| 663 | I8-97585 208-2 | BRACKET; AIR | 1 | 2203- | GXZ | |||
| 103 | I8-98058 318-3 | PLATE; STEP | 1 | 2203- | GXZ | |||
| 482 | I8-98055 469-1 | PANEL; SIDE RR PILLAR | 1 | 2203- | GXZ | |||
| 667 | I8-98109 948-0 | BRACKET; MIRROR | 2 | 2203- | GXZ | |||
| 246 | I8-97586 156-6 | PANEL; RR PILLAR,INNER | 1 | 2203- | GXZ | |||
| 100 | I8-97498 671-0 | PANEL ASM; BODY SIDE | 1 | 2203-2305 | GXZ | |||
| 428 | I8-97509 447-0 | REINFORCEMENT; DOOR STRIKER | 1 | 2203- | GXZ | |||
| 428 | I8-97509 448-0 | REINFORCEMENT; DOOR STRIKER | 1 | 2203- | GXZ | |||
| 092 | I8-98055 461-1 | PANEL; SIDE SILL,CAB | 1 | 2203- | GXZ | |||
| 657 | I8-97378 910-0 | REFLECTOR; REFLEX | 2 | 2203- | GXZ | AMBER | ||
| 288 | I8-98040 792-0 | NUT; STEP | 2 | 2203- | GXZ | (A) M8 | ||
| 483 | I8-98055 458-0 | PANEL; SIDE CANTRAIL | 1 | 2203- | GXZ | |||
| 657 | I8-97378 910-0 | REFLECTOR; REFLEX | 2 | 2203- | GXZ | AMBER | ||
| 482 | I8-98055 468-1 | PANEL; SIDE RR PILLAR | 1 | 2203- | GXZ | |||
| 659 | I8-97811 510-0 | CLIP; SPRING NUT | 4 | 2203- | GXZ | |||
| 498 | I8-98092 733-0 | REFLECTOR | 1 | 2203- | GXZ | |||
| 435 | I8-98059 720-0 | BOLT; RR STEP | 4 | 2203- | GXZ | (A) M8X24.5 W/LK&PL WASHER | ||
| 408 | I8-97586 194-2 | GUSSET; PILLAR | 1 | 2203- | GXZ | |||
| 482 | I8-98055 468-1 | PANEL; SIDE RR PILLAR | 1 | 2203- | GXZ | |||
| 850 | I7-45503 320-A | 1ST STEP ASM, RH | 1 | 2203- | GXZ | |||
| 003 | I8-98058 236-1 | PANEL; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 483 | I8-98055 458-0 | PANEL; SIDE CANTRAIL | 1 | 2203- | GXZ | |||
| 665 | I8-97585 314-0 | REINFORCEMENT; GRIP,ASSIST | 1 | 2203-2305 | GXZ | (A) | ||
| 401 | I8-97586 161-2 | PATCH; CLOSING,FRT PILLAR | 1 | 2203- | GXZ | |||
| 498 | I8-98092 734-0 | REFLECTOR | 1 | 2203- | GXZ | |||
| 665 | I8-97847 343-0 | REINFORCEMENT; GRIP,ASSIST | 1 | 2306- | GXZ | (A) | ||
| 103 | I8-98037 329-4 | PLATE; STEP | 1 | 2203- | GXZ | |||
| 670 | I8-97509 331-0 | STIFFENER; PANEL,SIDE | 1 | 2203- | GXZ | |||
| 435 | I8-98146 670-0 | BOLT; RR STEP | 8 | 2203- | GXZ | (B) M8X18 | ||
| 428 | I8-97509 447-0 | REINFORCEMENT; DOOR STRIKER | 1 | 2203- | GXZ | |||
| 434 | I8-98039 019-0 | PATCH; ASSIST GRIP | 1 | 2203- | GXZ | |||
| 015 | I8-97585 292-2 | PANEL; CANT RAIL SIDE | 1 | 2203- | GXZ | |||
| 662 | I8-97584 611-1 | BRACKET; DUCT | 1 | 2203- | GXZ | |||
| 103 | I8-98037 327-4 | PLATE; STEP | 1 | 2203- | GXZ | |||
| 168 | I0-38050 612-0 | BOLT; BODY SIDE PANEL | 8 | 2203- | GXZ | SCREW T25 M6X12 HEXALOBULAR SOCKET | ||
| 103 | I8-98058 319-3 | PLATE; STEP | 1 | 2203-2408 | GXZ |
