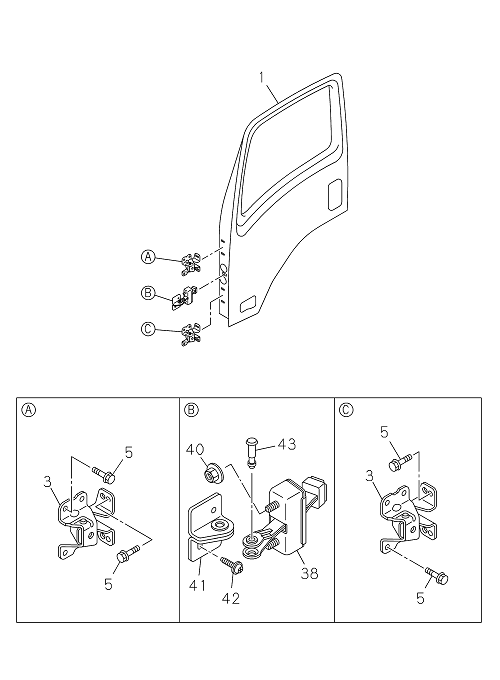

6-30 | FRONT DOOR AND HINGE
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 038 | I8-98330 950-0 | CHECKER ASM; DOOR | 2 | 2203- | GXZ | |||
| 005 | I8-98049 756-0 | BOLT; HINGE | 20 | 2203- | GXZ | M8X20 FLANGE | ||
| 001 | I8-98260 599-1 | DOOR ASM; FRT,WO/TRIM | 1 | 2203- | GXZ | |||
| 043 | I8-98037 152-2 | PIN | 2 | 2203- | GXZ | |||
| 005 | I8-98049 756-0 | BOLT; HINGE | 20 | 2203- | GXZ | M8X20 FLANGE | ||
| 040 | I8-97329 625-0 | NUT; CHECKER | 4 | 2203- | GXZ | M8 W/DISHED WASHER | ||
| 001 | I8-98260 600-0 | DOOR ASM; FRT,WO/TRIM | 1 | 2203- | GXZ | |||
| 041 | I8-98029 290-4 | BRACKET; CHECKER | 2 | 2203- | GXZ | |||
| 041 | I8-98029 290-4 | BRACKET; CHECKER | 2 | 2203- | GXZ | |||
| 001 | I8-98260 600-0 | DOOR ASM; FRT,WO/TRIM | 1 | 2203- | GXZ | |||
| 001 | I8-98260 599-1 | DOOR ASM; FRT,WO/TRIM | 1 | 2203- | GXZ | |||
| 043 | I8-98037 152-2 | PIN | 2 | 2203- | GXZ | |||
| 003 | I8-98323 112-0 | HINGE; DOOR FRT | 4 | 2203- | GXZ | |||
| 040 | I8-97329 625-0 | NUT; CHECKER | 4 | 2203- | GXZ | M8 W/DISHED WASHER | ||
| 042 | I8-98032 159-2 | BOLT; BRKT | 4 | 2203- | GXZ | M6X20 W/PL WASHER | ||
| 042 | I8-98032 159-2 | BOLT; BRKT | 4 | 2203- | GXZ | M6X20 W/PL WASHER | ||
| 038 | I8-98330 950-0 | CHECKER ASM; DOOR | 2 | 2203- | GXZ | |||
| 003 | I8-98323 112-0 | HINGE; DOOR FRT | 4 | 2203- | GXZ |
