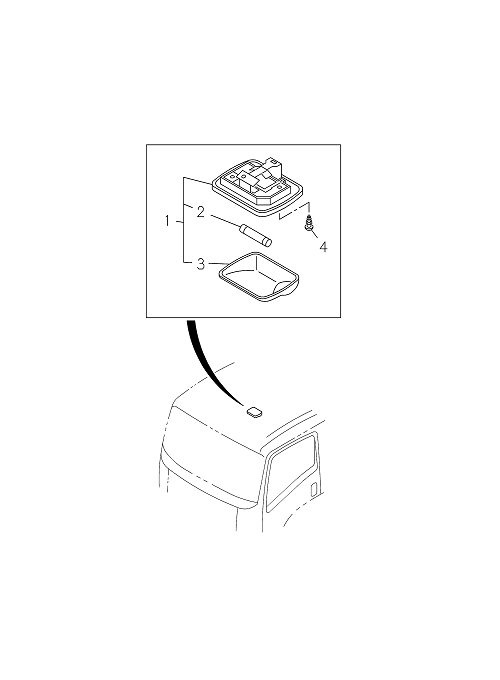

8-05 | INTERIOR LAMP
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-97925 659-0 | BULB; ROOM LAMP | 1 | 2203- | GXZ | 24V 10W | ||
| 002 | I8-97925 659-0 | BULB; ROOM LAMP | 1 | 2203- | GXZ | 24V 10W | ||
| 003 | I8-97925 658-0 | LENS; ROOM LAMP | 1 | 2203- | GXZ | |||
| 004 | I8-98075 766-0 | SCREW; ROOM LAMP | 2 | 2203- | GXZ | M5X14 W/WASHER | ||
| 004 | I8-98075 766-0 | SCREW; ROOM LAMP | 2 | 2203- | GXZ | M5X14 W/WASHER | ||
| 001 | I8-97925 149-0 | LAMP ASM; ROOM | 1 | 2203- | GXZ | |||
| 001 | I8-97925 149-0 | LAMP ASM; ROOM | 1 | 2203- | GXZ | |||
| 003 | I8-97925 658-0 | LENS; ROOM LAMP | 1 | 2203- | GXZ |
