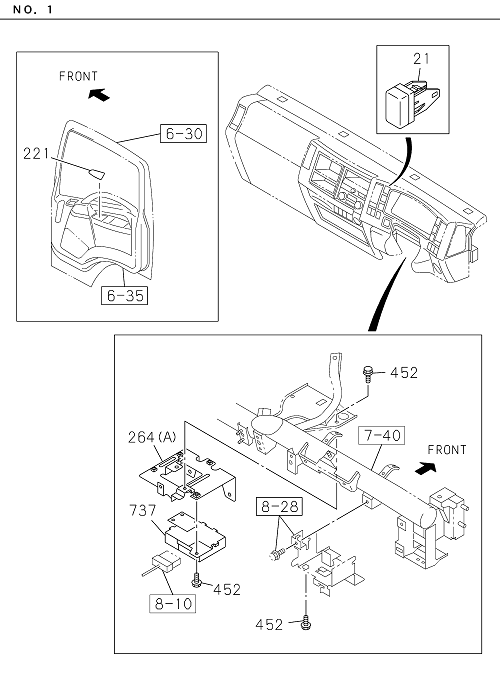

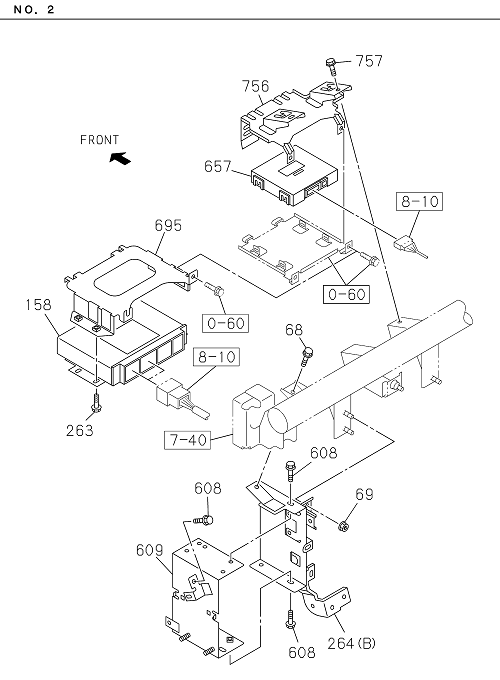

8-26 | ELECTRICAL CONTROL AND OTHER PARTS
GIGA E4
GIGA GXZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 068 | I0-28650 616-0 | BOLT; BRKT | 1 | 2203- | GXZ | M6X16 FLANGE | ||
| 695 | I8-98045 016-1 | BRACKET; CONT UNIT,ABS | 1 | 2203- | GXZ | |||
| 021 | I8-98025 954-1 | COVER; HOLE | 1 | 2203- | GXZ | |||
| 069 | I0-91180 106-0 | NUT; BRKT | 1 | 2203- | GXZ | M6 FLANGE | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 1 | 2203- | GXZ | |||
| 465 | I0-28650 825-0 | BOLT; CLIP | 1 | 2203- | GXZ | (B) M8X25 FLANGE | ||
| 068 | I0-28650 616-0 | BOLT; BRKT | 1 | 2203- | GXZ | M6X16 FLANGE | ||
| 599 | I1-09707 183-0 | CLIP; HOSE | 3 | 2203- | GXZ | L=350 | ||
| 069 | I0-91180 106-0 | NUT; BRKT | 1 | 2203- | GXZ | M6 FLANGE | ||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | GXZ | |||
| 273 | I8-97637 631-0 | CLIP; HARNESS | 2 | 2203- | GXZ | ID=8 L=20 | ||
| 701 | I8-97556 962-0 | SENSOR; DPD | 1 | 2203- | GXZ | |||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 2203- | GXZ | OD=35 | ||
| 469 | I8-98119 901-0 | PROTECTOR; SPEED SENSOR | 1 | 2203- | GXZ | |||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 2203- | GXZ | OD=35 | ||
| 452 | I0-28650 616-0 | BOLT; BRKT | 4 | 2203- | GXZ | M6X16 FLANGE | ||
| 380 | I1-76798 029-0 | SEAL | 1 | 2203- | GXZ | OD=25 BLACK | ||
| 264 | I8-98064 901-0 | BRACKET; CONT UNIT | 1 | 2203- | GXZ | (A) | ||
| 757 | I0-28650 616-0 | BOLT; BRKT,BCM | 2 | 2203- | GXZ | M6X16 FLANGE | ||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 2203- | GXZ | OD=60 | ||
| 756 | I8-98056 411-3 | BRACKET; ECU,BCM | 1 | 2203- | GXZ | |||
| 701 | I8-97556 962-0 | SENSOR; DPD | 1 | 2203- | GXZ | |||
| 380 | I1-76798 029-0 | SEAL | 1 | 2203- | GXZ | OD=25 BLACK | ||
| 263 | I0-28650 616-0 | BOLT; CONT UNIT | 4 | 2203- | GXZ | M6X16 FLANGE | ||
| 757 | I0-28650 616-0 | BOLT; BRKT,BCM | 2 | 2203- | GXZ | M6X16 FLANGE | ||
| 609 | I8-98169 737-1 | BRACKET ASM; ELEC UNIT,AIR SUS | 1 | 2203- | GXZ | |||
| 657 | I8-97515 717-0 | CONTROL UNIT; MMORI | 1 | 2203- | GXZ | |||
| 158 | I8-98335 053-0 | CONTROLLER; ABS | 1 | 2203- | GXZ | |||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | GXZ | |||
| 273 | I8-97637 631-0 | CLIP; HARNESS | 2 | 2203- | GXZ | ID=8 L=20 | ||
| 264 | I8-98064 901-0 | BRACKET; CONT UNIT | 1 | 2203- | GXZ | (A) | ||
| 264 | I8-98246 453-0 | BRACKET; CONT UNIT | 1 | 2203- | GXZ | (B) | ||
| 465 | I0-28050 816-0 | BOLT; CLIP | 1 | 2203- | GXZ | (A) M8X16 FLANGE | ||
| 609 | I8-98169 737-1 | BRACKET ASM; ELEC UNIT,AIR SUS | 1 | 2203- | GXZ | |||
| 465 | I0-28050 816-0 | BOLT; CLIP | 1 | 2203- | GXZ | (A) M8X16 FLANGE | ||
| 756 | I8-98056 411-3 | BRACKET; ECU,BCM | 1 | 2203- | GXZ | |||
| 599 | I1-09707 183-0 | CLIP; HOSE | 3 | 2203- | GXZ | L=350 | ||
| 657 | I8-97515 717-0 | CONTROL UNIT; MMORI | 1 | 2203- | GXZ | |||
| 695 | I8-98045 016-1 | BRACKET; CONT UNIT,ABS | 1 | 2203- | GXZ | |||
| 469 | I8-98119 901-0 | PROTECTOR; SPEED SENSOR | 1 | 2203- | GXZ | |||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | GXZ | |||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | GXZ | |||
| 737 | I8-98317 085-0 | CONTROL UNIT; TRANSMISSION | 1 | 2203- | GXZ | |||
| 264 | I8-98246 453-0 | BRACKET; CONT UNIT | 1 | 2203- | GXZ | (B) | ||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 2203- | GXZ | OD=60 | ||
| 737 | I8-98317 085-0 | CONTROL UNIT; TRANSMISSION | 1 | 2203- | GXZ | |||
| 608 | I0-28650 616-0 | BOLT; CONT UNIT,AIR SUS | 5 | 2203- | GXZ | M6X16 FLANGE | ||
| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 2203- | GXZ | 25 PULSE ALUMINUM | ||
| 465 | I0-28650 825-0 | BOLT; CLIP | 1 | 2203- | GXZ | (B) M8X25 FLANGE | ||
| 158 | I8-98335 053-0 | CONTROLLER; ABS | 1 | 2203- | GXZ | |||
| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 2203- | GXZ | 25 PULSE ALUMINUM |
