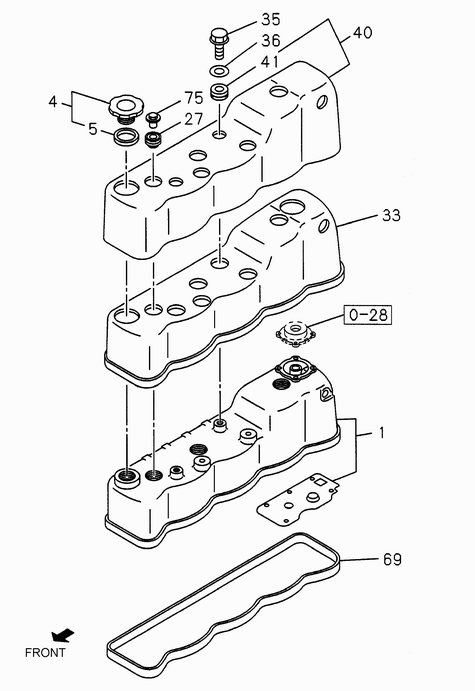

0-10 | CYLINDER HEAD COVER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-94433 742-A | COVER CYLINDER HEAD | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I8-94433 742-2 | COVER CYLINDER HEAD | 1 | 0008-0611 | 4JA1 | |||
| 1 | I8-94433 742-A | COVER CYLINDER HEAD | 1 | 0008- | 4JA1 | |||
| 75 | I8-94158 108-0 | NUT; CAP, HD COVER | 3 | 0612- | 4JA1-T | M8 OD=19, EURO 2 | ||
| 35 | I0-20800 814-0 | BOLT; NOISE SHIELD COVER | 2 | 0008-0611 | 4JA1 | M8X14 FLANGE | ||
| 33 | I8-97920 049-1 | RUBBER; SPACE, CYL HEAD | 1 | 0009-0611 | 4JA1 | THA | ||
| 27 | I8-97263 801-0 | GASKET; HD COVER | 3 | 0104-0611 | 4JA1 | ID=19.5 | ||
| 41 | I8-94256 959-0 | GROMMET; HD COVER, OTR | 2 | 0612- | 4JA1-T | |||
| 69 | I8-97349 416-0 | GASKET; HD TO COVER | 1 | 0008-0611 | 4JA1 | |||
| 75 | I8-94158 108-0 | NUT; CAP, HD COVER | 3 | 0008-0611 | 4JA1 | M8 OD=19 | ||
| 36 | I0-91614 708-0 | WASHER; PL, NOISE SHIELD | 2 | 0612- | 4JA1-T | ID=8.5 OD=30 T=2.6, EURO 2 | ||
| 5 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 0008-0611 | 4JA1 | ID=32 OD=40 | ||
| 41 | I8-94256 959-0 | GROMMET; HD COVER, OTR | 2 | 0008-0611 | 4JA1 | |||
| 40 | I8-97043 018-0 | COVER | 1 | 0612- | 4JA1-T | |||
| 4 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 0008-0611 | 4JA1 | |||
| 27 | I8-97263 801-0 | GASKET; HD COVER | 3 | 0612- | 4JA1-T | ID=19, 5 EURO 2 | ||
| 35 | I0-28050 812-0 | BOLT; NOISE SHIELD COVER | 2 | 0612- | 4JA1-T | M8X12 FLANGE EURO 2 | ||
| 36 | I9-09651 112-0 | WASHER; PL, NOISE SHIELD | 2 | 0008-0611 | 4JA1 | ID=8.5 OD=30 T=2.6 | ||
| 40 | I8-97043 018-0 | COVER | 1 | 0008-0611 | 4JA1 | |||
| 5 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 0612- | 4JA1-T | ID=32 OD=40 EURO 2 | ||
| 33 | I8-97920 049-1 | RUBBER; SPACE, CYL HEAD | 1 | 0612- | 4JA1-T | THA, EURO 2 | ||
| 27 | I8-97263 801-1 | GASKET; HD COVER | 3 | 0104- | 4JA1 | ID=19.5 | ||
| 27 | I8-97263 801-1 | GASKET; HD COVER | 3 | 0612- | 4JA1-T | ID=19, 5 EURO 2 | ||
| 4 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 69 | I8-97349 416-1 | GASKET; HD TO COVER | 1 | 0612- | 4JA1-T | |||
| 36 | I9-09651 112-0 | WASHER; PL, NOISE SHIELD | 2 | 0612- | 4JA1-T | ID=8.5 OD=30 T=2.6, EURO 2 | ||
| 69 | I8-97349 416-1 | GASKET; HD TO COVER | 1 | 0008- | 4JA1 | |||
| 69 | I8-97349 416-0 | GASKET; HD TO COVER | 1 | 0612- | 4JA1-T | |||
| 1 | I8-94433 742-2 | COVER CYLINDER HEAD | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 36 | I0-91614 708-0 | WASHER; PL, NOISE SHIELD | 2 | 0008- | 4JA1 | ID=8.5 OD=30 T=2.6 |
