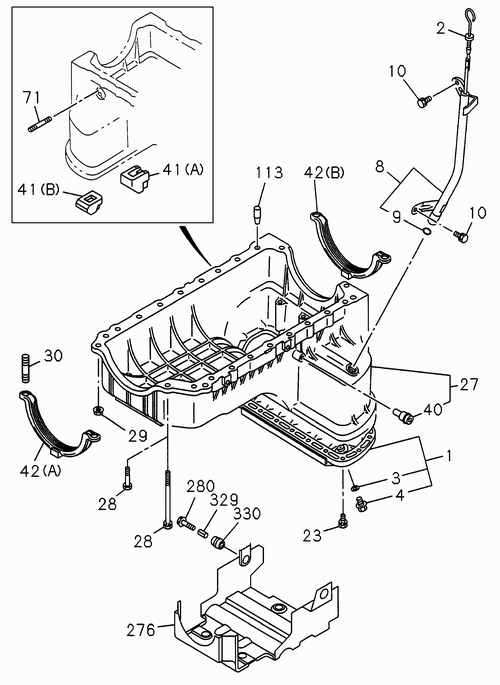

0-13 | OIL PAN AND LEVEL GAUGE
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 28 | I0-50040 832-0 | BOLT; CRANKCASE TO C/BL | 19 | 0612- | 4JA1-T | M8X32 W/LK WASHER EURO 2 | ||
| 28 | I0-28650 835-0 | BOLT; CRANKCASE TO C/BL | 19 | 0612- | 4JA1-T | M8X32 W/LK WASHER EURO 2 | ||
| 28 | I0-28085 812-0 | BOLT; CRANKCASE TO C/BL | 1 | 0612- | 4JA1-T | M8X120 FLANGE EURO 2 | ||
| 1 | I8-97131 905-A | PAN ASM; OIL | 1 | 0612- | 4JA1-T | IND, EURO 2 | ||
| 71 | I0-41010 818-0 | STUD; OIL DRAIN PIPE | 2 | 0008- | 4JA1 | TURBOCHARGER<K51> M8X18 L=40 | ||
| 3 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 0612- | 4JA1-T | ID=14.2 OD=24 EURO 2 | ||
| 41 | I8-97123 362-0 | RUBBER; SPACE | 1 | 0008-0611 | 4JA1 | (A), LH | ||
| 42 | I8-97123 342-0 | GASKET, CRANKCASE TO C/BL | 1 | 0211-0611 | 4JA1 | (B) REAR | ||
| 276 | I8-97229 929-5 | COVER; CRANKCASE | 1 | 0008- | 4JA1 | EURO 2 | ||
| 27 | I8-97191 839-0 | CRANKCASE | 1 | 0008-0210 | 4JA1 | EXC. TUBOCHARGER<K51> | ||
| 2 | I8-97085 167-0 | GAUGE; OIL LEVEL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 71 | I9-04110 818-0 | STUD; OIL DRAIN PIPE | 2 | 0008- | 4JA1 | TURBOCHARGER<K51> M8X18 L=40 | ||
| 42 | I8-97123 342-0 | GASKET, CRANKCASE TO C/BL | 1 | 0612- | 4JA1-T | (B) REAR EURO 2 | ||
| 28 | I0-28650 835-0 | BOLT; CRANKCASE TO C/BL | 19 | 0008- | 4JA1 | M8X32 W/LK WASHER | ||
| 9 | I5-09623 002-0 | GASKET; GUIDE TUBE, OIL LEVEL GAUGE | 2 | 0008- | 4JA1 | ID=11, EURO 2 | ||
| 330 | I8-97325 051-0 | RUBBER; MTG, CRANKCASE COVER | 5 | 0202- | 4JA1 | OD=21.8 EURO 2 | ||
| 27 | I8-97358 796-0 | CRANKCASE | 1 | 0612- | 4JA1-T | TUBOCHARGER EURO 2 | ||
| 113 | I9-09878 597-0 | PIN; STRAIGHT | 2 | 0008- | 4JA1 | EURO 2 | ||
| 42 | I8-97120 933-0 | GASKET, CRANKCASE TO C/BL | 1 | 0612- | 4JA1-T | (A) FRONT EURO 2 | ||
| 1 | I8-97131 905-A | PAN ASM; OIL | 1 | 0008-0611 | 4JA1 | IND | ||
| 1 | I6-97131 905-0 | PAN ASM OIL 4JA1 | 1 | 0908- | 4JA1 | (IADG) IND | ||
| 42 | I8-97120 933-0 | GASKET, CRANKCASE TO C/BL | 1 | 0211-0611 | 4JA1 | (A) FRONT | ||
| 29 | I0-91150 108-0 | NUT; CRANKCASE | 2 | 0008- | 4JA1 | M8 FLANGE | ||
| 8 | I8-97109 027-0 | TUBE; GUIDE, OIL LEVEL GA | 1 | 0008-0611 | 4JA1 | |||
| 280 | I0-50640 825-0 | BOLT; COVER | 5 | 0008- | 4JA1 | M8X22 IND EURO 2 | ||
| 330 | I8-94140 428-0 | RUBBER; MTG, CRANKCASE COVER | 5 | 0008-0201 | 4JA1 | OD=22 IND | ||
| 3 | I8-94158 328-0 | GASKET; DRAIN PLUG | 1 | 0612- | 4JA1-T | ID=14.2 OD=24 EURO 2 | ||
| 276 | I8-97229 929-6 | COVER; CRANKCASE | 1 | 0008- | 4JA1-T | |||
| 4 | I8-94152 613-A | PLUG; DRAIN, OIL | 1 | 0008- | 4JA1 | M14X14 IND EURO 2 | ||
| 30 | I9-04110 835-0 | STUD; CRANKCASE | 2 | 0008- | 4JA1 | M8X38 L=47 EURO 2 | ||
| 3 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 0008- | 4JA1 | ID=14.2 OD=24 | ||
| 41 | I8-97123 362-0 | RUBBER; SPACE | 1 | 0612- | 4JA1 | (A), LH EURO 2 | ||
| 41 | I8-97123 363-0 | RUBBRE; SPACE | 1 | 0612- | 4JA1 | (B), RH EURO 2 | ||
| 27 | I8-97358 794-0 | CRANKCASE | 1 | 0211- | 4JA1 | EXC. TUBOCHARGER<K51> | ||
| 329 | I8-94140 427-0 | GUIDE; COVER, CRANKCASE | 5 | 0008- | 4JA1 | OD=13 T=9.5 EURO 2 | ||
| 41 | I8-97123 363-0 | RUBBRE; SPACE | 1 | 0008-0611 | 4JA1 | (B), RH | ||
| 280 | I8-94329 953-1 | BOLT; COVER | 5 | 0008- | 4JA1 | M8X22 IND EURO 2 | ||
| 23 | I8-97135 141-0 | BOLT; OIL PAN | 17 | 0008- | 4JA1 | M6X13 W/WASHER EURO 2 | ||
| 28 | I0-28085 812-0 | BOLT; CRANKCASE TO C/BL | 1 | 0008-0611 | 4JA1 | M8X120 FLANGE | ||
| 2 | I8-97085 167-0 | GAUGE; OIL LEVEL | 1 | 0008-0611 | 4JA1 | |||
| 27 | I8-97358 796-0 | CRANKCASE | 1 | 0211-0611 | 4JA1 | TUBOCHARGER<K51> | ||
| 8 | I8-98067 937-0 | TUBE; GUIDE, OIL LEVEL GA | 1 | 0008- | 4JA1 | |||
| 28 | I0-28055 812-0 | BOLT; CRANKCASE TO C/BL | 1 | 0612- | 4JA1-T | M8X120 FLANGE EURO 2 | ||
| 3 | I8-94158 328-0 | GASKET; DRAIN PLUG | 1 | 0008-0611 | 4JA1 | ID=14.2 OD=24 | ||
| 30 | I0-41010 835-0 | STUD; CRANKCASE | 2 | 0008- | 4JA1 | M8X38 L=47 EURO 2 | ||
| 10 | I0-28080 816-0 | BOLT; GUIDE TUBE | 2 | 0612- | 4JA1-T | M8X16 FLANGE EURO 2 | ||
| 28 | I0-50040 832-0 | BOLT; CRANKCASE TO C/BL | 19 | 0008-0611 | 4JA1 | M8X32 W/LK WASHER | ||
| 28 | I0-28055 812-0 | BOLT; CRANKCASE TO C/BL | 1 | 0008- | 4JA1 | M8X120 FLANGE | ||
| 10 | I0-28080 816-0 | BOLT; GUIDE TUBE | 2 | 0008-0611 | 4JA1 | M8X16 FLANGE | ||
| 40 | I5-11369 038-0 | NIPPLE; OIL RETURN HOSE VAC PUMP | 1 | 0008- | 4JA1 | EURO 2 | ||
| 8 | I8-97944 103-1 | TUBE; GUIDE, OIL LEVEL GA | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 27 | I8-97191 841-0 | CRANKCASE | 1 | 0008-0210 | 4JA1 | TUBOCHARGER<K51> |
