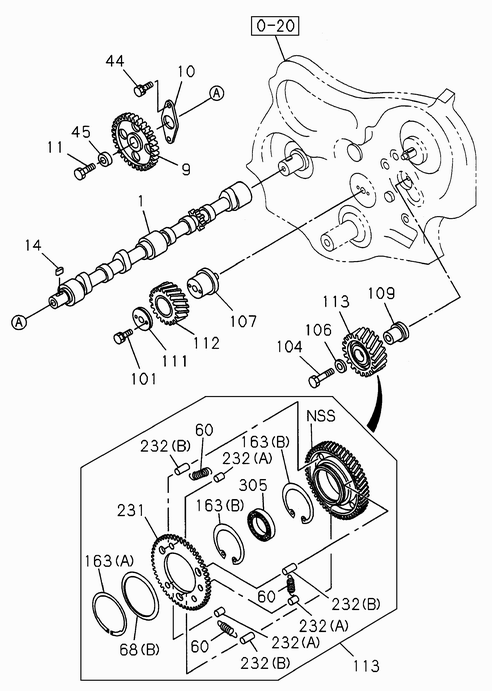

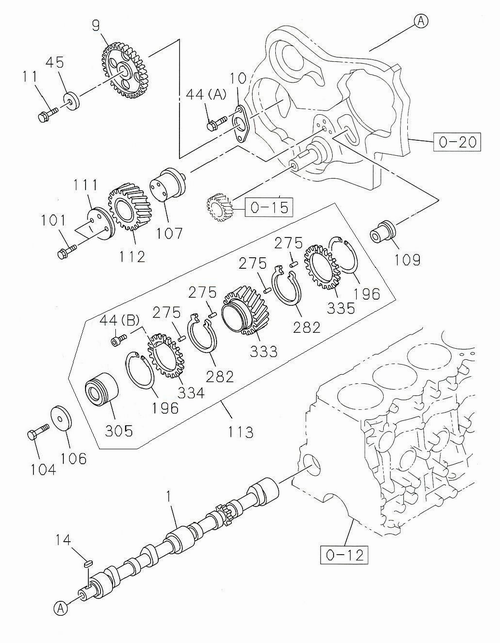

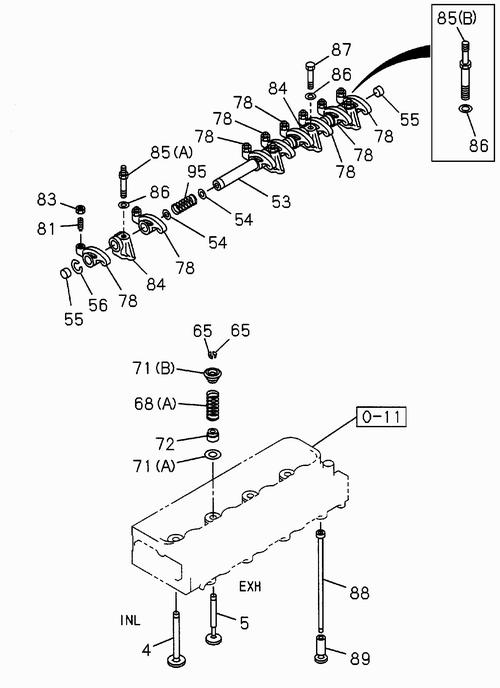

0-14 | CAMSHAFT AND VALVE
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 85 | I8-94433 304-0 | BOLT; BRKT | 2 | 0612- | 4JA1-T | (A) M8X15 & M10X60 L=82 | ||
| 4 | I8-97940 024-0 | VALVE; INL | 4 | 0009-0611 | 4JA1 | TURBOCGR, THA | ||
| 333 | I8-97240 018-2 | GEAR; IDLE, MAIN | 1 | 0612- | 4JA1-T | Z=52, IND, EURO 2 | ||
| 72 | I8-97120 307-0 | SEAL; VLV GUIDE | 8 | 0612- | 4JA1-T | |||
| 84 | I8-94152 345-A | BRACKET; ROCKER SHF, INTER | 4 | 0008- | 4JA1 | |||
| 1 | I8-94127 797-A | CAMSHAFT | 1 | 0101- | 4JA1 | IND | ||
| 1 | I8-94127 797-A | CAMSHAFT | 1 | 0008- | 4JA1 | |||
| 55 | I9-12626 005-0 | PLUG; ROCKER SHAFT END | 2 | 0612- | 4JA1-T | |||
| 86 | I9-09164 510-0 | WASHER; ROCKER ARM FIX | 4 | 0008- | 4JA1 | ID=10.5 OD=18 | ||
| 11 | I8-94433 407-0 | BOLT; THRUST PLATE TO C/BL | 1 | 0612- | 4JA1-T | M12X47 | ||
| 109 | I8-97131 632-0 | SHAFT; IDLE GEAR | 1 | 0008-0611 | 4JA1 | |||
| 5 | I8-94247 875-2 | VALVE; EXH | 4 | 0612- | 4JA1-T | |||
| 78 | I8-94152 344-A | ARM; ROCKER | 8 | 0612- | 4JA1-T | |||
| 60 | I8-97131 666-1 | SPRING; BRKT | 3 | 0008- | 4JA1 | |||
| 275 | I8-97245 683-0 | PIN; IDLE GEAR | 4 | 0612- | 4JA1-T | EURO 2 | ||
| 44 | I0-28080 816-0 | BOLT | 2 | 0103-0611 | 4JA1 | M8X16 FLANGE, IND | ||
| 113 | I8-97138 717-1 | GEAR ASM; IDLE | 1 | 0008-0611 | 4JA1 | IND | ||
| 71 | I5-12563 001-0 | SEAT; SPR | 8 | 0008-0611 | 4JA1 | (A) OD=34 | ||
| 71 | I5-12563 001-0 | SEAT; SPR | 8 | 0612- | 4JA1-T | (A) OD=34 | ||
| 232 | I9-08160 820-0 | PIN; GEAR SET | 3 | 0008- | 4JA1 | (B) OD=8 L=20 | ||
| 1 | I8-97287 657-1 | CAMSHAFT | 1 | 0101-0611 | 4JA1 | IND | ||
| 88 | I8-97378 496-0 | ROD; PUSH | 8 | 0612- | 4JA1-T | |||
| 83 | I9-09111 508-A | NUT; ADJ SCREW, LK | 8 | 0612- | 4JA1-T | M8 | ||
| 44 | I0-50040 816-0 | BOLT | 2 | 0008-0102 | 4JA1 | M8X16 W/LK WASHER | ||
| 83 | I9-09111 508-A | NUT; ADJ SCREW, LK | 8 | 0008- | 4JA1 | M8 | ||
| 10 | I8-94110 480-1 | PLATE; THRUST | 1 | 0612- | 4JA1-T | |||
| 87 | I8-94433 302-0 | BOLT; ROCKER SHAFT | 1 | 0612- | 4JA1-T | M10X60 | ||
| 112 | I8-97240 014-1 | GEAR; IDLE | 1 | 0612- | 4JA1-T | Z=43 | ||
| 232 | I9-08160 814-0 | PIN; GEAR SET | 3 | 0008- | 4JA1 | (A) OD=8 L=14 | ||
| 68 | I8-94433 247-0 | SPRING; VALVE | 8 | 0612- | 4JA1-T | (A) OD=30.6 | ||
| 95 | I8-94341 905-A | SPRING; ROCKER SHAFT | 3 | 0612- | 4JA1-T | |||
| 305 | I8-97240 019-1 | BEARING; IDLE GEAR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 95 | I8-94341 905-0 | SPRING; ROCKER SHAFT | 3 | 0612- | 4JA1-T | |||
| 9 | I8-97240 012-2 | GEAR; CM/SHF | 1 | 0612- | 4JA1-T | Z=60, EURO 2 | ||
| 4 | I8-94133 275-1 | VALVE; INL | 4 | 0008- | 4JA1 | EXC. TURBOCGR | ||
| 83 | I9-09111 508-0 | NUT; ADJ SCREW, LK | 8 | 0612- | 4JA1-T | M8 | ||
| 71 | I8-94133 731-2 | SEAT; SPR | 8 | 0008-0611 | 4JA1 | (B) OD=32.8 | ||
| 86 | I9-09164 510-0 | WASHER; ROCKER ARM FIX | 4 | 0612- | 4JA1-T | ID=10.5 OD=18 | ||
| 104 | I8-94129 384-1 | BOLT; SHAFT IDLE | 1 | 0612- | 4JA1-T | M12X77, EURO 2 | ||
| 163 | I9-09180 145-0 | RING; SNAP, IDLE | 2 | 0008- | 4JA1 | (B) | ||
| 305 | I8-97241 493-0 | BEARING; IDLE GEAR | 1 | 0008-0611 | 4JA1 | |||
| 4 | I8-94464 921-0 | VALVE; INL | 4 | 0008-0008 | 4JA1 | TURBOCGR<K51> | ||
| 81 | I8-94152 283-A | SCREW; ADJ, ROCKER ARM | 8 | 0612- | 4JA1-T | M8X30 | ||
| 111 | I8-94171 289-0 | COLLAR; THRUST, IDLE GEAR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 78 | I8-94152 344-0 | ARM; ROCKER | 8 | 0008-0611 | 4JA1 | |||
| 88 | I8-94143 203-0 | ROD; PUSH | 8 | 0008-0406 | 4JA1 | |||
| 4 | I8-94133 275-2 | VALVE; INL | 4 | 0008- | 4JA1 | EXC. TURBOCGR | ||
| 107 | I8-94139 758-1 | SHAFT; IDLE GEAR | 1 | 0008-0611 | 4JA1 | |||
| 55 | I9-12626 005-0 | PLUG; ROCKER SHAFT END | 2 | 0008-0611 | 4JA1 | |||
| 56 | I9-09180 019-0 | RING; SNAP, ROCKER ARM | 2 | 0008-0611 | 4JA1 | |||
| 111 | I8-94141 937-1 | COLLAR; THRUST, IDLE GEAR | 1 | 0008-0611 | 4JA1 | |||
| 65 | I5-12565 004-0 | COLLAR; SPLIT | 16 | 0008-0611 | 4JA1 | |||
| 81 | I8-94152 283-1 | SCREW; ADJ, ROCKER ARM | 8 | 0612- | 4JA1-T | M8X30 | ||
| 85 | I8-94433 304-0 | BOLT; BRKT | 2 | 0008-0611 | 4JA1 | (A) M8X15 & M10X60 L=82 | ||
| 45 | I8-97178 186-0 | WASHER; GEAR CAM | 1 | 0008-0611 | 4JA1 | ID=13 OD=33 | ||
| 44 | I0-50540 816-0 | BOLT | 2 | 0008- | 4JA1 | M8X16 W/LK WASHER | ||
| 89 | I8-94438 305-1 | TAPPET; VLV | 8 | 0008-0611 | 4JA1 | |||
| 107 | I8-97943 224-0 | SHAFT; IDLE GEAR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 44 | I9-05820 630-0 | BOLT | 2 | 0612- | 4JA1-T | (B), M6X30 FLANGE, IND | ||
| 95 | I8-94341 905-A | SPRING; ROCKER SHAFT | 3 | 0008- | 4JA1 | |||
| 86 | I9-09164 010-0 | WASHER; ROCKER ARM FIX | 4 | 0612- | 4JA1-T | ID=10.5 OD=18 | ||
| 5 | I8-94247 875-2 | VALVE; EXH | 4 | 0008-0611 | 4JA1 | |||
| 10 | I8-94110 480-1 | PLATE; THRUST | 1 | 0008-0611 | 4JA1 | |||
| 88 | I8-97378 496-0 | ROD; PUSH | 8 | 0407-0611 | 4JA1 | |||
| 84 | I8-94152 345-1 | BRACKET; ROCKER SHF, INTER | 4 | 0612- | 4JA1-T | |||
| 81 | I8-94152 283-1 | SCREW; ADJ, ROCKER ARM | 8 | 0008-0611 | 4JA1 | M8X30 | ||
| 95 | I8-94341 905-0 | SPRING; ROCKER SHAFT | 3 | 0008-0611 | 4JA1 | |||
| 335 | I8-97245 231-1 | GEAR; IDLE, RR | 1 | 0612- | 4JA1-T | Z=52, IND, EURO 2 | ||
| 89 | I8-94438 305-1 | TAPPET; VLV | 8 | 0612- | 4JA1-T | |||
| 83 | I9-09111 508-0 | NUT; ADJ SCREW, LK | 8 | 0008-0611 | 4JA1 | M8 | ||
| 54 | I8-94341 906-0 | WASHER; ROCKER SPR | 1 | 0612- | 4JA1-T | ID=19 OD=23 | ||
| 14 | I9-08000 718-0 | KEY; CM/SHF | 1 | 0612- | 4JA1-T | |||
| 78 | I8-94152 344-A | ARM; ROCKER | 8 | 0008- | 4JA1 | |||
| 9 | I8-97959 101-A | GEAR; CM/SHF | 1 | 0105-0611 | 4JA1 | Z=60 IND | ||
| 112 | I8-97957 110-A | GEAR; IDLE | 1 | 0008-0611 | 4JA1 | IND | ||
| 106 | I8-97178 186-0 | WASHER; IDLE GEAR SHAFT | 1 | 0008-0611 | 4JA1 | ID=13 OD=33 | ||
| 84 | I8-94152 345-A | BRACKET; ROCKER SHF, INTER | 4 | 0612- | 4JA1-T | |||
| 87 | I8-94433 302-0 | BOLT; ROCKER SHAFT | 1 | 0008-0611 | 4JA1 | M10X60 | ||
| 231 | I8-97138 719-A | PLATE; CAP | 1 | 0008- | 4JA1 | IND | ||
| 54 | I8-94341 906-0 | WASHER; ROCKER SPR | 1 | 0008-0611 | 4JA1 | ID=19 OD=23 | ||
| 282 | I8-97245 337-0 | SPRING; GEAR | 2 | 0612- | 4JA1-T | EURO 2 | ||
| 196 | I8-97245 684-1 | RING; SNAP | 2 | 0612- | 4JA1-T | EURO 2 | ||
| 85 | I8-94437 493-1 | BOLT; BRKT | 1 | 0612- | 4JA1-T | (B) M8X37 & M10X60 L=104 | ||
| 4 | I8-97940 024-0 | VALVE; INL | 4 | 0612- | 4JA1-T | TURBOCGR, THA, EURO2 | ||
| 45 | I5-12519 002-1 | WASHER; GEAR CAM | 1 | 0612- | 4JA1-T | ID=13 OD=36 | ||
| 1 | I8-94127 797-4 | CAMSHAFT | 1 | 0008-0012 | 4JA1 | |||
| 9 | I8-97138 729-A | GEAR; CM/SHF | 1 | 0008-0104 | 4JA1 | Z=60 IND | ||
| 334 | I8-97245 232-2 | GEAR; IDLE, FRT | 1 | 0612- | 4JA1-T | Z=52, IND, EURO 2 | ||
| 68 | I8-97131 668-1 | SPRING; VALVE | 1 | 0008- | 4JA1 | (B) | ||
| 85 | I8-94437 493-1 | BOLT; BRKT | 1 | 0008-0611 | 4JA1 | (B) M8X37 & M10X60 L=104 | ||
| 84 | I8-94152 345-1 | BRACKET; ROCKER SHF, INTER | 4 | 0008-0611 | 4JA1 | |||
| 104 | I1-09040 044-0 | BOLT; SHAFT IDLE | 1 | 0008-0611 | 4JA1 | M12X57 | ||
| 68 | I8-94433 247-0 | SPRING; VALVE | 8 | 0008-0611 | 4JA1 | (A) OD=30.6 | ||
| 101 | I8-97223 999-0 | BOLT; THRUST COLLAR | 2 | 0612- | 4JA1-T | M8X53 FLANGE | ||
| 11 | I8-94433 407-0 | BOLT; THRUST PLATE TO C/BL | 1 | 0008-0611 | 4JA1 | M12X47 | ||
| 81 | I8-94152 283-A | SCREW; ADJ, ROCKER ARM | 8 | 0008- | 4JA1 | M8X30 | ||
| 86 | I9-09164 010-0 | WASHER; ROCKER ARM FIX | 4 | 0008-0611 | 4JA1 | ID=10.5 OD=18 | ||
| 78 | I8-94152 344-0 | ARM; ROCKER | 8 | 0612- | 4JA1-T | |||
| 71 | I8-94133 731-2 | SEAT; SPR | 8 | 0612- | 4JA1-T | (B) OD=32.8 | ||
| 14 | I9-08000 718-0 | KEY; CM/SHF | 1 | 0008-0611 | 4JA1 | |||
| 44 | I0-28080 816-0 | BOLT | 2 | 0612- | 4JA1-T | (A), M8X16 FLANGE, IND | ||
| 72 | I8-97120 307-0 | SEAL; VLV GUIDE | 8 | 0008-0611 | 4JA1 | |||
| 53 | I8-97036 197-0 | SHAFT; ROCKER ARM | 1 | 0612- | 4JA1-T | |||
| 106 | I5-12519 002-1 | WASHER; IDLE GEAR SHAFT | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 53 | I8-97036 197-0 | SHAFT; ROCKER ARM | 1 | 0008-0611 | 4JA1 | |||
| 101 | I8-97223 999-0 | BOLT; THRUST COLLAR | 2 | 0008-0611 | 4JA1 | M8X53 FLANGE | ||
| 1 | I8-97287 657-1 | CAMSHAFT | 1 | 0612- | 4JA1-T | IND, EURO 2 | ||
| 1 | I8-94127 797-A | CAMSHAFT | 1 | 0612- | 4JA1-T | IND, EURO 2 | ||
| 305 | I8-97241 493-A | BEARING; IDLE GEAR | 1 | 0008- | 4JA1 | (IADG) | ||
| 56 | I9-09180 019-0 | RING; SNAP, ROCKER ARM | 2 | 0612- | 4JA1-T | |||
| 109 | I8-97943 225-0 | SHAFT; IDLE GEAR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 53 | I8-94343 205-0 | SHAFT; ROCKER ARM | 1 | 0008-0008 | 4JA1 | |||
| 163 | I8-97132 030-1 | RING; SNAP, IDLE | 1 | 0008- | 4JA1 | (A) | ||
| 113 | I8-97139 001-A | GEAR ASM; IDLE | 1 | 0612- | 4JA1-T | IND | ||
| 65 | I5-12565 004-0 | COLLAR; SPLIT | 16 | 0612- | 4JA1-T |
