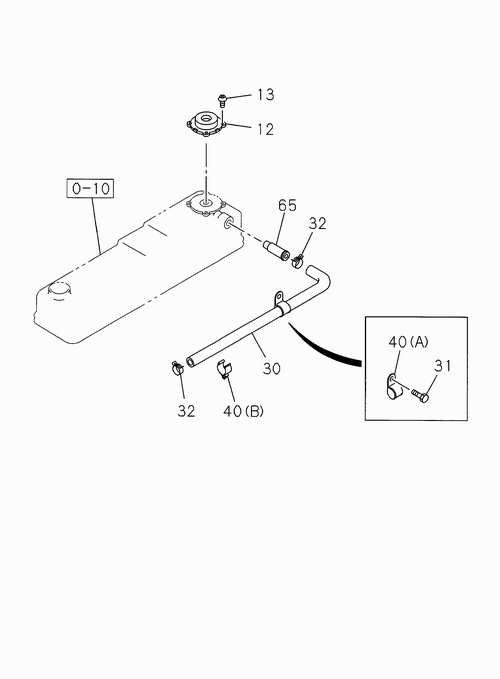

0-28 | VENTILATION SYSTIM
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 31 | I0-28080 812-0 | BOLT; HOSE CLIP | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> M8X12 FLANGE | ||
| 30 | I8-94437 494-A | HOSE; VENTILATOR, CYL HD COVER | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> IND | ||
| 40 | I8-94422 733-0 | CLIP; PVC HOSE | 1 | 0008-0611 | 4JA1 | (B) .TURBOCHARGER<K51> ID=21 BLACK | ||
| 12 | I8-97119 887-0 | VENTILATOR; AIR | 1 | 0301-0611 | 4JA1 | |||
| 30 | I8-94437 494-A | HOSE; VENTILATOR, CYL HD COVER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> IND | ||
| 13 | I9-03910 408-0 | SCREW; VENTILATOR TO HD COVER | 4 | 0008-0611 | 4JA1 | M4X8 W/PL WASHER | ||
| 12 | I8-97119 887-0 | VENTILATOR; AIR | 1 | 0612- | 4JA1-T | |||
| 13 | I0-36220 408-0 | SCREW; VENTILATOR TO HD COVER | 4 | 0612- | 4JA1-T | M4X8 W/PL WASHER | ||
| 30 | I8-97958 920-A | HOSE; VENTILATOR, CYL HD COVER | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> IND | ||
| 13 | I9-03910 408-0 | SCREW; VENTILATOR TO HD COVER | 4 | 0612- | 4JA1-T | M4X8 W/PL WASHER | ||
| 40 | I8-94422 733-0 | CLIP; PVC HOSE | 1 | 0612- | 4JA1 | (B) .TURBOCHARGER<K51> ID=21 BLACK | ||
| 32 | I8-94121 113-0 | CLIP; VENT HOSE | 2 | 0612- | 4JA1 | ID=20.4 | ||
| 12 | I8-94250 172-0 | VENTILATOR; AIR | 1 | 0008-0212 | 4JA1 | |||
| 13 | I0-36220 408-0 | SCREW; VENTILATOR TO HD COVER | 4 | 0008- | 4JA1 | M4X8 W/PL WASHER | ||
| 40 | I9-09916 078-0 | CLIP; PVC HOSE | 1 | 0008- | 4JA1 | (A), EXC. TURBOCHARGER<K51> | ||
| 65 | I8-94250 615-1 | PIPE; BREATHER | 1 | 0008-0611 | 4JA1 | |||
| 32 | I8-94121 113-0 | CLIP; VENT HOSE | 2 | 0008-0611 | 4JA1 | ID=20.4 | ||
| 32 | I8-98150 355-0 | CLIP; VENT HOSE | 2 | 0612- | 4JA1 | ID=20.4 | ||
| 32 | I8-98150 355-0 | CLIP; VENT HOSE | 2 | 0008- | 4JA1 | ID=20.4 | ||
| 65 | I8-94250 615-1 | PIPE; BREATHER | 1 | 0612- | 4JA1 | EURO 2 |
