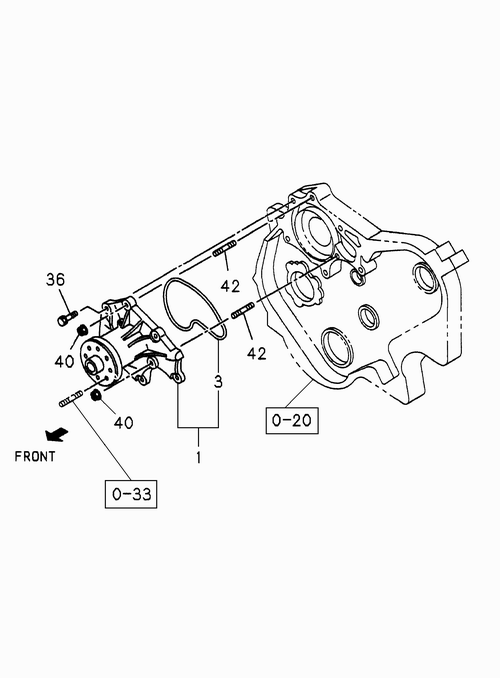

0-30 | WATER PUMP AND CORROSION RESISTOR
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I5-09000 084-1 | BOLT; WATER PUMP TO C/BL | 5 | 0008-0611 | 4JA1 | M8X55 W/LK WASHER | ||
| 1 | I8-97105 012-5 | PUMP ASM; WATER, W/GASKET | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I8-97123 330-2 | PUMP ASM; WATER, W/GASKET | 1 | 0008-0201 | 4JA1 | |||
| 3 | I8-94178 081-1 | GASKET; PUMP TO C/BL | 1 | 0008- | 4JA1 | |||
| 42 | I9-04110 822-0 | STUD; WATER PUMP | 2 | 0008- | 4JA1 | M8X22 L=33 | ||
| 40 | I0-91150 108-0 | NUT; WATER PUMP | 2 | 0008-0611 | 4JA1 | M8 FLANGE IND | ||
| 3 | I8-94178 081-1 | GASKET; PUMP TO C/BL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 36 | I8-94150 045-1 | BOLT; WATER PUMP TO C/BL | 5 | 0008- | 4JA1 | M8X55 W/LK WASHER | ||
| 3 | I8-94178 081-0 | GASKET; PUMP TO C/BL | 1 | 0008-0611 | 4JA1 | |||
| 40 | I0-91180 108-0 | NUT; WATER PUMP | 2 | 0612- | 4JA1-T | M8 FLANGE IND | ||
| 3 | I8-94178 081-0 | GASKET; PUMP TO C/BL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 36 | I5-09000 084-1 | BOLT; WATER PUMP TO C/BL | 5 | 0612- | 4JA1-T | M8X55 W/LK WASHER | ||
| 1 | I8-97105 012-3 | PUMP ASM; WATER, W/GASKET | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 42 | I0-41010 822-0 | STUD; WATER PUMP | 2 | 0008- | 4JA1 | M8X22 L=33 | ||
| 1 | I8-97105 012-5 | PUMP ASM; WATER, W/GASKET | 1 | 0008- | 4JA1 | |||
| 1 | I8-97105 012-3 | PUMP ASM; WATER, W/GASKET | 1 | 0202-0611 | 4JA1 | |||
| 36 | I8-94150 045-1 | BOLT; WATER PUMP TO C/BL | 5 | 0612- | 4JA1-T | M8X55 W/LK WASHER | ||
| 1 | I8-97105 012-5 | PUMP ASM; WATER, W/GASKET | 1 | 0202- | 4JA1 | |||
| 40 | I0-91150 208-0 | NUT; WATER PUMP | 2 | 0008- | 4JA1 | M8 FLANGE IND |
