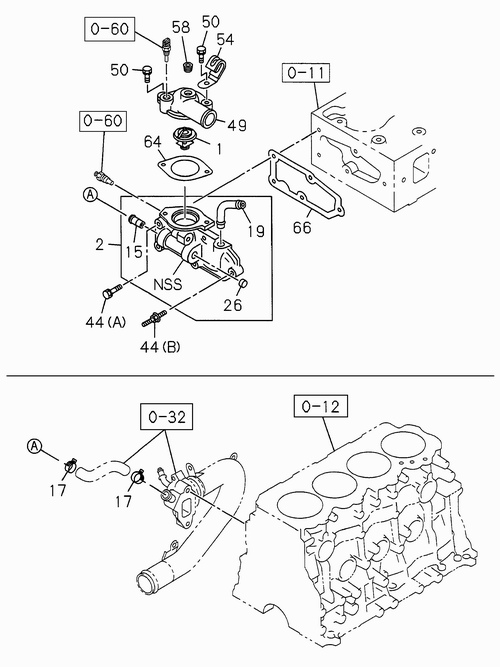

0-31 | THERMOSTAT AND HOUSING
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 64 | I8-94365 674-2 | GASKET; OUTLET PIPE TO HOUSING | 1 | 0612- | 4JA1-T | ID=12 | ||
| 44 | I0-50040 830-0 | BOLT; HSG TO HD | 4 | 0008-0611 | 4JA1 | (A), M8X30 W/LK WASHER | ||
| 26 | I5-11219 008-0 | CUP; SEALING VLV, VENT | 1 | 0612- | 4JA1-T | OD=18 | ||
| 2 | I8-97916 700-0 | HOUSING; THERMOSTAT | 1 | 0612- | 4JA1-T | M/T MSG 5 SPEED (M75), THA | ||
| 50 | I0-50140 830-0 | BOLT; OUTLET PIPE | 2 | 0008-0611 | 4JA1 | M8X30 W/LK & PL WASHER | ||
| 19 | I8-97910 082-0 | PIPE; HSG TO HTR | 1 | 0612- | 4JA1-T | M/T MSG 5 SPEED, THA | ||
| 49 | I8-98126 572-0 | PIPE; WATER OUTLET | 1 | 0008- | 4JA1 | TURBOCHARGER<K51> | ||
| 19 | I8-94478 870-1 | PIPE; HSG TO HTR | 1 | 0008- | 4JA1 | A/T AISIN (RMD) TURBOCHARGER<K51> | ||
| 26 | I5-11219 008-0 | CUP; SEALING VLV, VENT | 1 | 0008-0611 | 4JA1 | OD=18 | ||
| 44 | I0-50540 830-0 | BOLT; HSG TO HD | 4 | 0008- | 4JA1 | (A), M8X30 W/LK WASHER | ||
| 15 | I8-94343 211-1 | PIPE; BYPASS | 1 | 0008- | 4JA1 | A/T AISIN (RMD) TURBOCHARGER<K51> | ||
| 15 | I8-97910 083-0 | PIPE; BYPASS | 1 | 0612- | 4JA1-T | M/T MSG 5 SPEED, THA | ||
| 49 | I8-97123 047-0 | PIPE; WATER OUTLET | 1 | 0008- | 4JA1 | EXC.TURBOCHARGER<K51> IND | ||
| 49 | I8-97123 047-A | PIPE; WATER OUTLET | 1 | 0008- | 4JA1 | EXC.TURBOCHARGER<K51> IND | ||
| 44 | I0-50040 830-0 | BOLT; HSG TO HD | 4 | 0612- | 4JA1-T | (A), M8X30 W/LK WASHER | ||
| 66 | I8-97216 156-0 | GASKET; THERMOSTAT HSG | 1 | 0612- | 4JA1-T | |||
| 58 | I5-09605 005-0 | PLUG; WATER OUTLET PIPE | 2 | 0008- | 4JA1 | TURBOCHARGER<K51> PT 3/8 | ||
| 44 | I8-94479 011-1 | BOLT; HSG TO HD | 1 | 0008-0611 | 4JA1 | (B), M8X28, M8X34 L=69 | ||
| 2 | I8-97379 305-0 | HOUSING; THERMOSTAT | 1 | 0410- | 4JA1 | A/T AISIN (RMD) TURBOCHARGER<K51> HI GRADE, TOURING, GRAND TOURING | ||
| 54 | I5-09700 331-0 | CLIP; THERMO SWITCH, OUT LET PIPE | 1 | 0008-0611 | 4JA1 | ID=12 | ||
| 1 | I8-97361 770-0 | THERMOSTAT | 1 | 0302-0611 | 4JA1 | 82* C | ||
| 44 | I8-94479 011-1 | BOLT; HSG TO HD | 1 | 0612- | 4JA1-T | (B), M8X28, M8X34 L=69 | ||
| 1 | I8-97361 770-0 | THERMOSTAT | 1 | 0612- | 4JA1-T | 82* C | ||
| 2 | I8-97204 600-0 | HOUSING; THERMOSTAT | 1 | 0008-0409 | 4JA1 | A/T AISIN (RMD) TURBOCHARGER<K51> | ||
| 49 | I8-97910 201-0 | PIPE; WATER OUTLET | 1 | 0009-0101 | 4JA1 | TURBOCHARGER<K51>, THA EXC.TOURING | ||
| 44 | I0-50540 830-0 | BOLT; HSG TO HD | 4 | 0612- | 4JA1-T | (A), M8X30 W/LK WASHER | ||
| 17 | I8-94125 862-0 | CLIP; WATER HOSE | 2 | 0612- | 4JA1-T | ID=20.8 | ||
| 1 | I8-97089 891-0 | THERMOSTAT | 1 | 0008-0301 | 4JA1 | 82* C | ||
| 50 | I0-50640 830-0 | BOLT; OUTLET PIPE | 2 | 0612- | 4JA1-T | M8X30 W/LK & PL WASHER | ||
| 54 | I5-09700 331-0 | CLIP; THERMO SWITCH, OUT LET PIPE | 1 | 0612- | 4JA1-T | ID=12 | ||
| 2 | I8-97916 700-0 | HOUSING; THERMOSTAT | 1 | 0008-0611 | 4JA1 | M/T MSG 5 SPEED (M75), THA | ||
| 15 | I8-97910 083-0 | PIPE; BYPASS | 1 | 0008-0611 | 4JA1 | M/T MSG 5 SPEED, THA | ||
| 64 | I8-94365 674-2 | GASKET; OUTLET PIPE TO HOUSING | 1 | 0008-0611 | 4JA1 | ID=12 | ||
| 49 | I8-97300 376-0 | PIPE; WATER OUTLET | 1 | 0102-0206 | 4JA1 | TURBOCHARGER<K51>, THA TOURING | ||
| 17 | I8-94125 862-0 | CLIP; WATER HOSE | 2 | 0008-0611 | 4JA1 | ID=20.8 | ||
| 49 | I8-97921 733-0 | PIPE; WATER OUTLET | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51>, THA ALL VARIANT EURO 2 | ||
| 49 | I8-97183 181-0 | PIPE; WATER OUTLET | 1 | 0008-0008 | 4JA1 | TURBOCHARGER<K51> | ||
| 49 | I8-97921 733-0 | PIPE; WATER OUTLET | 1 | 0207-0611 | 4JA1 | TURBOCHARGER<K51>, THA TOURING | ||
| 19 | I8-97910 082-0 | PIPE; HSG TO HTR | 1 | 0008-0611 | 4JA1 | M/T MSG 5 SPEED, THA | ||
| 66 | I8-97216 156-0 | GASKET; THERMOSTAT HSG | 1 | 0008-0611 | 4JA1 |
