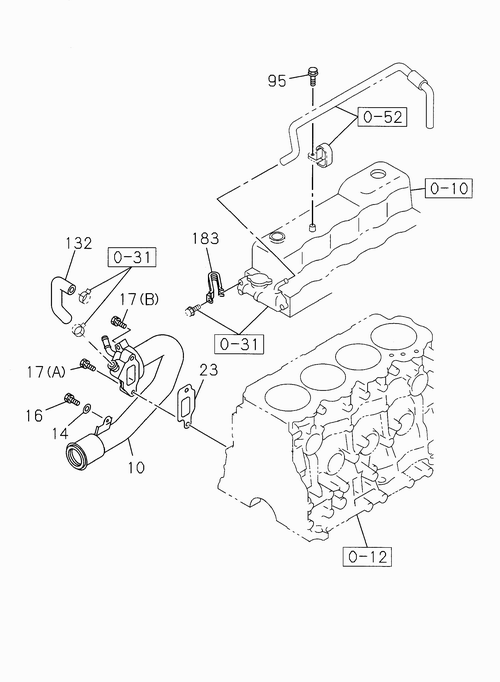

0-32 | WATER PIPING; ENGINE
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 183 | I5-09700 331-0 | CLIP; VACUUM HOSE | 1 | 0612- | 4JA1 | ID=12 | ||
| 23 | I8-97943 089-0 | GASKET; SUCTION PIPE TO BLOCK | 1 | 0206-0611 | 4JA1 | THA | ||
| 17 | I0-50040 822-0 | BOLT; SUCTION PIPE | 1 | 0008-0012 | 4JA1 | (A) M8X22 W/LK WASHER | ||
| 17 | I0-50040 850-0 | BOLT; SUCTION PIPE | 2 | 0101-0611 | 4JA1 | (A), (B) M8X45 W/LK WASHER | ||
| 10 | I8-97188 176-0 | PIPE; SUCTION | 1 | 0008-0012 | 4JA1 | EXC. TURBOCHARGER<K51> | ||
| 10 | I8-97260 733-0 | PIPE; SUCTION | 1 | 0008-0012 | 4JA1 | TURBOCHARGER<K51> | ||
| 16 | I0-50740 820-0 | BOLT; INL PIPE | 1 | 0008- | 4JA1 | M8X20 W/LK WASHER | ||
| 132 | I8-94382 246-A | HOSE; WATER PIPE | 1 | 0612- | 4JA1-T | IND | ||
| 132 | I8-94382 246-A | HOSE; WATER PIPE | 1 | 0411-0611 | 4JA1 | |||
| 10 | I8-97264 248-1 | PIPE; SUCTION | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 10 | I8-97264 248-1 | PIPE; SUCTION | 1 | 0101-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 16 | I0-50040 820-0 | BOLT; INL PIPE | 1 | 0612- | 4JA1-T | M8X20 W/LK WASHER | ||
| 132 | I8-94382 246-0 | HOSE; WATER PIPE | 1 | 0008-0410 | 4JA1 | |||
| 17 | I0-50040 845-0 | BOLT; SUCTION PIPE | 1 | 0008-0012 | 4JA1 | (B) M8X45 W/LK WASHER | ||
| 14 | I8-94174 537-0 | WASHER; PL, INL PIPE TO BRKT | 1 | 0008-0611 | 4JA1 | ID=8 OD=18 T=3 | ||
| 17 | I0-50740 845-0 | BOLT; SUCTION PIPE | 1 | 0008- | 4JA1 | (B) M8X45 W/LK WASHER | ||
| 16 | I0-50740 820-0 | BOLT; INL PIPE | 1 | 0612- | 4JA1-T | M8X20 W/LK WASHER | ||
| 95 | I0-28080 812-0 | BOLT; CLIP | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> M8X12 FLANGE IND | ||
| 23 | I8-97912 602-0 | GASKET; SUCTION PIPE TO BLOCK | 1 | 0008-0205 | 4JA1 | THA | ||
| 17 | I0-50540 850-0 | BOLT; SUCTION PIPE | 2 | 0612- | 4JA1-T | (A) M8X50 W/LK WASHER | ||
| 23 | I8-97943 089-0 | GASKET; SUCTION PIPE TO BLOCK | 1 | 0612- | 4JA1-T | THA | ||
| 183 | I5-09700 331-0 | CLIP; VACUUM HOSE | 1 | 0008- | 4JA1 | COLLER WO/HEATER (YL1) EXC. TURBOCHARGER<K51> ID=12 | ||
| 10 | I8-97264 246-1 | PIPE; SUCTION | 1 | 0101- | 4JA1 | EXC. TURBOCHARGER<K51> | ||
| 14 | I8-94174 537-0 | WASHER; PL, INL PIPE TO BRKT | 1 | 0612- | 4JA1-T | ID=8 OD=18 T=3 | ||
| 16 | I0-50040 820-0 | BOLT; INL PIPE | 1 | 0008-0611 | 4JA1 | M8X20 W/LK WASHER | ||
| 10 | I8-97260 733-1 | PIPE; SUCTION | 1 | 0008- | 4JA1 | TURBOCHARGER<K51> |
